Toyota COROLLA 锁芯组件 — Figure 6712

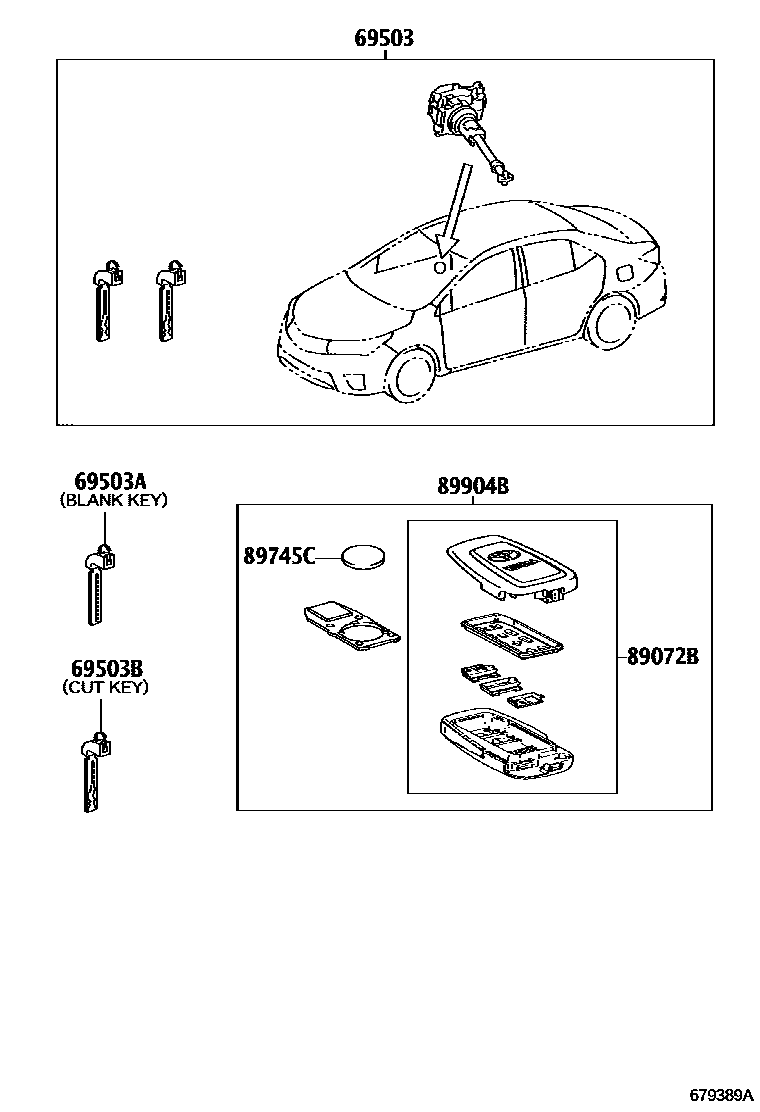

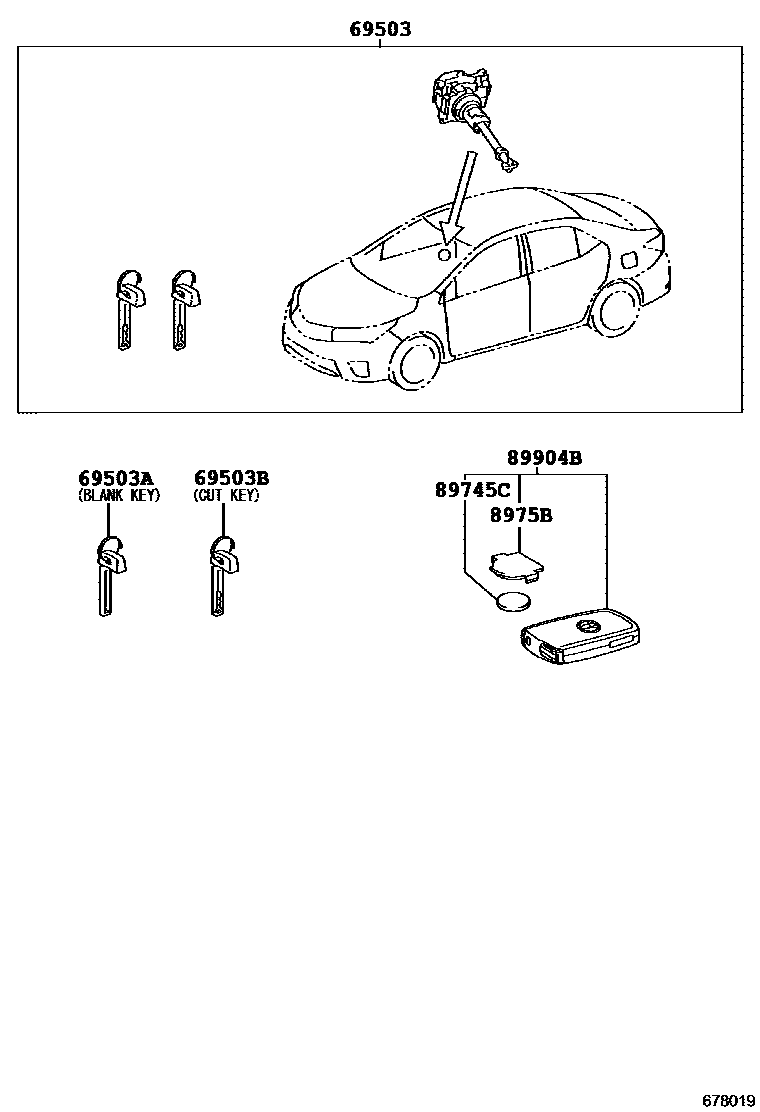

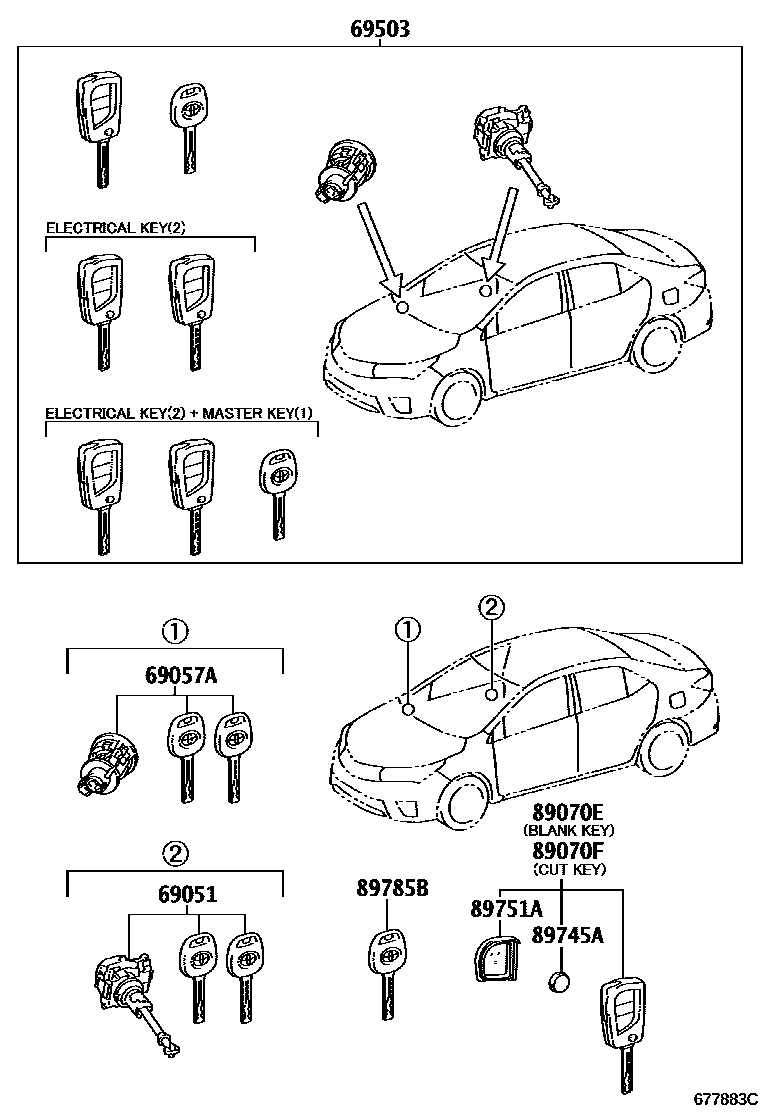

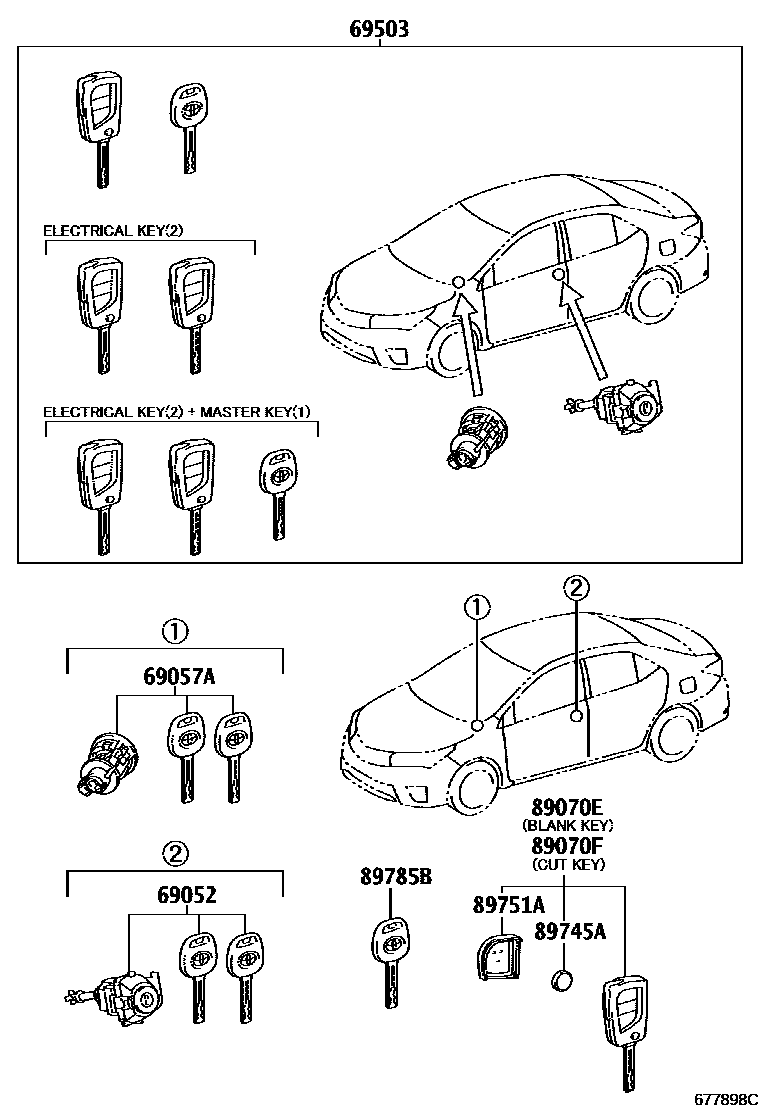

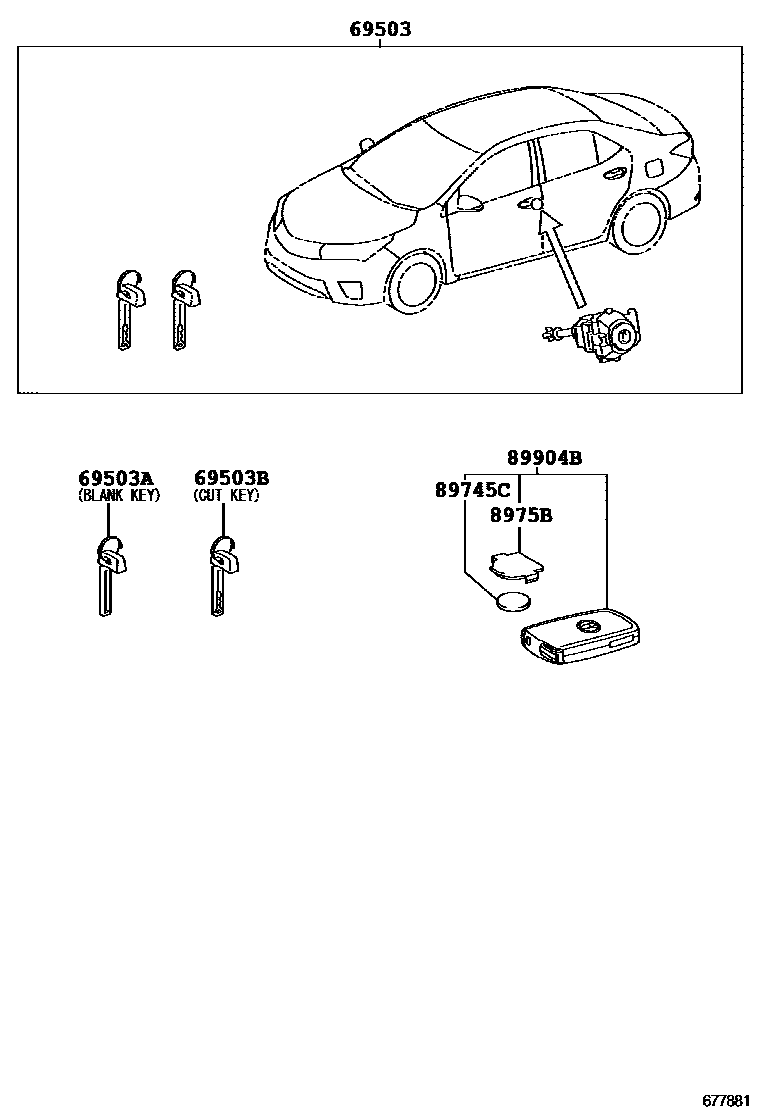

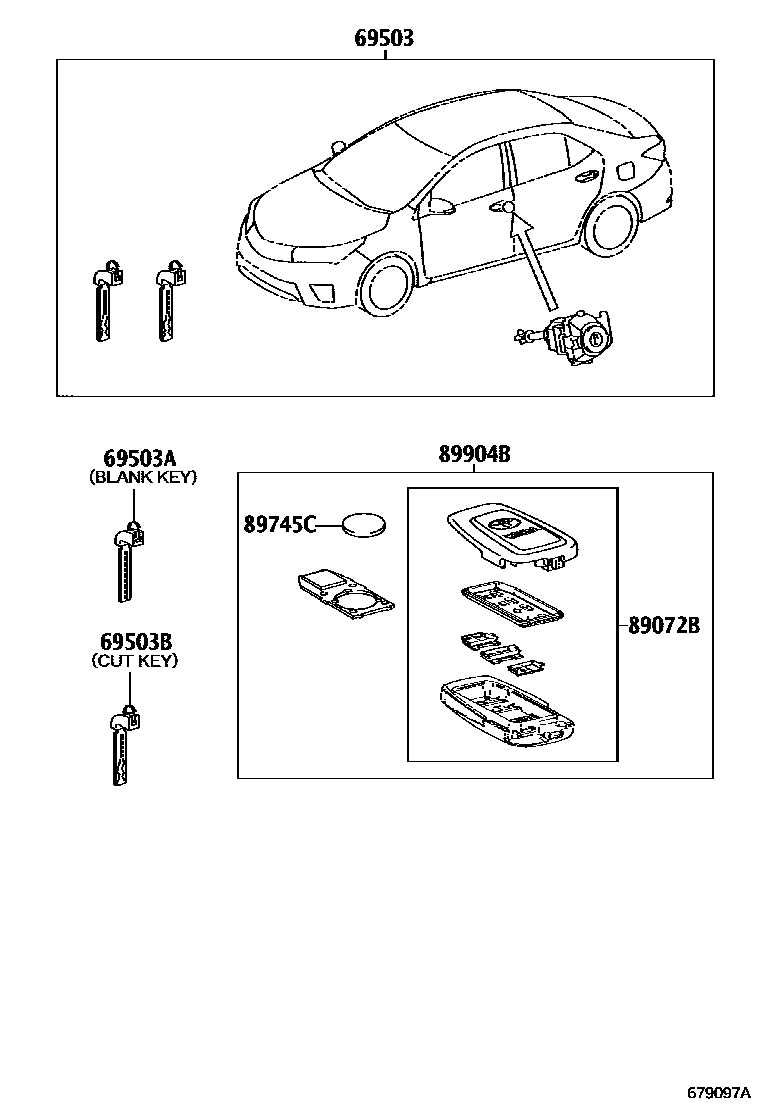

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 6 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-02260 |
| 69052 | Left door lock cylinder and key assembly | 69052-02290 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02500 · 69057-02680 |
| 69503 | Door lock cylinder components | 69005-02A80 · 69005-02B30 · 69005-02E90 · 69005-12J70 · 69005-12J80 · 89704-02630 · 89704-02640 · 89704-02650 · 89704-02660 · 89704-02670 |
| 69503A | external tooth key | 69515-16110 · 69515-33100 · 69515-47030 |
| 69503B | internal tooth key | 69515-16100 · 69515-33090 · 69515-47020 |
| 89070E | Remote key assembly | 89070-02850 · 89070-02851 |
| 89070F | Remote key assembly (internal tooth key) | 89070-02830 · 89070-02831 |
| 89072B | Remote key shell assembly (for smart key) | 89072-02620 |
| 89745A | Transmitter battery | 89745-0H010 |
| 89745C | Transmitter battery | 89745-50020 |
| 89751A | Transmitter housing cover | 89751-05020 |
| 8975B | Remote control battery case cover | 8975B-33010 |
| 89785B | transceiver key master transmitter | 89785-02300 |
| 89904B | Electronic key transmitter sub-assembly | 89904-02060 · 89904-02100 · 89904-02110 |
