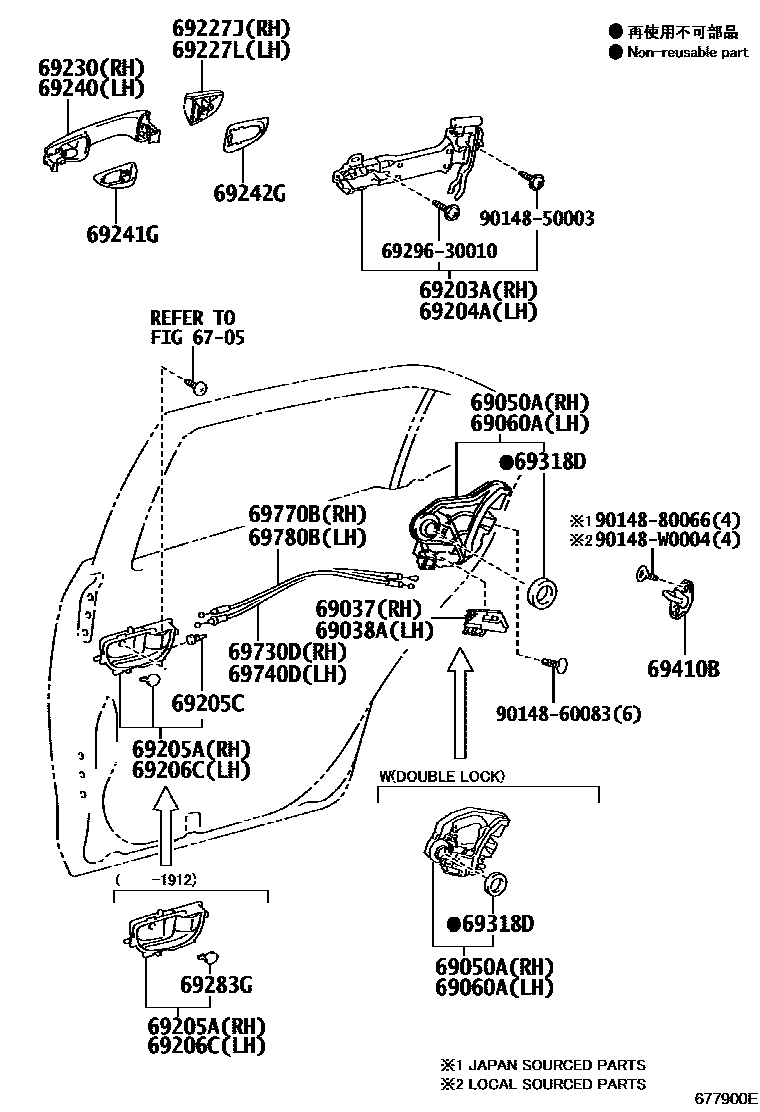

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69037 | Right rear door door lock cover sub-assembly | 69037-02020 |
| 69038A | Left rear door door lock cover sub-assembly | 69038-02020 |
| 69050A | Right rear door lock assembly with motor | 69050-02240 · 69050-02380 · 69050-02381 · 69050-02390 · 69050-02391 · 69050-12410 |
| 69060A | Left rear door lock assembly with motor | 69060-02230 · 69060-02380 · 69060-02381 · 69060-02390 · 69060-02391 · 69060-12410 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-02250 · 69203-02260 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-02250 · 69204-02260 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69227J | Right rear door outer handle cover | 69227-02922 · 69227-02923 |
| 69227L | Left rear door outer handle cover | 69228-02900 · 69228-02901 |
| 69230 | Right rear door outer handle assembly | 69211-02925 · 69211-02926 |
| 69240 | Left rear door outer handle assembly | 69212-02900 · 69212-02901 |
| 69241G | Rear door front exterior handle pad | 69241-02160 · 69241-12120 · 69242-02150 · 69242-12080 |
| 69242G | Rear door rear outer handle pad | 69241-02170 · 69241-12140 · 69242-02160 · 69242-12090 |
| 69283G | Rear door inner handle frame plug | 69283-0D010 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-0K070 · 69410-20110 |
| 69730D | Right rear door lock remote control cable assembly | 69730-02210 · 69730-02220 |
| 69740D | Left rear door lock remote control cable assembly | 69730-02210 · 69730-02220 |
| 69770B | Right rear door inner lock cable assembly | 69770-02300 · 69770-02310 |
| 69780B | Left rear door inner lock cable assembly | 69770-02300 · 69770-02310 |
