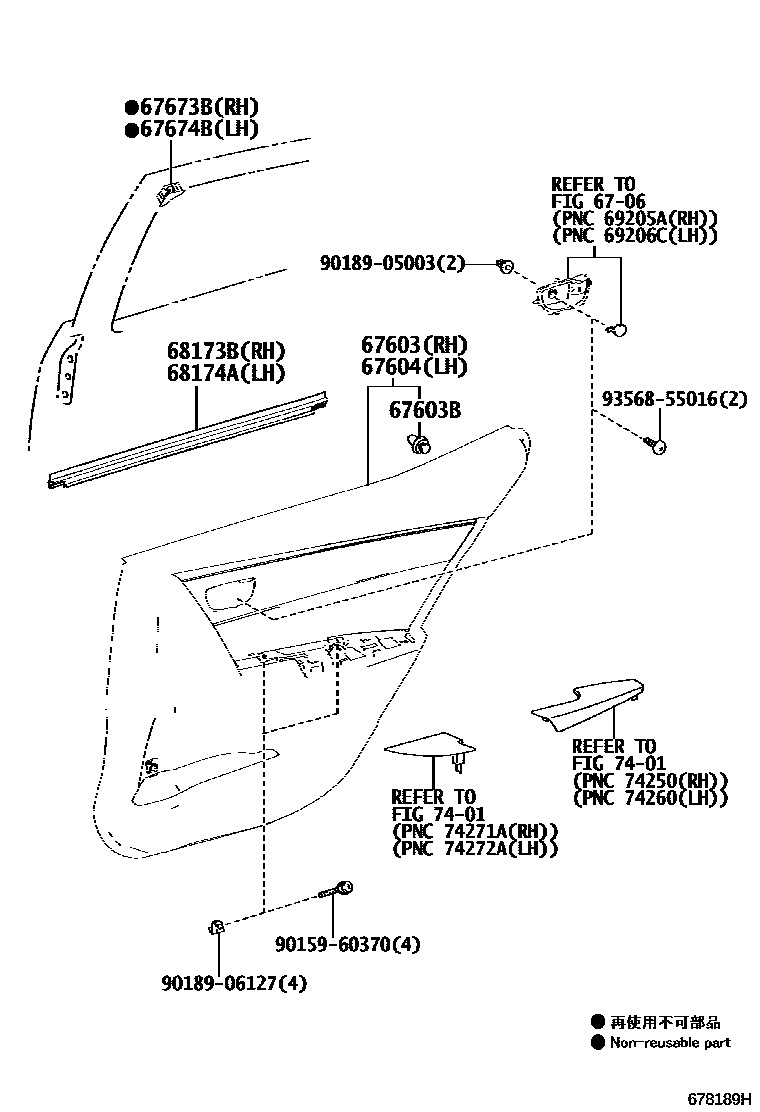

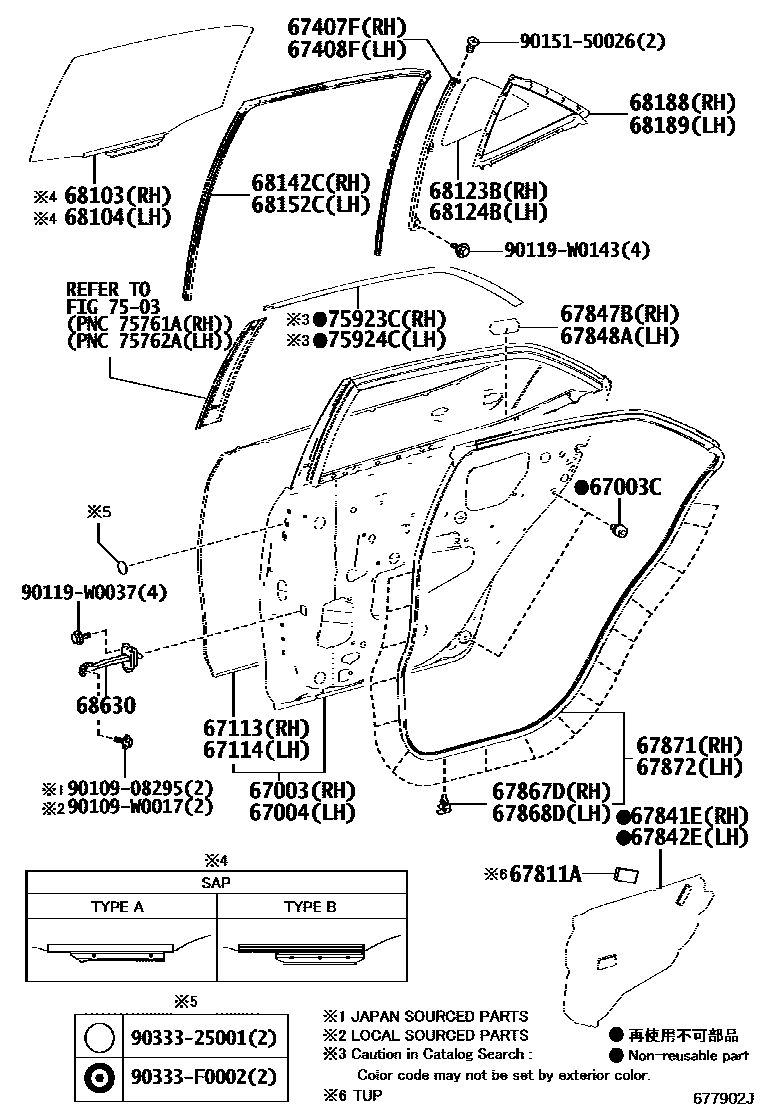

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-02410 · 67003-02420 |
| 67003C | Rear door panel cushion | 90541-09124 |
| 67004 | Left rear door panel sub-assembly | 67004-02410 · 67004-02420 |
| 67113 | Right rear door outer panel | 67113-02200 · 67113-02210 |
| 67114 | Left rear door outer panel | 67114-02200 · 67114-02210 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-02140 · 67407-12340 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-02140 · 67408-12340 |
| 67603B | Catch (for rear door trim panel) | 67773-0E020 · 90467-09206 |
| 67673B | Right rear door frame decorative strip | 67673-48010 |
| 67674B | Left rear door frame decorative strip | 67674-48010 |
| 67811A | Rear door silencer pad | 67811-02300 |
| 67841E | Right rear door access hole cover | 67841-02270 · 67841-02280 |
| 67842E | Left rear door access hole cover | 67842-02250 · 67842-02260 |
| 67847B | No. 1 right rear door ventilation device seal | 67847-02040 · 67847-02050 |
| 67848A | No. 1 left rear door ventilator seal | 67847-02040 · 67847-02050 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-02240 |
| 67872 | Left rear door sealing strip | 67872-02240 |
| 68103 | Right rear door glass sub-assembly | 68103-02380 · 68103-02410 · 68103-02430 · 68103-02670 |
| 68104 | Left rear door glass sub-assembly | 68104-02380 · 68104-02410 · 68104-02430 · 68104-02670 |
| 68123B | Right rear door corner window glass | 68123-02300 · 68123-02330 · 68123-02350 |
| 68124B | Left rear door corner window glass | 68124-02300 · 68124-02330 · 68124-02350 |
| 68142C | Right rear door glass lift slot | 68142-02300 |
| 68152C | Left rear door glass lift slot | 68152-02300 |
| 68173B | Right rear door glass inner sealing strip | 68173-02240 |
| 68174A | Left rear door glass inner sealing strip | 68174-02210 |
| 68188 | Right rear door corner window seal | 68188-02170 |
| 68189 | Left rear door corner window seal | 68189-02170 |
| 68630 | Rear door opening limiter assembly | 68630-02250 · 68630-02251 |
| 75923C | No. 2 right side light-shielding film | 75923-02230 · 75923-02240 |
| 75924C | No. 2 left shading film | 75924-02230 · 75924-02240 |
