Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

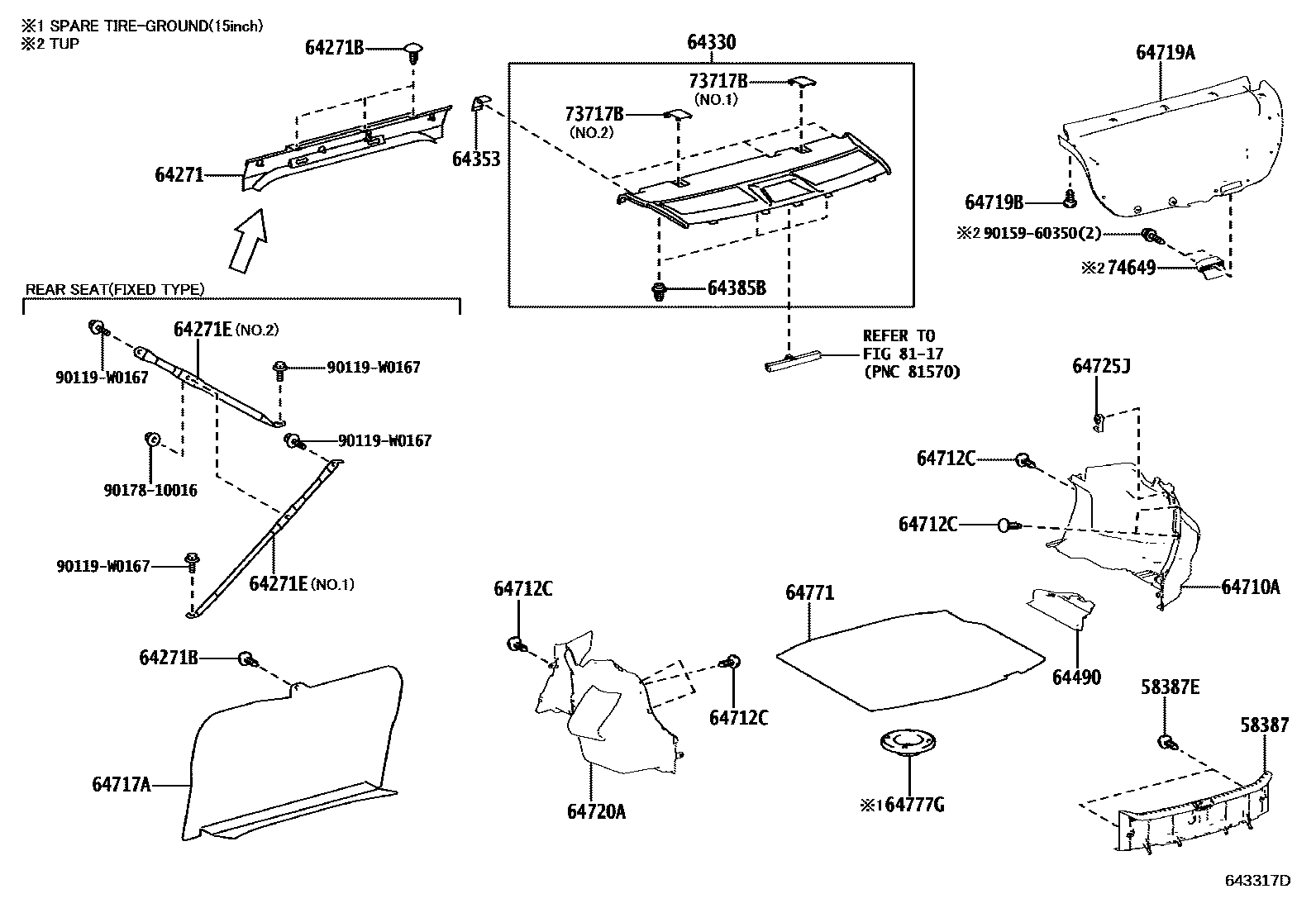

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-02221 · 58387-02222 |
| 58387E | Clip (for rear floor trim panel) | 90467-W0007 |
| 64271 | No. 1 compartment partition | 64271-02190 · 64271-02191 · 64271-02200 |
| 64271B | Clip (for compartment partition) | 90467-W0007 |
| 64271E | compartment partition | 64241-02230 · 64242-02230 |
| 64353 | Glove box decorative panel safety belt hole cover | 64353-02111 |
| 64385B | clip | 90467-W0005 |
| 64490 | Luggage side bracket assembly | 64490-02092 · 64490-02150 · 64490-02160 |
| 64712C | Clip (for trunk decorative cover) | 90467-W0007 |
| 64717A | Luggage front decorative cover | 64717-02350 |
| 64719B | Catch (for trunk door) | 90467-W0007 |
| 64777G | Spare tire cushion | 64777-02270 |
