Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

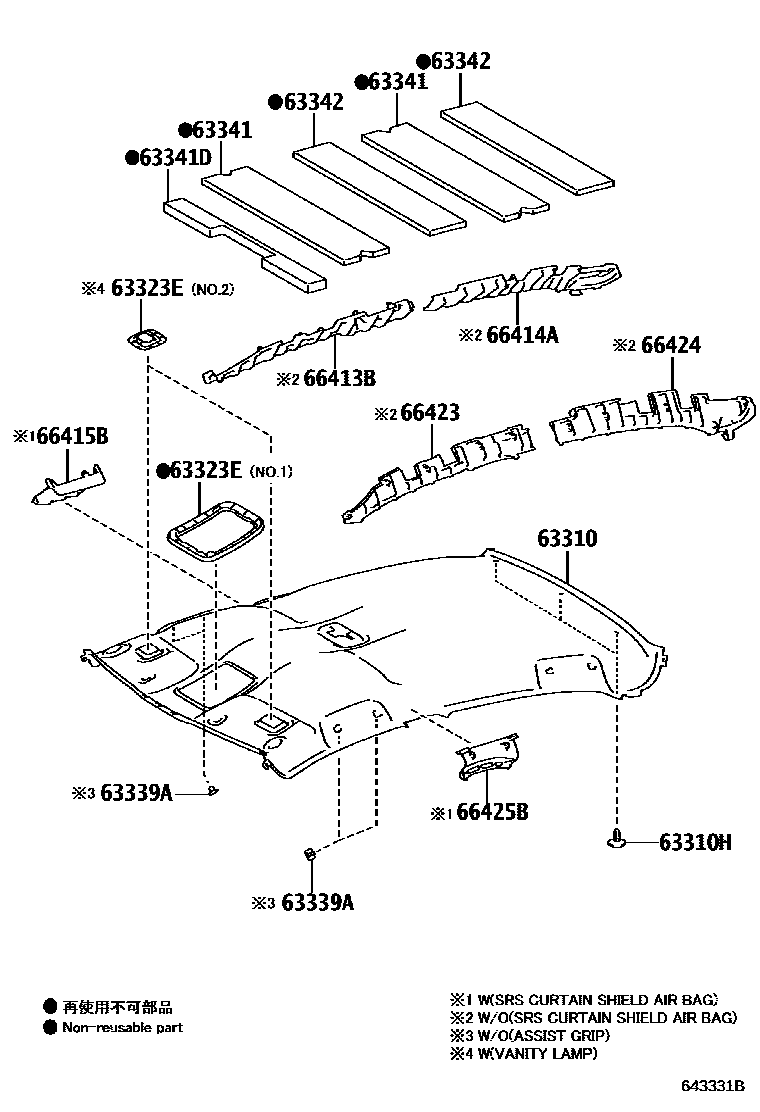

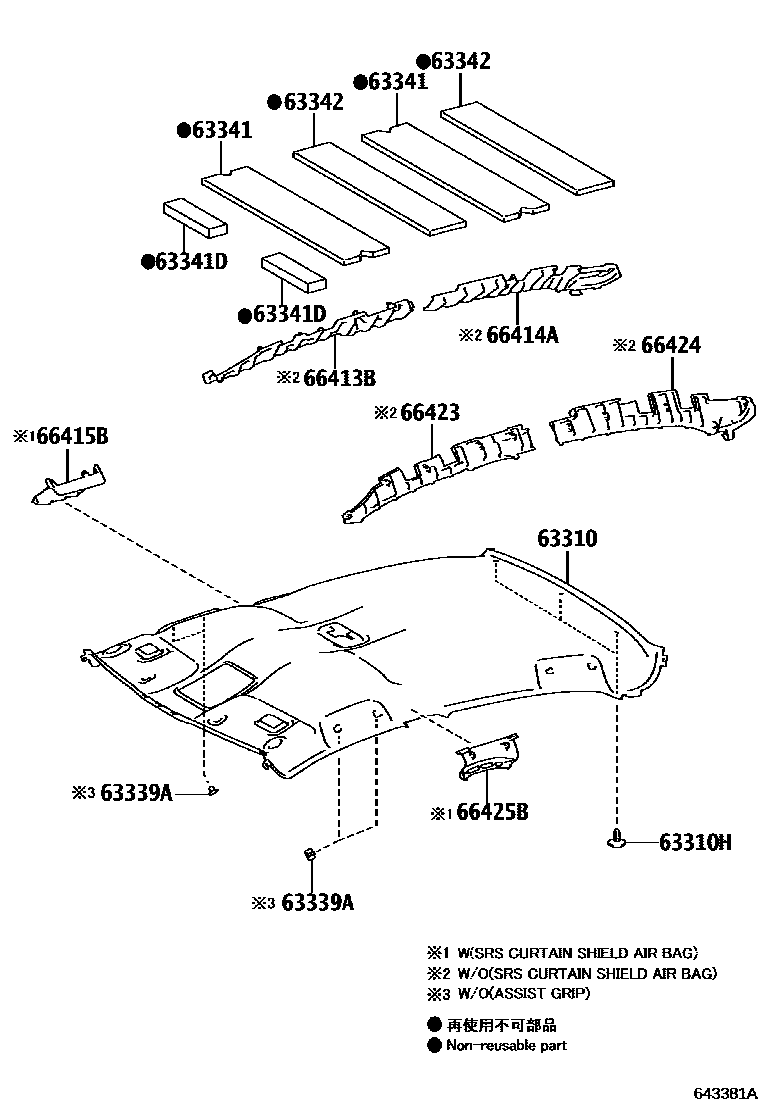

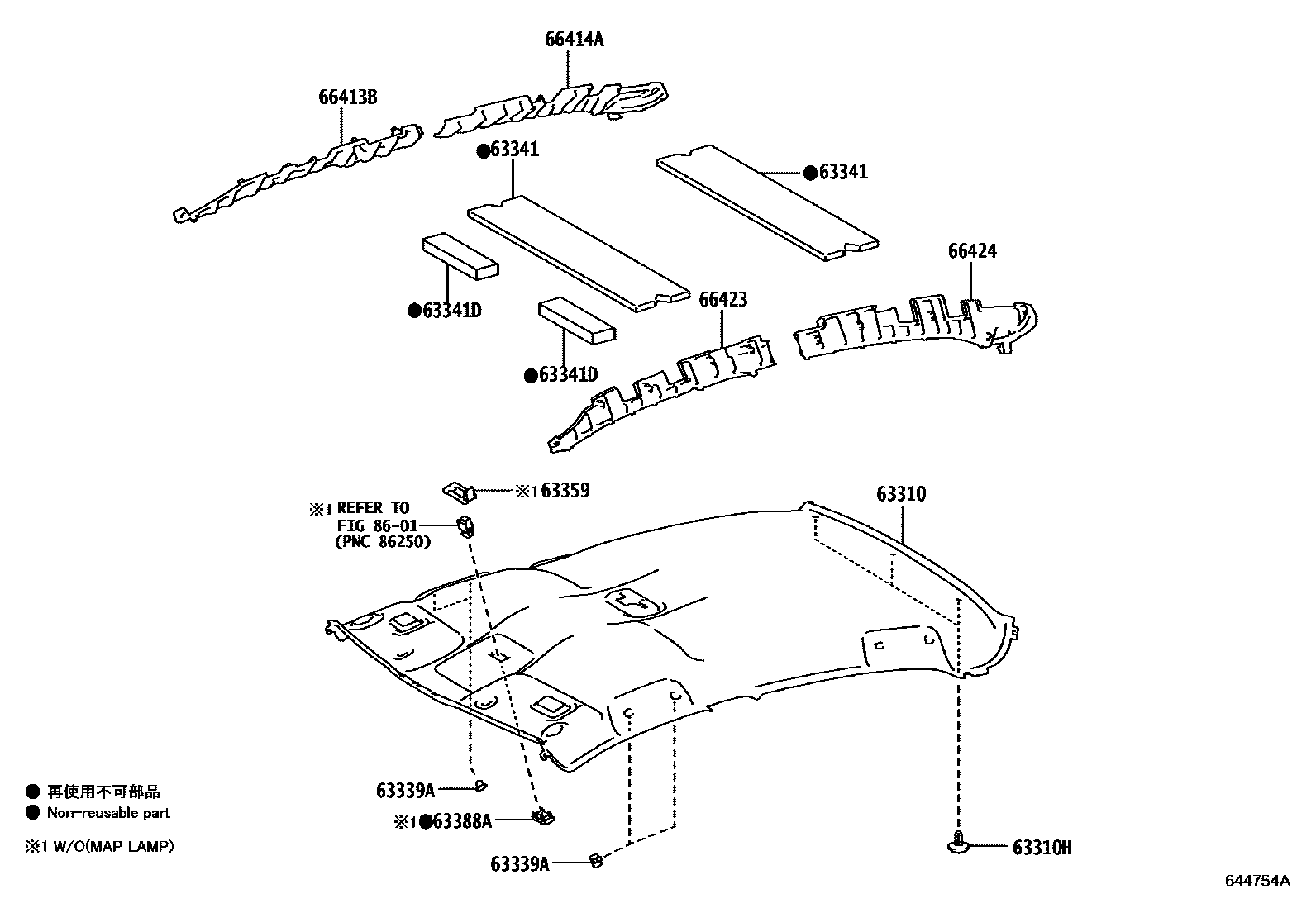

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63323E | Lined lamp housing | 63323-02010 · 63323-02020 |
| 63341 | No. 1 roof silencer mat | 63341-02320 · 63342-02520 · 63342-02700 |
| 63341D | Front roof silencer pad | 63341-02300 · 63341-02370 · 63341-02500 |
| 63342 | No. 2 roof muffler pad | 63341-02330 · 63342-02530 · 63342-02690 · 63342-02710 |
| 63359 | Headlining end pads | 63359-52040 |
| 66413B | Right front longitudinal member spacer | 66413-02120 · 66413-02150 |
| 66414A | Right rear longitudinal member spacer | 66414-02170 · 66414-02180 · 66414-02310 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-02100 · 66415-02130 |
| 66423 | Left front longitudinal member spacer | 66423-02120 · 66423-02150 |
| 66424 | Left rear longitudinal member spacer | 66424-02170 · 66424-02180 · 66424-02280 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-02110 · 66425-02140 |
