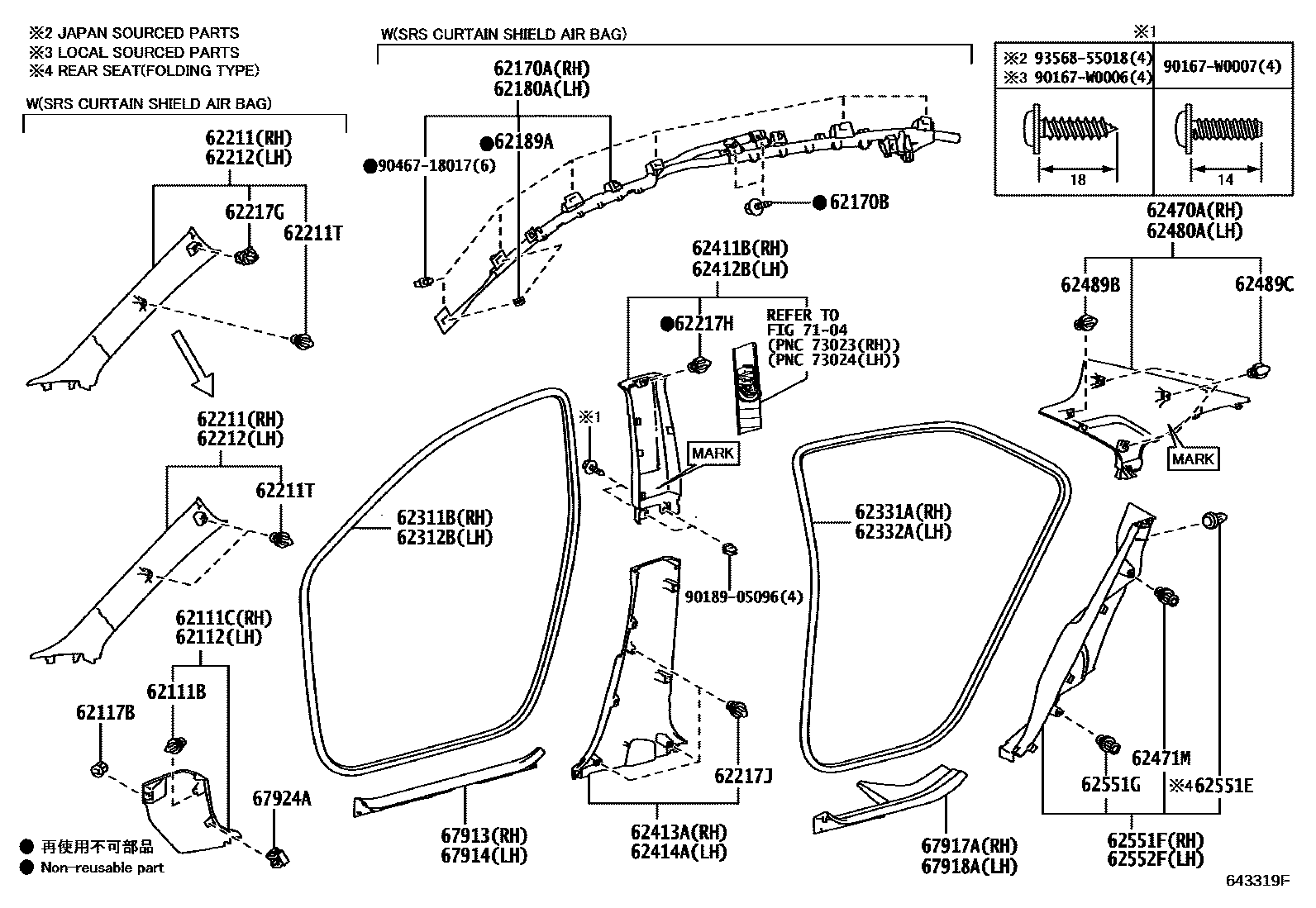

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-W0005 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-06147 |
| 62170A | Right curtain air bag assembly | 62170-02210 · 62170-02220 |
| 62170B | Bolts with washers | 90119-06869 · 90119-W0078 |
| 62180A | Left curtain air bag assembly | 62180-02200 · 62180-02210 |
| 62189A | Curtain air bag clip spacer | 62189-42010 |
| 62211T | Clip (for front pillar decorative panel) | 90467-W0005 |
| 62217G | Front pillar decorative plate clip | 62217-52120 |
| 62217H | Center pillar decorative plate clip | 90467-10188 |
| 62217J | Center pillar decorative plate clip | 90467-W0005 |
| 62311B | Right front door opening waterproof tape | 62311-02260 |
| 62312B | Left front door opening waterproof tape | 62312-02250 |
| 62331A | Right rear door opening waterproof tape | 62331-02280 · 62331-02281 |
| 62332A | Left rear door opening waterproof tape | 62332-02280 · 62332-02281 |
| 62471M | clip | 90467-A0033 |
| 62489B | Roof side interior panel clips | 90467-10188 |
| 62489C | Roof side interior panel clips | 90467-A0033 |
| 62551E | Clips (for rear seat side trim panels) | 90467-10167 |
| 62551G | clip | 62489-0E010 |
| 67924A | Door No. 2 wear plate clip | 67924-52140 |
