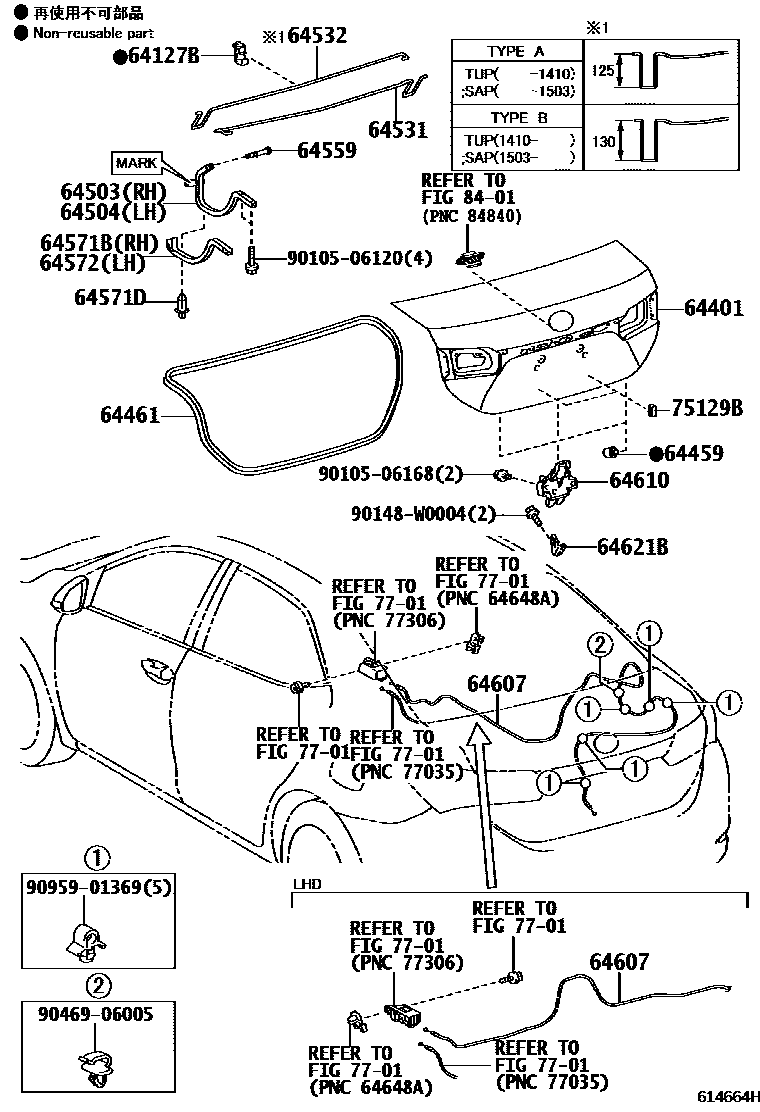

Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105
Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33071 |
| 64401 | Trunk door panel sub-assembly | 64401-02890 · 64401-02891 · 64401-02A00 · 64401-02A01 · 64401-02A30 · 64401-02A31 · 64401-02A40 · 64401-02A41 · 64401-02B40 · 64401-02B41 · 64401-02B50 · 64401-02B51 |
| 64459 | Trunk door cushion | 90541-09069 |
| 64461 | Trunk door seal | 64461-02200 · 64461-02270 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02160 · 64503-02161 · 64503-02170 · 64503-02171 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02160 · 64503-02161 · 64503-02170 · 64503-02171 |
| 64531 | Trunk door right hinge torsion bar | 64531-02150 · 64531-02151 · 64531-02160 · 64531-02161 |
| 64532 | Trunk door left hinge torsion bar | 64532-02150 · 64532-02151 · 64532-02280 · 64532-02281 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64571B | Trunk door right hinge cover | 64571-02010 |
| 64572 | Trunk door left hinge cover | 64572-02010 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02342 · 64607-02351 · 64607-02352 · 64607-02353 |
| 64610 | Trunk door lock assembly | 64600-02070 · 64600-02071 · 64600-02080 |
| 64621B | Trunk door latch | 64621-02010 · 64621-06080 |
| 75129B | rear license plate cushion | 75129-21010 |
