Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

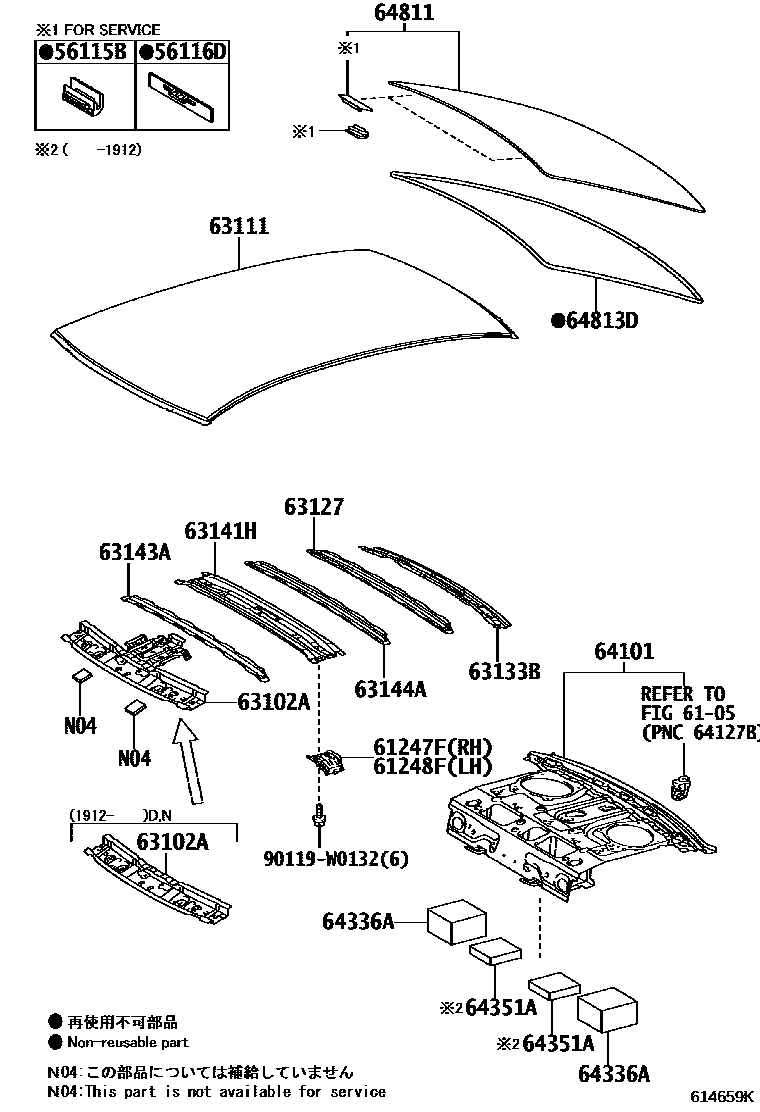

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-30120 |
| 56116D | No. 2 stopper for back window glass | 56116-22050 |
| 61247F | Roof inner longitudinal beam reinforcement | 61247-02060 · 61247-12070 |
| 61248F | Roof left inner longitudinal beam reinforcement | 61247-02060 · 61247-12070 |
| 63102A | Windshield roof sub-assembly | 63102-02290 · 63102-02300 · 63132-02180 |
| 63111 | roof panel | 63111-02440 · 63111-02450 |
| 63127 | No. 5 roof panel reinforcement | 63127-02080 |
| 63133B | back window frame | 63133-02120 · 63133-02130 · 63133-02131 |
| 63141H | Center roof panel reinforcement | 63141-02160 · 63141-02170 |
| 63143A | Roof panel reinforcement | 63143-02140 · 63143-02150 |
| 63144A | No. 4 roof panel reinforcement | 63144-02170 · 63144-02180 |
| 64101 | Upper back panel sub-assembly | 64101-02320 · 64101-02330 · 64101-02560 |
| 64336A | Glove box decorative panel side silencer pad | 64336-02050 · 64336-02060 |
| 64351A | No. 1 glove box decorative mat | 64351-02060 · 64351-02070 |
| 64811 | back window glass | 64801-02180 · 64801-02190 · 64801-02370 |
| 64813D | Back window glass adhesive seal | 56117-50130 |
