Toyota COROLLA 中央扶手箱和支架 — Figure 5806

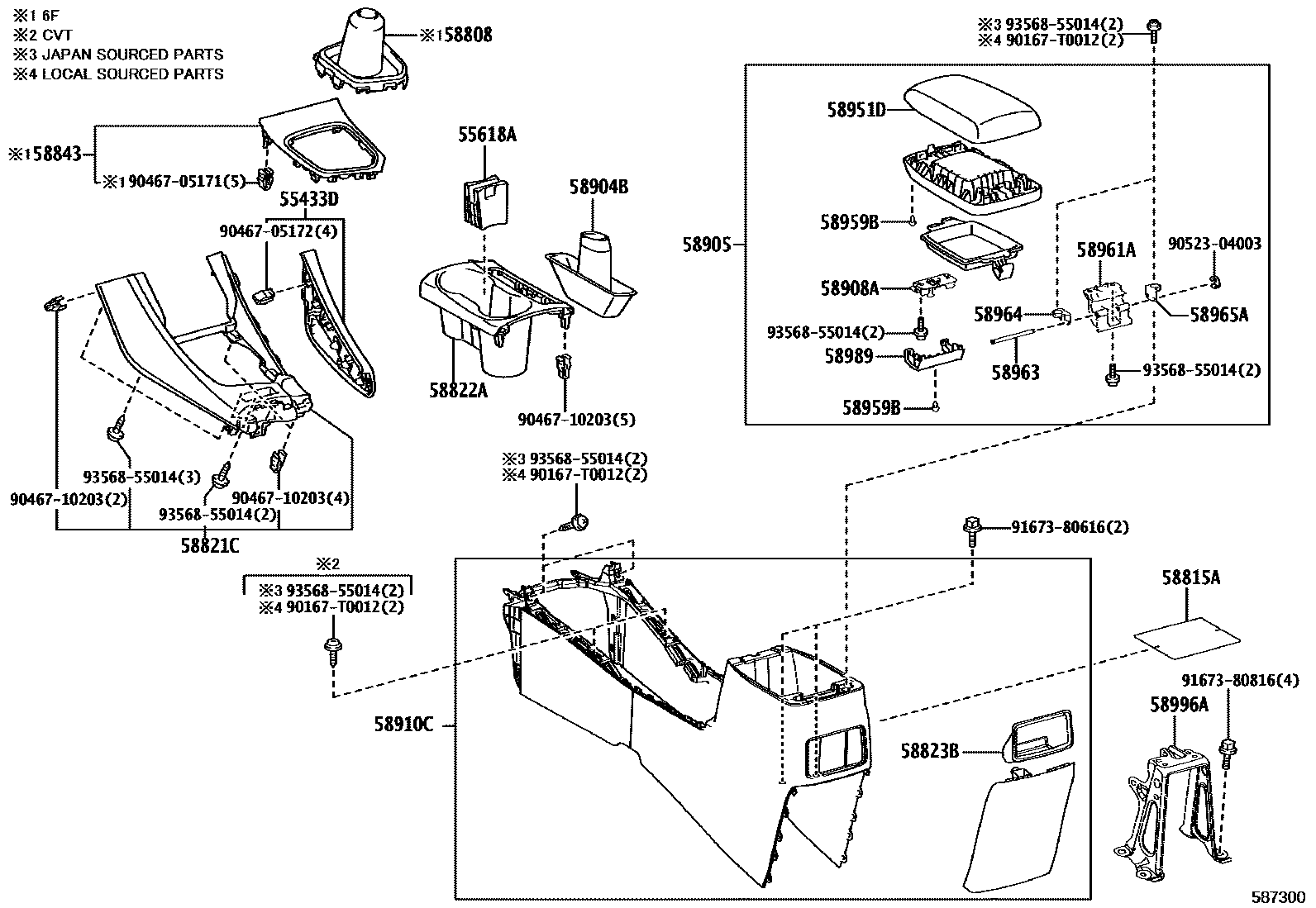

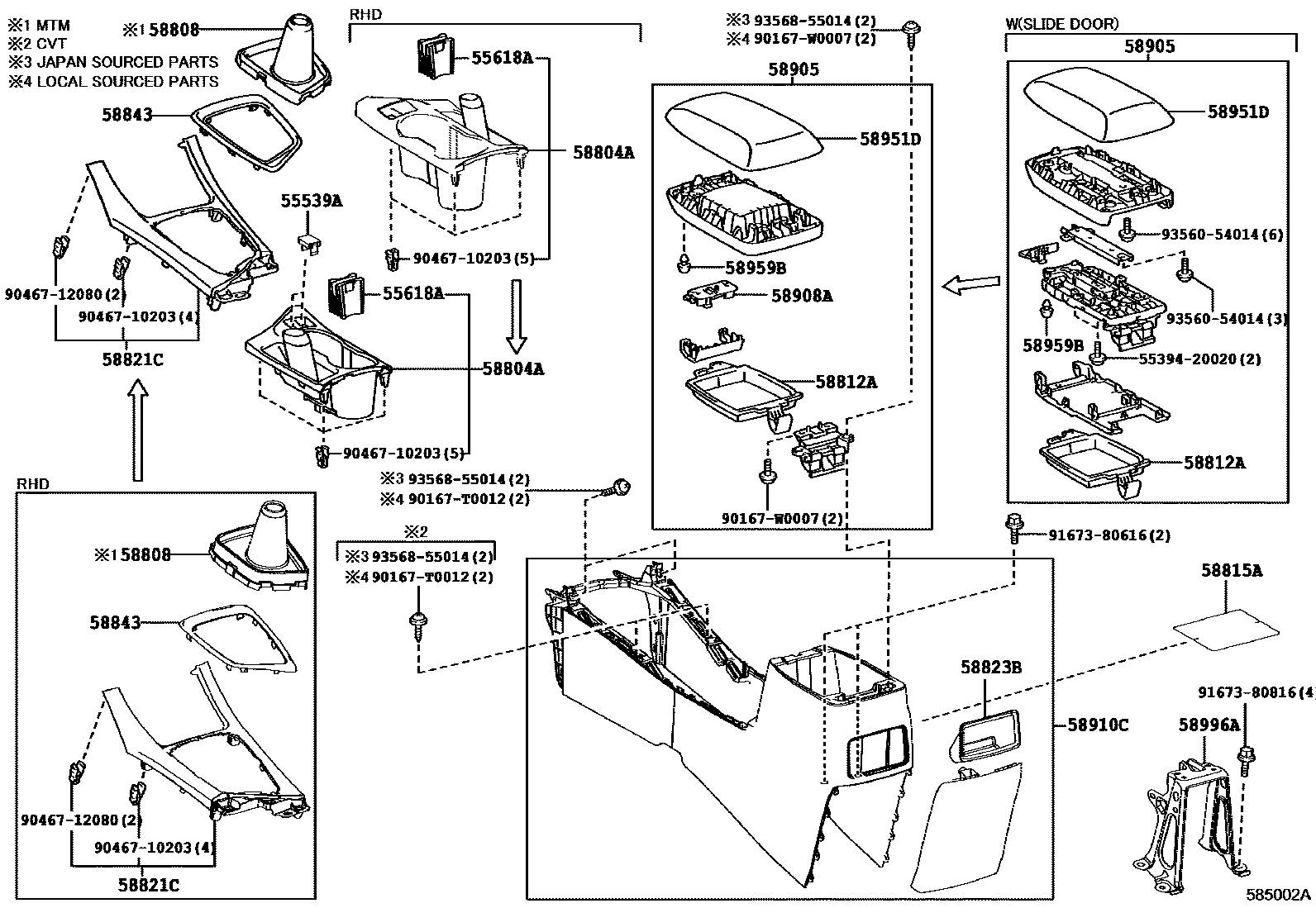

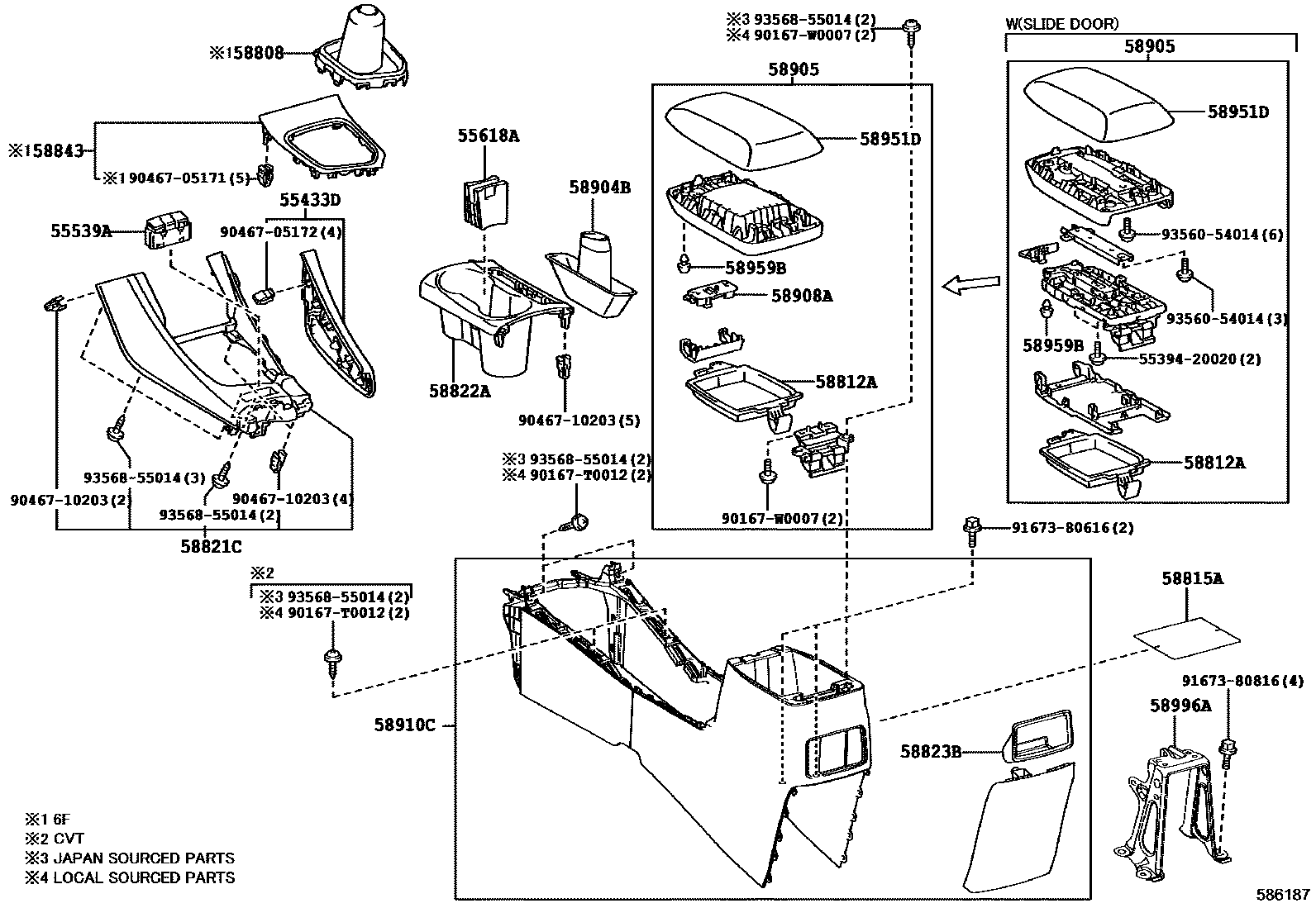

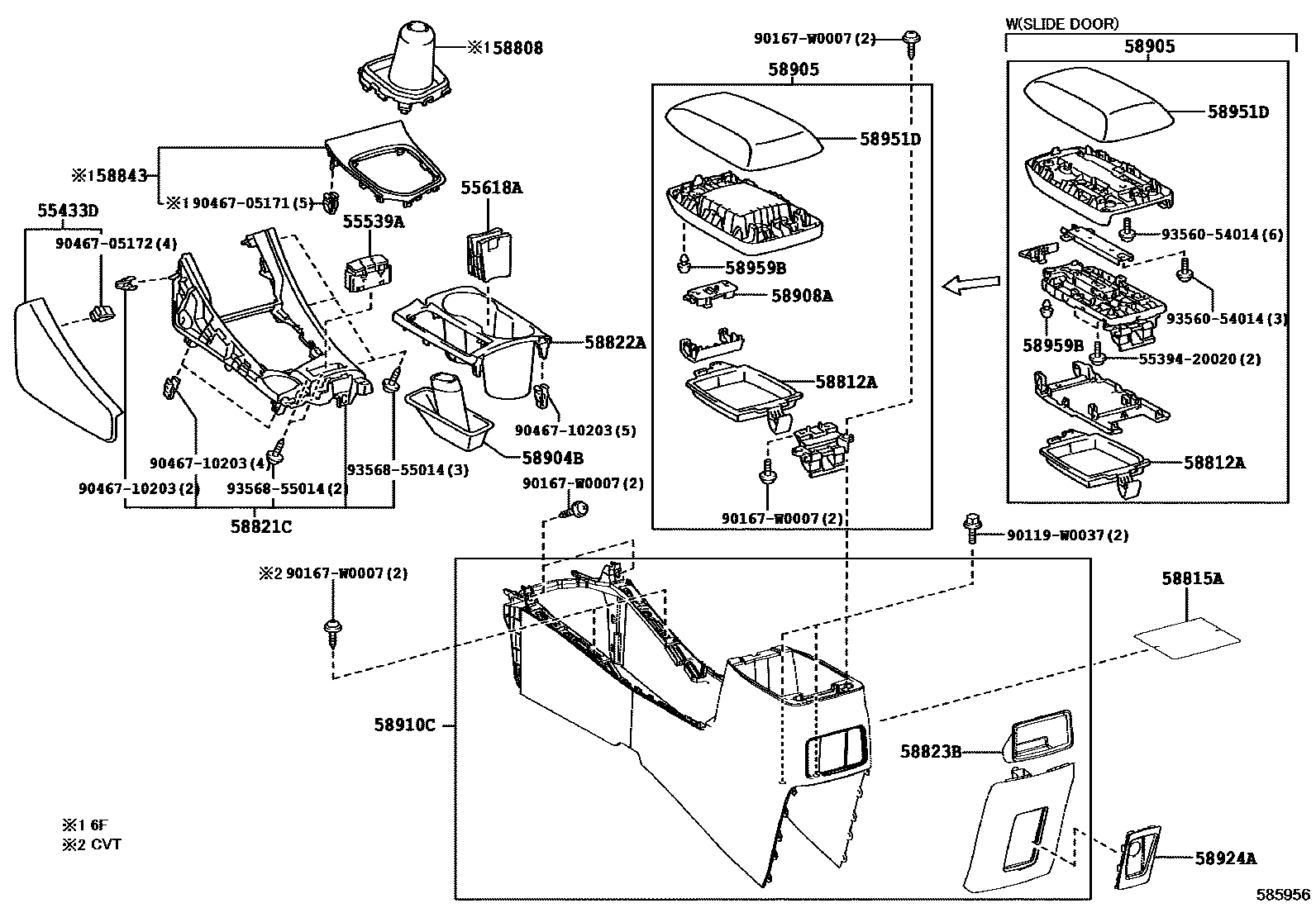

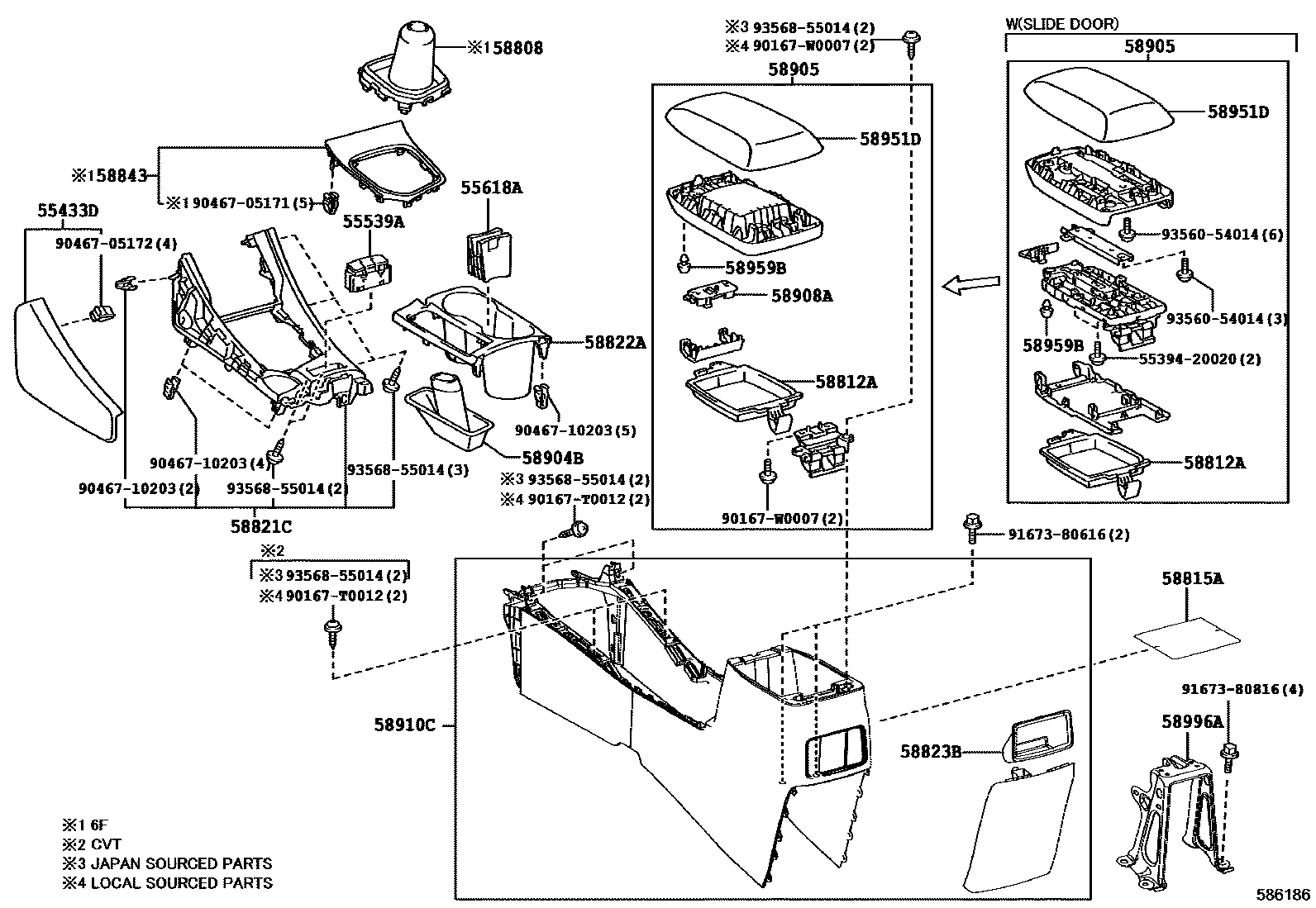

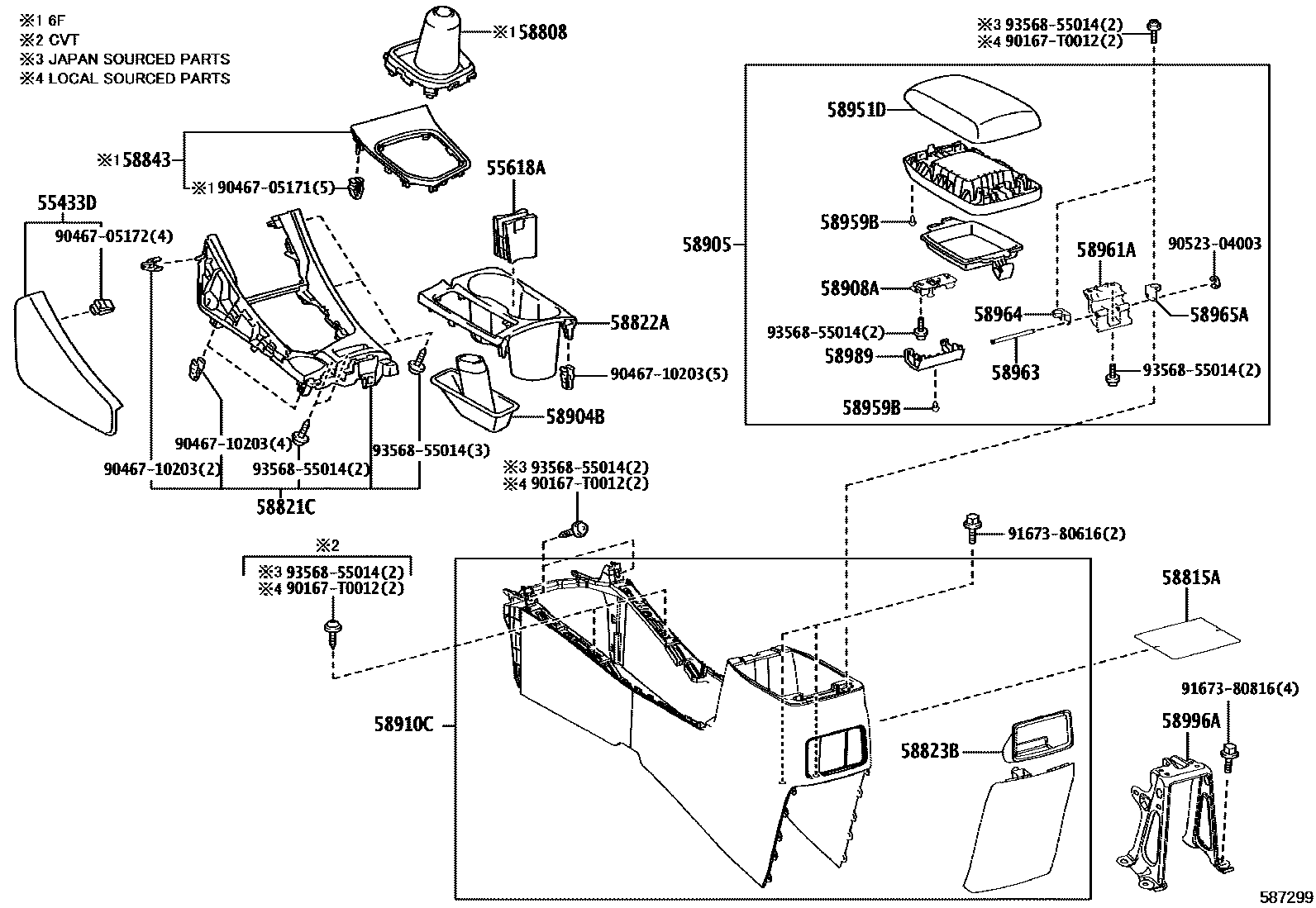

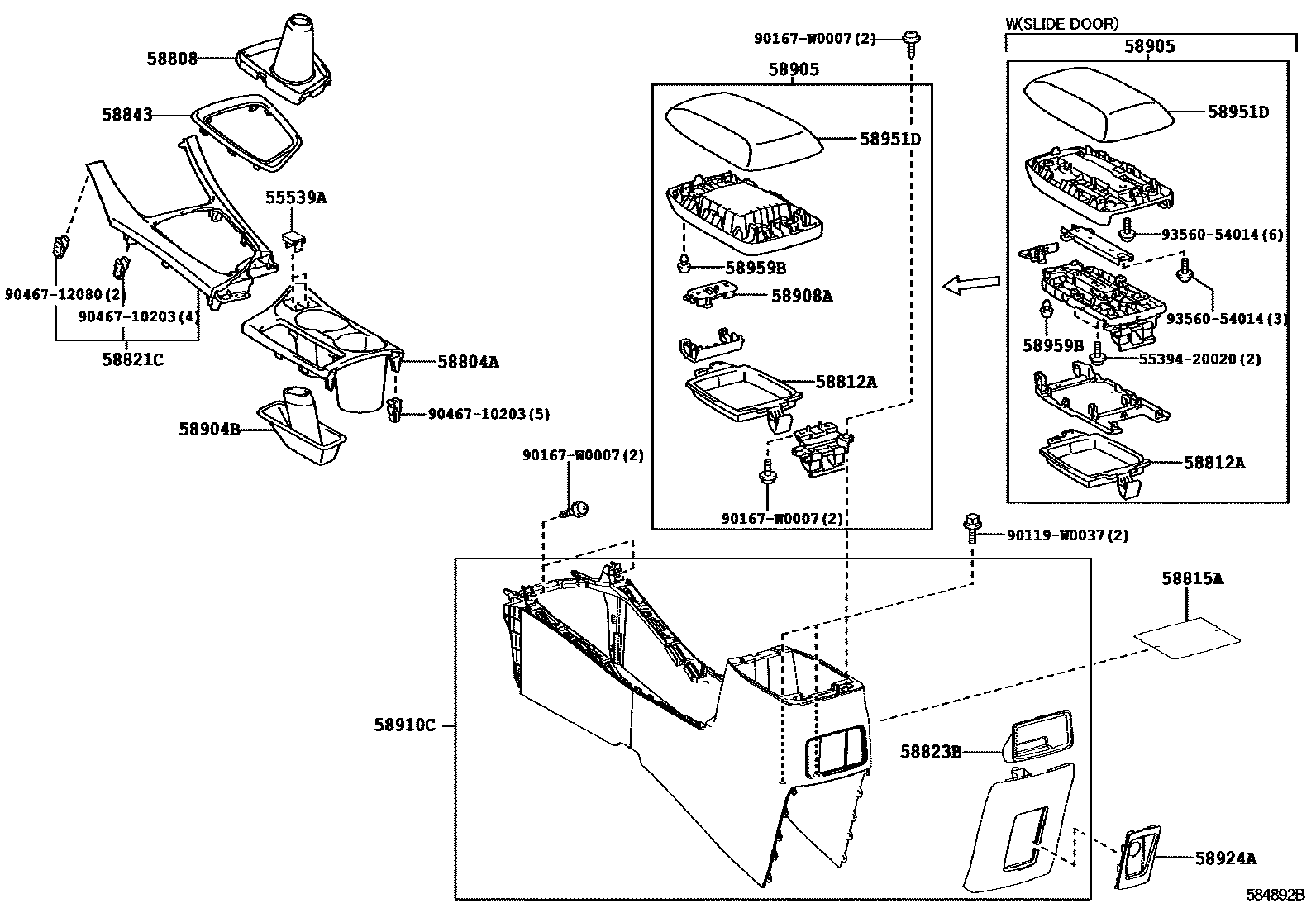

Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 7 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55539A | Spare switch hole cover | 84970-02150 |
| 58815A | Armrest box felt pad | 58815-02240 |
| 58843 | shift hole frame | 58843-02460 · 58843-02470 · 58843-02480 · 58843-02490 · 58843-02540 · 58843-02560 · 58843-02580 · 58843-02710 · 58843-02880 |
| 58908A | Armrest box lid lock assembly | 58908-02031 · 58908-02120 |
| 58959B | Armrest box cover cushion | 90541-03078 |
| 58961A | Armrest box lid protruding hinge | 58961-02140 |
| 58963 | Armrest box lid hinge shaft | 58963-02060 |
| 58964 | Armrest box cover No. 1 stop | 58964-02210 |
| 58965A | Armrest box cover No. 2 stopper | 58965-02220 |
| 58989 | Armrest box cover panel | 58989-02160 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-02100 |
