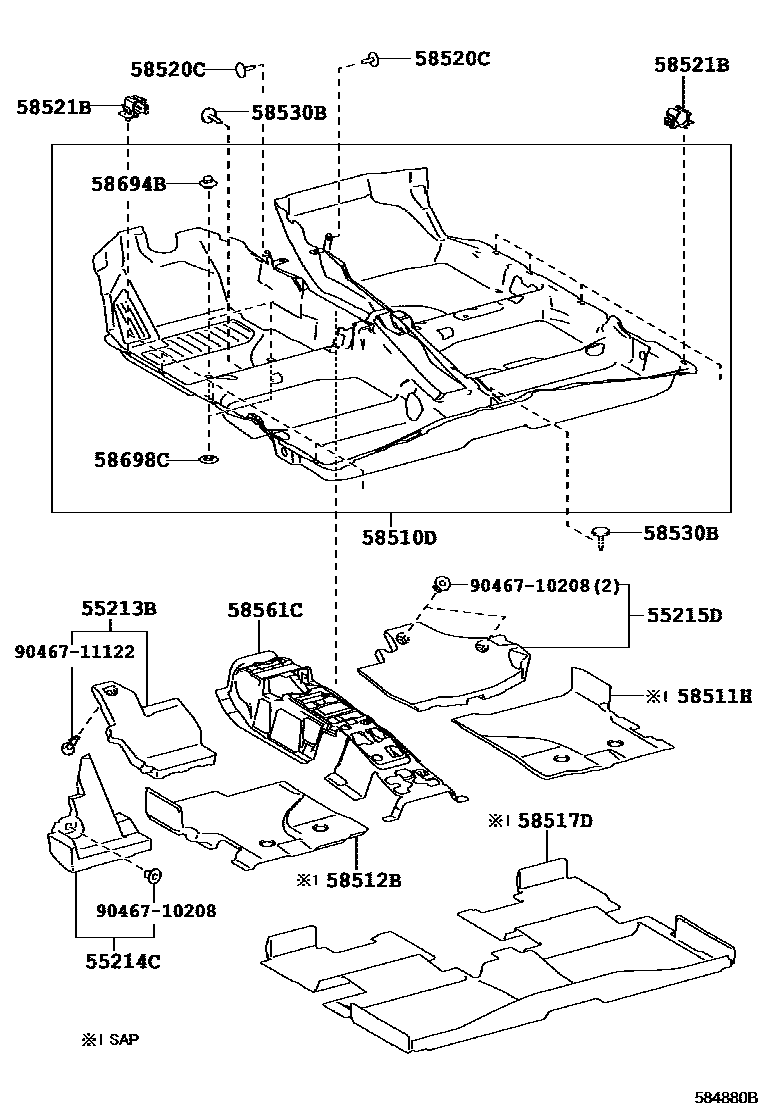

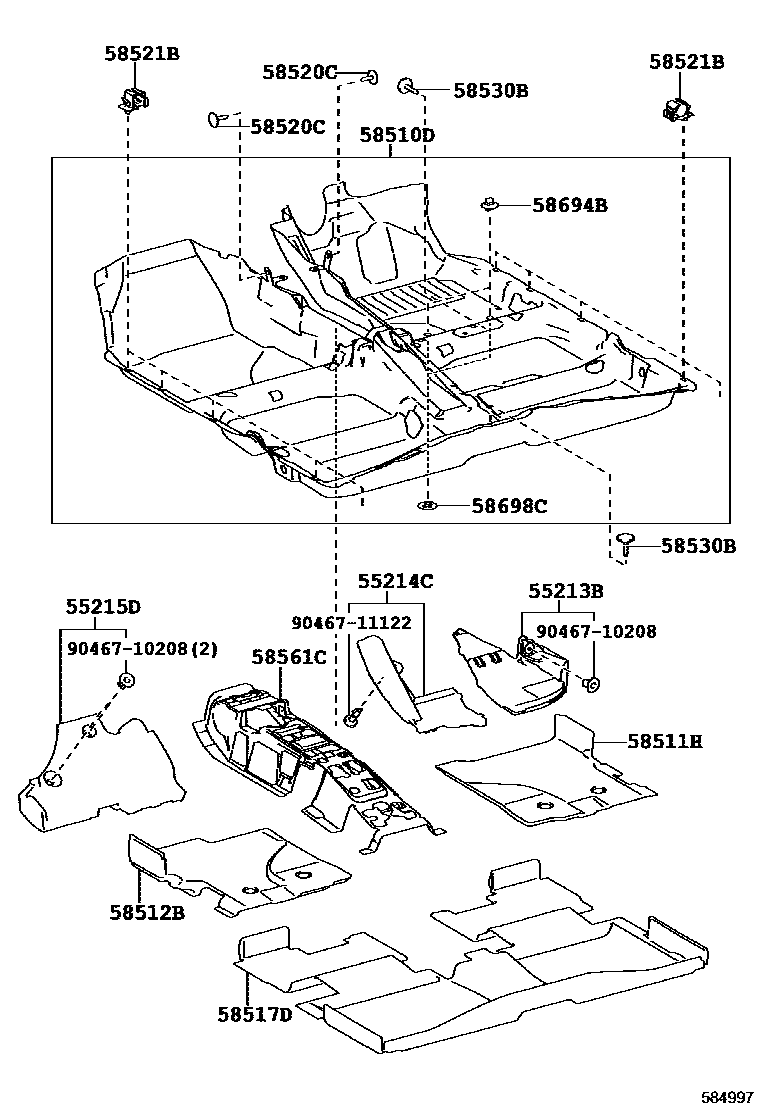

Toyota COROLLA 地板垫和地毯 — Figure 5804
Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55213B | No. 1 insulation pad for front wall panel | 55213-02220 · 55213-02250 |
| 55214C | No. 2 insulation pad for front wall panel | 55214-02010 · 55214-02030 · 55214-02040 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-02010 · 55215-02030 · 55215-02040 |
| 58510H | Floor mat assembly | 58510-YYP50 · 58510-YYP60 · 58510-YYP70 |
| 58511H | Front floor right mat | 58511-02140 |
| 58512B | Front floor left mat | 58512-02120 |
| 58517D | rear floor mat | 58513-02130 |
| 58521B | carpet hook | 58521-02110 |
| 58561C | Front floor silencer No. 1 | 58561-02230 · 58561-02300 |
| 58694B | Pad the fixing plate | 58694-76010 |
| 58698C | Fixing plate under the pad | 58698-76010 |
