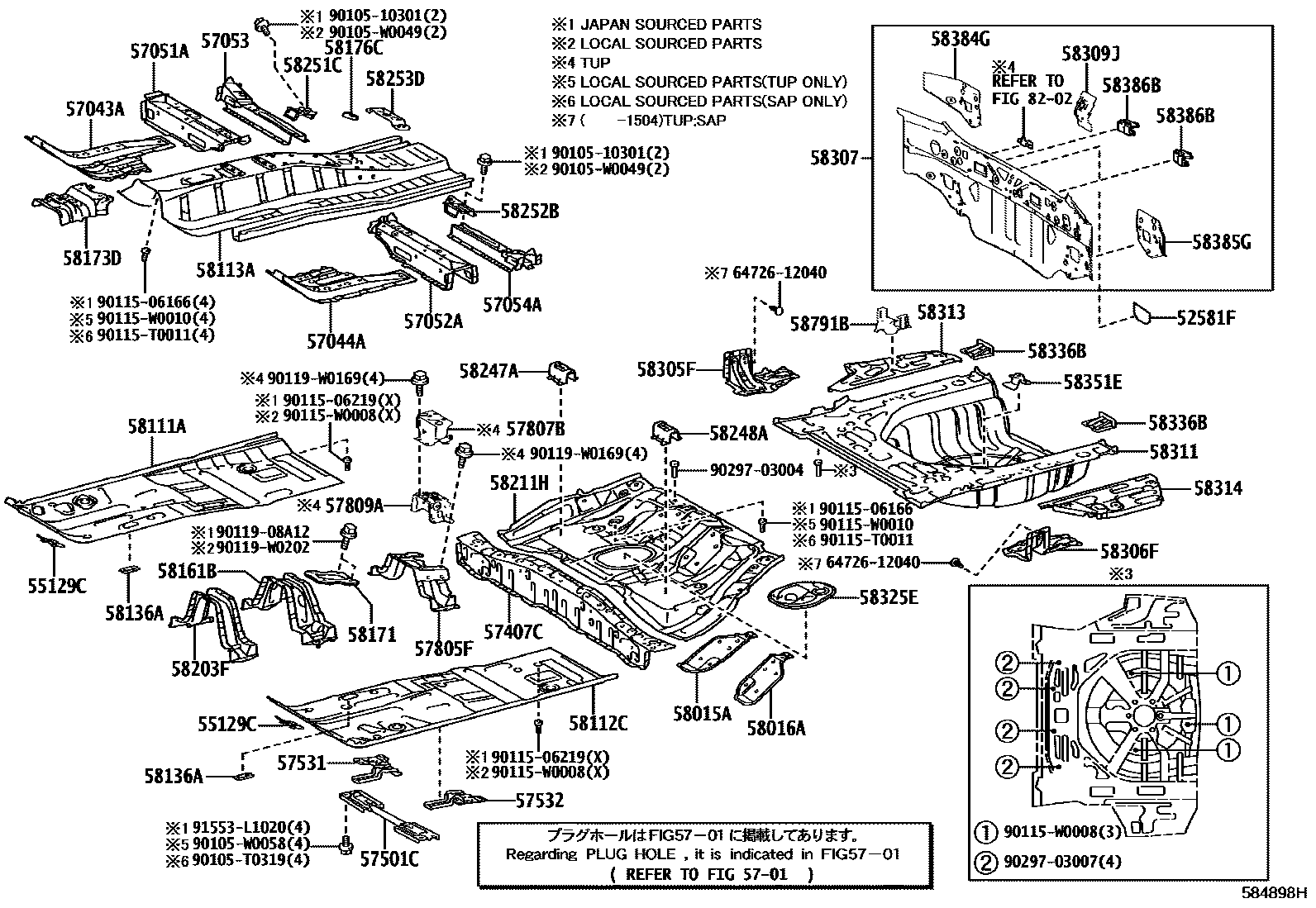

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52581F | rear bumper protector | 52581-02020 · 52581-02040 |
| 55129C | Front panel hole cover | 55129-02030 · 55129-12040 · 55139-02020 · 55139-12050 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-02040 · 57043-12020 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-02040 · 57044-12020 |
| 57051A | Front floor right cross member sub-assembly | 57051-02010 · 57051-02050 |
| 57052A | Front floor left cross member sub-assembly | 57052-02010 · 57052-02040 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-02010 · 57053-02050 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-02010 · 57054-02030 |
| 57407C | Center floor No. 1 beam sub-assembly | 57407-02100 · 57407-02101 · 57407-02201 |
| 57501C | Front floor center bracket sub-assembly | 57501-02021 · 57501-02040 · 57501-12020 |
| 57531 | Front floor center bracket right bracket | 57531-02010 · 57531-12010 |
| 57532 | Front floor center bracket left bracket | 57532-02010 · 57532-12010 |
| 57805F | No. 1 seat belt anchor reinforcement sub-assembly | 57805-02031 · 57805-12151 |
| 57807B | No. 2 seat belt anchor reinforcement sub-assembly | 57807-02030 |
| 57809A | No. 3 seat belt anchor reinforcement sub-assembly | 57809-02040 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02160 · 58015-47042 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-02140 · 58016-47031 |
| 58111A | Front floor right bottom panel | 58111-02929 · 58111-05903 |
| 58112C | Front floor left bottom panel | 58112-02905 · 58112-05901 |
| 58113A | front floor center panel | 58113-02908 · 58113-02909 |
| 58136A | Front floor access hole cover | 58136-02030 · 58136-12040 |
| 58161B | Seat belt anchor to floor pan reinforcement | 58161-02040 · 58161-12231 |

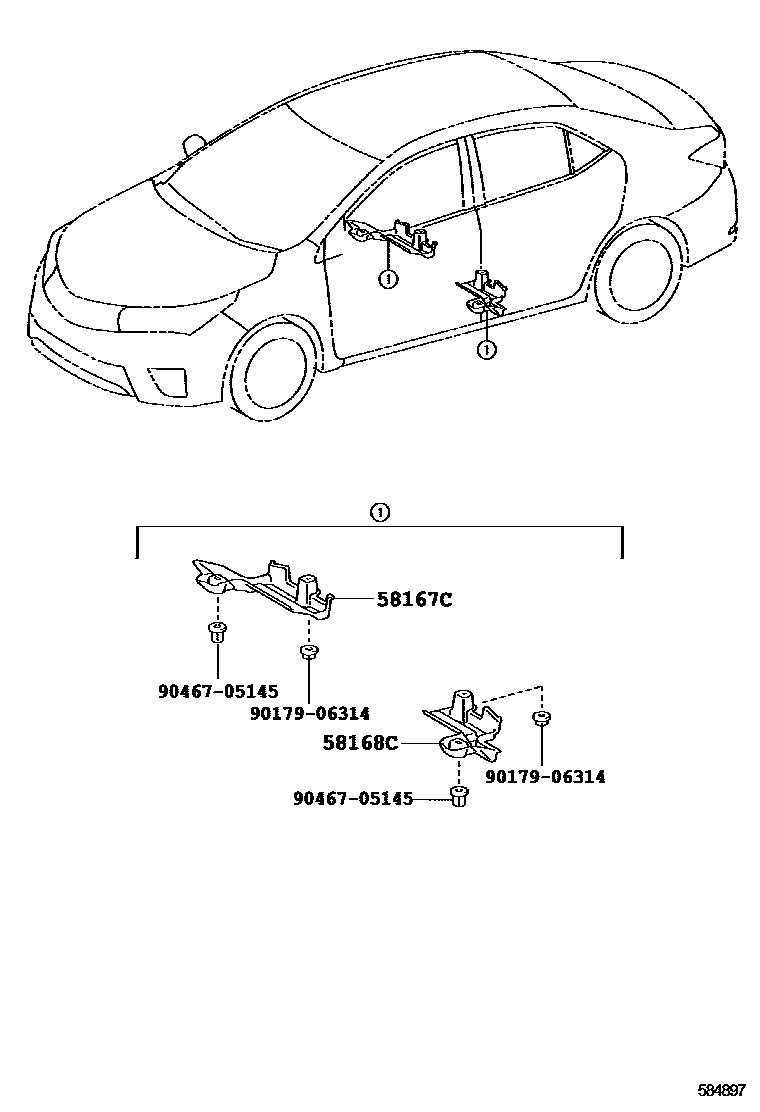

| 58167C | Front floor center right cover | 58167-02010 · 58167-02030 |
| 58168C | Front floor center left cover | 58168-02010 · 58168-02030 |
| 58171 | Parking brake base reinforcement | 58171-02040 · 58171-02080 |
| 58173D | No. 4 ECU mounting bracket | 58173-02040 · 58173-12020 |
| 58176C | Parking brake base No. 2 reinforcement | 58176-02010 · 58176-12020 |
| 58203F | Exhaust pipe mounting bracket sub-assembly | 58203-02020 · 58203-12070 |
| 58211H | central floor base | 58211-02912 · 58211-02913 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-05010 · 58247-12090 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-05010 · 58247-12090 |
| 58251C | Front floor right bracket | 58251-02030 · 58251-12040 |
| 58252B | Front floor left bracket | 58252-02010 · 58252-12040 |
| 58253D | Parking brake cable bracket | 58253-02020 · 58253-12060 |
| 58305F | Rear floor right side panel sub-assembly | 58305-02010 · 58305-02060 · 58305-12040 |
| 58306F | Rear floor left side panel sub-assembly | 58306-02010 · 58306-02060 · 58306-12030 |
| 58307 | Body lower back panel sub-assembly | 58307-02360 · 58307-02370 |
| 58309J | Trunk door latch fastener sub-assembly | 58309-02200 |
| 58311 | rear floor pan | 58311-02150 · 58311-02240 |
| 58313 | Rear floor right panel | 58313-02100 · 58313-02190 |
| 58314 | rear floor left panel | 58314-02100 · 58314-02160 |
| 58325E | Rear floor access hole cover | 58325-02080 · 58325-12130 |
| 58336B | Rear floor pan reinforcement | 58336-02050 · 58336-12090 |
| 58351E | Spare tire clip bracket | 58351-02020 · 58351-12060 |
| 58384G | Body lower back panel upper right corner panel | 58384-02180 |
| 58385G | Body lower back panel upper left corner panel | 58385-02150 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-02010 · 58386-12020 |
| 58791B | jack bracket | 58791-02070 |
