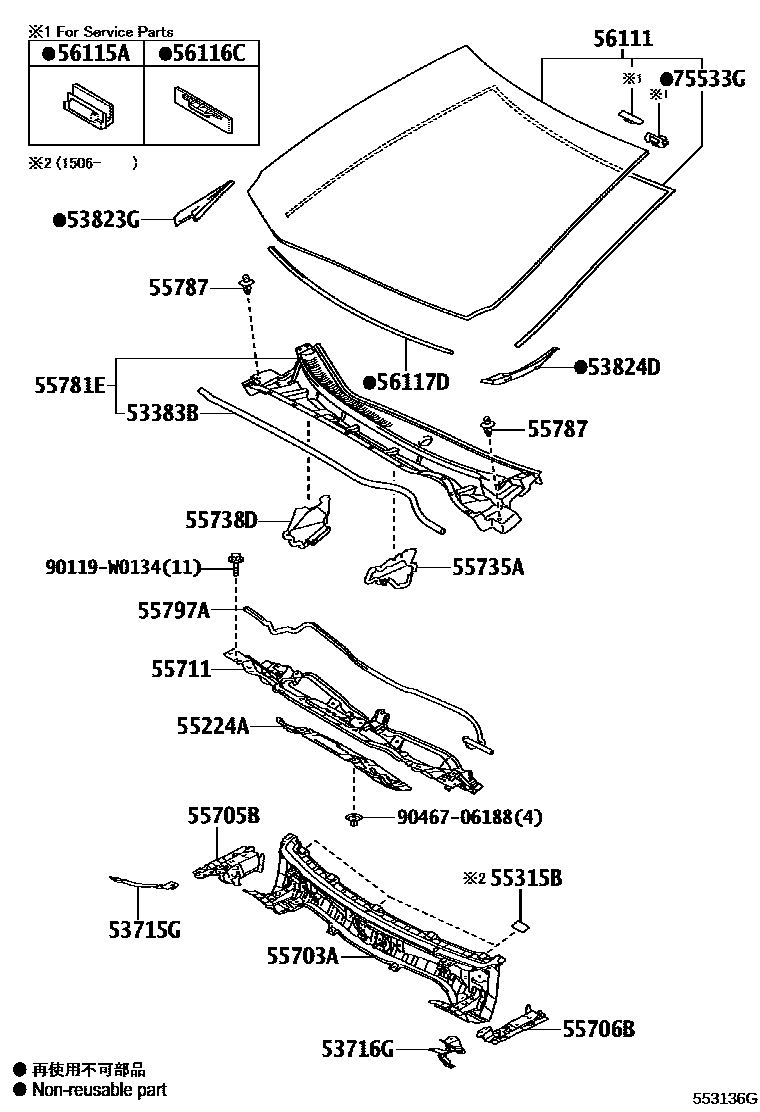

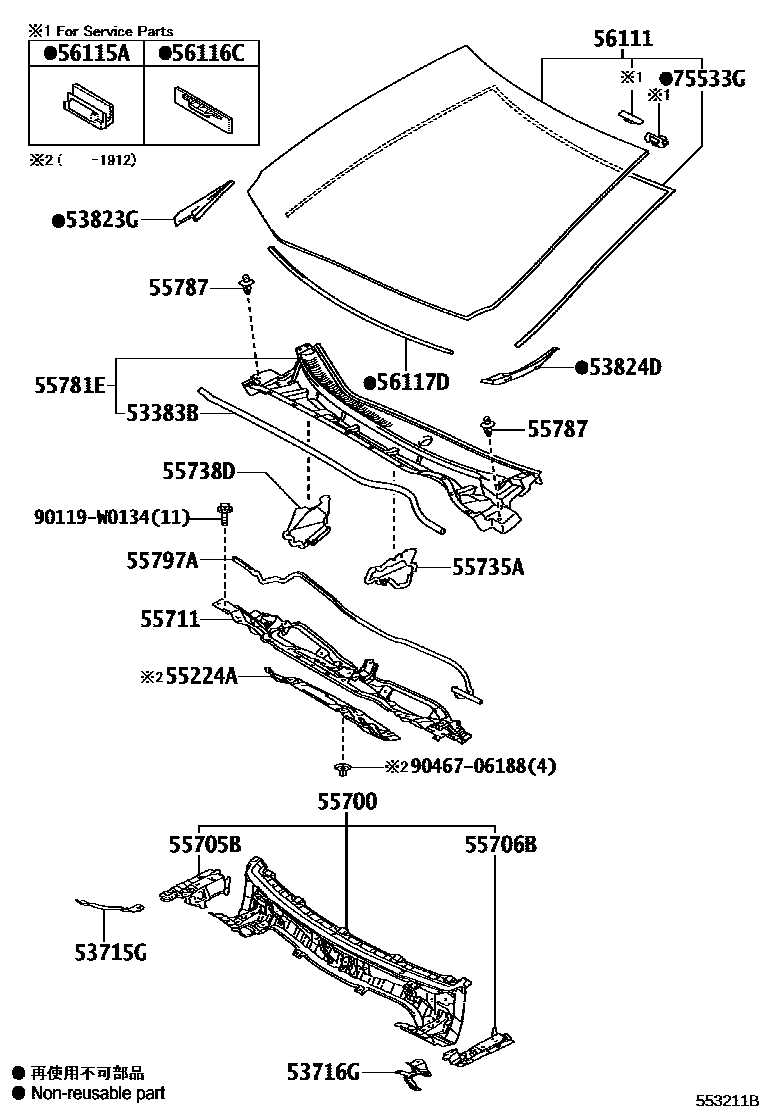

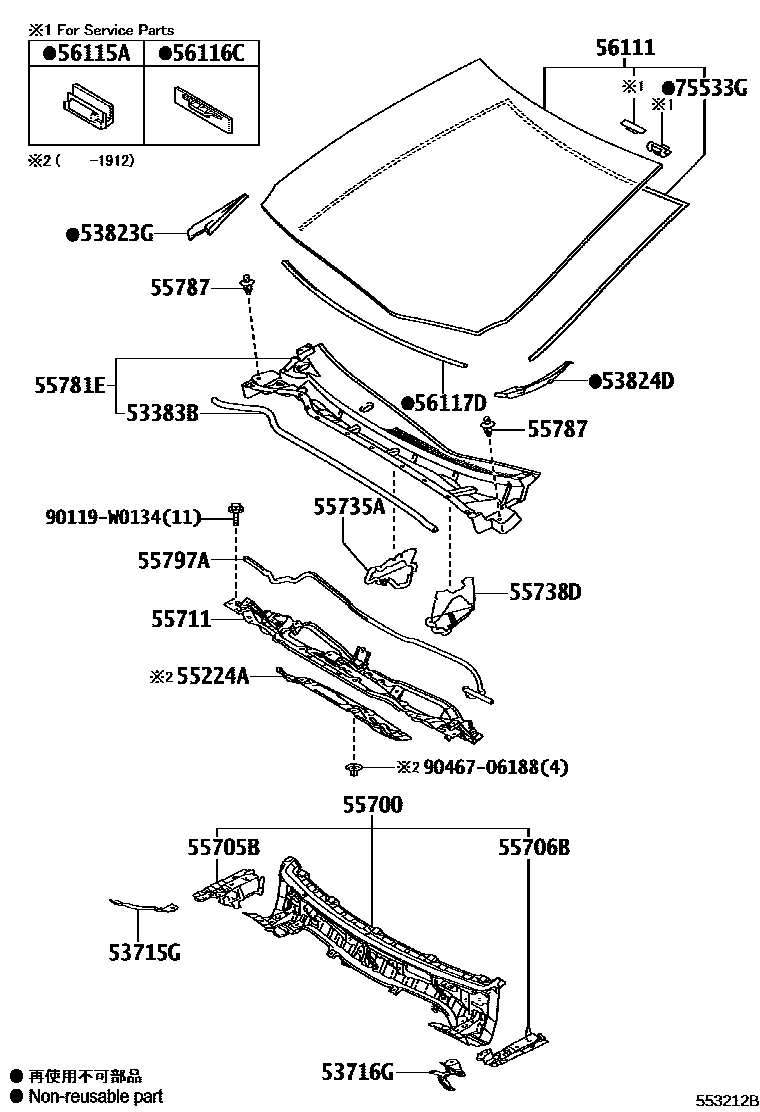

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02200 |
| 53715G | Right front fender fender rear extension | 53715-02030 |
| 53716G | Left front fender fender rear extension | 53716-02040 |
| 53823G | No. 2 right front side panel protector | 53823-02090 · 53823-02120 |
| 53824D | No. 2 left front side panel protector | 53824-02090 · 53824-02120 |
| 55224A | No. 2 outer insulation pad for front wall | 55224-02080 |
| 55315B | Instrument panel spacer No. 1 | 55315-02450 · 55315-05050 |
| 55700 | Front panel assembly | 55700-02500 · 55700-02510 |
| 55703A | Front wall upper inner panel sub-assembly | 55703-02390 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-02140 · 55705-12140 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-02140 · 55706-12150 |
| 55711 | Front outer panel | 55701-02370 · 55701-02371 · 55701-02380 · 55701-02381 · 55701-02390 · 55701-02391 |
| 55735A | Left waterproof cover panel | 55734-02260 · 55734-02510 |
| 55738D | No. 2 heater duct splash guard seal | 55737-02130 · 55737-02140 · 55737-02150 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-02570 · 55708-02580 · 55708-02590 |
| 55797A | Front wall pumping device seal | 55797-02120 |
| 56111 | windshield | 56101-02A20 · 56101-02A30 · 56101-02A40 · 56101-02D00 · 56101-02D10 · 56101-02D20 · 56101-0Z530 · 56101-0Z540 · 56101-0Z550 · 56101-0Z560 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 75533G | Windshield outer protective strip | 75533-02150 · 75533-02170 |
