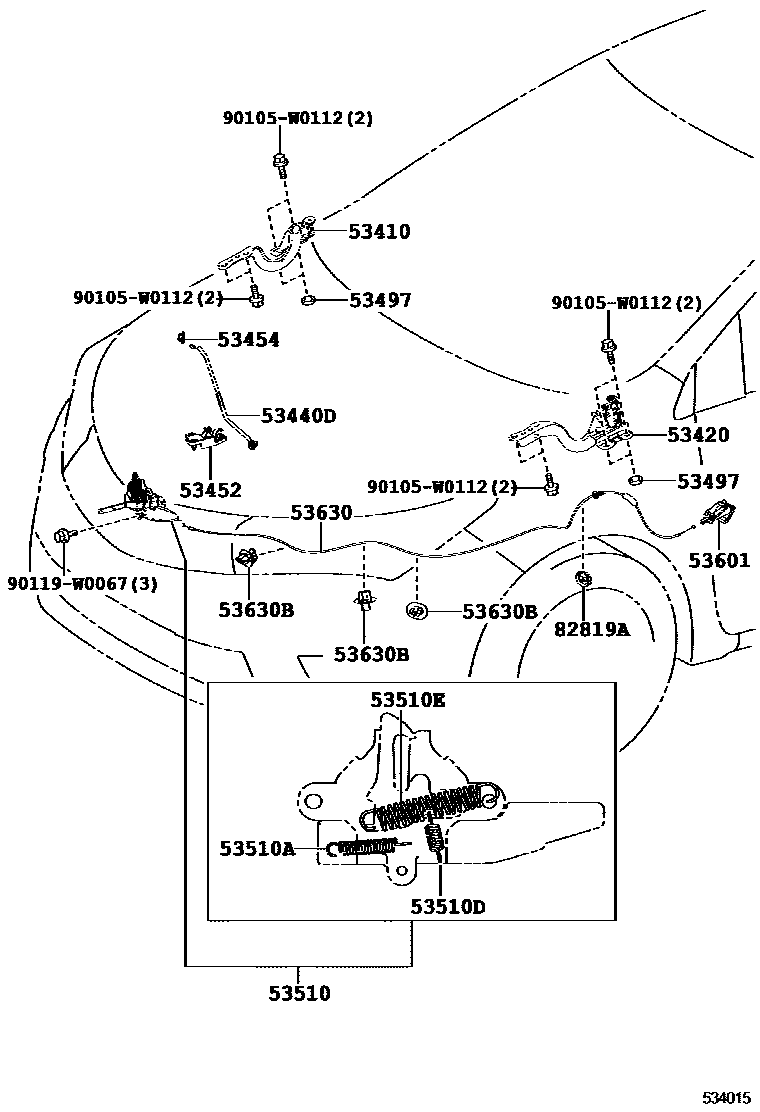

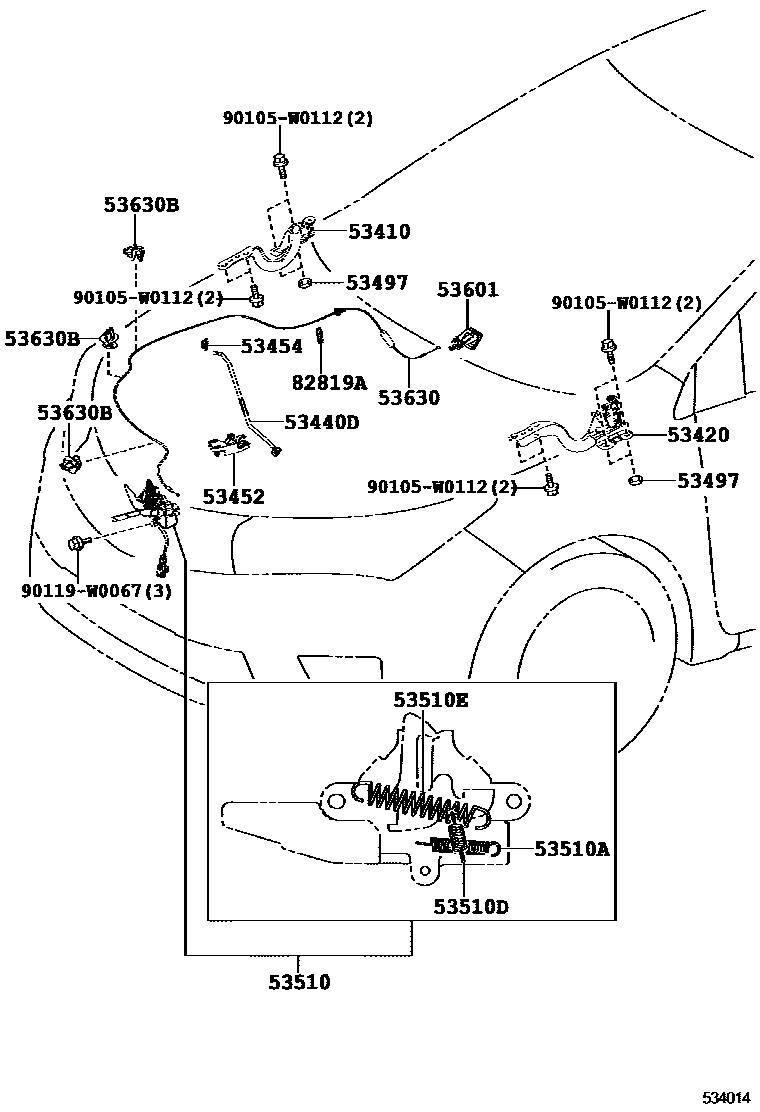

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-02330 · 53410-02340 |
| 53420 | Engine cover left hinge assembly | 53420-02320 · 53420-02340 |
| 53440D | Engine cover support rod assembly | 53440-02190 · 53440-02200 |
| 53452 | Engine cover stay rod fixing | 53452-02160 |
| 53454 | Engine cover support rod clip | 53454-12030 |
| 53497 | No. 1 engine cover hinge gasket | 53497-05010 · 53497-0K020 · 53497-0K070 |
| 53510 | Engine cover lock assembly | 53510-02560 · 53510-02610 |
| 53510A | Tension spring (for hood lock) | 90080-50398 |
| 53510D | Tension spring (for hood lock) | 90506-W0004 |
| 53510E | Tension spring (for hood lock) | 90506-W0007 |
| 53630 | Engine hood lock control cable assembly | 53630-02410 · 53630-02420 · 53630-12700 · 53630-12710 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 |
| 82819A | Wire harness seal | 82817-1A810 |
