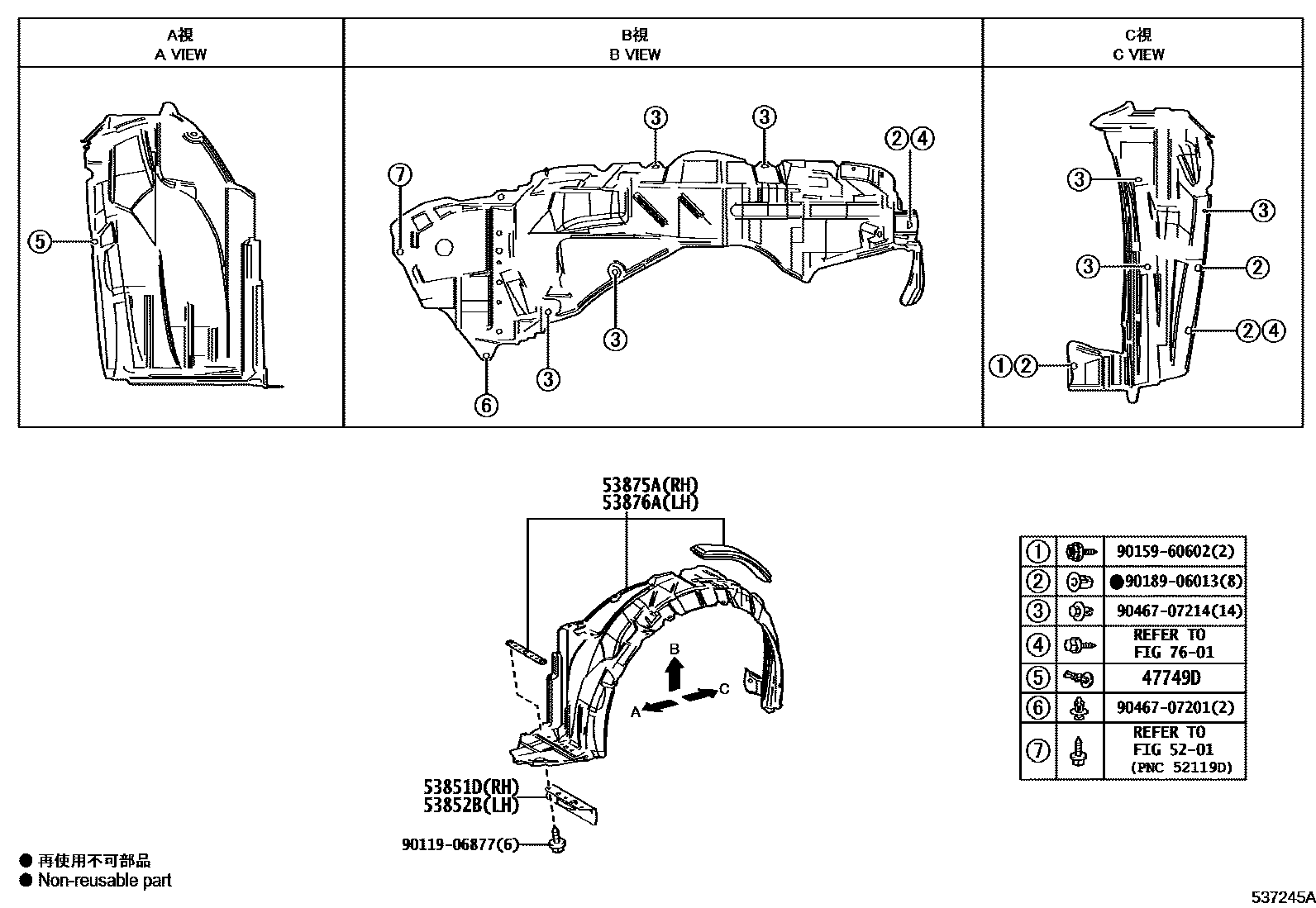

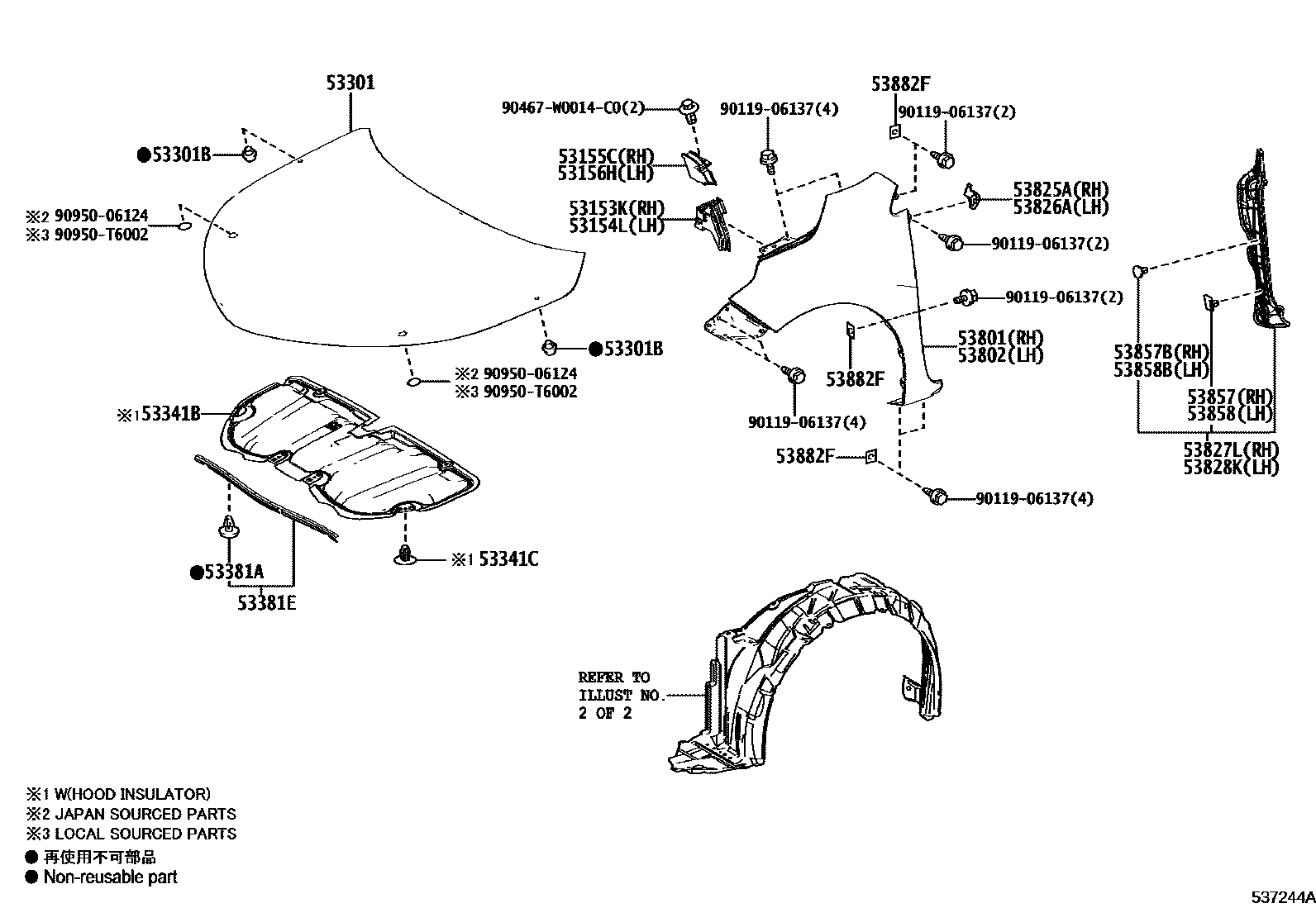

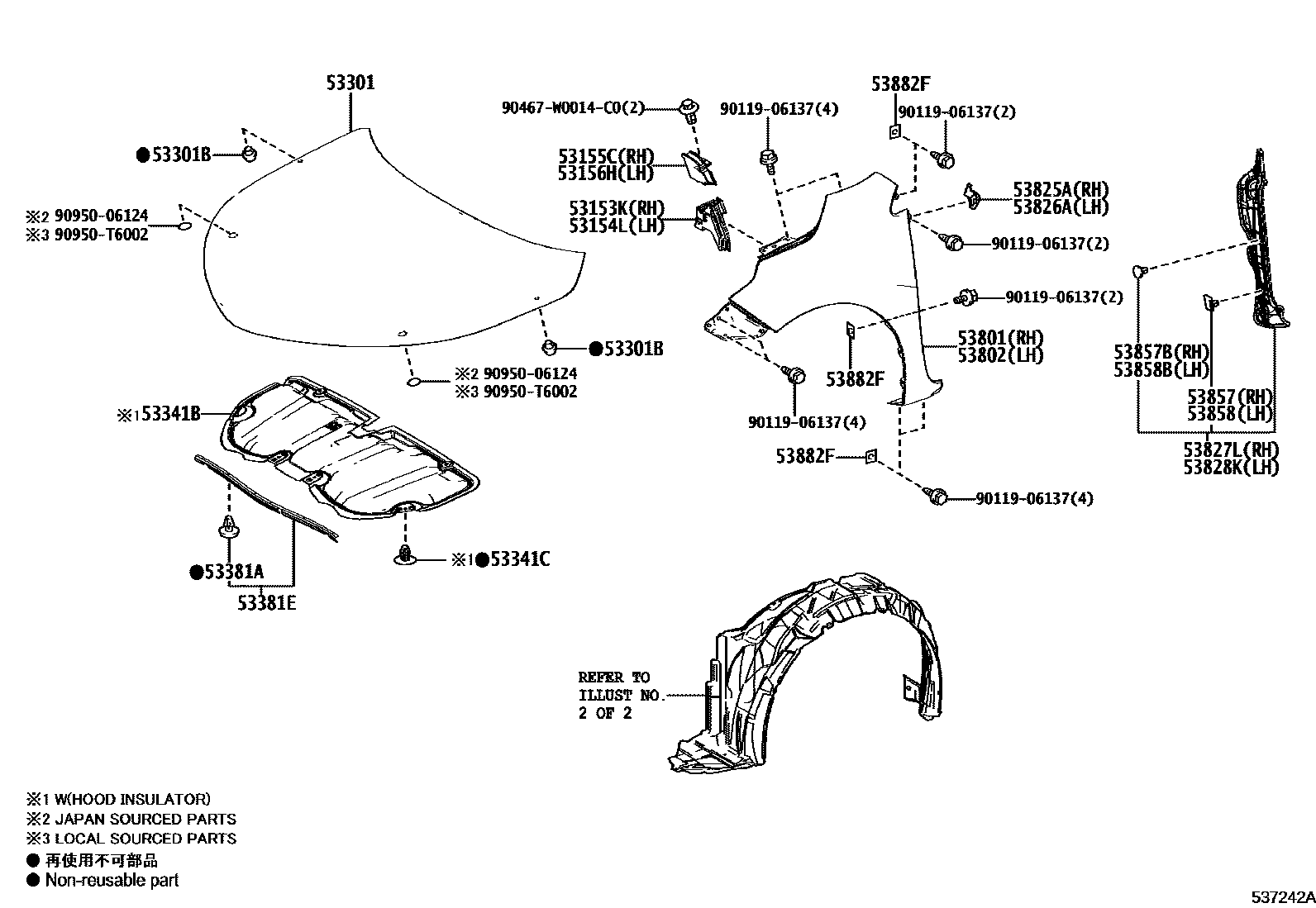

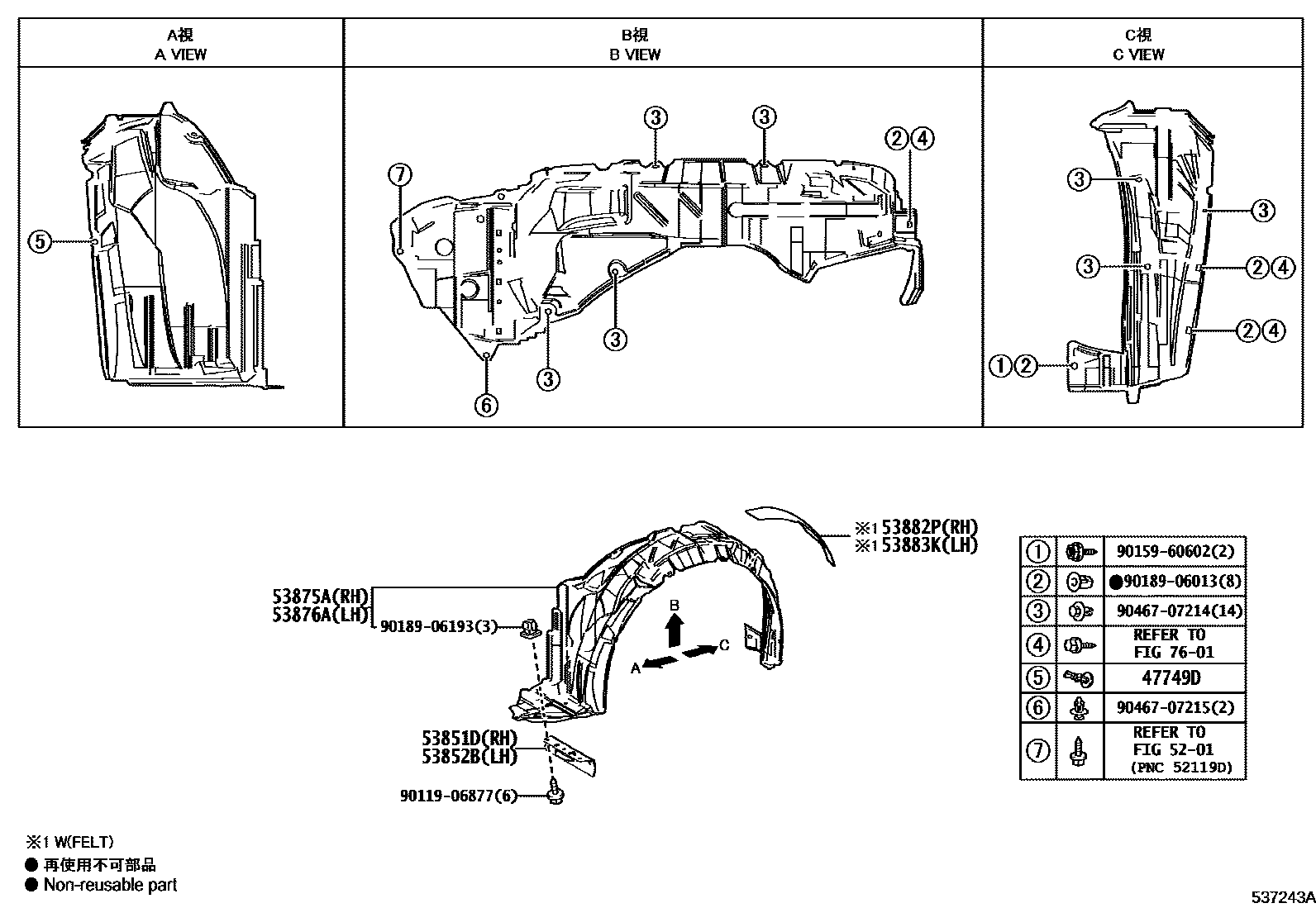

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749D | pin fixing clip | 47749-50090 · 47749-58010 |
| 53153K | Radiator grille right deflector | 53153-02040 |
| 53154L | Radiator grille left deflector | 53154-02040 |
| 53155C | Radiator grille seal No. 1 | 53155-02060 |
| 53156H | Radiator grille seal No. 2 | 53156-02050 |
| 53301 | Engine cover sub-assembly | 53301-02290 · 53301-02300 |
| 53301B | engine cover cushion | 90541-09117 |
| 53341B | engine cover gasket | 53341-02280 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 · 90467-W0003 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 · 90467-A0009 |
| 53381E | Engine cover to radiator bracket seal | 53381-02200 |
| 53801 | Right front fender sub-assembly | 53801-02200 · 53801-02220 |
| 53802 | Left front fender sub-assembly | 53802-02190 · 53802-02200 |
| 53825A | Right front fender protection piece | 53825-02120 |
| 53826A | Protection piece on left front fender | 53826-02120 |
| 53827L | Right front fender side panel protector | 53827-02210 |
| 53828K | Left front fender side panel protector | 53828-02200 |
| 53851D | Right front fender outer panel pad | 53851-02160 |
| 53852B | Left front fender exterior panel pad | 53852-02140 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53875-02470 · 53875-02471 · 53875-02480 · 53875-02481 · 53875-02510 · 53875-02511 |
| 53876A | Left front fender lining | 53876-02490 · 53876-02491 · 53876-02500 · 53876-02501 · 53876-02530 · 53876-02531 |
| 53882F | front fender seal | 53882-33060 |
| 53882P | Right front fender seal | 53882-02060 |
| 53883K | Left front fender seal | 53883-02120 |
