Toyota COROLLA 后保险杠及附件 — Figure 5202

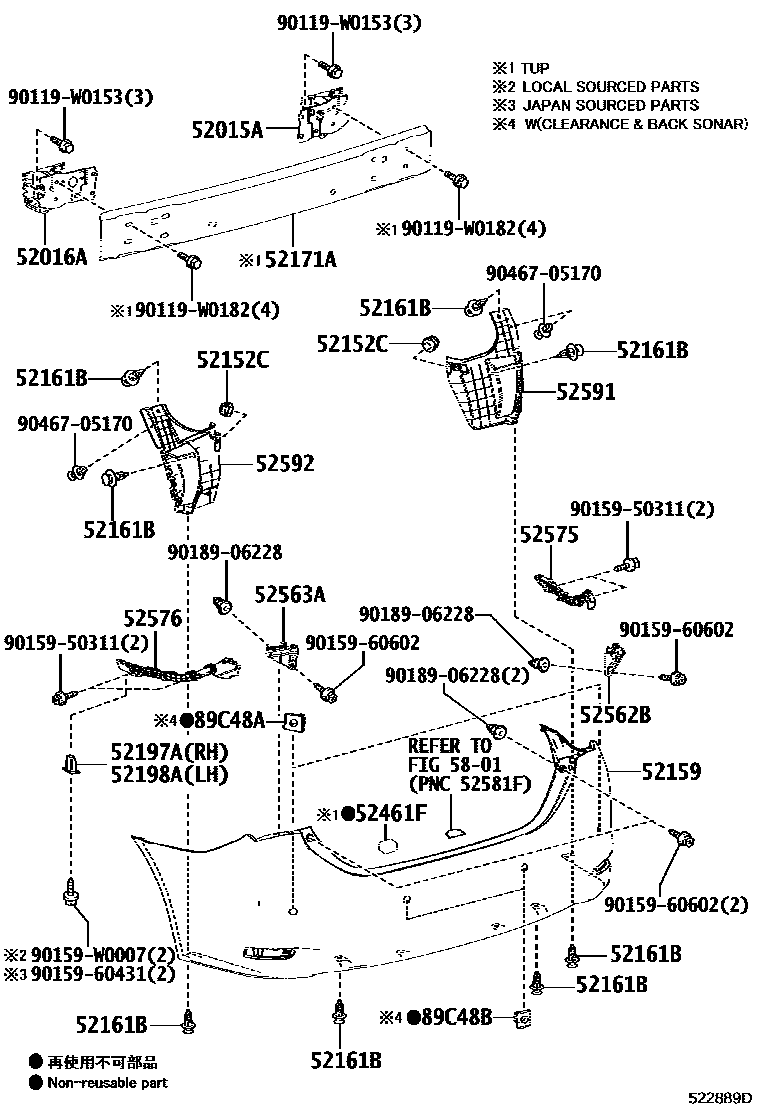

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-02130 · 52015-02140 |
| 52016A | Rear bumper left arm sub-assembly | 52016-02100 · 52016-02110 |
| 52159 | rear bumper cover | 52159-02999 · 52159-0Z901 · 52159-0Z940 |
| 52161B | Rear bumper insert | 52161-02030 · 52161-0K040 · 52161-16010 |
| 52171A | Rear bumper reinforcement No. 1 | 52171-02080 |
| 52197A | Rear bumper right seal support | 52197-22020 |
| 52198A | Rear bumper left seal support | 52197-22020 |
| 52461F | rear bumper lining | 52462-02160 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02220 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02220 |
| 52575 | Rear bumper right side fixing bracket | 52575-02120 · 52575-02140 |
| 52576 | Rear bumper left side fixing bracket | 52576-02120 · 52576-02140 |
| 52591 | Rear bumper right seal | 52591-02280 · 52591-02281 · 52591-02360 |
| 52592 | Rear bumper left seal | 52592-02270 · 52592-02271 · 52592-02290 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-F4030 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-02260 |
