Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

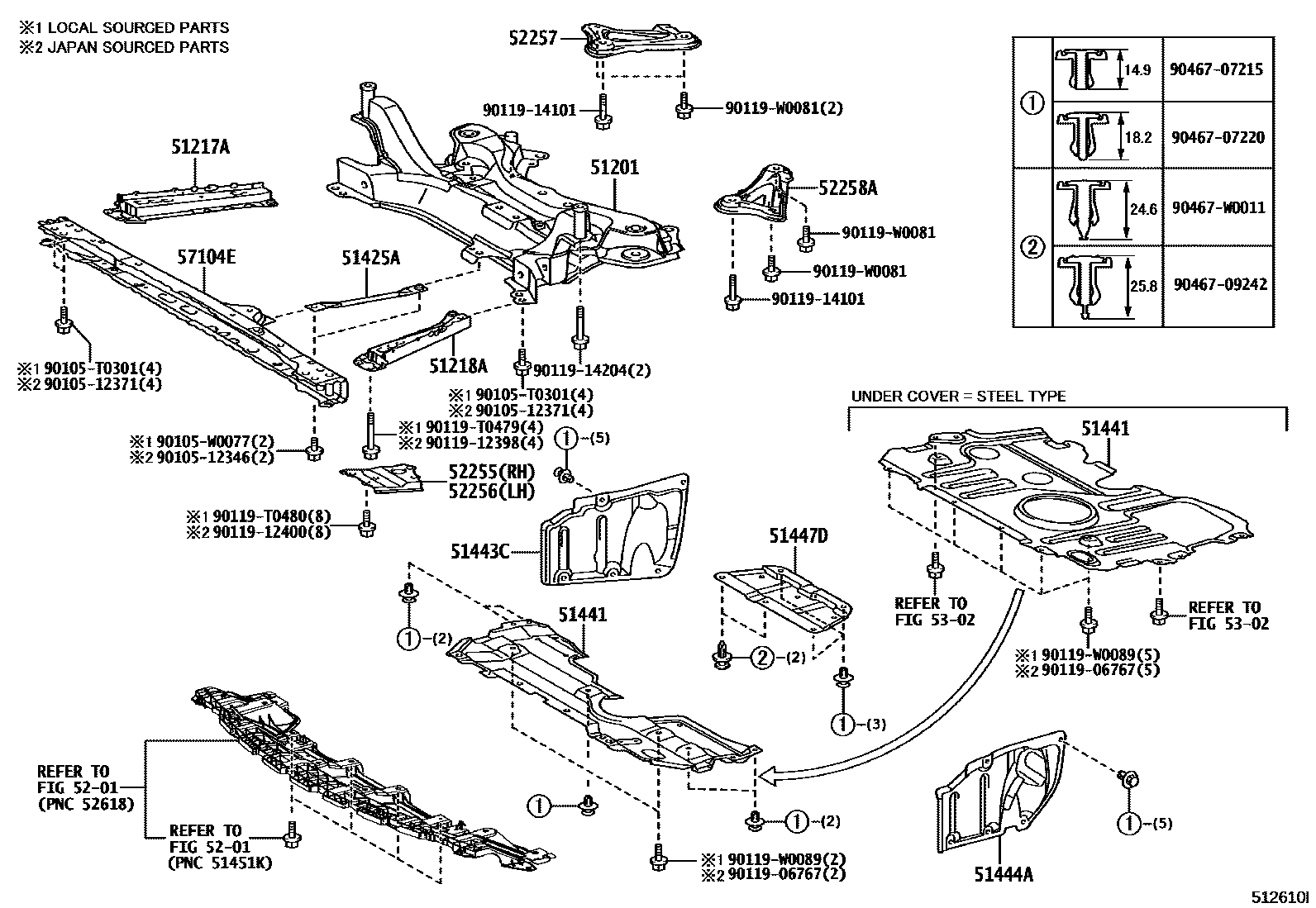

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02101 · 51201-02102 · 51201-02122 |
| 51217A | Right front suspension cross member reinforcement | 51107-02010 · 51107-02020 · 51107-02021 |
| 51218A | Left front suspension cross member reinforcement | 51108-02010 · 51108-02020 · 51108-02021 |
| 51425A | Engine front mounting bracket lower reinforcement | 51425-02010 · 51425-02020 |
| 51441 | No. 1 engine bottom cover | 51408-02050 · 51408-02070 · 51441-02220 · 51441-02240 |
| 51443C | Engine right rear bottom cover | 51443-02050 · 51443-02060 |
| 51444A | Engine left rear bottom cover | 51444-02041 · 51444-02050 |
| 51447D | No. 4 engine center bottom cover | 51447-02010 · 51447-02020 |
| 52255 | Right front suspension cross member front bracket | 52255-02010 · 52255-02020 · 52255-02021 |
| 52256 | Left front suspension cross member front bracket | 52256-02010 · 52256-02020 · 52256-02021 |
| 52257 | Right front suspension cross member rear bracket | 52257-02060 · 52257-02070 · 52257-02071 |
| 52258A | Left front suspension cross member rear bracket | 52258-02060 · 52258-02070 · 52258-02071 |
| 57104E | Front cross member sub-assembly | 57104-02250 · 57104-47020 |
