Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

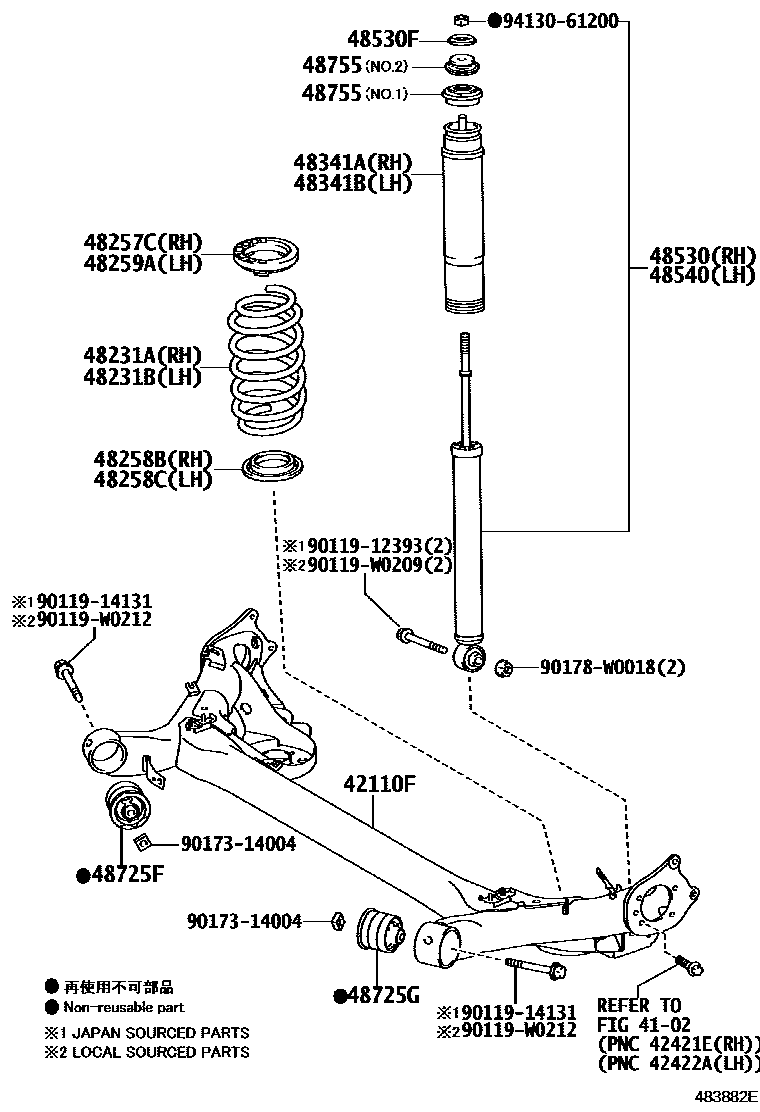

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42101-02270 · 42101-02300 · 42101-02480 · 42101-02490 |
| 48231A | Right rear coil spring | 48231-02D50 · 48231-02D60 · 48231-02D70 · 48231-02D80 · 48231-02J50 · 48231-02J51 · 48231-02J60 · 48231-02J61 |
| 48231B | Left rear coil spring | 48231-02D50 · 48231-02D60 · 48231-02D70 · 48231-02D80 · 48231-02J50 · 48231-02J51 · 48231-02J60 · 48231-02J61 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-0D010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-0D050 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-0D050 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-0D010 |
| 48341A | No. 1 right rear spring buffer block | 48341-02080 |
| 48341B | No. 1 left rear spring buffer block | 48341-02080 |
| 48530 | Right rear shock absorber assembly | 48530-09W70 · 48530-09W71 · 48530-09Y20 · 48530-8Z044 · 48530-8Z045 |
| 48530F | Rear shock absorber buffer pad | 90948-02159 |
| 48540 | Left rear shock absorber assembly | 48530-09W70 · 48530-09W71 · 48530-09Y20 · 48530-8Z044 · 48530-8Z045 |
| 48725F | Right rear axle bracket bushing | 48725-02200 |
| 48725G | Left rear axle bracket bushing | 48725-02200 |
| 48755 | rear suspension mount | 48755-02080 · 48755-02090 · 48755-02121 · 48755-02131 |
