Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

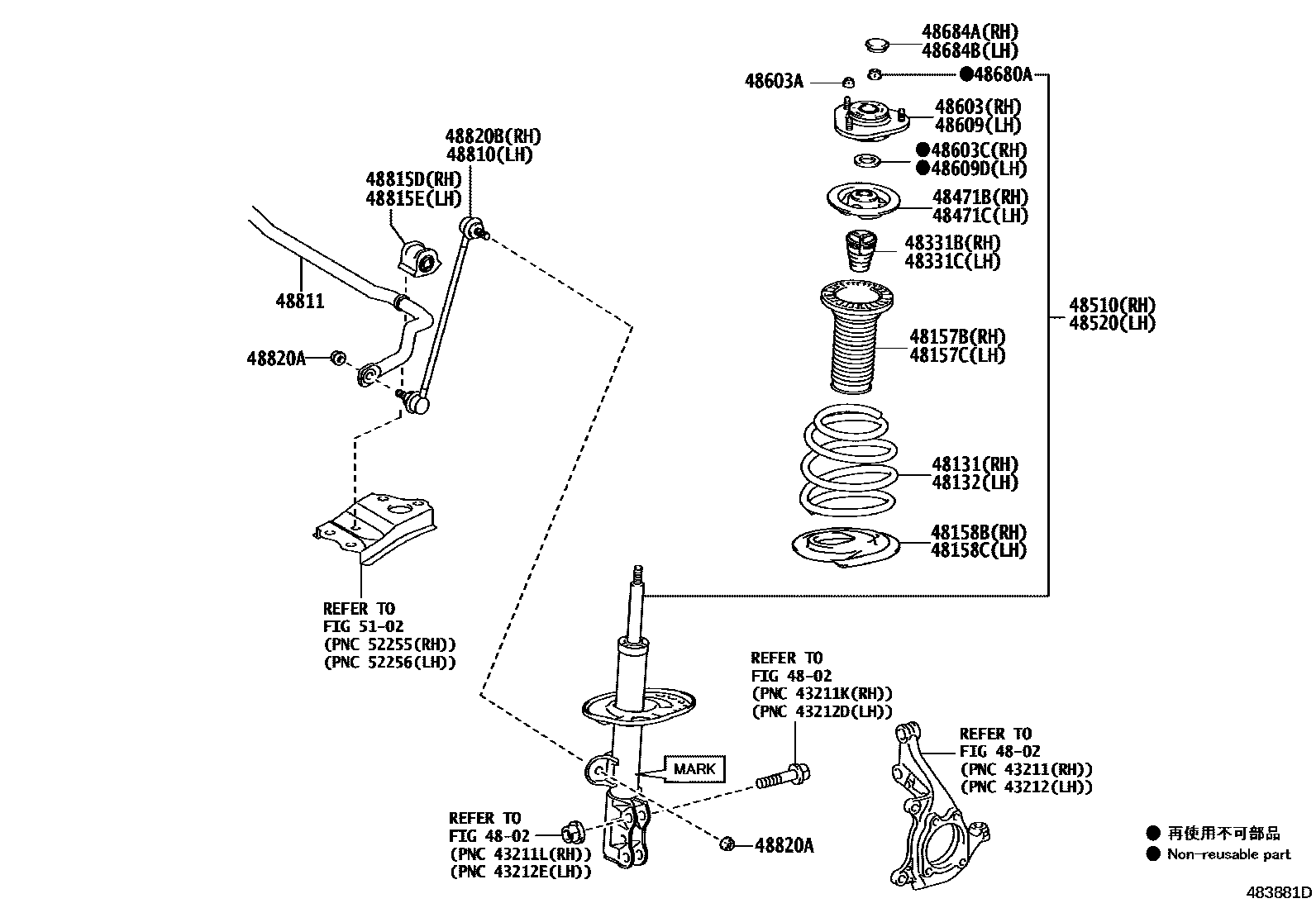

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-02M00 · 48131-02N80 · 48131-02P00 · 48131-02P10 · 48131-02P40 · 48131-02P50 · 48131-02Q00 · 48131-02Q01 · 48131-02Q02 · 48131-02Q20 · 48131-02Q21 · 48131-02Q22 · 48131-02Q30 · 48131-02Q31 · 48131-02Q32 · 48131-02V60 · 48131-02V90 · 48131-02W20 · 48131-02W21 · 48131-02W22 · 48131-02W30 · 48131-02W31 · 48131-02W32 · 48131-02W40 · 48131-02W41 · 48131-02W42 |
| 48132 | Left front coil spring | 48131-02M00 · 48131-02N80 · 48131-02P00 · 48131-02P10 · 48131-02P40 · 48131-02P50 · 48131-02Q00 · 48131-02Q01 · 48131-02Q02 · 48131-02Q20 · 48131-02Q21 · 48131-02Q22 · 48131-02Q30 · 48131-02Q31 · 48131-02Q32 · 48131-02V60 · 48131-02V90 · 48131-02W20 · 48131-02W21 · 48131-02W22 · 48131-02W30 · 48131-02W31 · 48131-02W32 · 48131-02W40 · 48131-02W41 · 48131-02W42 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02170 · 48157-02230 · 48157-02231 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02170 · 48157-02230 · 48157-02231 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02190 · 48158-02230 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02190 · 48158-02230 |
| 48331B | Right front spring buffer block | 48331-02100 |
| 48331C | Left front spring buffer block | 48331-02100 |
| 48471B | Front coil spring upper right seat | 48044-02090 · 48044-02100 |
| 48471C | Front coil spring upper left seat | 48044-02090 · 48044-02100 |
| 48510 | Right front shock absorber assembly | 48510-8Z065 · 48510-8Z094 · 48510-8Z095 · 48510-8Z188 · 48510-8Z236 · 48510-8Z237 · 48510-8Z238 · 48510-8Z290 · 48510-8Z291 · 48510-8Z292 |
| 48520 | Left front shock absorber assembly | 48520-09Y20 · 48520-09Y21 · 48520-8Z005 · 48520-8Z006 · 48520-8Z101 · 48520-8Z102 · 48520-8Z103 · 48520-8Z148 · 48520-8Z149 · 48520-8Z150 |
| 48603 | Right front suspension bearing sub-assembly | 48609-02240 |
| 48603A | Nut (for front suspension mount) | 90178-10030 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 |
| 48609 | Left front suspension bearing sub-assembly | 48609-02240 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 |
| 48680A | Nut (for front mount to front shock absorber) | 90177-14005 · 90177-14007 · 90179-14015 |
| 48684A | Right front suspension support dust cover | 48684-05020 |
| 48684B | Left front suspension support dust cover | 48684-05020 |
| 48810 | Left front stabilizer bar link assembly | 48820-02070 |
| 48811 | front stabilizer bar | 48811-02210 · 48811-02300 |
| 48815D | Right front stabilizer bar bushing | 48815-02150 · 48815-05160 |
| 48815E | Left front stabilizer bar bushing | 48815-02140 · 48815-05170 |
| 48820A | Nut (for front stabilizer bar link) | 90178-W0051 · 90179-12151 · 94151-21241 |
| 48820B | Right front stabilizer bar link assembly | 48820-02070 |
