Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707

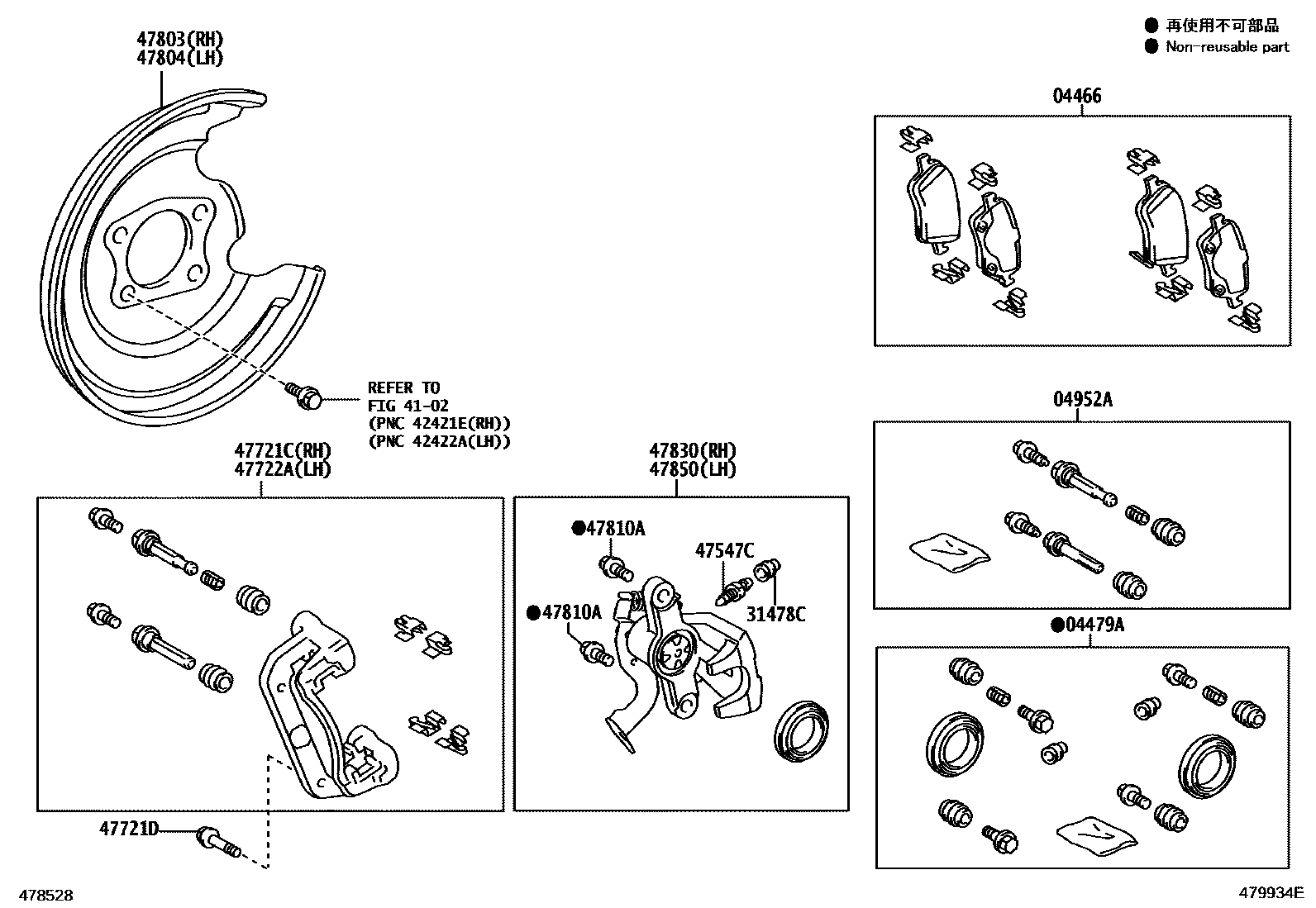

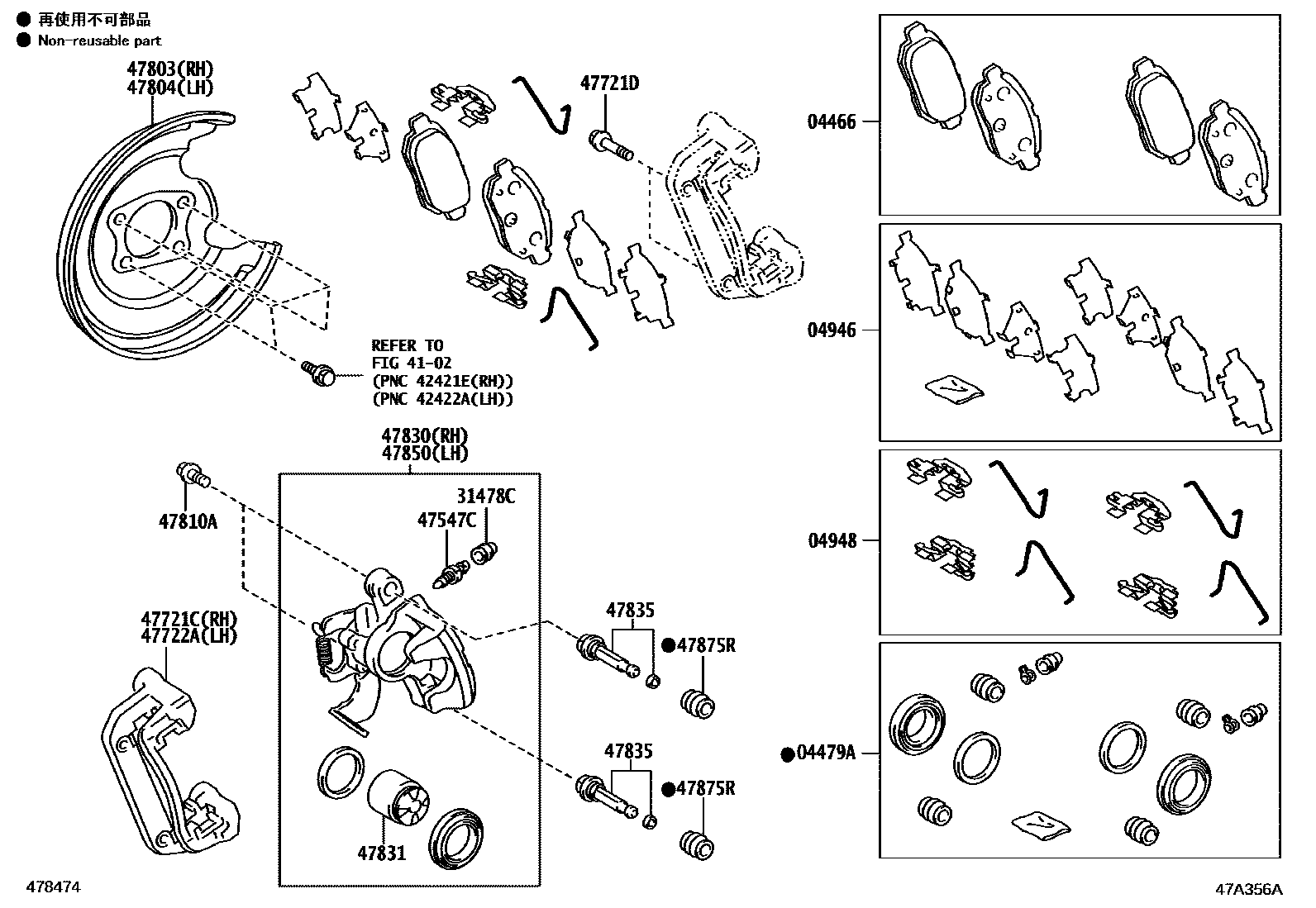

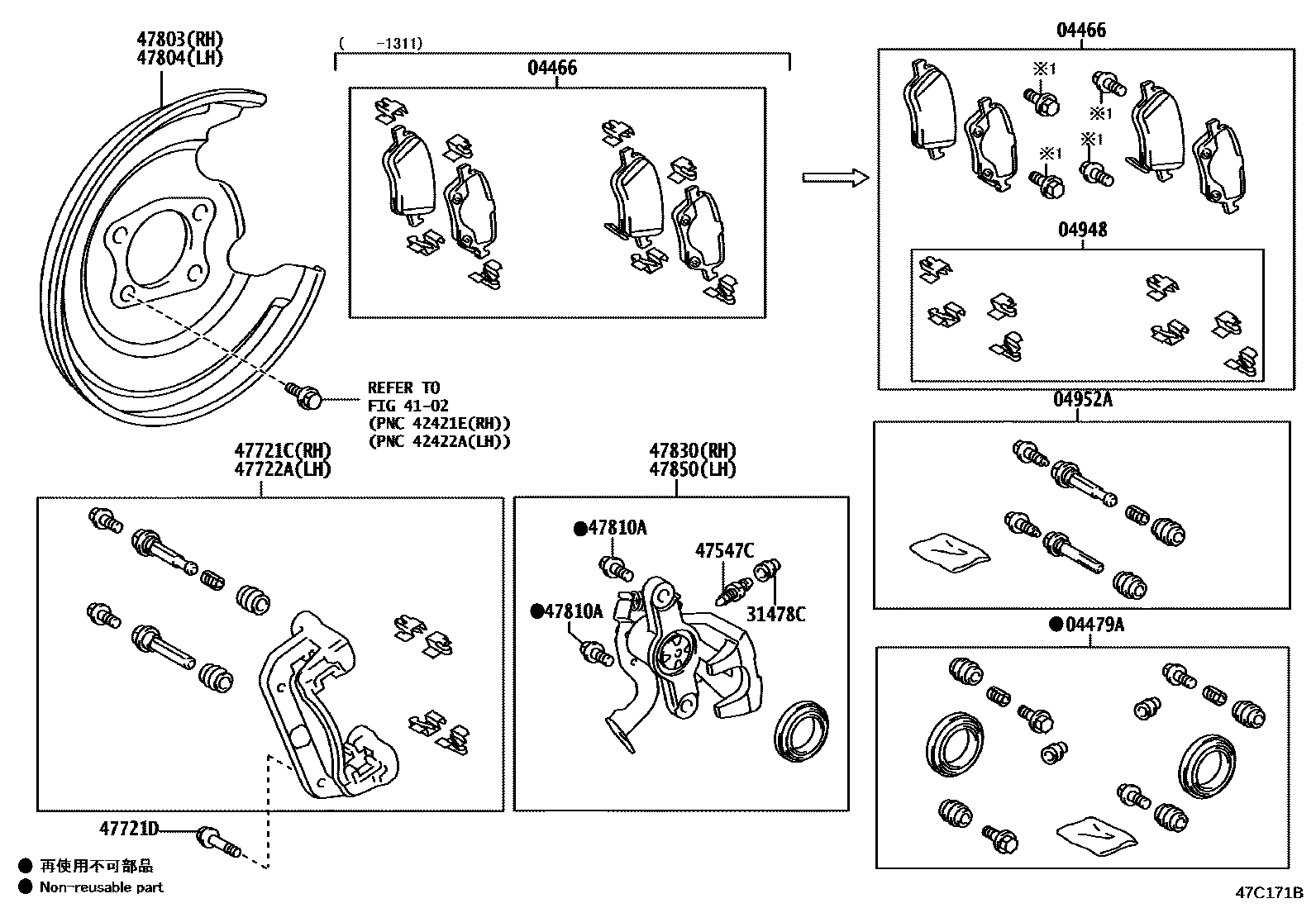

Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-02181 · 04466-02290 · 04466-02291 · 04466-02292 · 04466-02350 · 04466-47080 |
| 04479A | Rear disc brake cylinder assembly | 04479-02310 · 04479-52170 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-47070 |
| 04948 | Rear disc brake mounting assembly | 04948-02130 · 04948-47010 |
| 04952A | Rear disc brake cylinder sliding pin assembly | 04952-02220 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-52010 · 90069-39001 |
| 47547C | Bleed plug (for rear disc brake) | 47847-52050 · 90069-39000 |
| 47721C | Right rear disc brake cylinder retainer | 47821-09020 · 47821-09081 · 47821-09082 · 47821-12151 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90105-10576 |
| 47722A | Left rear disc brake cylinder retainer | 47821-12151 · 47822-09020 · 47822-09081 · 47822-09082 |
| 47803 | Right rear disc brake dust cover sub-assembly | 47881-02120 |
| 47804 | Left rear disc brake dust cover sub-assembly | 47882-02120 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 47715-05060 · 90015-AA102 |
| 47830 | Right rear disc brake cylinder assembly | 47830-02100 · 47830-02101 · 47830-12250 |
| 47831 | rear disc brake piston | 47831-52090 |
| 47835 | Rear disc brake pad guide pin | 47835-12150 |
| 47850 | Left rear disc brake cylinder assembly | 47850-02100 · 47850-02101 · 47850-12250 |
| 47875R | Bushing boot (for rear disc brake) | 47875-12150 |
