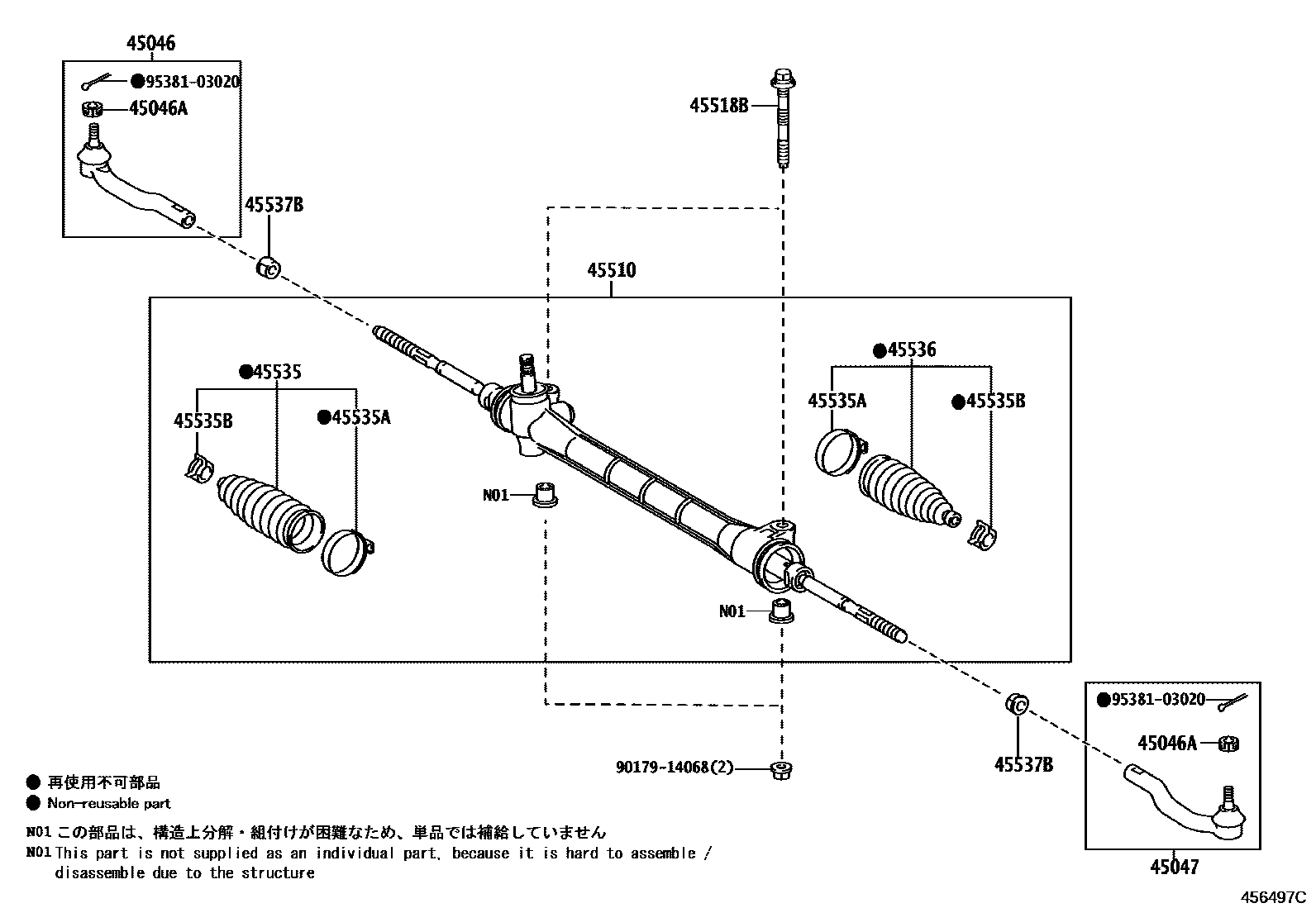

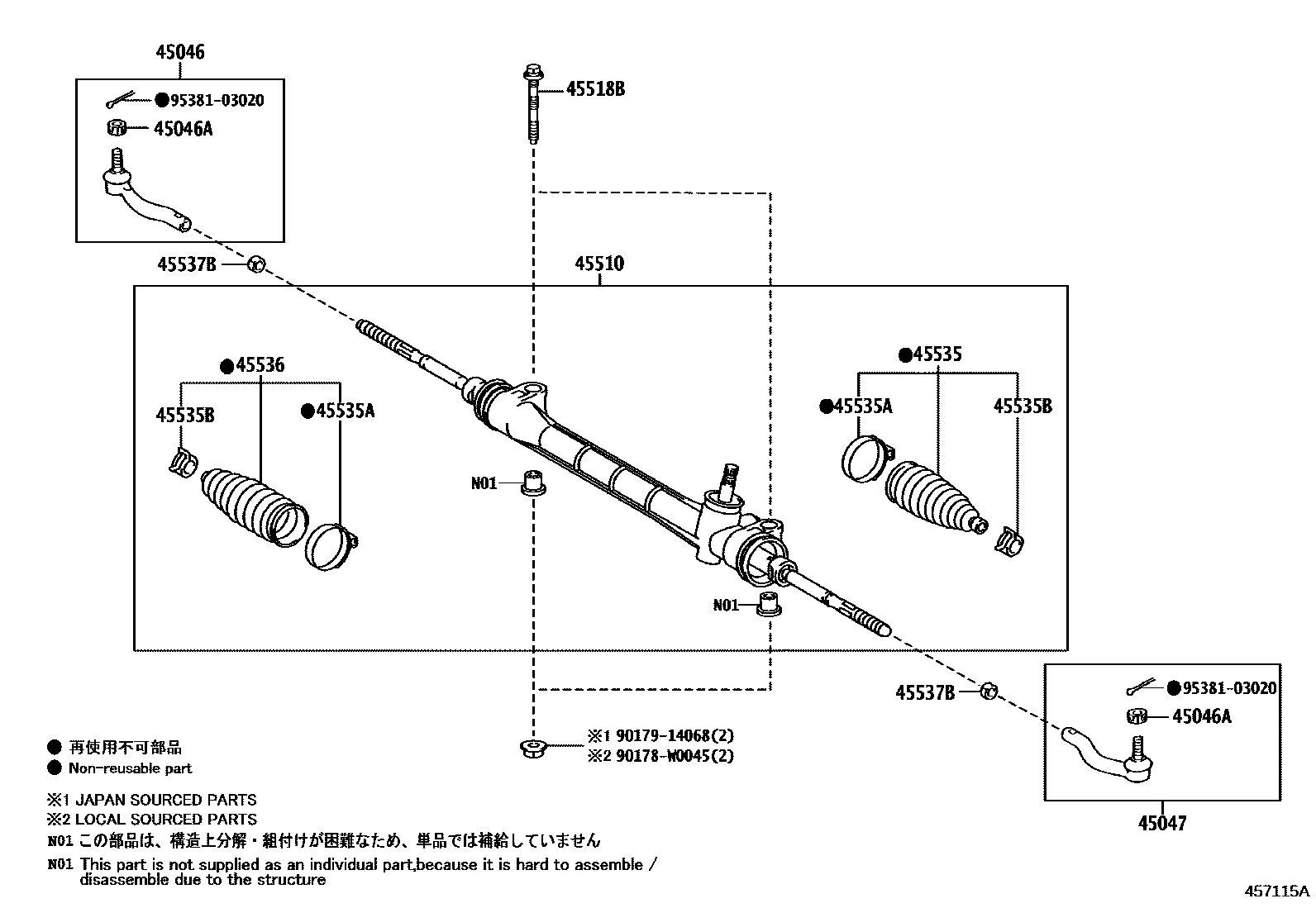

Toyota COROLLA 前转向齿轮和连杆 — Figure 4505
Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45046 | Right tie rod end sub-assembly | 45046-09570 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45047-09270 |
| 45510 | Steering gear assembly | 45510-02700 · 45510-02710 |
| 45518B | Steering rack housing bolts | 90119-14129 · 90119-14156 |
| 45535 | No. 1 steering rack dust cover | 45535-09120 · 45535-09440 |
| 45535A | Clamp (for steering rack dust boot) | 45538-05010 · 45538-47010 |
| 45535B | Clamp (for steering rack dust boot) | 45537-02010 |
| 45536 | No. 2 steering rack dust cover | 45535-09120 · 45535-09440 |
| 45537B | Rack end lock nut | 90179-15006 |
