Toyota COROLLA Steering Column & Shaft — Figure 4501

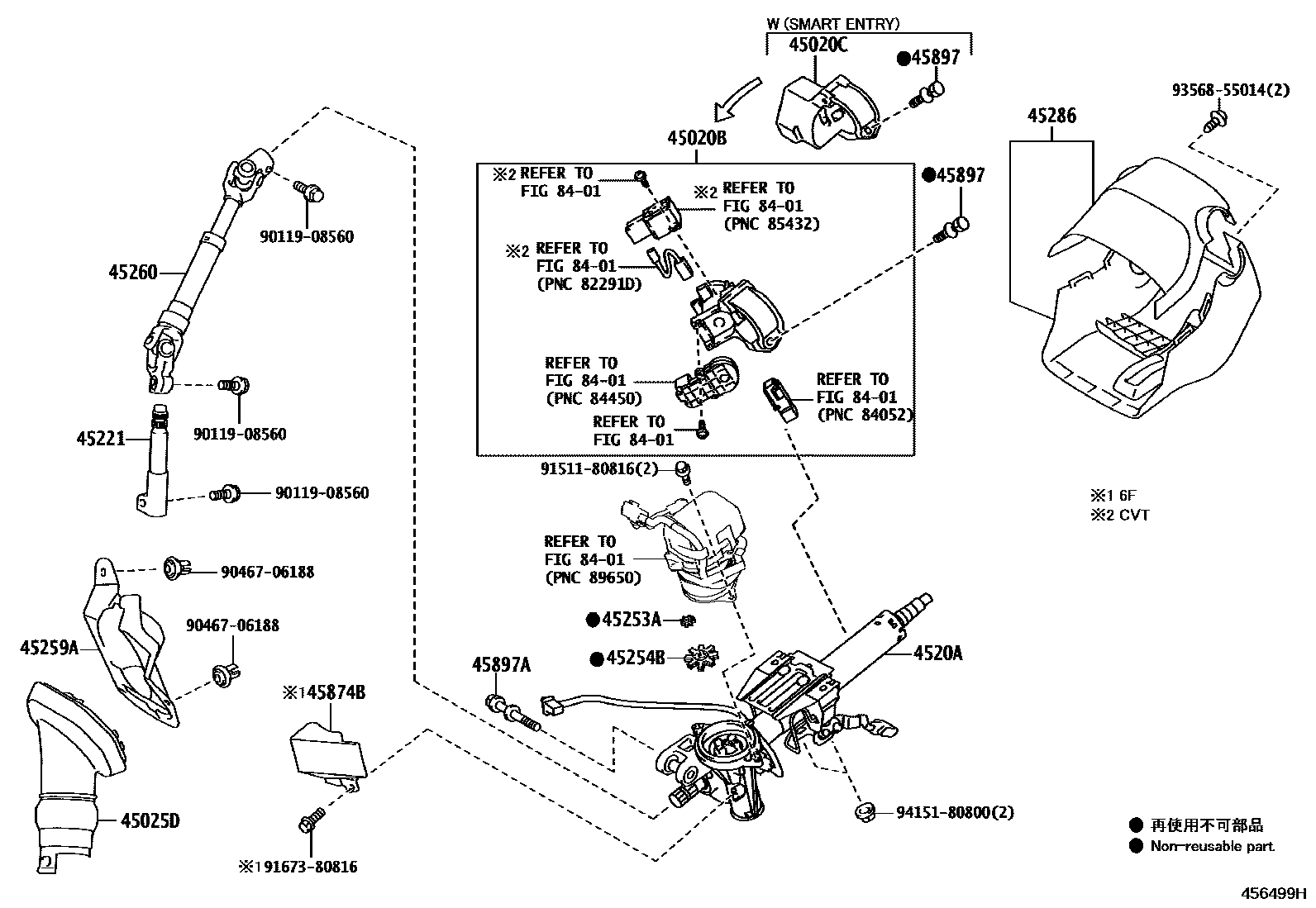

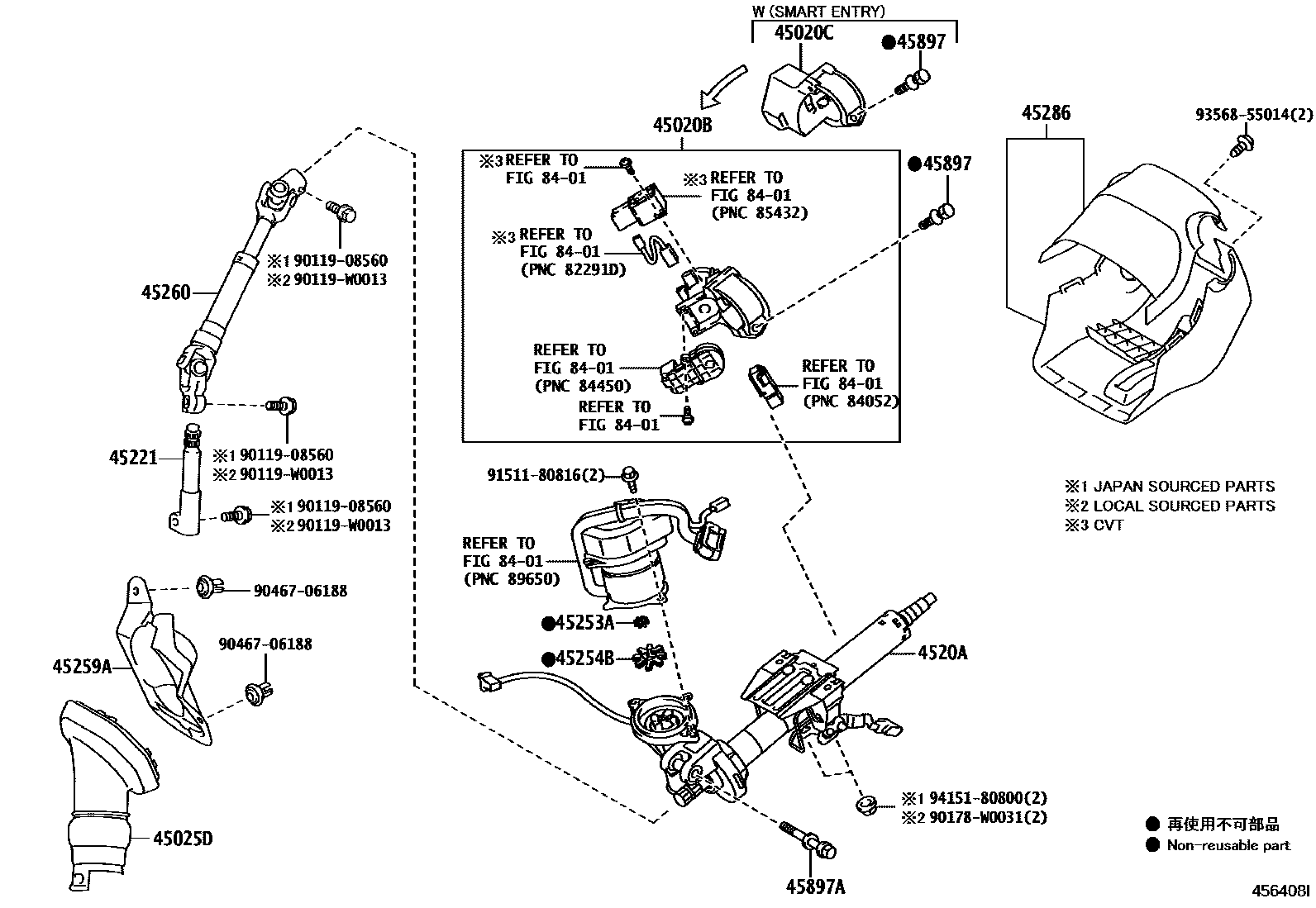

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | Steering lock actuator or upper bracket assembly | 45020-02460 · 45020-02480 · 45020-02650 · 45020-02760 |
| 45020C | Steering lock actuator assembly with ECU | 45020-0D120 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-02080 · 45025-02090 |
| 4520A | Electric steering column sub-assembly | 4520A-02130 · 4520A-02131 · 4520A-02132 · 4520A-02140 · 4520A-02141 · 4520A-02142 · 4520A-02143 · 4520A-02150 · 4520A-02151 · 4520A-02152 · 4520A-02153 · 4520A-02160 · 4520A-02161 · 4520A-02162 · 4520A-02163 |
| 45221 | steering intermediate shaft | 45221-02100 |
| 45253A | Electric steering motor shaft spacer | 45253-28130 |
| 45254B | Electric steering motor shaft shock absorber | 45254-28040 |
| 45259A | Steering column hole cover silencer plate | 45259-02070 · 45259-02080 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02160 |
| 45874B | No. 1 steering column guard | 45874-02040 |
| 45897 | Steering lock fixing bolt | 45897-12020 · 45897-12050 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10981 · 90119-W0215 |
