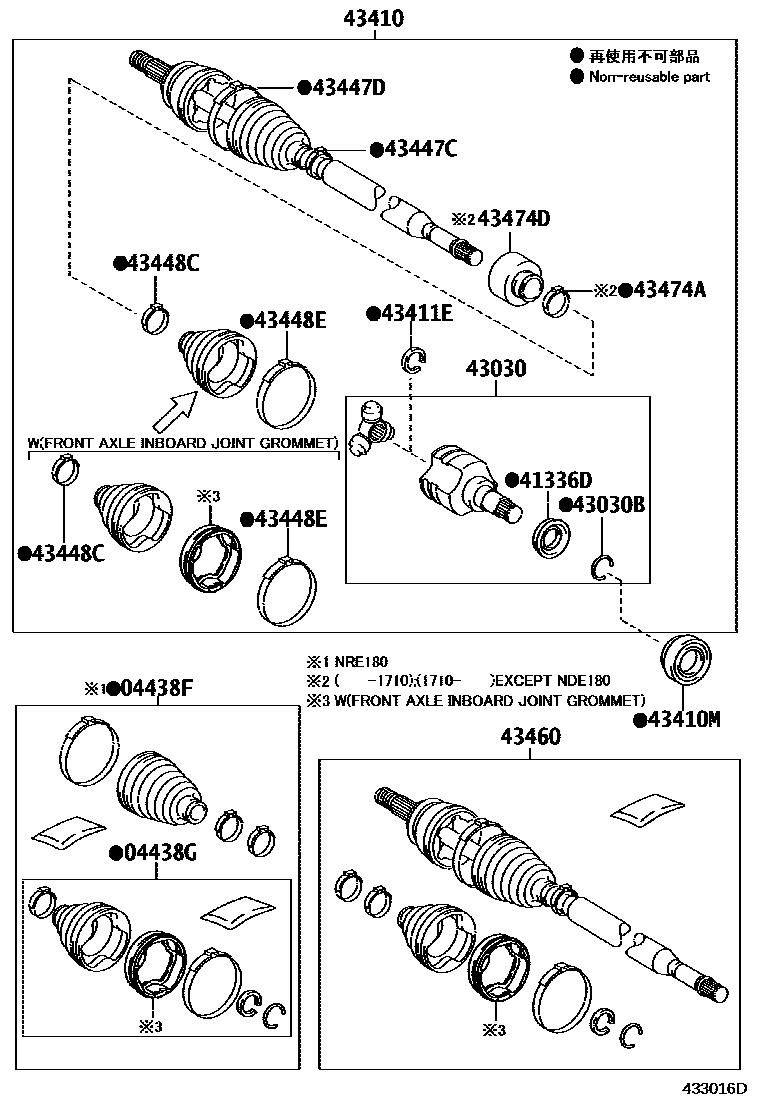

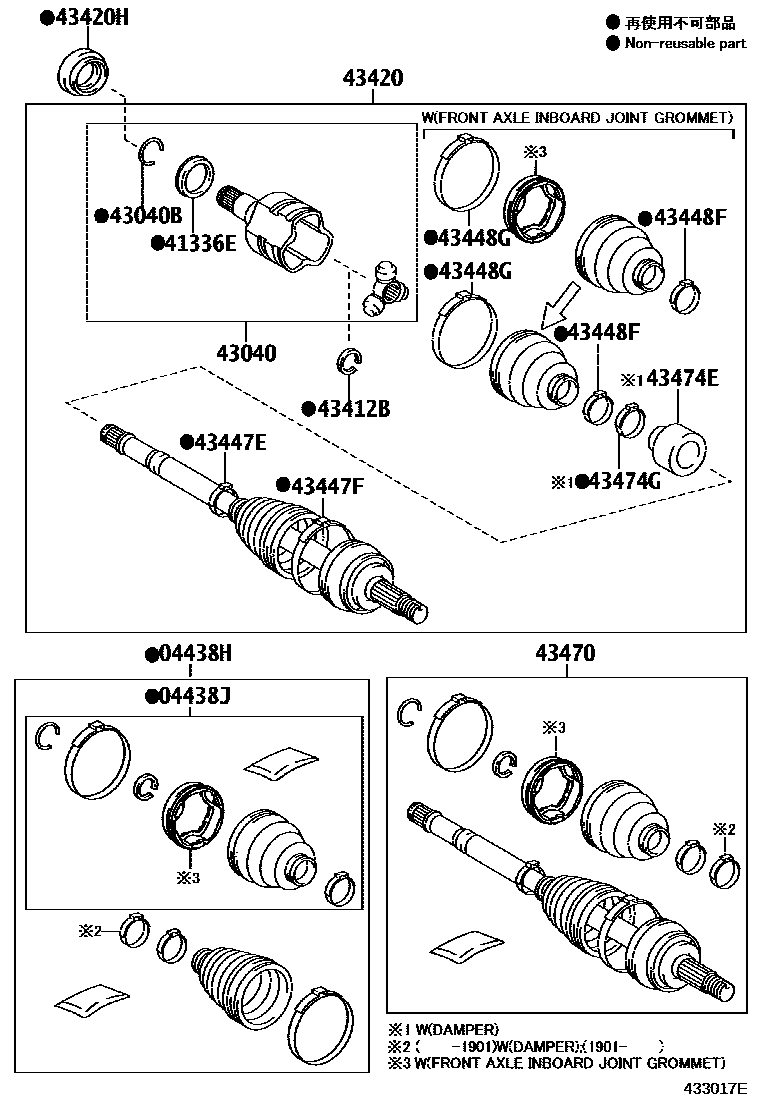

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 3 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-02580 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02420 · 04437-02430 · 04437-0F010 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-02580 · 04428-02651 · 04428-02661 · 04428-02670 · 04428-02850 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02420 · 04437-02430 · 04437-0F010 · 04438-02580 · 04438-02590 |
| 41336D | Right front driveshaft dust cover | 41336-05010 · 41336-05140 |
| 41336E | Left front driveshaft dust cover | 41336-05010 · 41336-05140 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-02030 · 43040-02450 · 43040-02620 · 43040-05150 · 43040-0F020 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90080-52055 · 90080-52056 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02030 · 43040-02630 · 43040-05150 · 43040-0D010 · 43040-0D011 · 43040-0F020 · 43040-0F030 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90080-52055 · 90080-52056 |
| 43410 | Right front driveshaft assembly | 43410-02820 · 43410-02830 · 43410-02B50 · 43410-02F70 · 43410-02G30 · 43410-0F041 · 43410-0F042 · 43410-0F090 |
| 43410M | Front drive shaft right oil seal | 90311-34041 · 90311-34054 · 90311-35055 · 90311-35065 · 90311-35069 · 90311-35076 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-05080 · 43425-05120 · 90080-52093 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-02260 · 43425-05080 · 43425-05110 · 43425-05120 · 90080-52093 |
| 43420 | Left front drive shaft assembly | 43420-02A30 · 43420-02A40 · 43420-02B20 · 43420-02B30 · 43420-02B40 · 43420-02B50 · 43420-02D30 · 43420-02D40 · 43420-02D50 · 43420-02D60 · 43420-02D70 · 43420-02D80 · 43420-02E60 · 43420-02F00 · 43420-02K60 · 43420-02L20 |
| 43420H | Front drive shaft left oil seal | 90311-35066 · 90311-35068 · 90311-35075 · 90311-35080 · 90311-W0016 · 90311-W0023 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02110 · 42345-02C50 · 42345-05140 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02100 · 42345-02C60 · 42345-05130 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02110 · 42345-02C50 · 42345-05140 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02100 · 42345-02C60 · 42345-05130 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02240 · 42345-02C50 · 42345-05340 · 42345-0F060 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02G70 · 42345-05030 · 42345-05320 · 42345-0F050 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02090 · 42345-02240 · 42345-02C50 · 42345-05100 · 42345-05340 · 42345-0F060 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02040 · 42345-05030 · 42345-05130 · 42345-05300 · 42345-05320 · 42345-0F050 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09U11 · 43460-09V80 · 43460-09V90 · 43460-09X30 · 43460-09X50 · 43460-09X60 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-8Z046 · 43470-8Z050 · 43470-8Z225 · 43470-8Z226 · 43470-8Z227 · 43470-8Z229 · 43470-8Z230 · 43470-8Z231 · 43470-8Z232 · 43470-8Z267 · 43470-8Z277 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-02230 · 42345-05370 |
| 43474D | Right front driveshaft shock absorber | 43474-02150 · 43474-02400 · 43474-02420 |
| 43474E | Left front driveshaft shock absorber | 43474-02410 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-0D770 |
