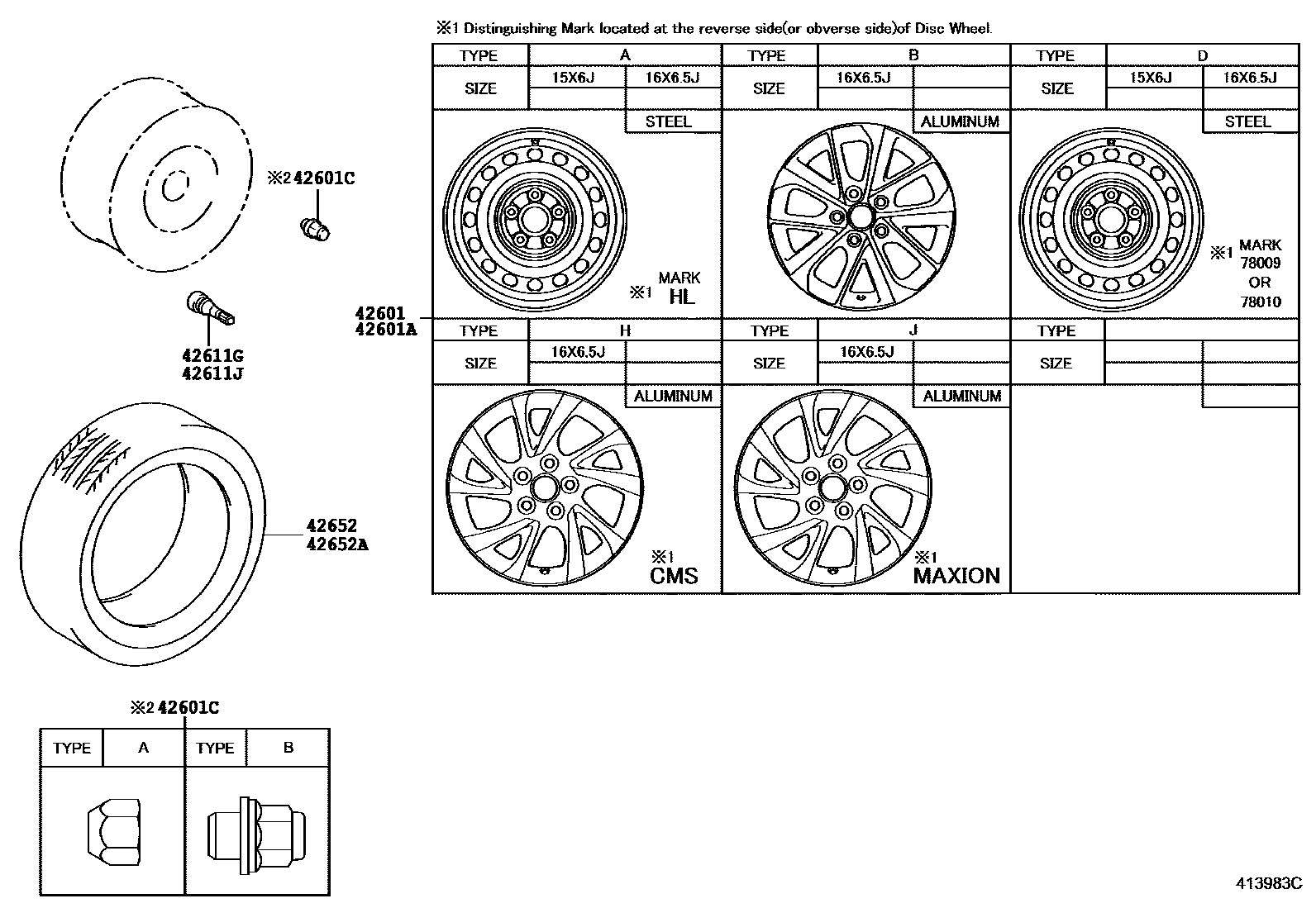

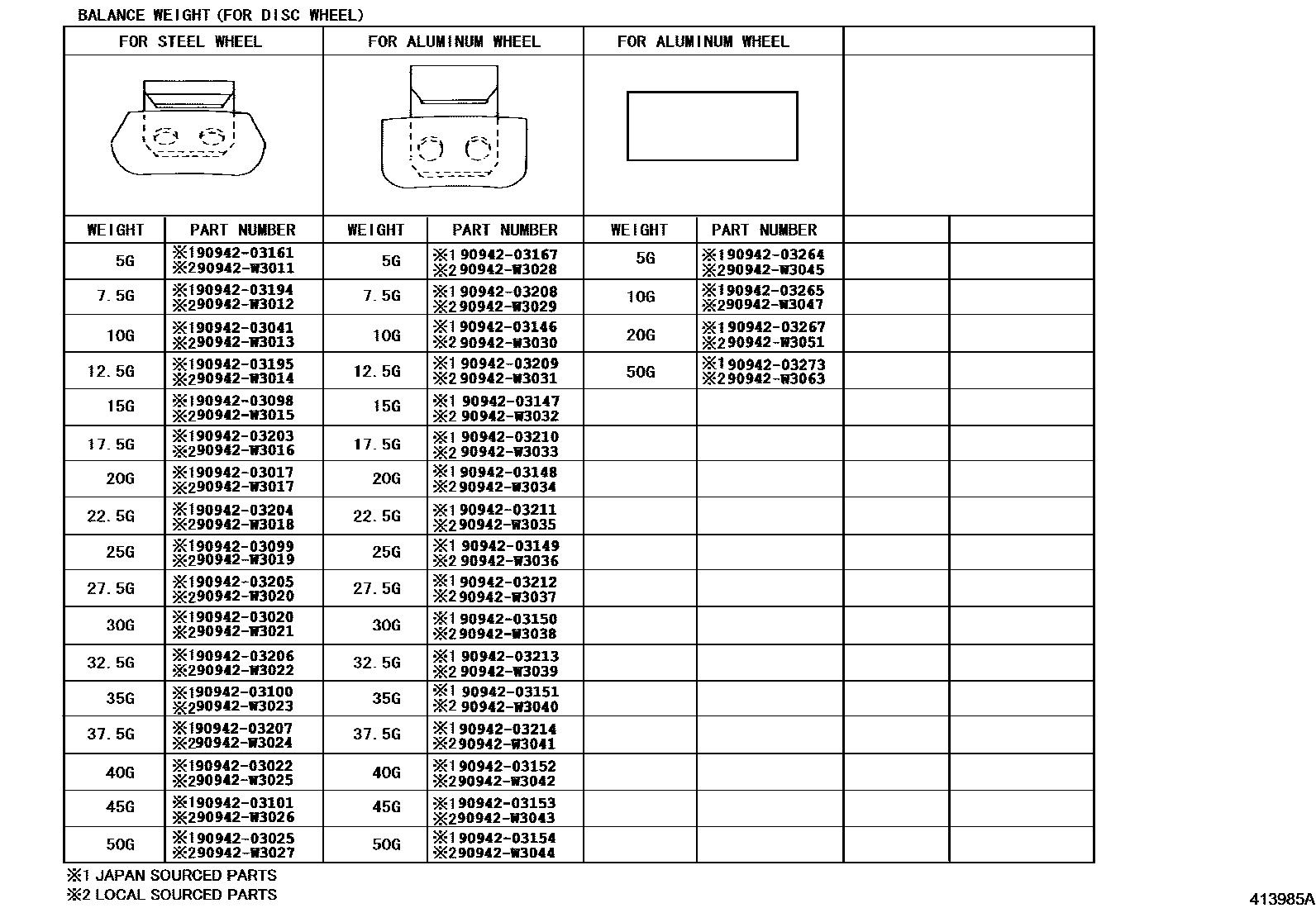

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-02B90 · 42611-02E60 · 42611-02E70 · 42611-02E90 · 42611-02F10 · 42611-02F90 · 42611-02G00 · 42611-02G10 · 42611-02L80 · 42611-02M60 · 42611-02S00 |
| 42601A | Spoke wheel (for spare tire) | 42611-02B90 · 42611-02E60 · 42611-02E70 · 42611-02E90 · 42611-02F10 · 42611-02F90 · 42611-02G00 · 42611-02G10 · 42611-02L80 · 42611-02M60 · 42611-02S00 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |

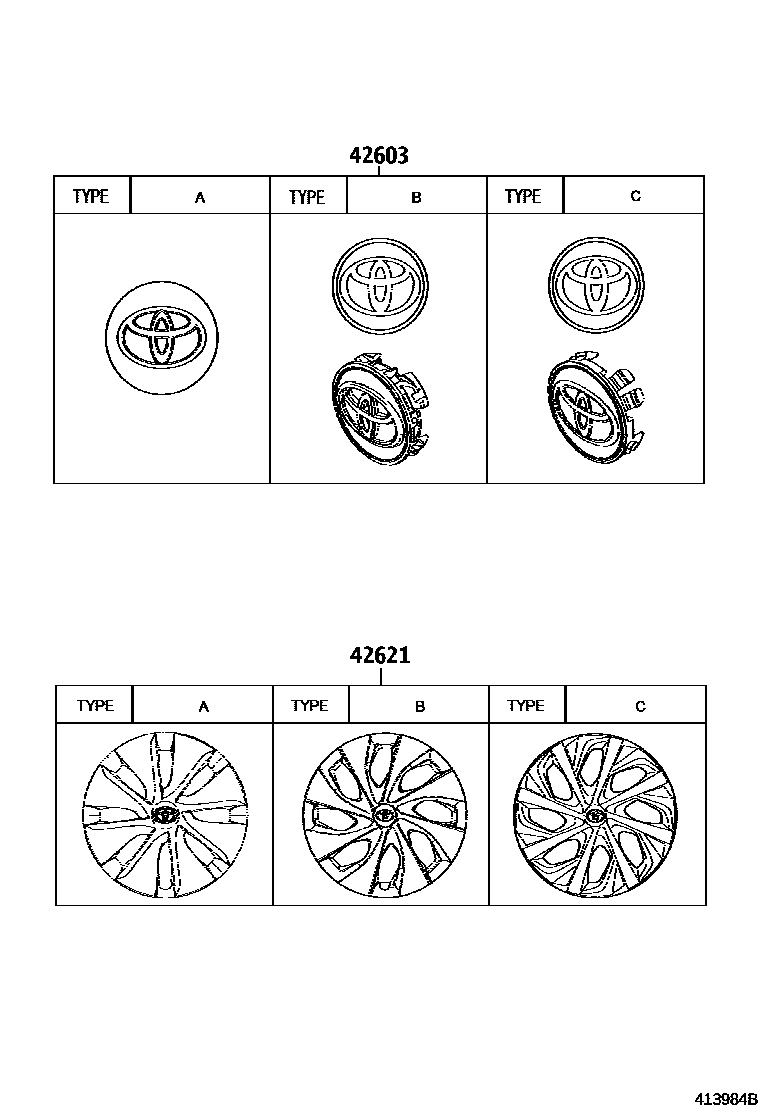

| 42603 | Wheel hub decorative parts sub-assembly | 42603-02300 · 42603-12760 · 42603-42130 · 42603-48140 |
| 42611G | Valve (for tubeless tires) | 90080-94180 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-94180 · 90942-05009 |
| 42621 | wheel cover | 42602-02340 · 42602-02410 · 42602-02510 |
| 42652 | tires | 42652-02C51 · 42652-02D31 · 42652-02E40 · 42652-02E50 · 42652-02E70 · 42652-02F00 · 42652-02K20 · 42652-02K30 |
| 42652A | Tire (for Spare Wheel) | 42652-02C51 · 42652-02D31 · 42652-02E40 · 42652-02E50 · 42652-02E70 · 42652-02F00 · 42652-02K20 · 42652-02K30 |
