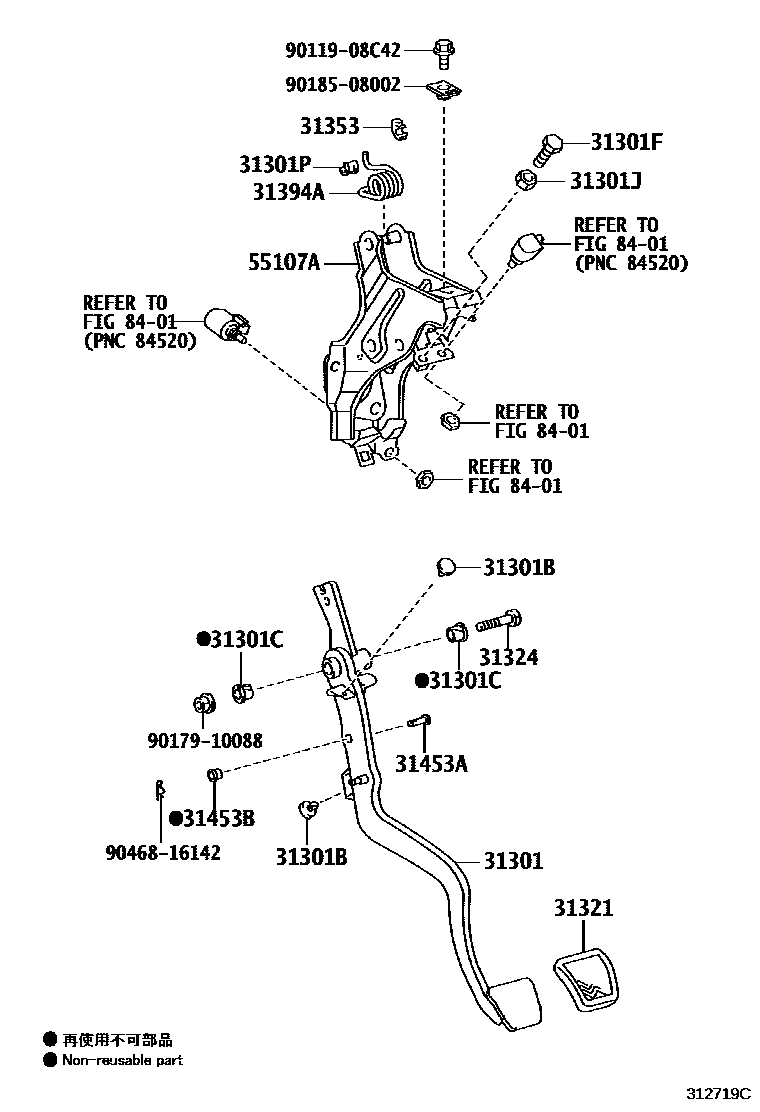

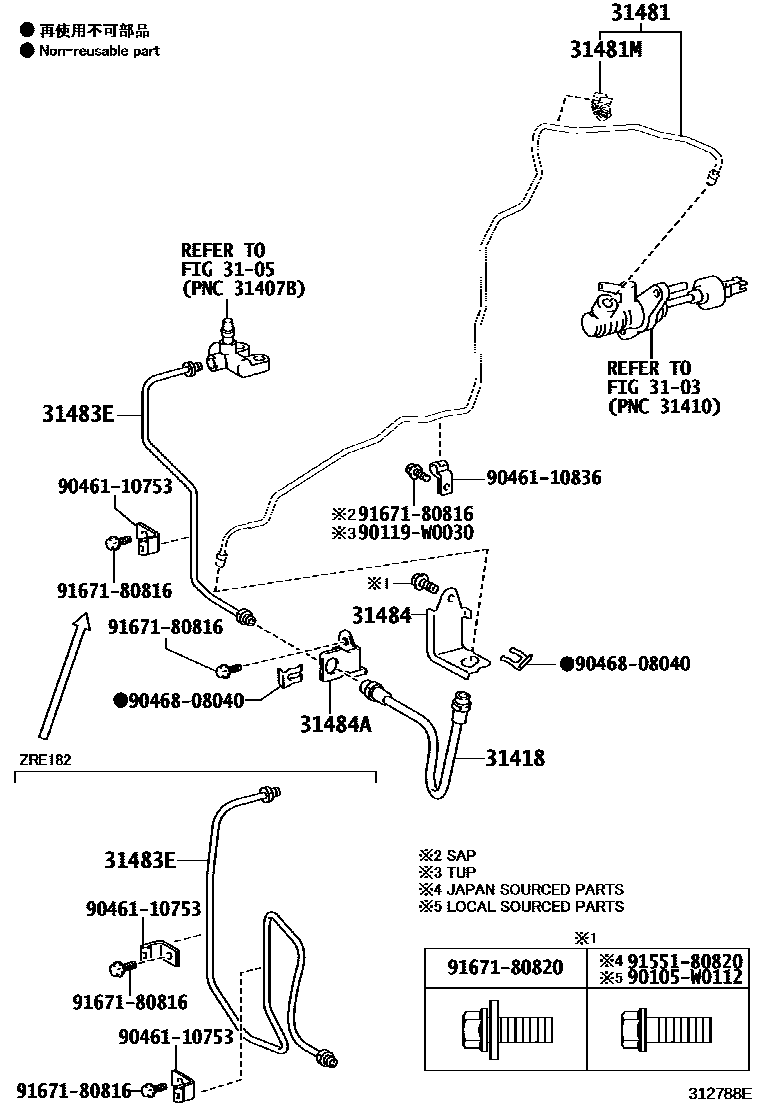

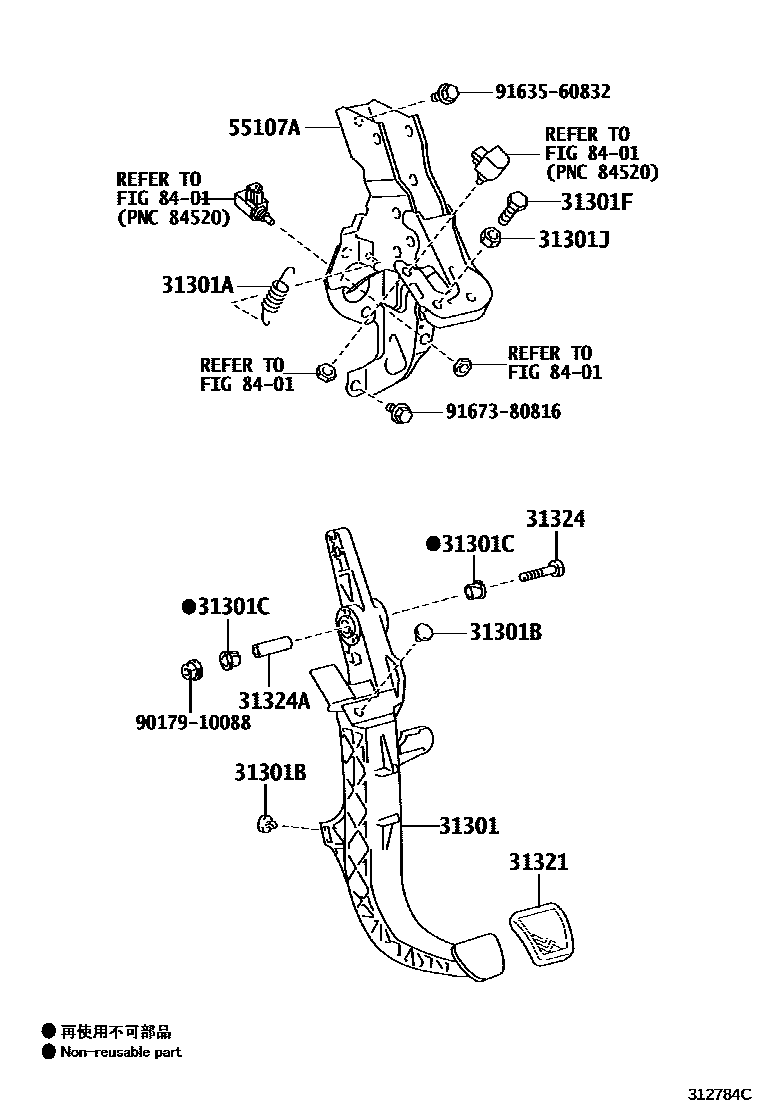

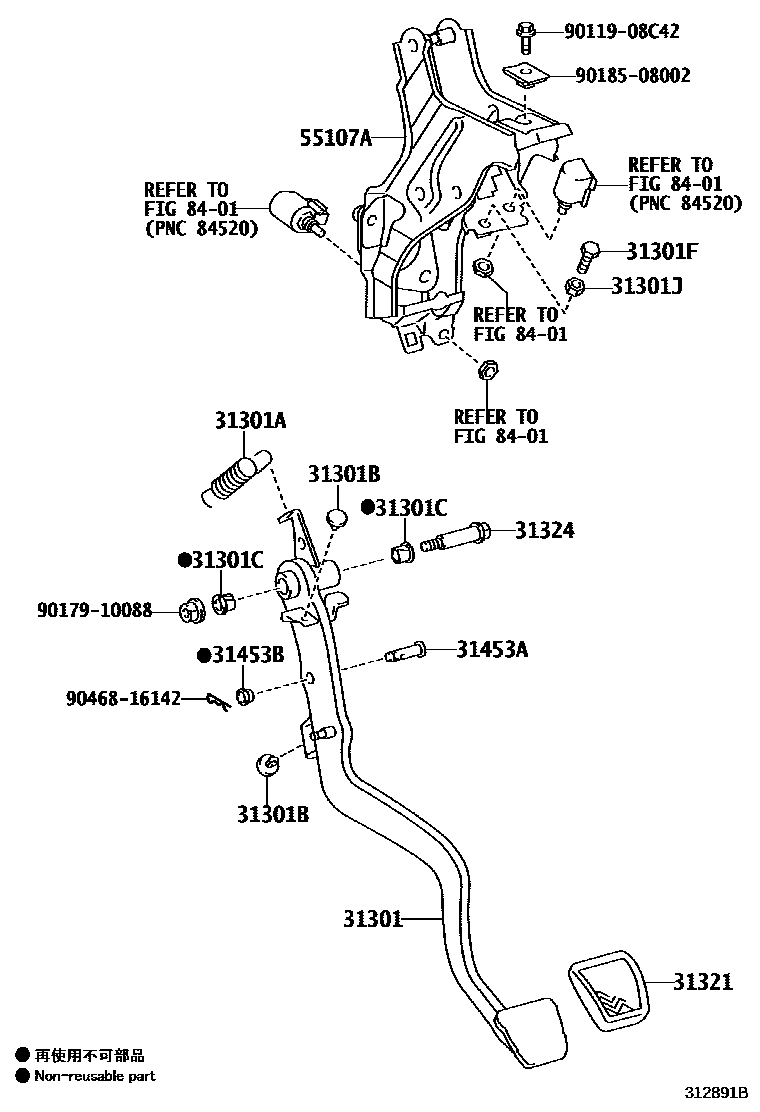

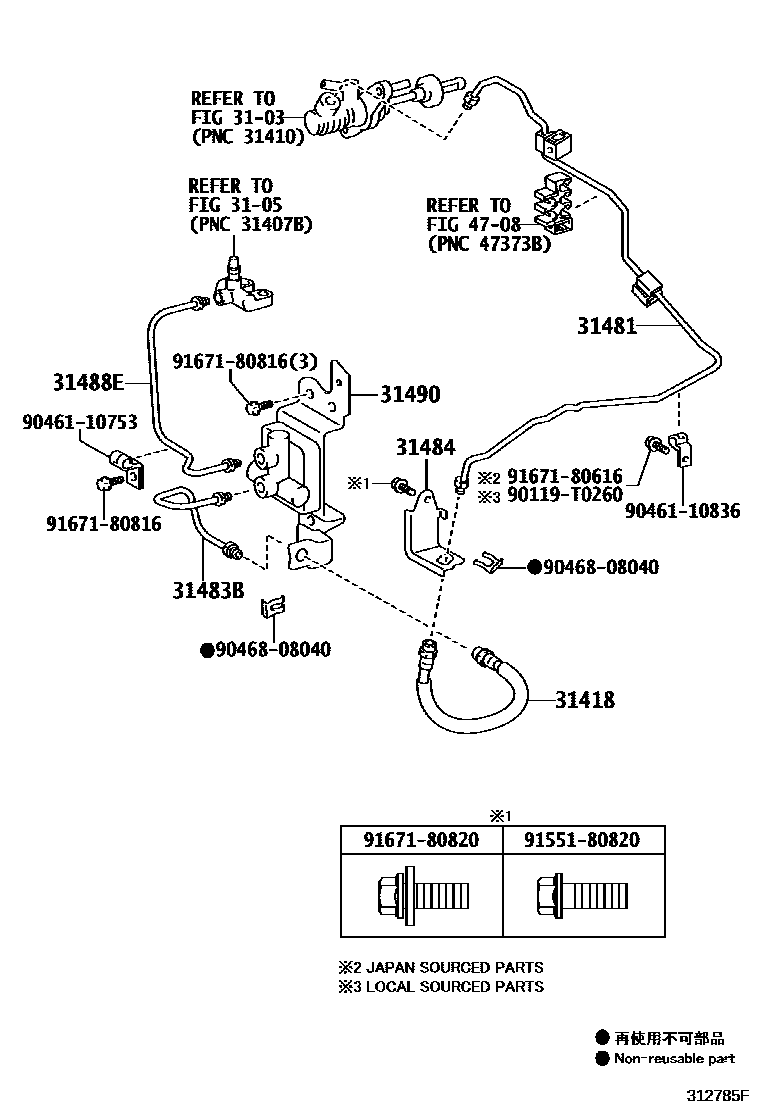

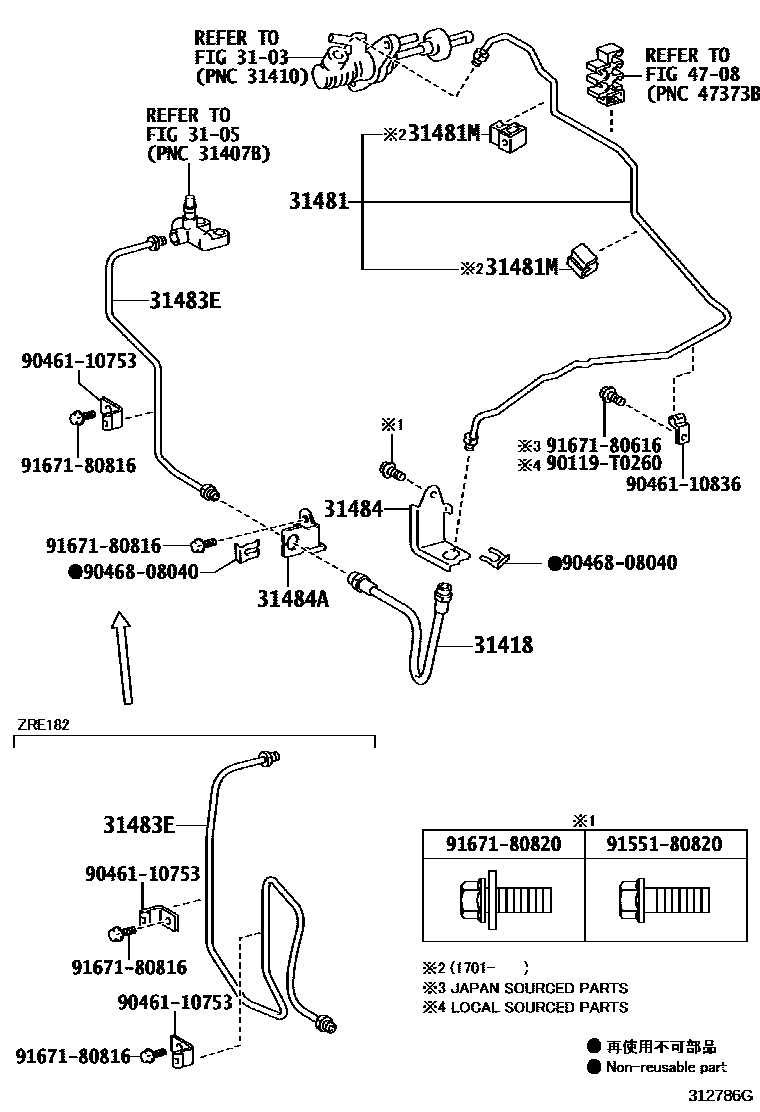

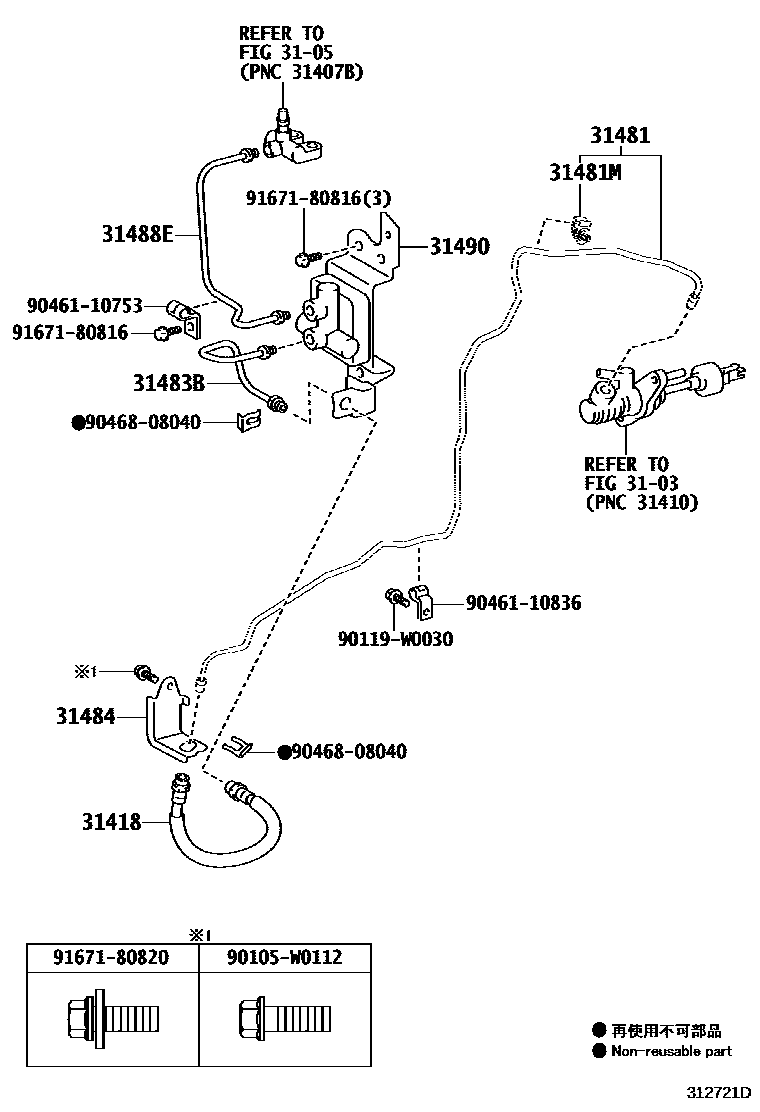

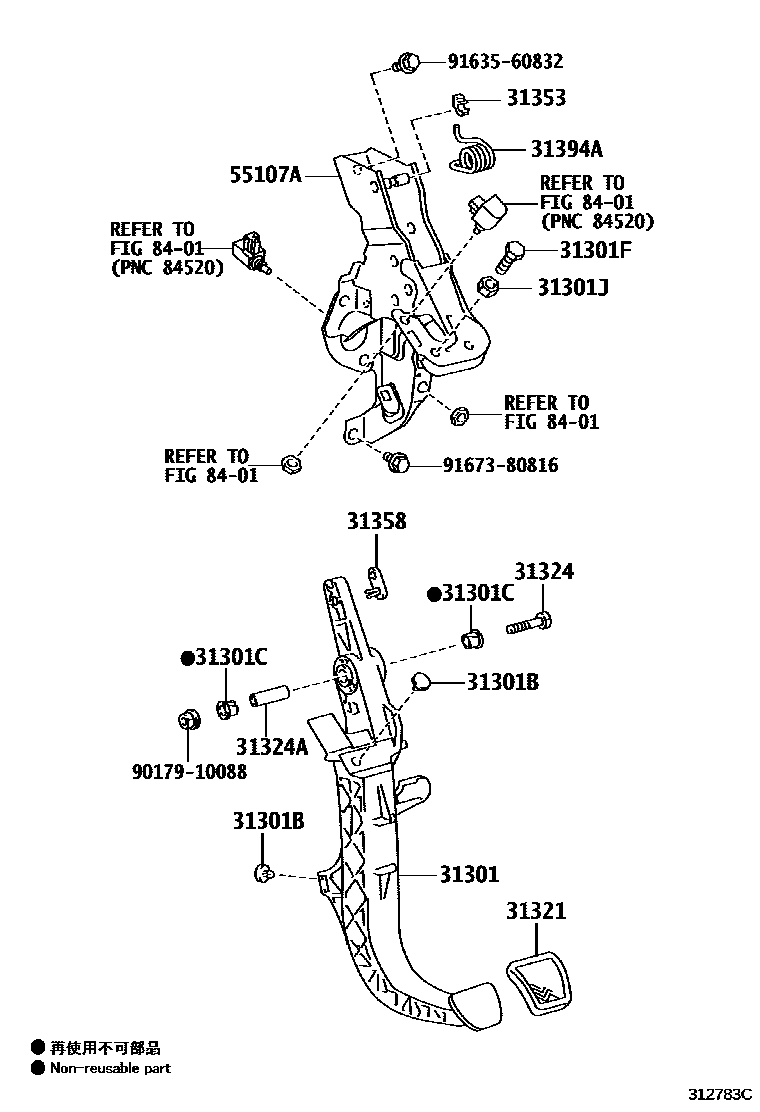

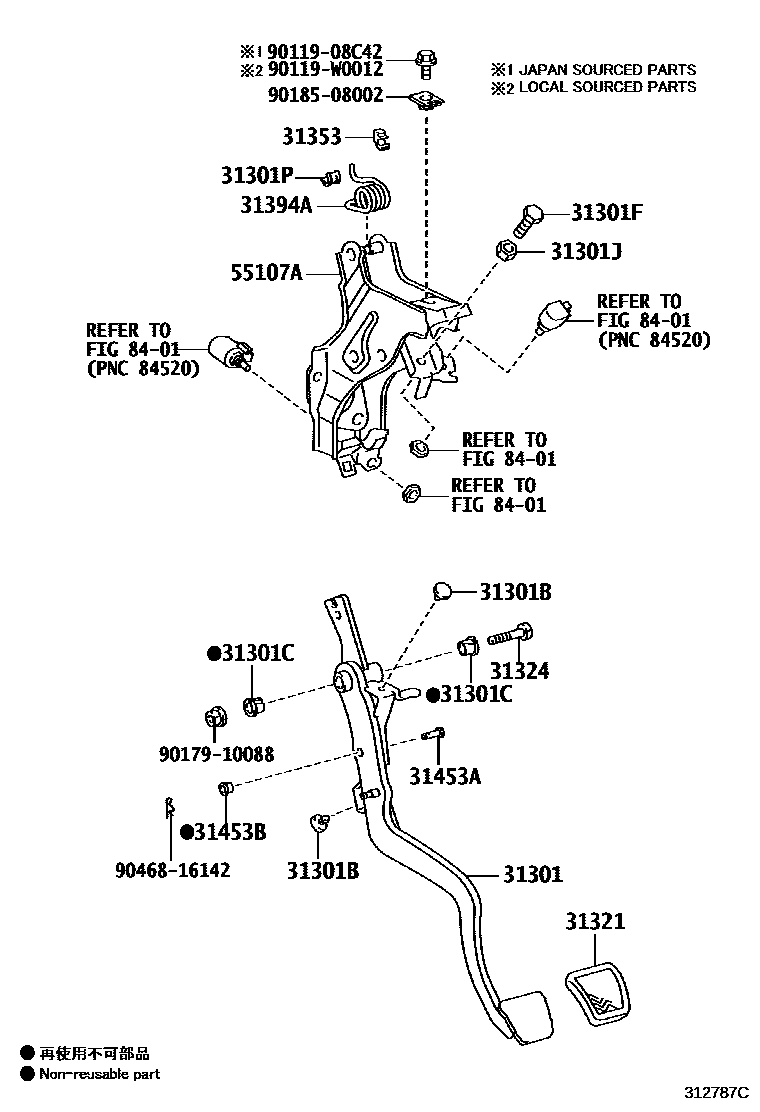

Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102
Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 9 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-0F081 · 31301-0F141 · 31301-12620 · 31311-12371 |
| 31301A | Spring (for clutch pedal) | 90507-14047 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 · 90541-W0002 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10055 · 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 46441-12020 · 94130-61000 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31321 | clutch pedal pad | 31321-42010 |
| 31324 | clutch pedal shaft | 90101-10039 · 90109-10167 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31353 | Clutch pedal spring retainer | 31353-0F010 · 31353-26010 |
| 31358 | center spring cover | 31358-42010 |
| 31394A | Pedal spring with hook | 31394-0F020 · 31394-12060 · 31394-12080 |
| 31418 | clutch hose | 90947-W2019 · 90947-W2041 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08256 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08033 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-02230 · 31481-02250 · 31481-02260 · 31481-02370 |
| 31481M | Clamp (for clutch master cylinder tube) | 90949-01C82 · 90949-01D46 |
| 31483B | Accumulator to flexible hose pipe | 31483-02250 · 31483-02260 |
| 31483E | Clutch release bleeder pipe | 31483-02270 · 31483-02280 · 31483-05040 |
| 31484 | Flexible hose bracket (for clutch) | 31484-02090 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-05030 |
| 31488E | Pipe from bleeder to accumulator | 31488-02010 |
| 31490 | Clutch pressure accumulator assembly | 31490-12110 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-0F061 · 55107-0F071 · 55107-12271 · 55107-12291 · 55107-12301 |
