Toyota COROLLA 离合器和分离叉 — Figure 3101

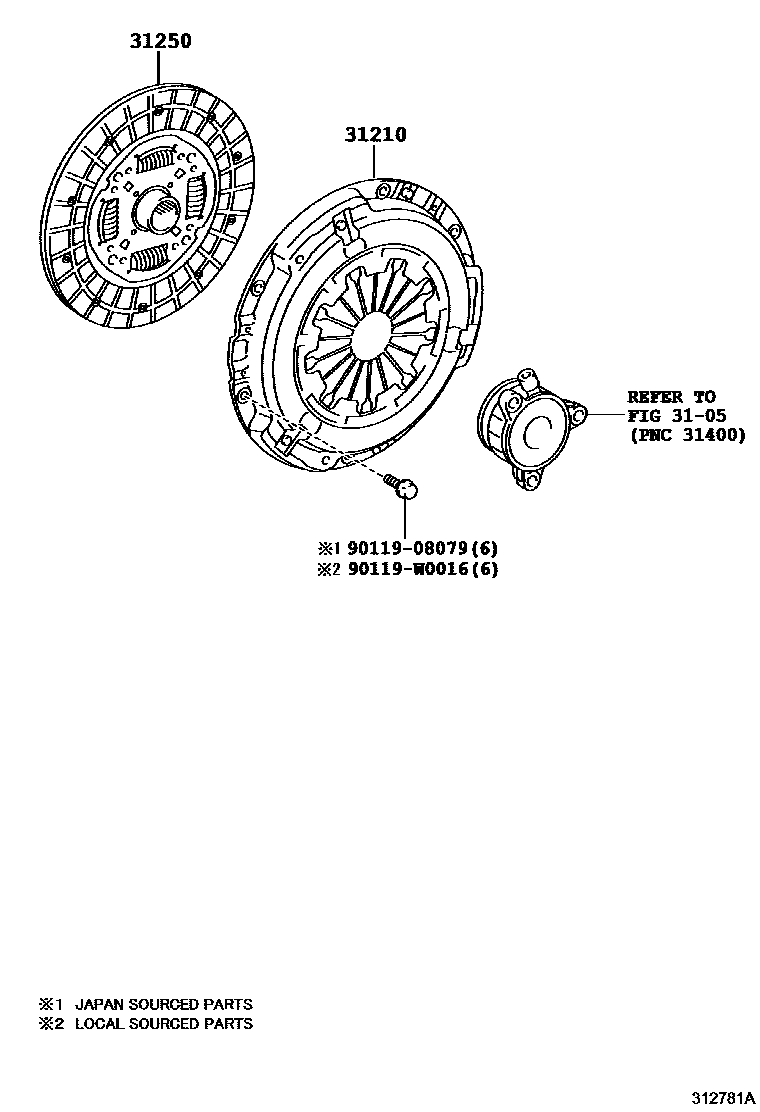

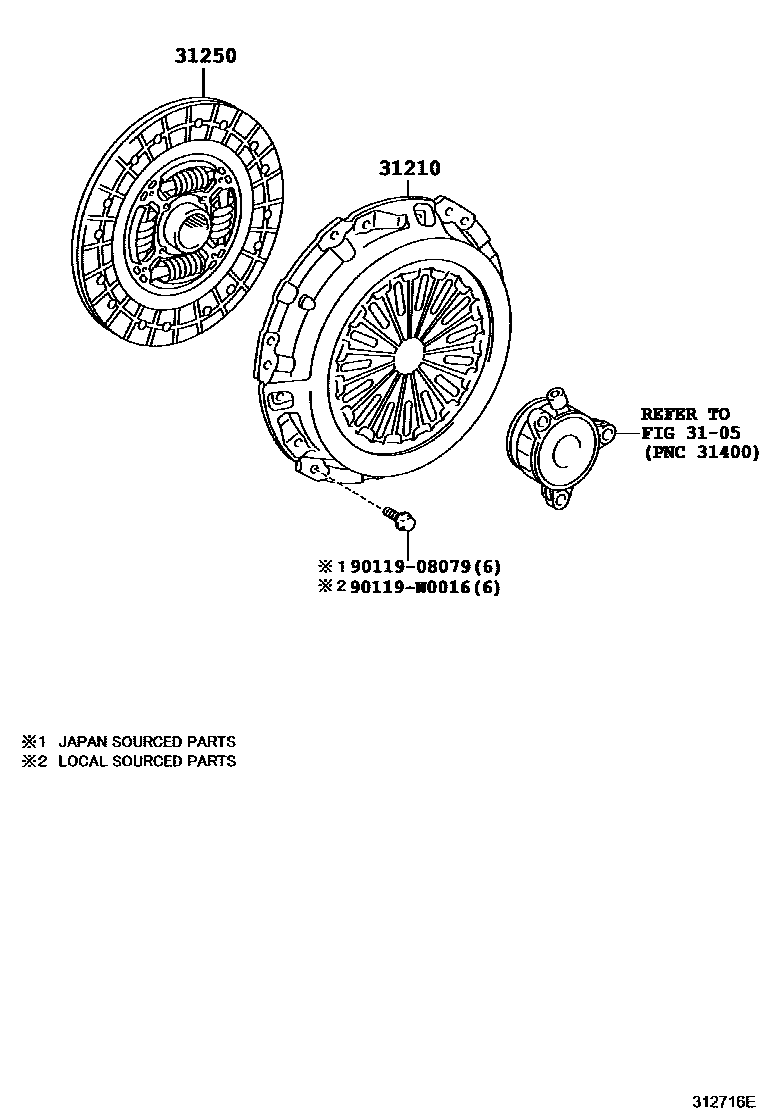

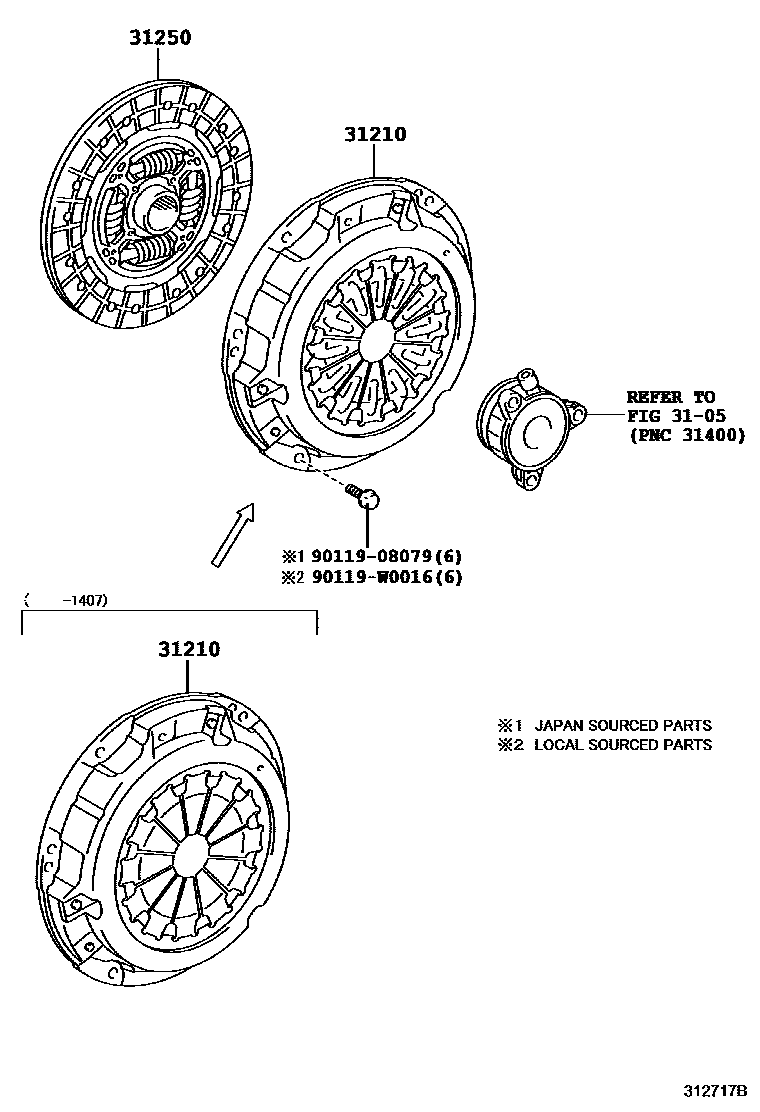

Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31210 | Clutch cover assembly | 31210-05130 · 31210-05131 · 31210-05132 · 31210-52100 · 31210-52130 · 31210-52170 |
| 31250 | Clutch disc assembly | 31250-05140 · 31250-05141 · 31250-52131 · 31250-52132 · 31250-52133 · 31250-52210 · 31250-52211 · 31250-52212 |
