Toyota COROLLA fuel filter — Figure 2302

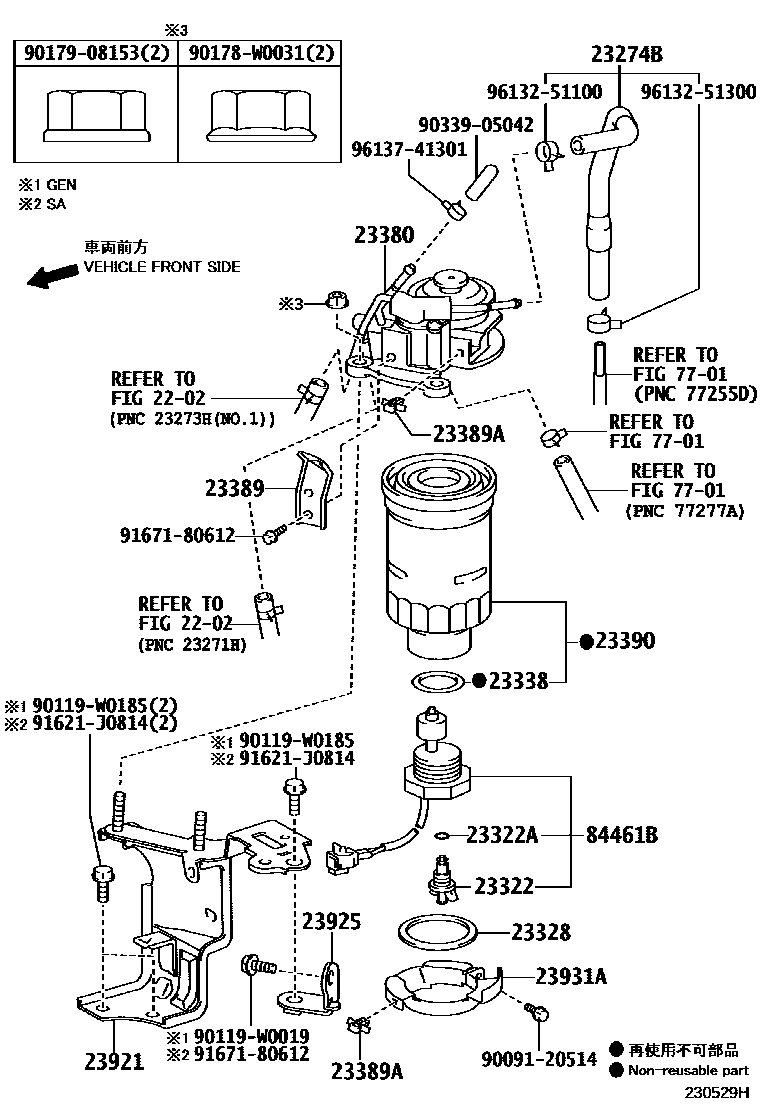

Toyota COROLLA EPC diagram 2302, fuel filter, with 1 images and 13 PNC and OE references.

Toyota COROLLA fuel filter EPC diagram — 230529H
fuel filter — 230529H (201306 – 999999)

PNC and OE references

PNCPart nameOE numbers
23274BNo. 3 fuel hose23274-0T010 · 23274-26060
23322Drain plug (for fuel filter)23388-64470
23322AO-ring (for drain plug)23344-54010
23328Gasket (for fuel filter)23385-30160
23338Gasket (for warning switch)23344-64010
23380Fuel filter cover assembly23380-26171
23389fuel filter clip23389-26130
23389Afuel filter clip23389-27130
23390Fuel filter element assembly23390-26160
23921Fuel filter support23921-0R010
23925fuel filter support stay23925-0R010
23931Afuel filter cover23931-26031
84461BLiquid level warning switch84461-60081 · 84461-60082
