Toyota COROLLA 起动机 — Figure 1904

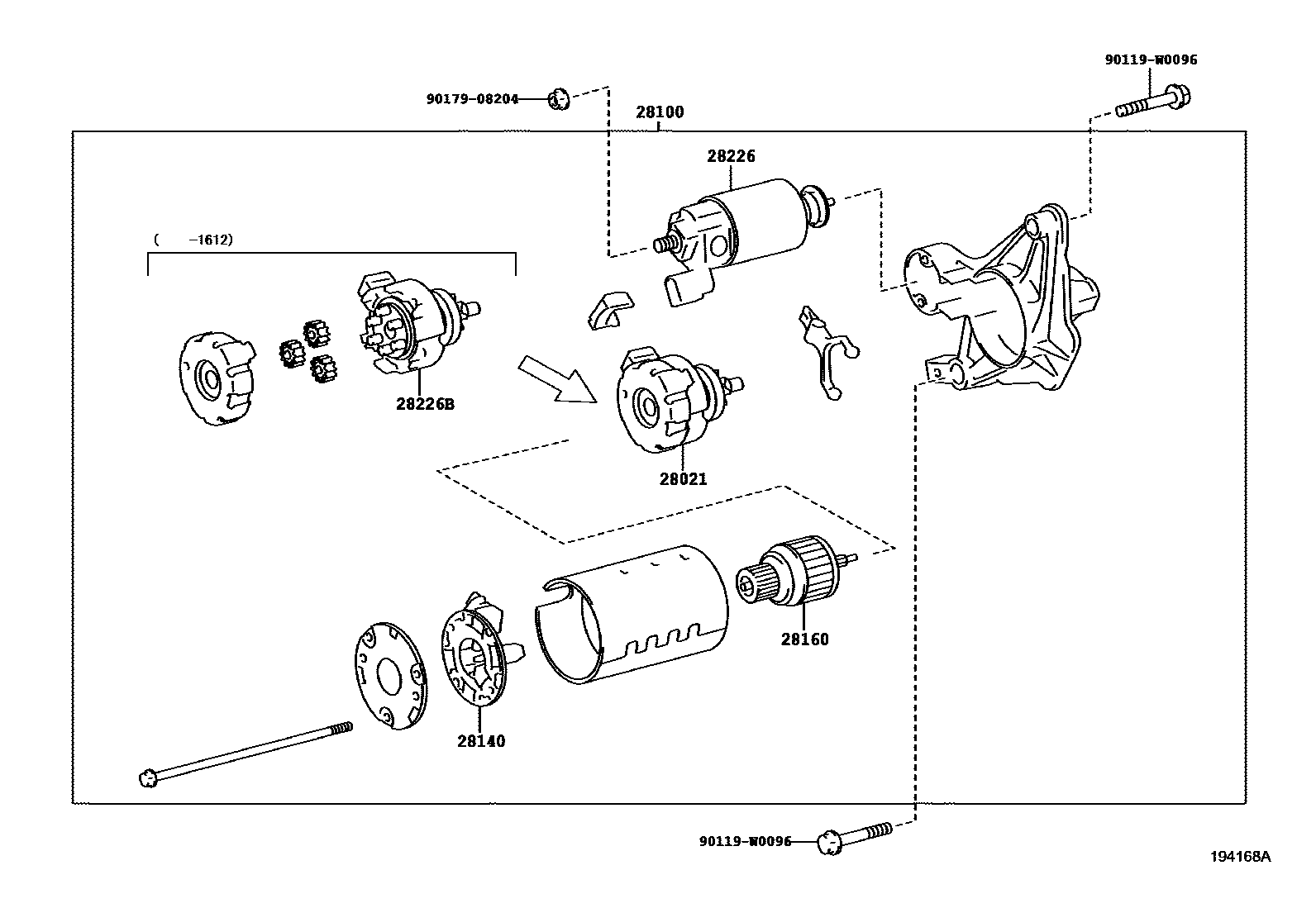

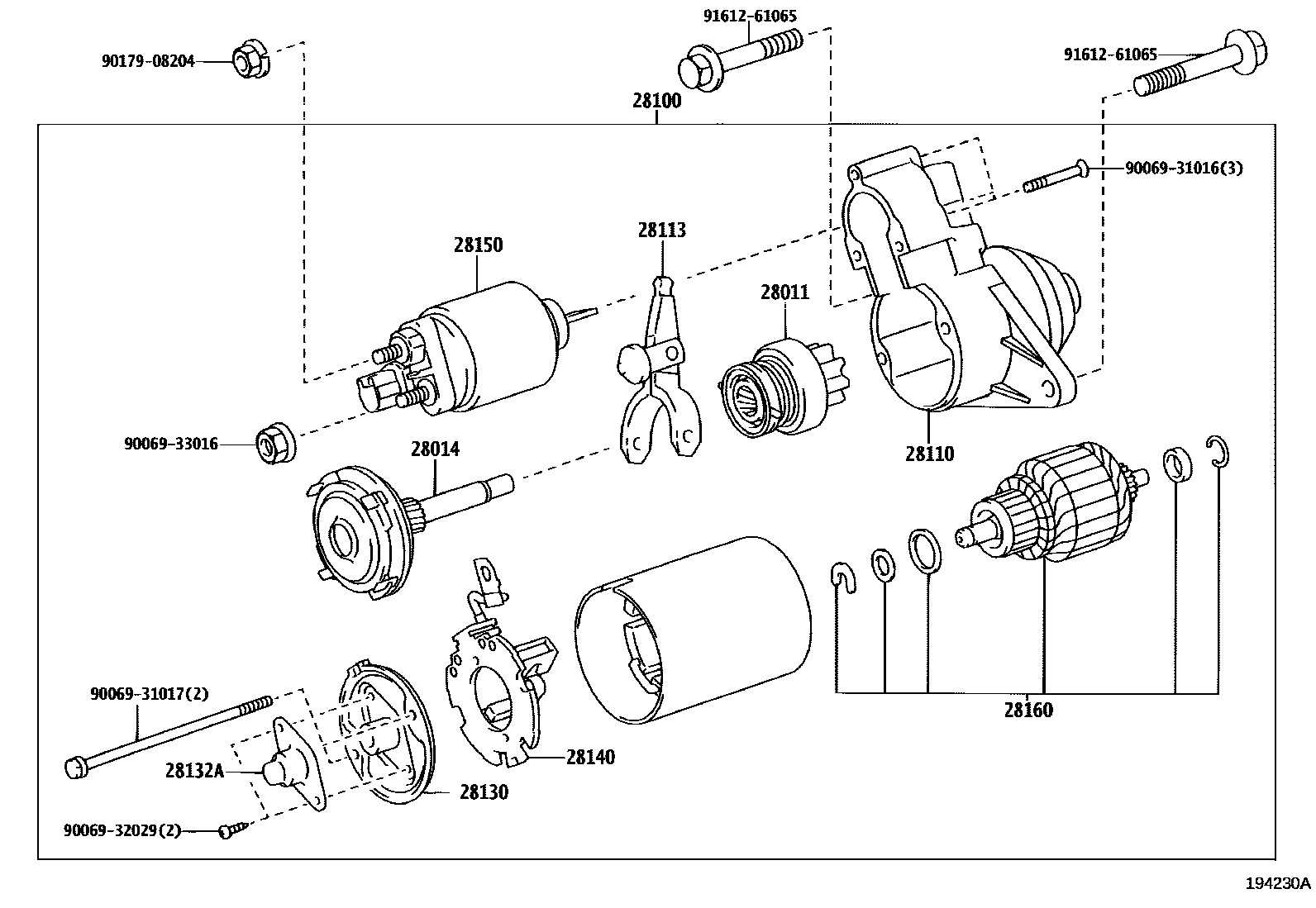

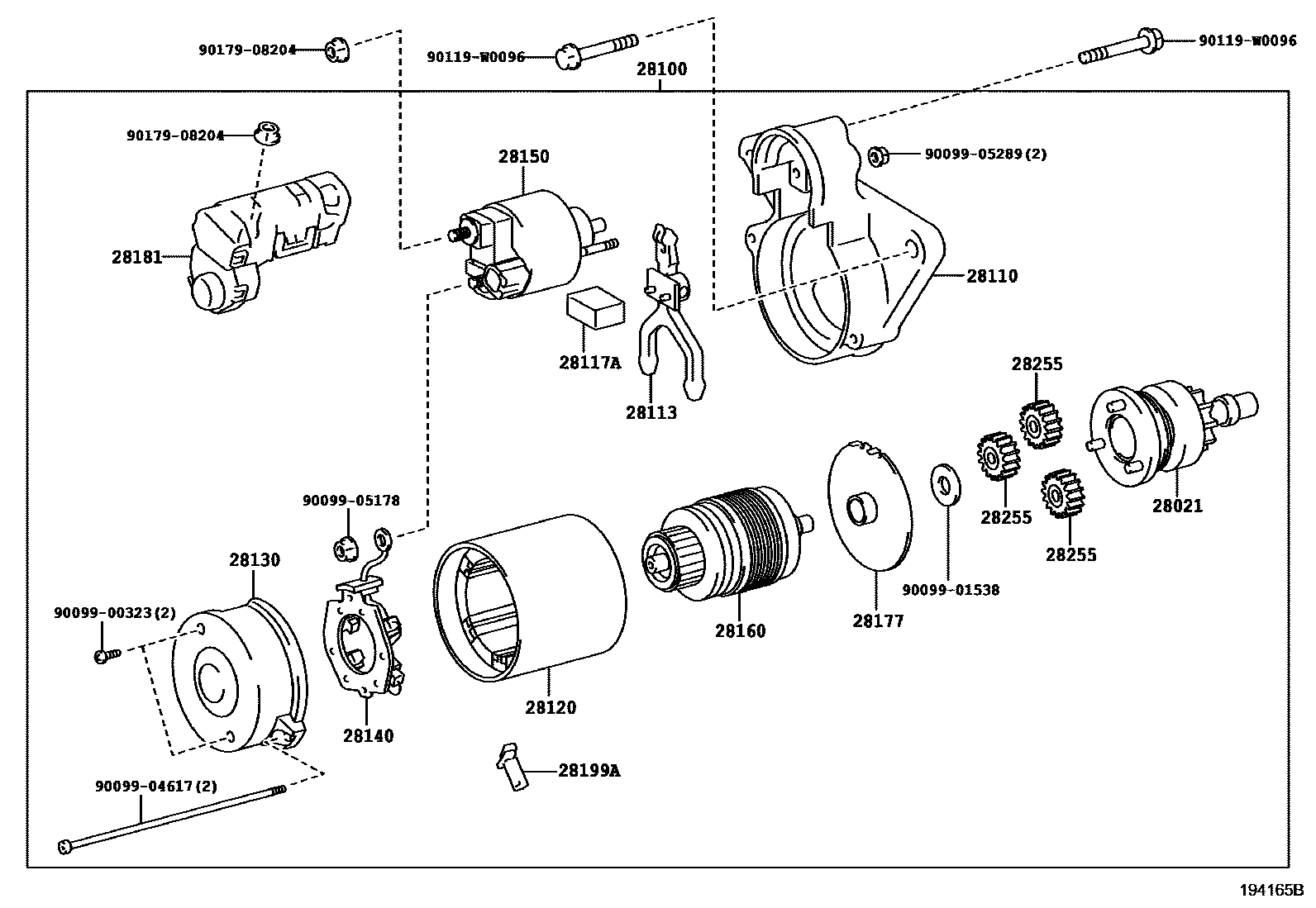

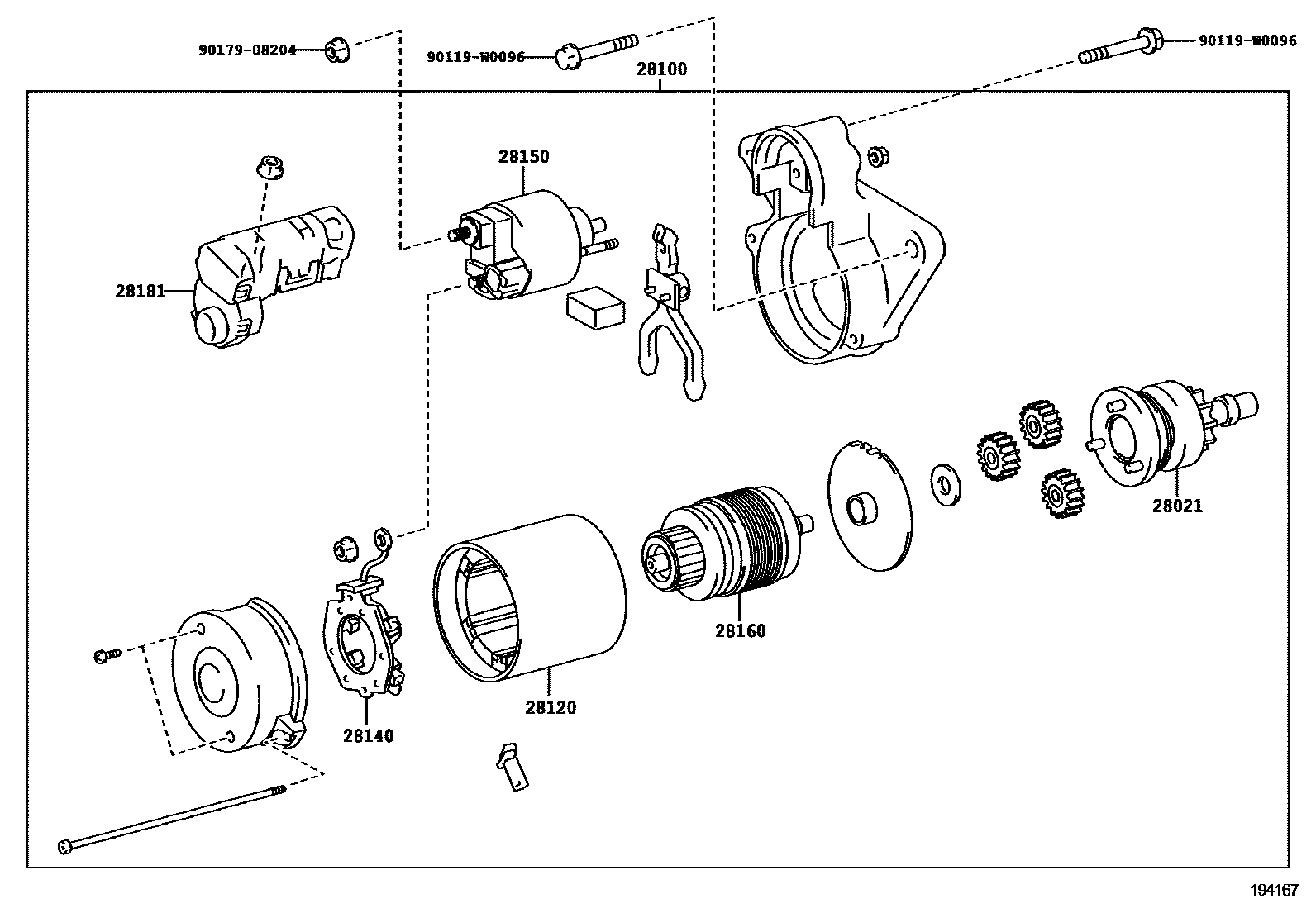

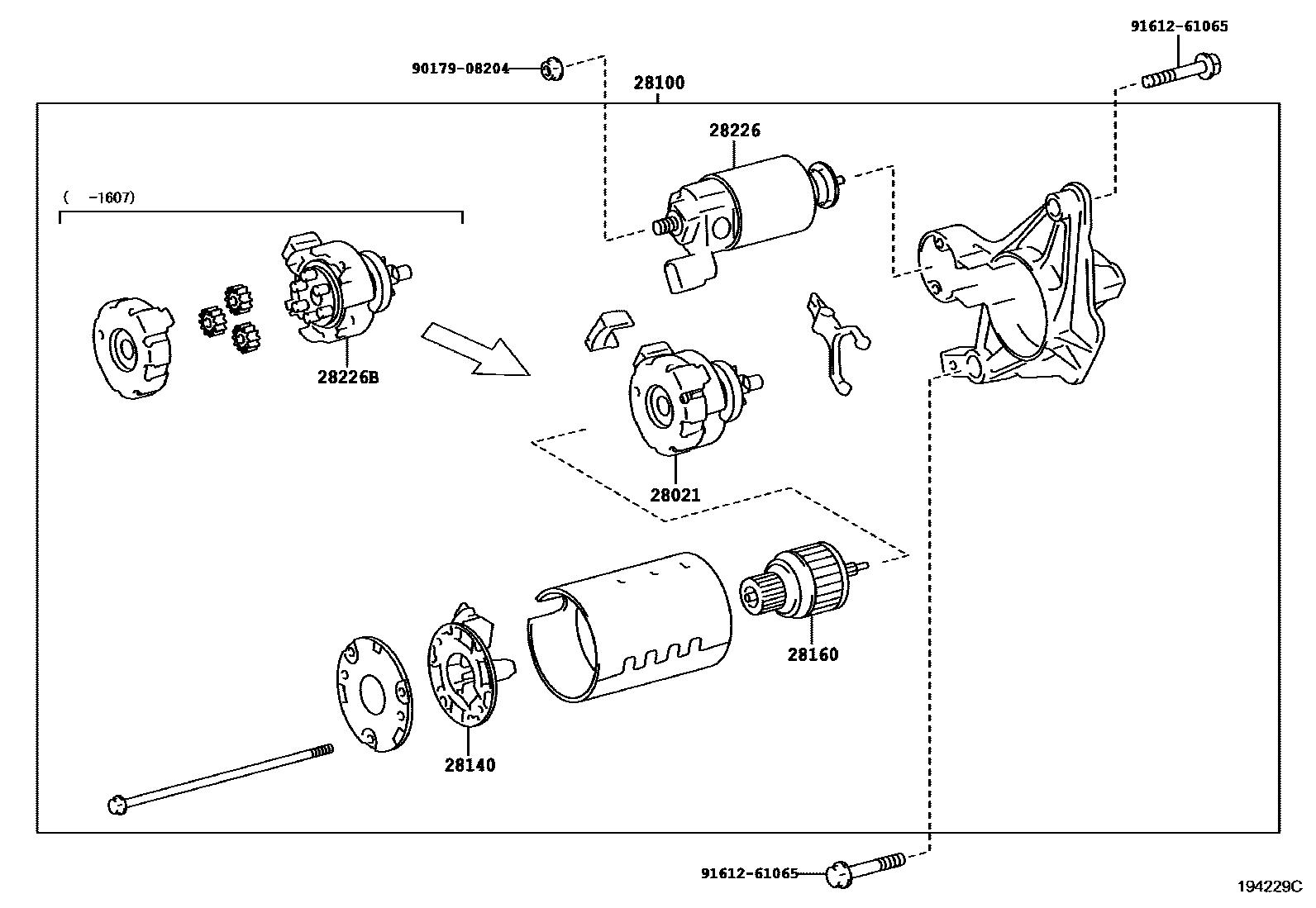

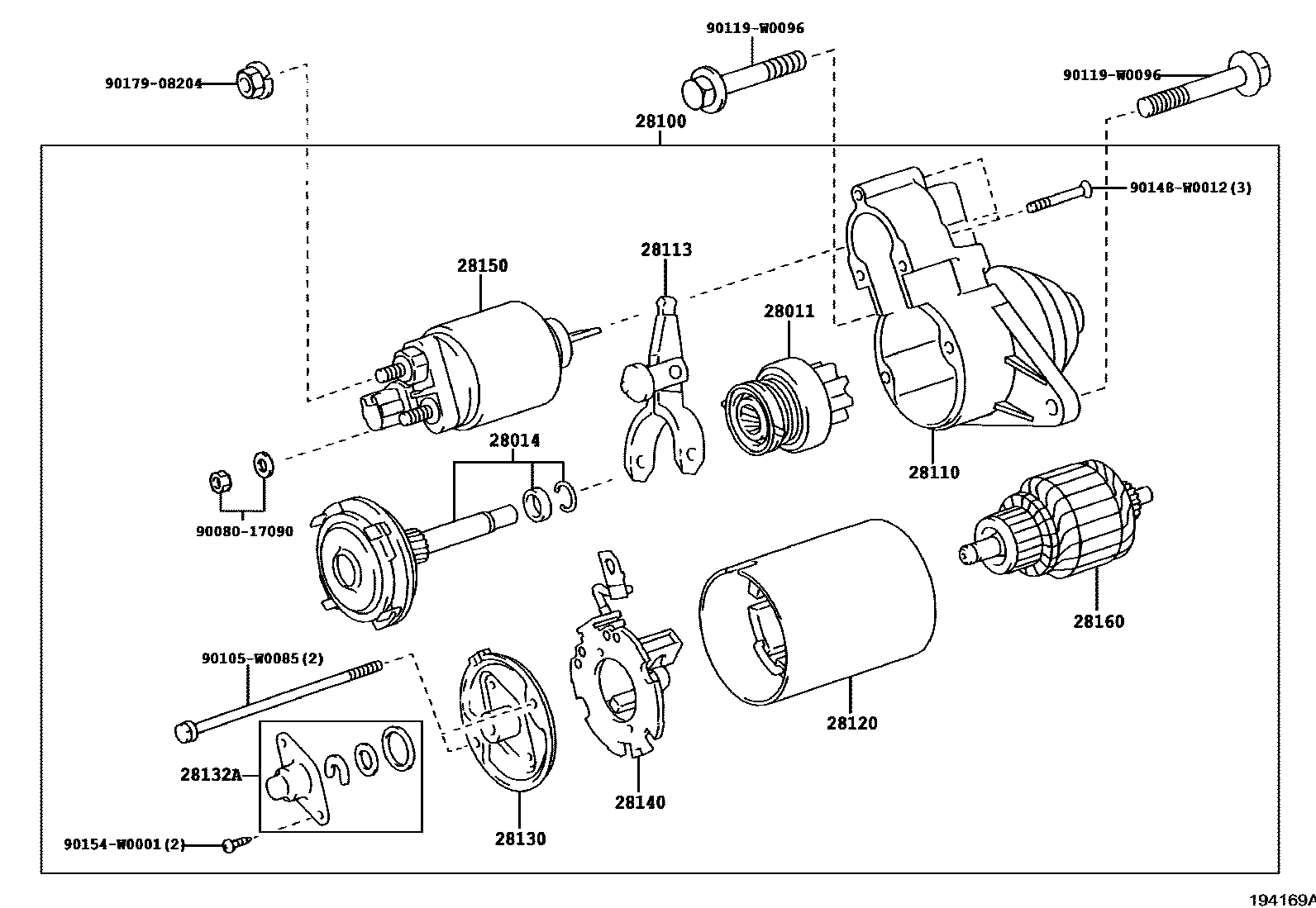

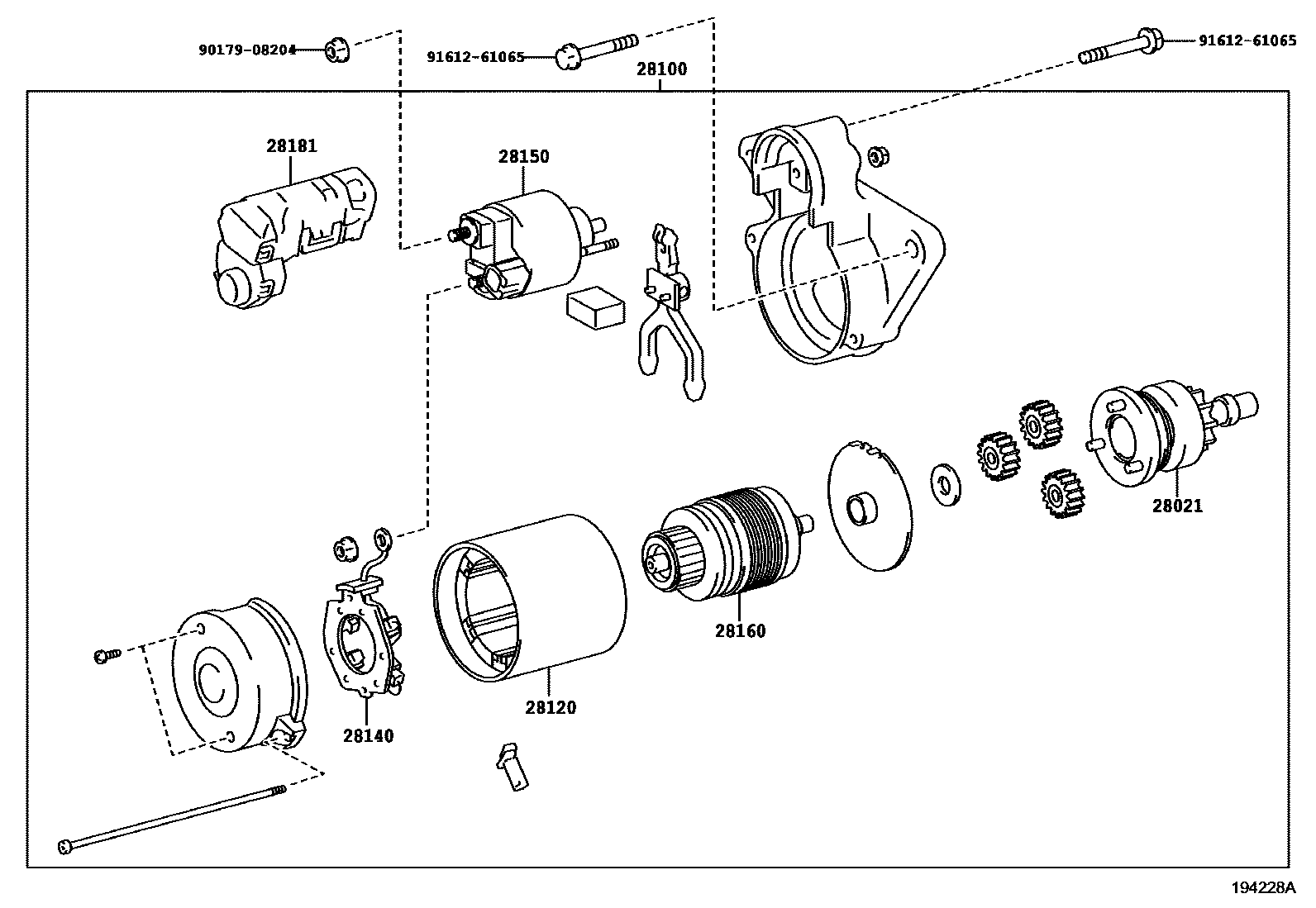

Toyota COROLLA EPC diagram 1904, 起动机, with 7 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-0D130 · 28011-0D160 |
| 28014 | Planetary gear carrier shaft sub-assembly | 28014-0D130 · 28014-0D160 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-33090 · 28021-47170 |
| 28100 | Starter assembly | 28100-0N040 · 28100-0N060 · 28100-0N110 · 28100-0T010 · 28100-0T030 · 28100-0Y091 · 28100-0Y101 · 28100-47170 · 28100-47171 |
| 28110 | Starter drive end housing assembly | 28110-0T010 · 28110-0T030 · 28110-33110 |
| 28113 | starter pinion drive rod | 28113-0D130 · 28113-0D160 · 28113-37050 |
| 28117A | Rubber seal | 28117-37050 |
| 28120 | Starter yoke assembly | 28120-0D130 · 28120-0N110 · 28120-33110 |
| 28130 | Starter commutator end frame assembly | 28130-0D130 · 28130-0D160 · 28130-33110 |
| 28132A | Starter commutator end frame cover | 28132-0D130 · 28132-0D160 |
| 28140 | Starter brush holder assembly | 28140-0D130 · 28140-0D160 · 28140-21070 · 28140-37050 · 28140-38070 |
| 28150 | Starter electromagnetic switch assembly | 28150-0D130 · 28150-0D160 · 28150-37020 |
| 28160 | Starter armature assembly | 28160-0D130 · 28160-0D160 · 28160-0N110 · 28160-21070 · 28160-21080 · 28160-26180 · 28160-33090 |
| 28177 | Plate (for starter armature) | 28177-37050 |
| 28181 | starter terminal | 28181-33010 |
| 28199A | Starter dust protection device | 28199-33110 |
| 28226 | battery terminal starter assembly | 28226-21080 · 28226-21081 |
| 28226B | starter magnetic switch | 28226-47170 |
| 28255 | Planetary gear | 28255-33090 |
