Toyota COROLLA Alternator — Figure 1903

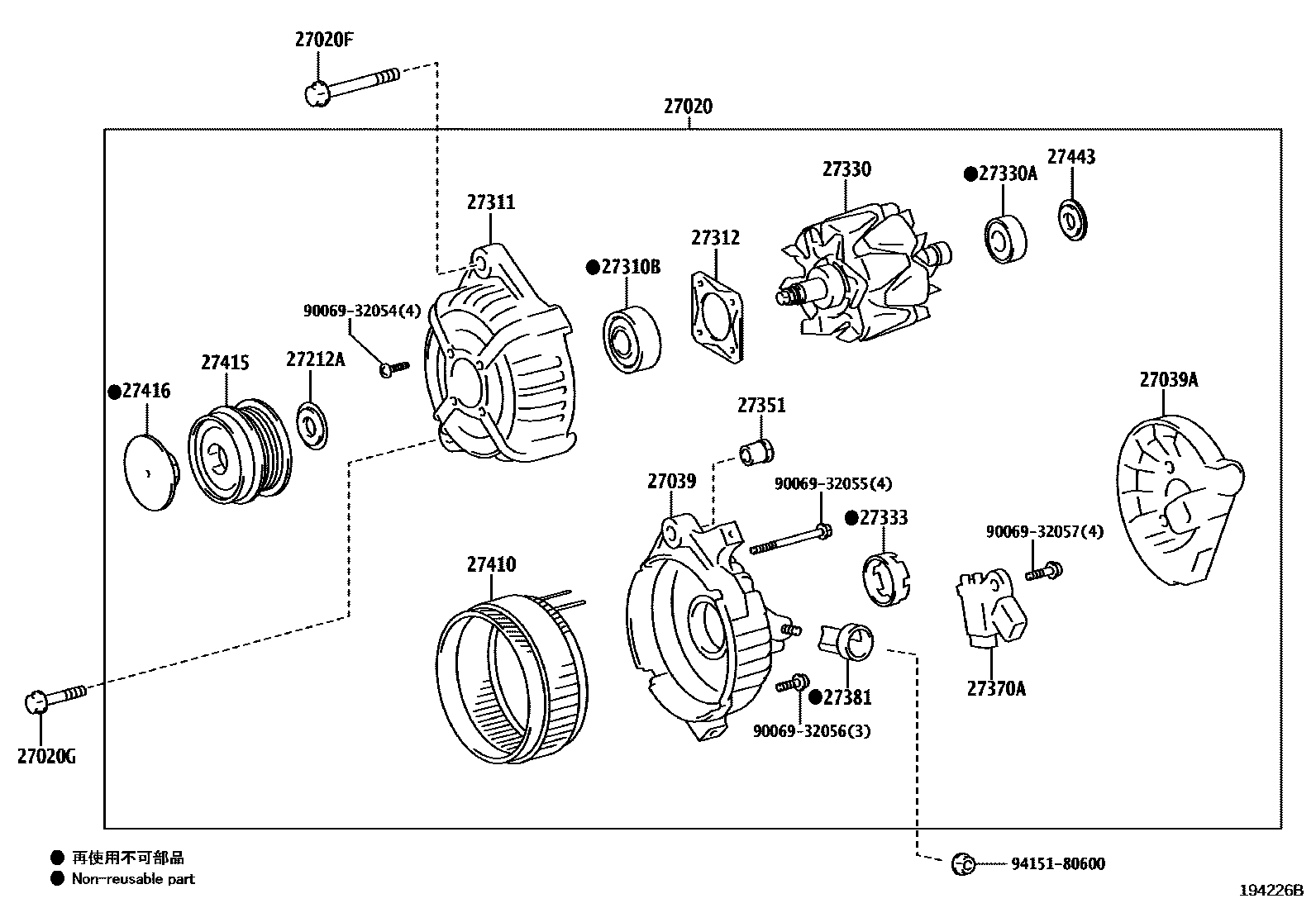

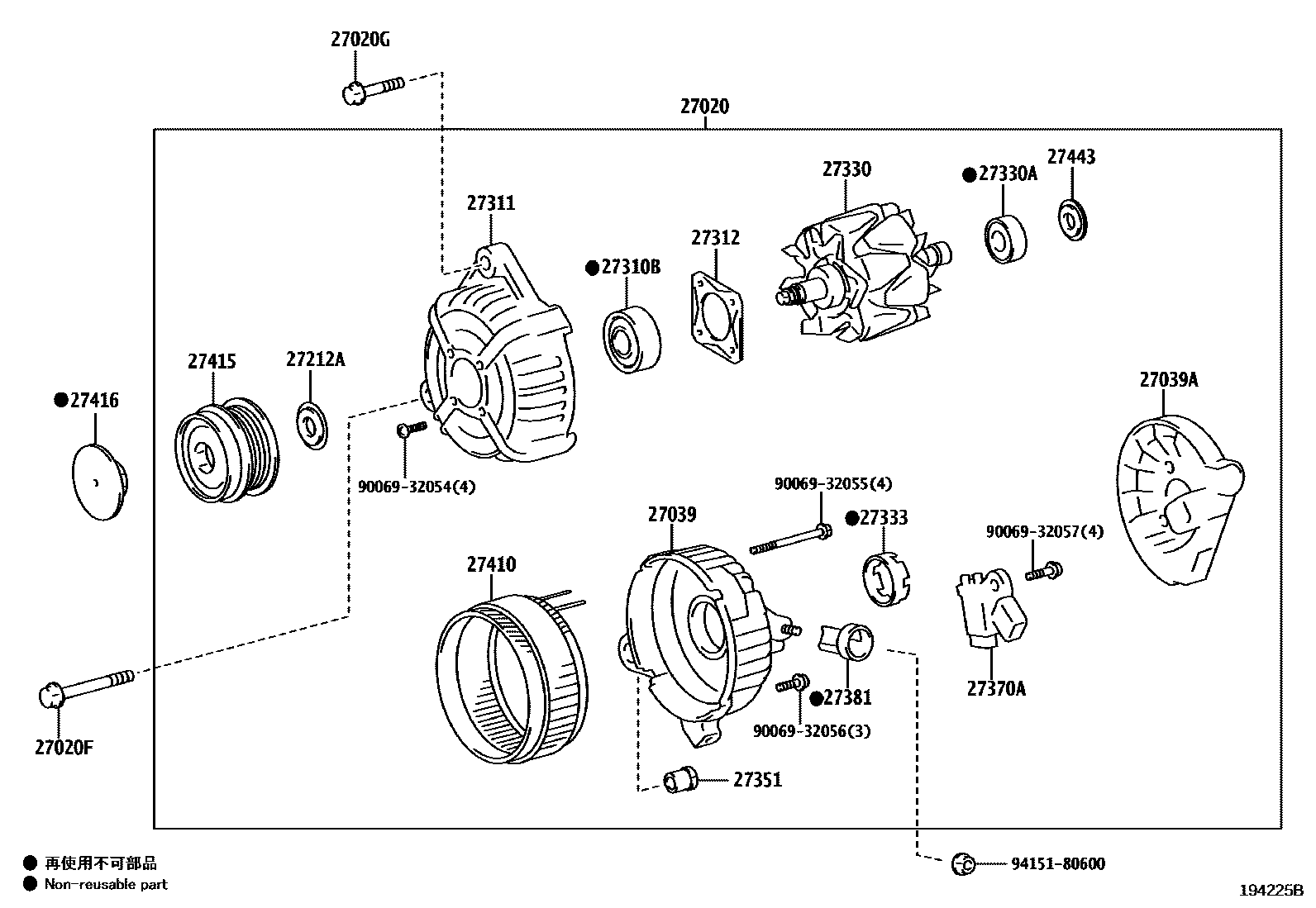

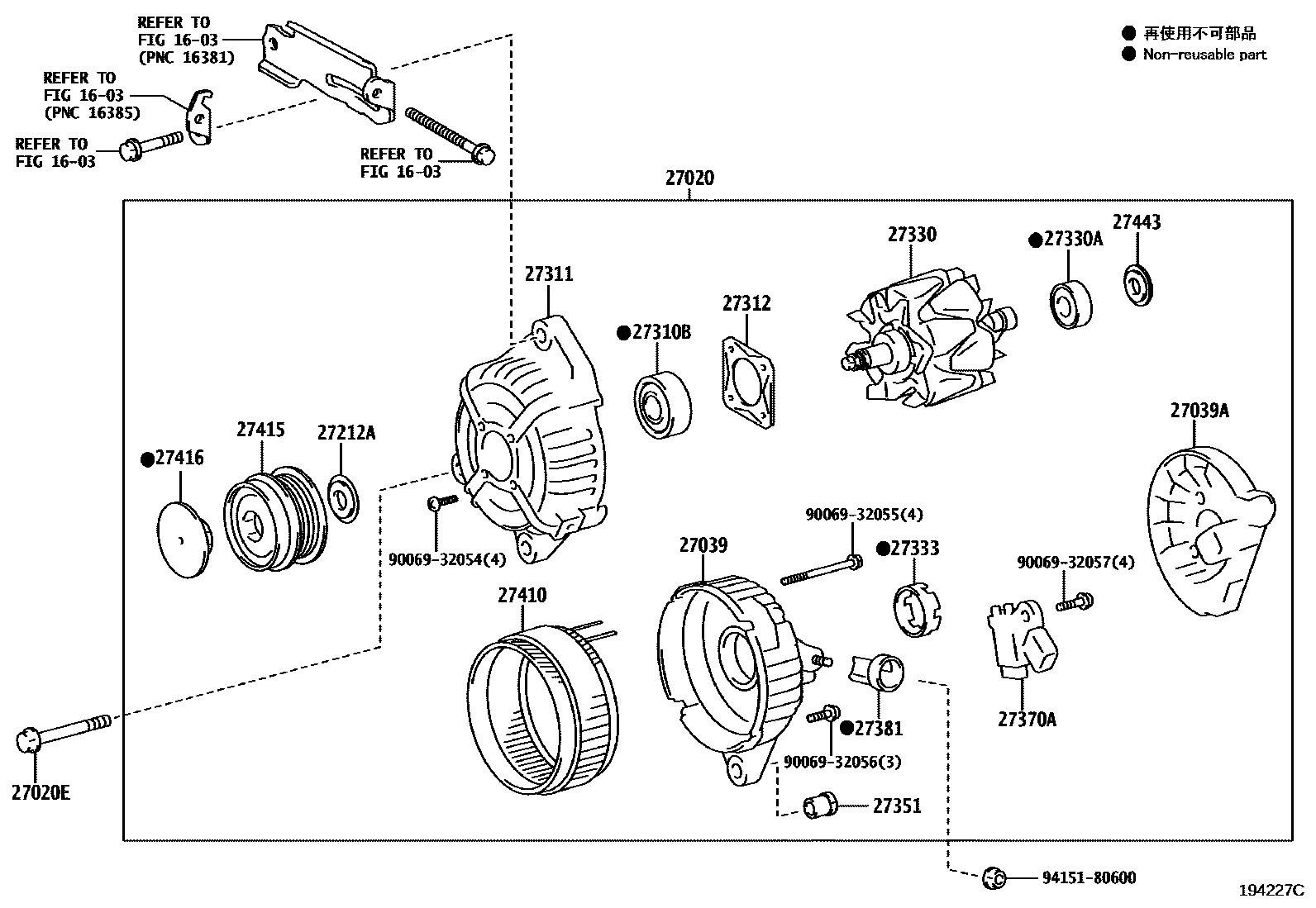

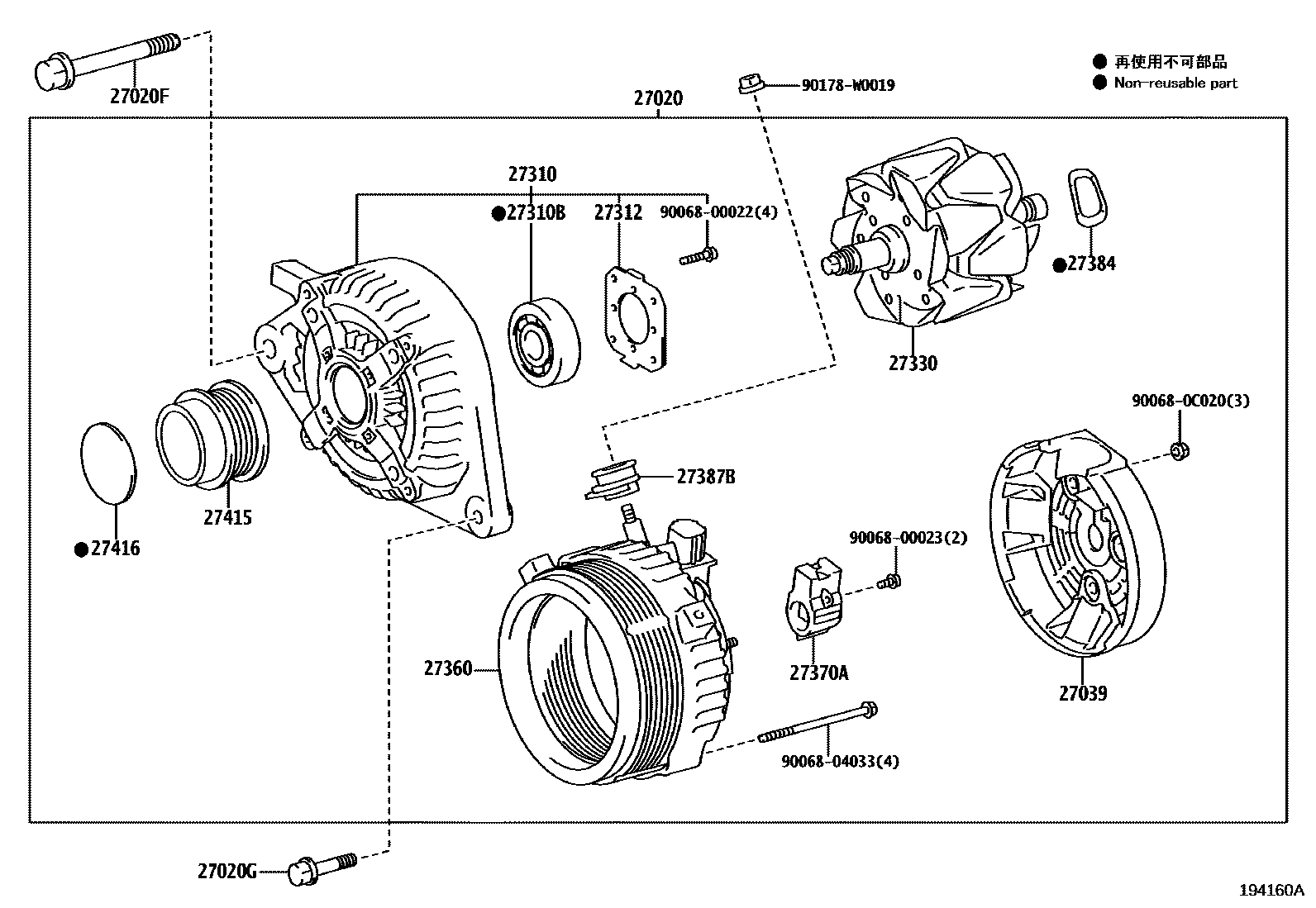

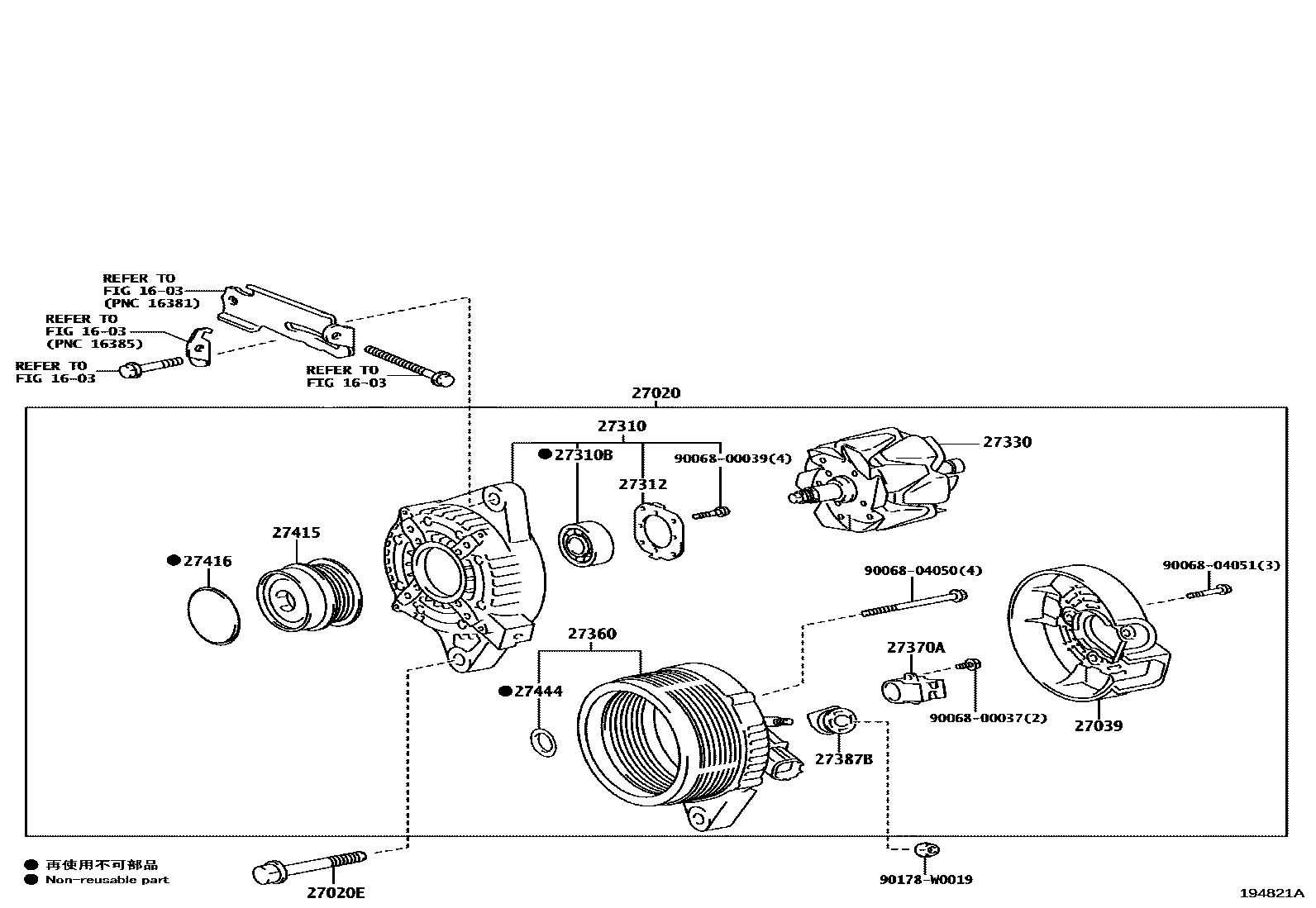

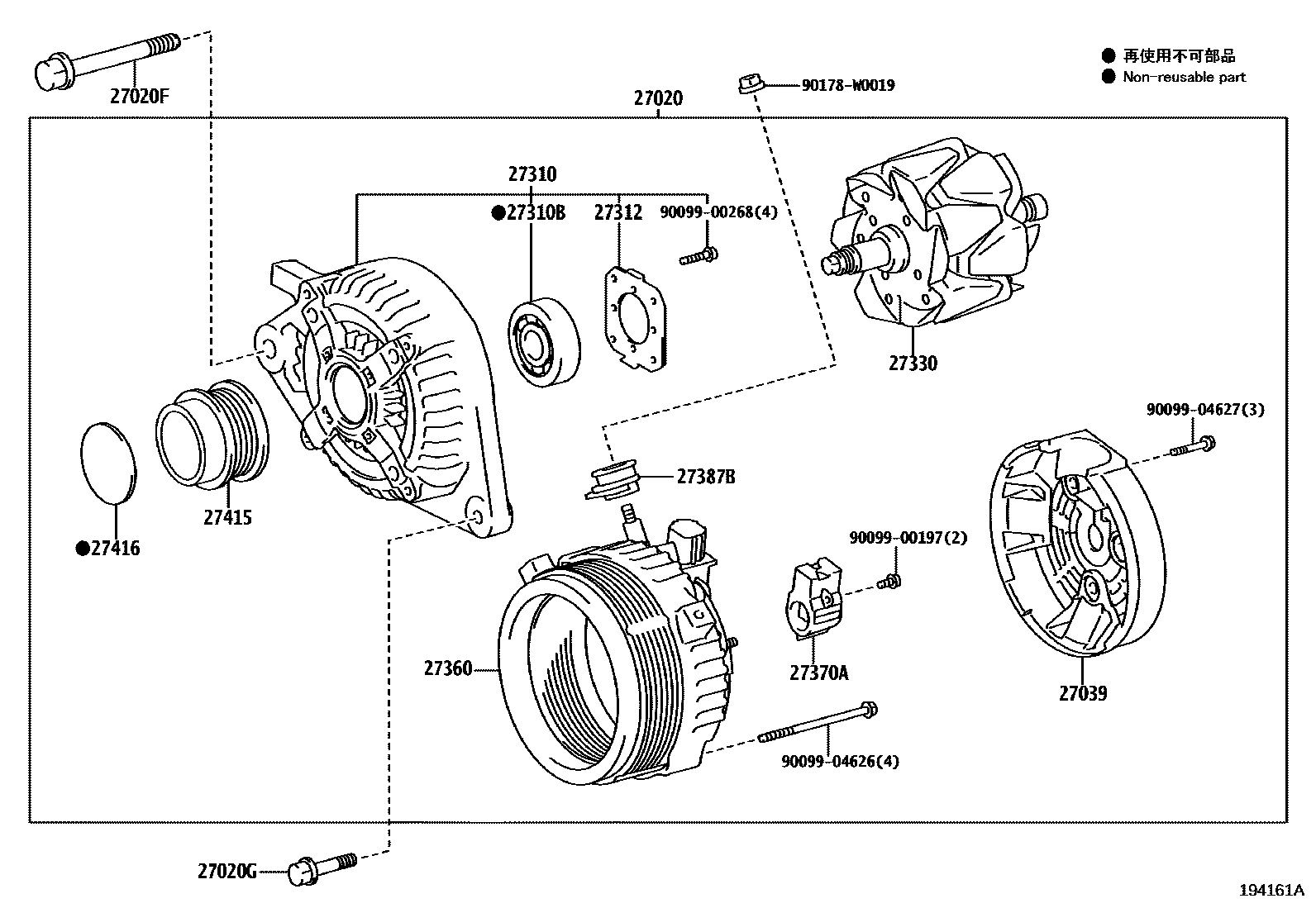

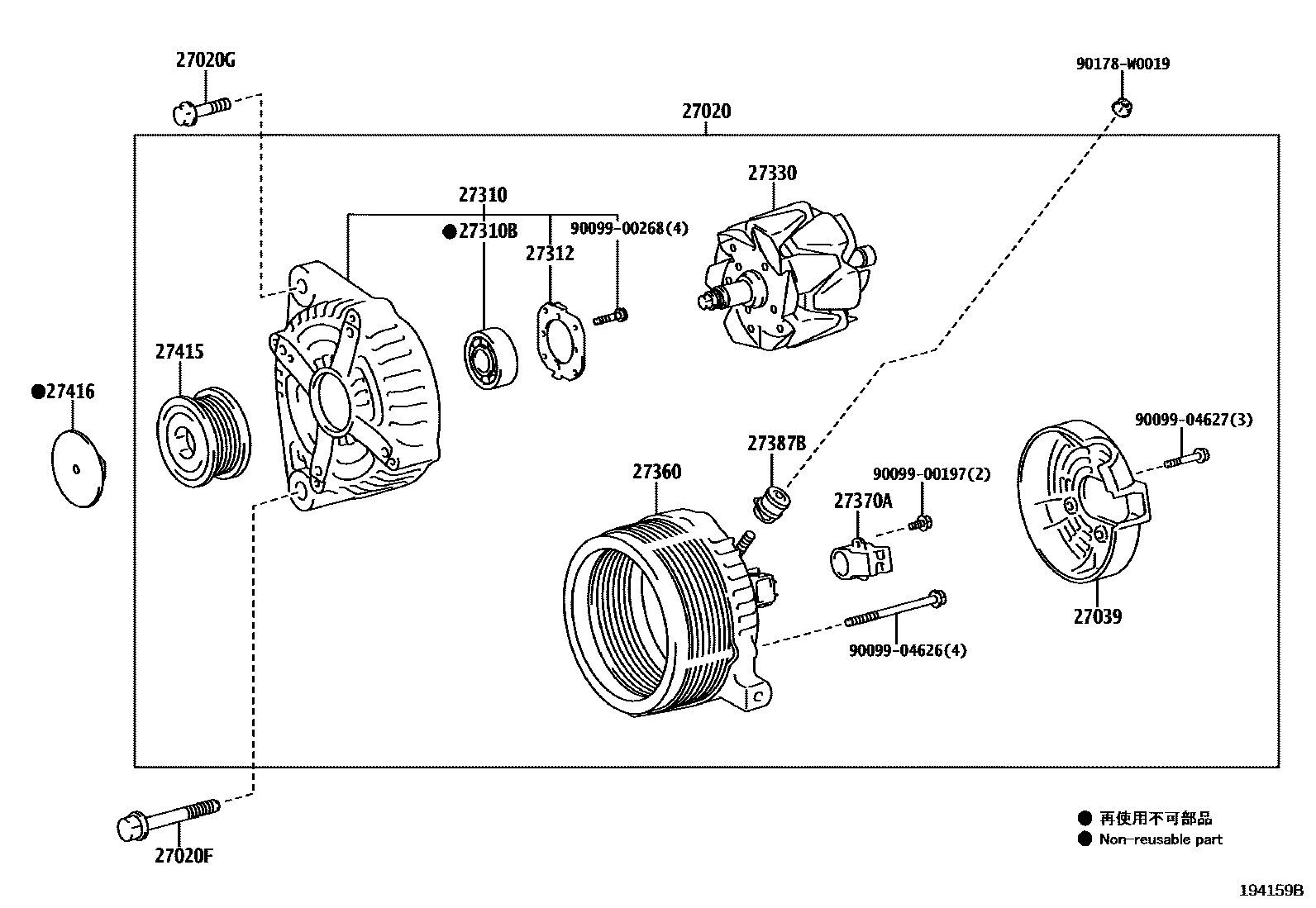

Toyota COROLLA EPC diagram 1903, Alternator, with 7 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0N110 · 27060-0N120 · 27060-0T250 · 27060-0T360 · 27060-0Y150 · 27060-0Y170 · 27060-0Y180 |
| 27020E | Bolts (for generator) | 90105-10307 |
| 27020F | Bolt No. 1 (for generator) | 90105-W0044 · 90105-W0113 |
| 27020G | Bolt No. 2 (for generator) | 90119-W0238 · 91671-00845 |
| 27039 | Alternator Rear End Cover | 27039-0C020 · 27039-0N100 · 27039-0T230 · 27039-0Y150 · 27039-0Y160 |
| 27039A | No. 2 generator rear end cover | 27041-0Y160 |
| 27212A | spacer | 90069-55035 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0N080 · 27310-0T180 · 27310-0Y010 · 27310-0Y150 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10029 · 90068-10033 · 90069-40005 · 90099-10223 |
| 27311 | Generator drive end cover | 27311-0N100 · 27311-0Y160 · 27311-OT230 |
| 27312 | Retainer Plate | 27312-0C020 · 27312-0T300 · 27312-0Y160 · 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0M040 · 27330-0N100 · 27330-0Y150 · 27330-0Y160 |
| 27330A | Bearings (for generator rotor) | 90069-40006 |
| 27333 | Isolation collar (for generator rotor) | 27333-0Y160 |
| 27351 | Bushing (for generator rectifier end frame) | 90069-41002 |
| 27360 | Alternator Stator Coil Assembly | 27360-0N090 · 27360-0T340 · 27360-0Y150 · 27360-0Y170 |
| 27370A | Alternator Brush Holder Assembly | 27370-0M040 · 27370-0Y150 · 27700-0Y060 |
| 27381 | Generator terminal bracket | 27381-0Y160 |
| 27384 | Washer | 27384-0C020 |
| 27387B | Generator terminal insulation pad | 27387-0C020 · 27387-0Y150 |
| 27410 | Generator stator assembly | 27410-0N100 · 27410-0Y160 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0T040 · 27415-0T060 · 27415-0Y051 · 27415-0Y061 · 27415-0Y081 · 27415-33100 · 27415-33110 |
| 27416 | Generator pulley cover | 27416-0W050 · 27416-27010 · 27416-33010 |
| 27443 | Generator bearing cap | 27443-0Y160 |
| 27444 | Generator bearing cap seals | 27444-0T300 |
