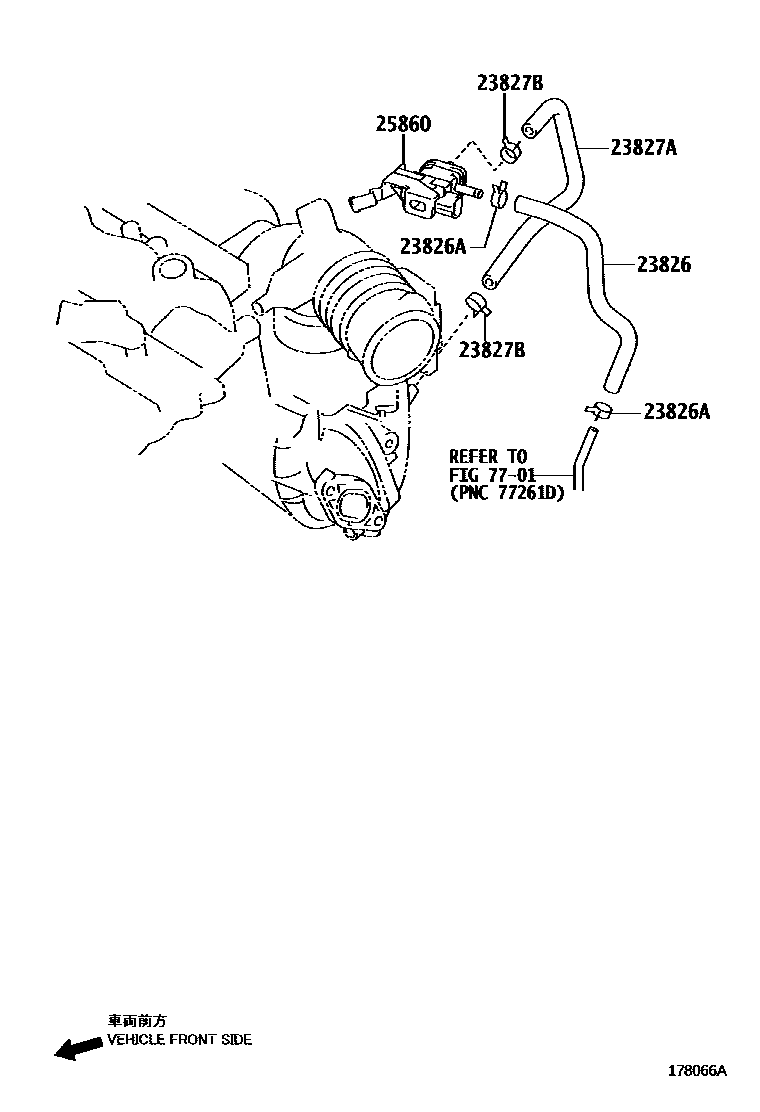

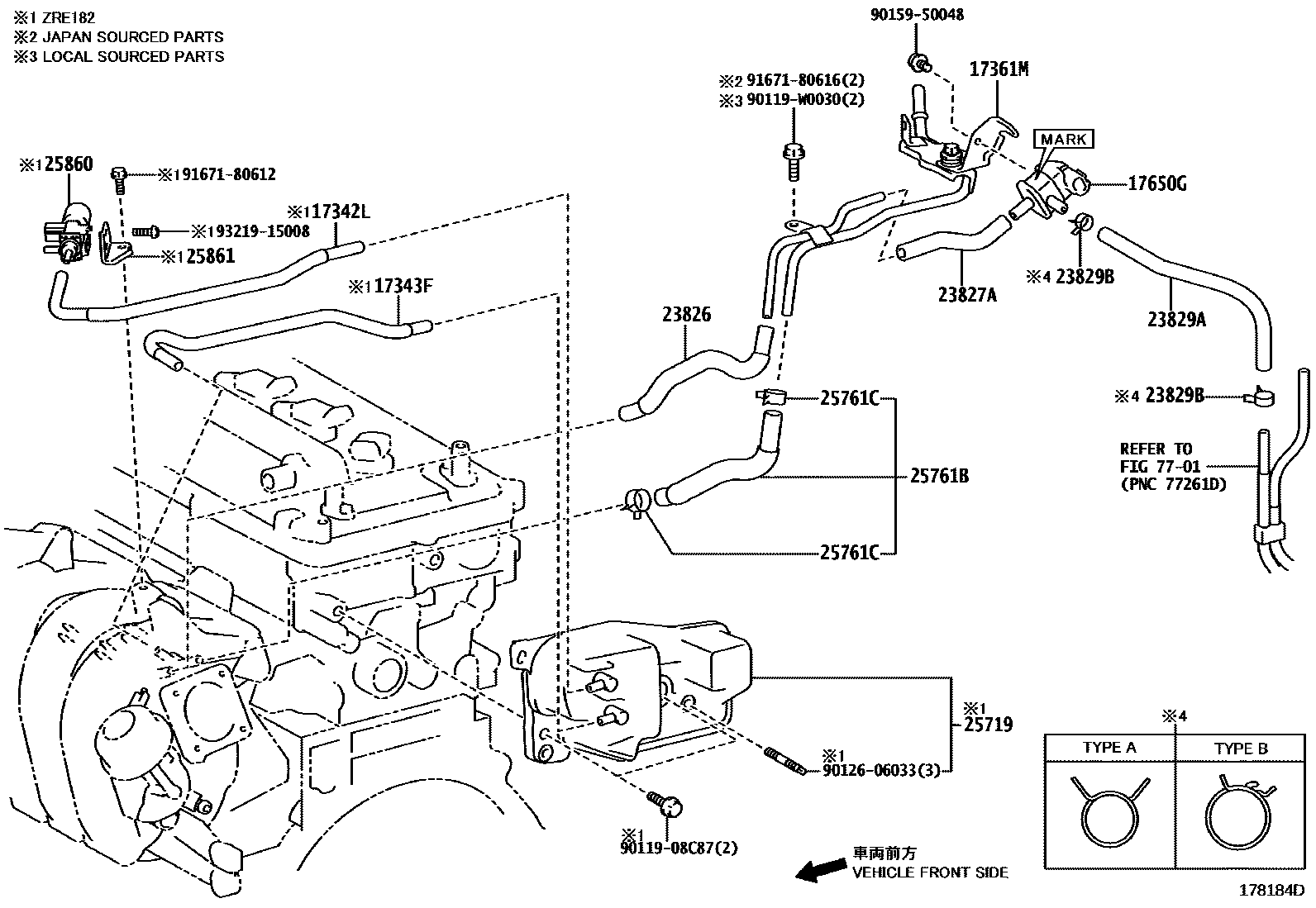

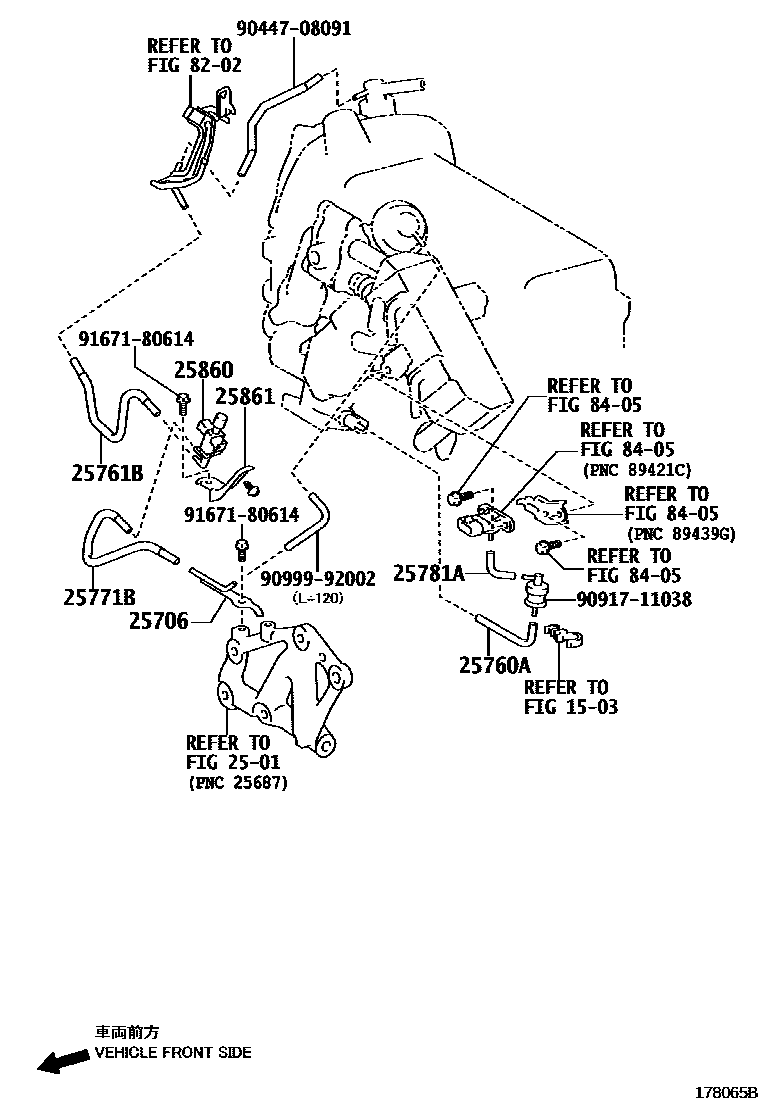

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17342L | Air hose No. 2 | 17342-37060 |
| 17343F | No. 3 air hose | 17343-37040 |
| 17361M | air tube | 17361-37011 · 17361-37070 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 · 90910-TC001 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0Y021 · 23826-37021 · 23826-37190 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-51300 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0Y020 · 23827-37020 · 23827-37060 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-51300 |
| 23829A | Fuel vapor supply hose | 23826-0T051 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51300 · 96136-41501 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-33080 |
| 25719 | Vacuum pressure tank | 25719-37010 · 25719-37011 |
| 25760A | Vacuum transfer hose assembly | 257A1-33010 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-33060 · 25761-33080 · 25761-37011 · 25761-37080 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96133-41500 |
| 25771B | No. 2 vacuum transfer hose | 25771-33050 · 25791-33020 |
| 25781A | No. 3 vacuum transfer hose | 25791-33010 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0Y020 · 25860-30070 · 25860-47010 · 90910-12281 |
| 25861 | Vacuum switch valve bracket | 25861-33020 · 25861-37010 |
