Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 1 PNC and OE references.

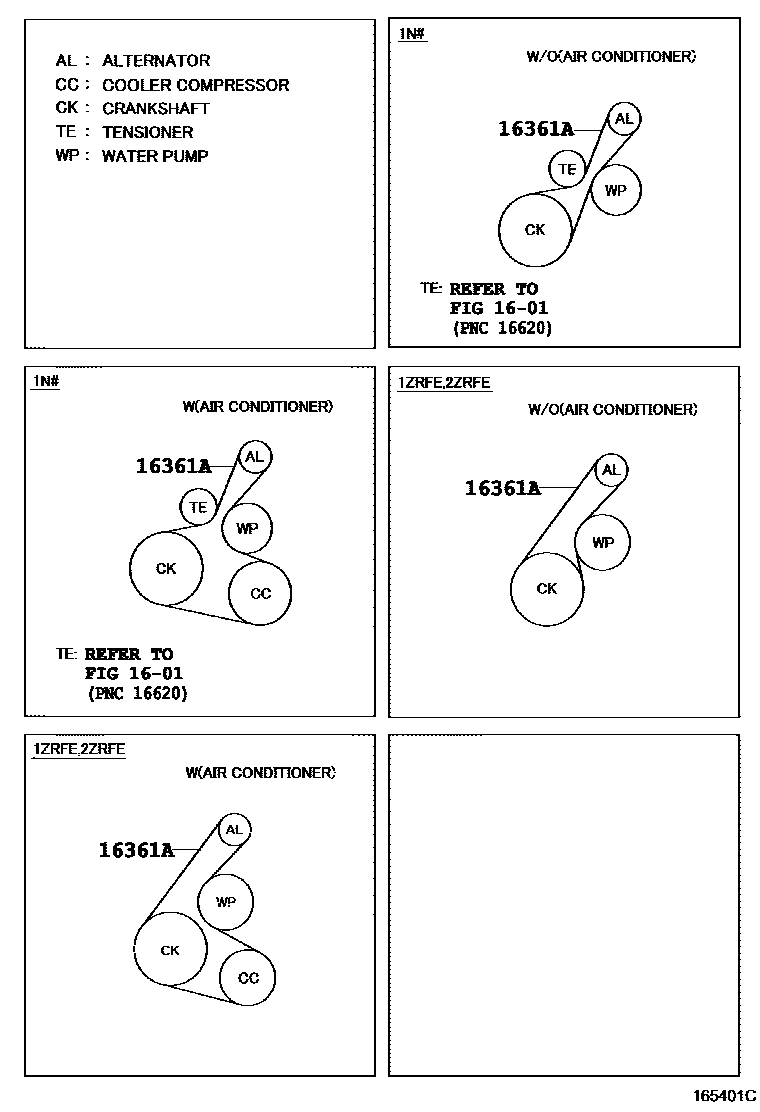

Toyota COROLLA V-Belt EPC diagram — 165401C
V-Belt — 165401C (201306 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02684 · 90916-02688 · 90916-W2018 · 90916-W2029 · 90916-W2030 · 90916-W2031 · 90916-W2032 · 90916-W2043 · 90916-W2044 · 99366-K0910
