Toyota COROLLA Camshaft & Valve — Figure 1302

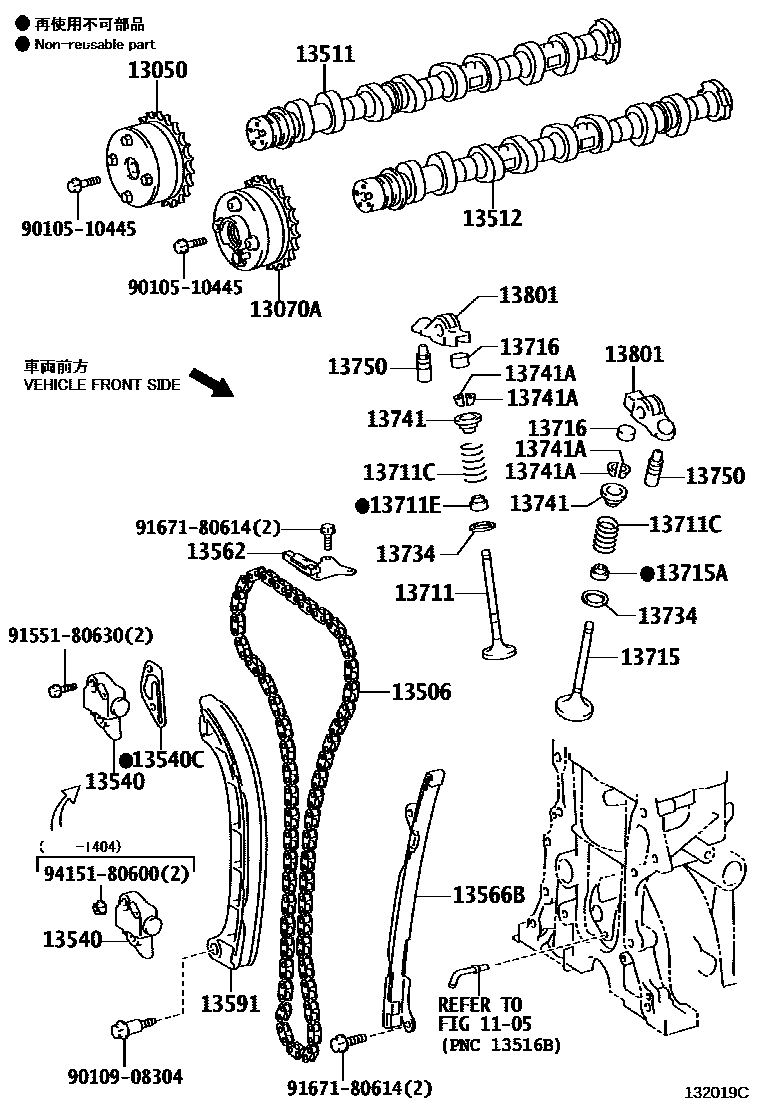

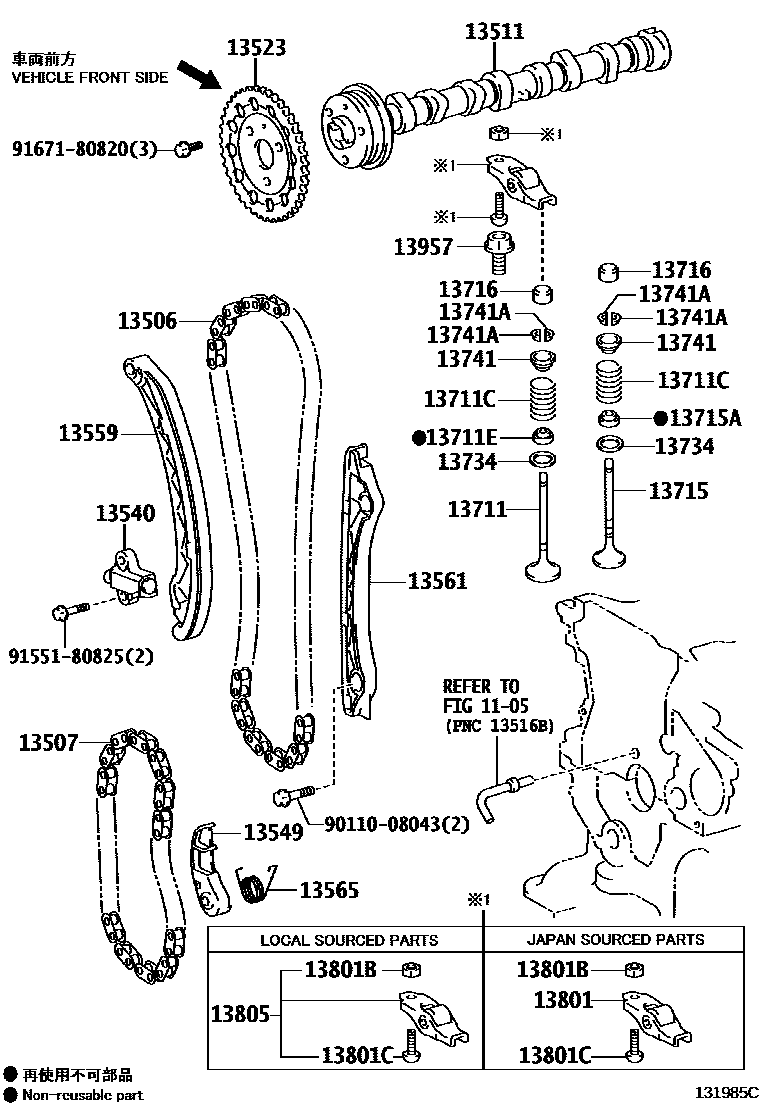

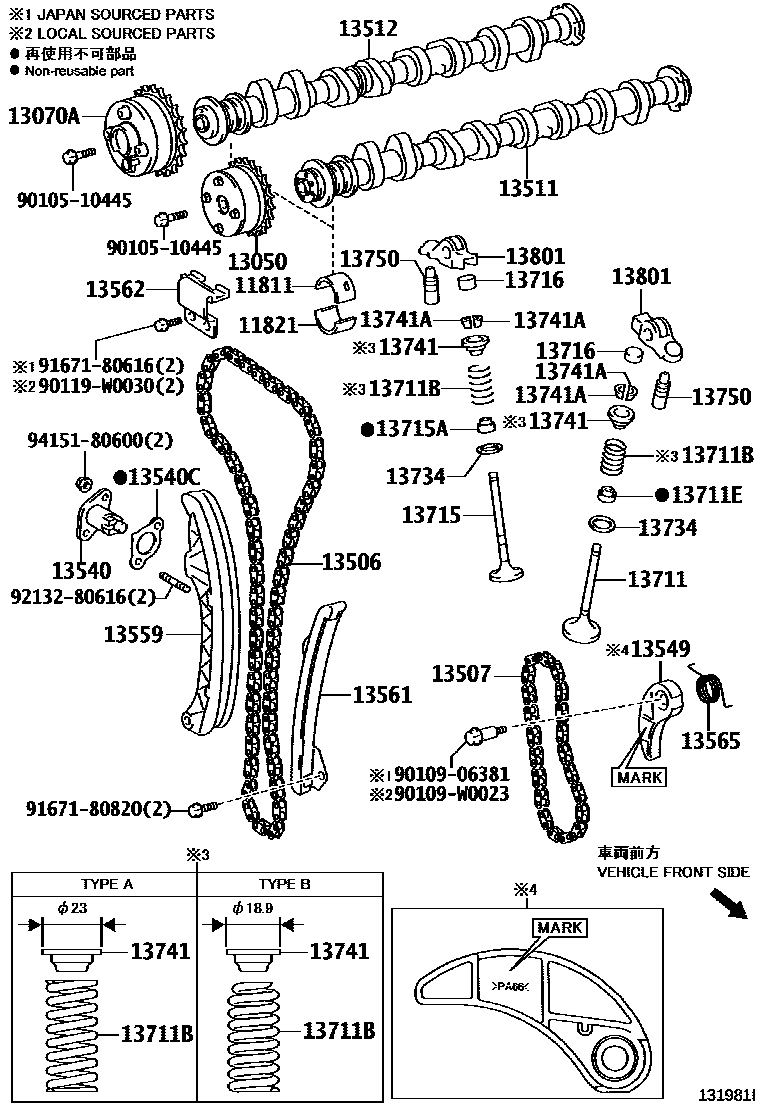

Toyota COROLLA EPC diagram 1302, Camshaft & Valve, with 3 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11811 | No. 1 camshaft bearing | 11811-37010 |
| 11821 | No. 2 camshaft bearing | 11821-37010 |
| 13050 | Camshaft timing gear assembly | 13050-0T080 · 13050-37060 · 13050-47011 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-0T030 · 13070-37010 · 13070-47010 |
| 13506 | Chain sub-assembly | 13506-0T110 · 13506-33030 · 13506-37070 · 13506-47030 |
| 13507 | No. 2 chain sub-assembly | 13507-28010 · 13507-33010 |
| 13511 | camshaft | 13501-0T030 · 13501-33042 · 13501-37011 · 13501-37040 · 13501-47020 |
| 13512 | Camshaft No. 2 | 13502-0T030 · 13502-37010 · 13502-37050 · 13502-47010 |
| 13523 | Camshaft timing gear or sprocket | 13523-33030 |
| 13540 | No. 1 chain tensioner assembly | 13540-0T030 · 13540-33030 · 13540-37030 · 13540-47011 |
| 13540C | Pad (for chain tensioner) | 13552-0T030 · 13552-37010 · 13552-47010 |
| 13549 | chain tensioner pressure plate | 13549-0T030 · 13549-0T050 · 13549-33010 · 13549-37010 · 13549-37020 |
| 13559 | chain tensioner guide plate | 13559-0T030 · 13559-0T080 · 13559-33020 · 13559-33021 · 13559-37010 · 13559-37050 |
| 13561 | No. 1 chain shock absorber | 13561-0T020 · 13561-0T080 · 13561-33030 · 13561-37020 · 13561-37050 |
| 13562 | No. 2 chain shock absorber | 13562-0T050 · 13562-37010 · 13562-37020 · 13562-47020 |
| 13565 | chain damper spring | 13565-0T030 · 13565-33010 · 13565-37010 |
| 13566B | Timing chain guide plate | 13566-47030 |
| 13591 | Timing chain tensioner arm | 13591-47030 · 13591-47050 |
| 13711 | intake valve | 13711-0N030 · 13711-0T040 · 13711-33031 · 13711-37020 · 13711-47010 |
| 13711B | Compression spring (for inner side) | 90501-31027 · 90501-31028 · 90501-32071 · 90501-32072 |
| 13711C | Compression spring (for outside) | 90501-29062 · 90501-29066 · 90501-32060 · 90501-W0013 |
| 13711E | Intake valve stem oil seal | 90080-31061 · 90913-02101 · 90913-02124 |
| 13715 | exhaust valve | 13715-0N030 · 13715-0T040 · 13715-33041 · 13715-37030 · 13715-47010 |
| 13715A | Exhaust valve stem oil seal | 90080-31062 · 90913-02112 · 90913-02124 |
| 13716 | valve stem cover | 13716-0T020 · 13716-33010 · 13716-75020 |
| 13734 | Valve spring seat | 13734-0P010 · 13734-33020 · 13734-62020 |
| 13741 | Valve spring seat ring | 13741-0N010 · 13741-20021 · 13741-33020 · 13741-36010 |
| 13741A | Valve spring seat lock plate | 90913-03021 · 90913-03028 · 90913-W3001 |
| 13750 | Valve lash adjuster assembly | 13750-0T010 · 13750-0T040 · 13750-21010 · 13750-75020 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0T020 · 13801-0T030 · 13801-23011 · 13801-33020 · 13801-36020 |
| 13801B | Hex nut (for valve adjustment) | 90170-07004 |
| 13801C | valve adjustment screw | 13788-33011 |
| 13805 | Valve rocker arm assembly | 13805-0N020 |
| 13957 | valve rocker arm pivot | 13957-33010 |
