Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 3 images and 10 PNC and OE references.

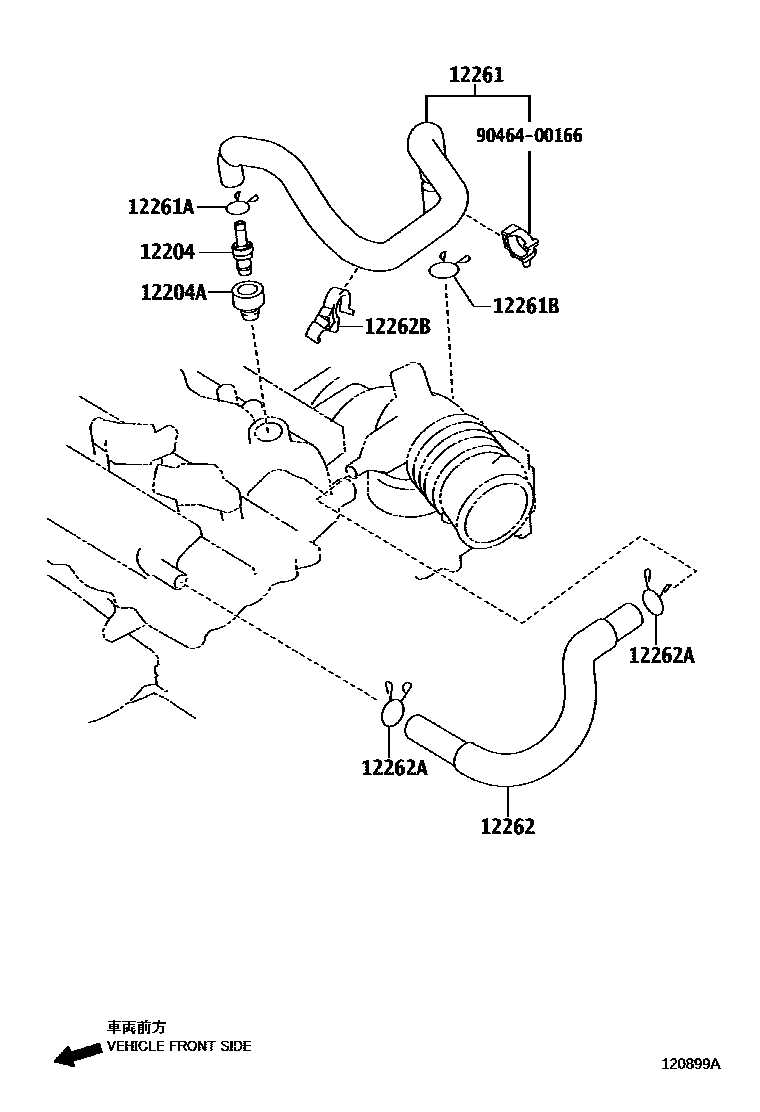

Toyota COROLLA Ventilation Hose EPC diagram — 120899A
Ventilation Hose — 120899A (201401 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — 120900A
Ventilation Hose — 120900A (201306 – 999999)

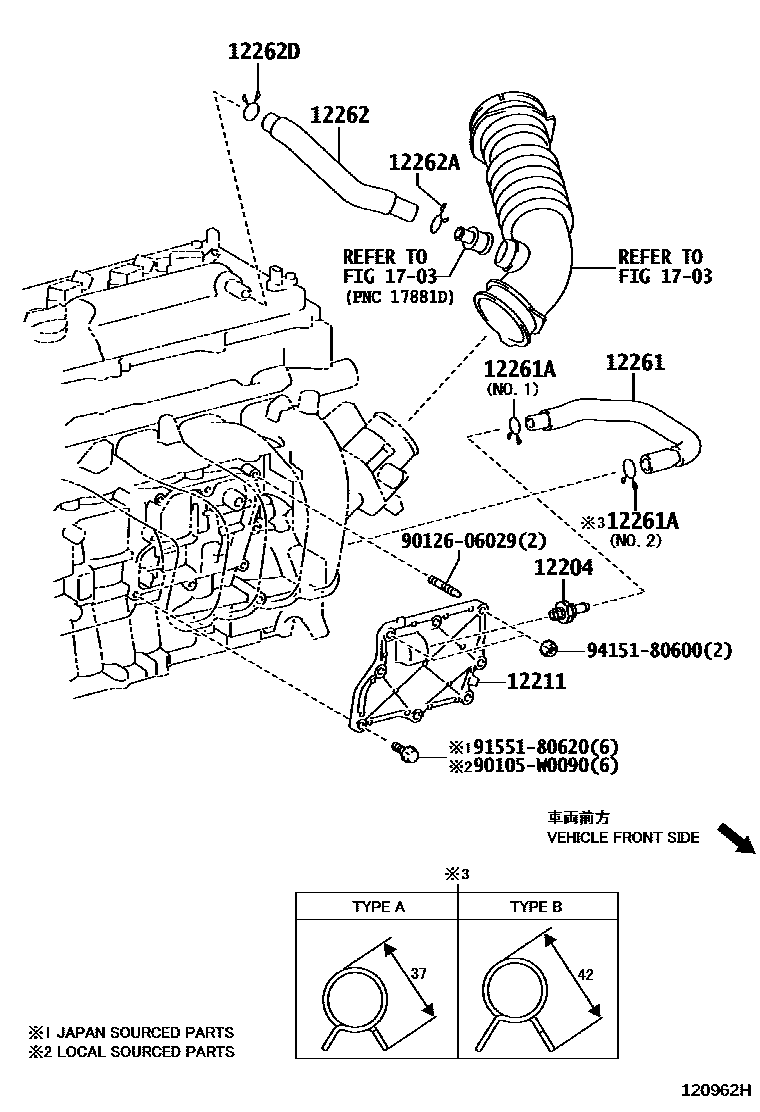

Toyota COROLLA Ventilation Hose EPC diagram — 120962H
Ventilation Hose — 120962H (201401 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-37010 · 12204-37040 · 12204-47010 · 12204-47060
12204AGasket (for ventilation system)11249-47020 · 90480-18016
12211Ventilation box No. 112211-0T010 · 12211-37010
12261Ventilation Hose12261-33120 · 12261-37040 · 12261-37050 · 12261-47010
12261AClip or clip (for vent hose)90466-22005 · 90467-15120 · 90467-16035 · 90467-21004 · 90467-23002
12261BClip or clip (for vent hose)90467-22010
12262Ventilation hose No. 212262-0Y010 · 12262-37020 · 12262-37030
12262AClamp (for vent hose No. 2)90467-21004
12262BClamp (for ventilation hose)16581-47020
12262DClamp (for vent hose No. 2)90467-21004
