Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 3 images and 7 PNC and OE references.

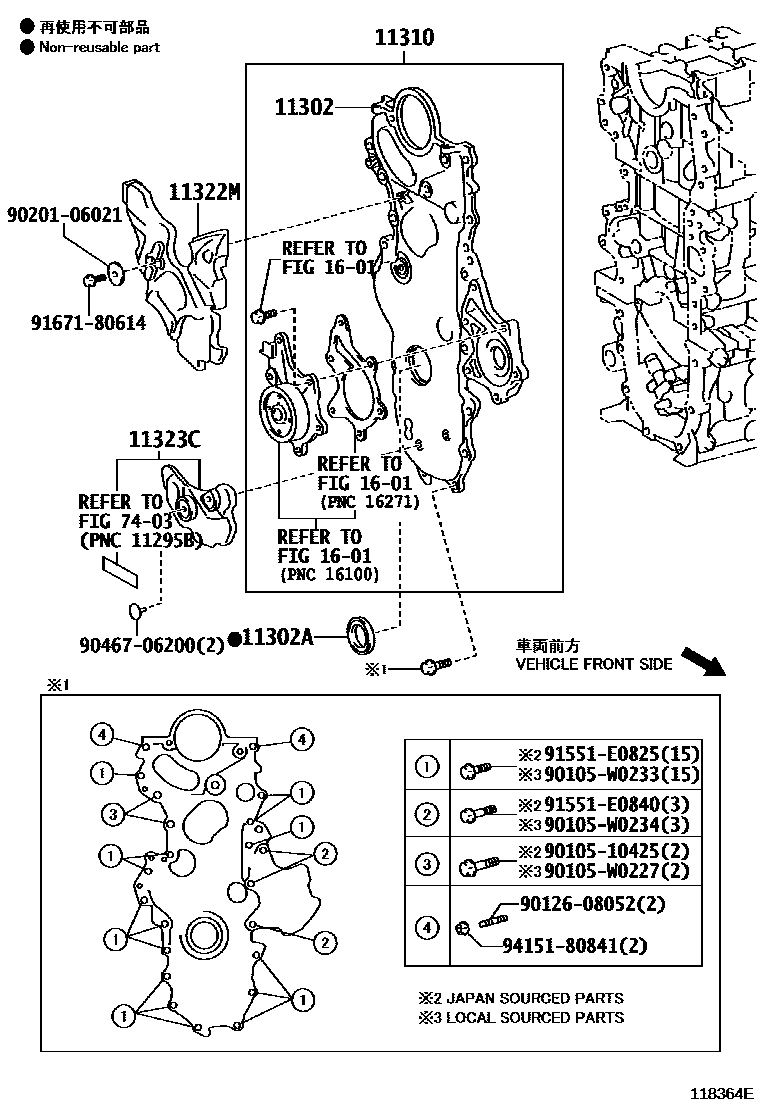

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 118364E
Timing Gear Cover & Rear End Plate — 118364E (201306 – 999999)

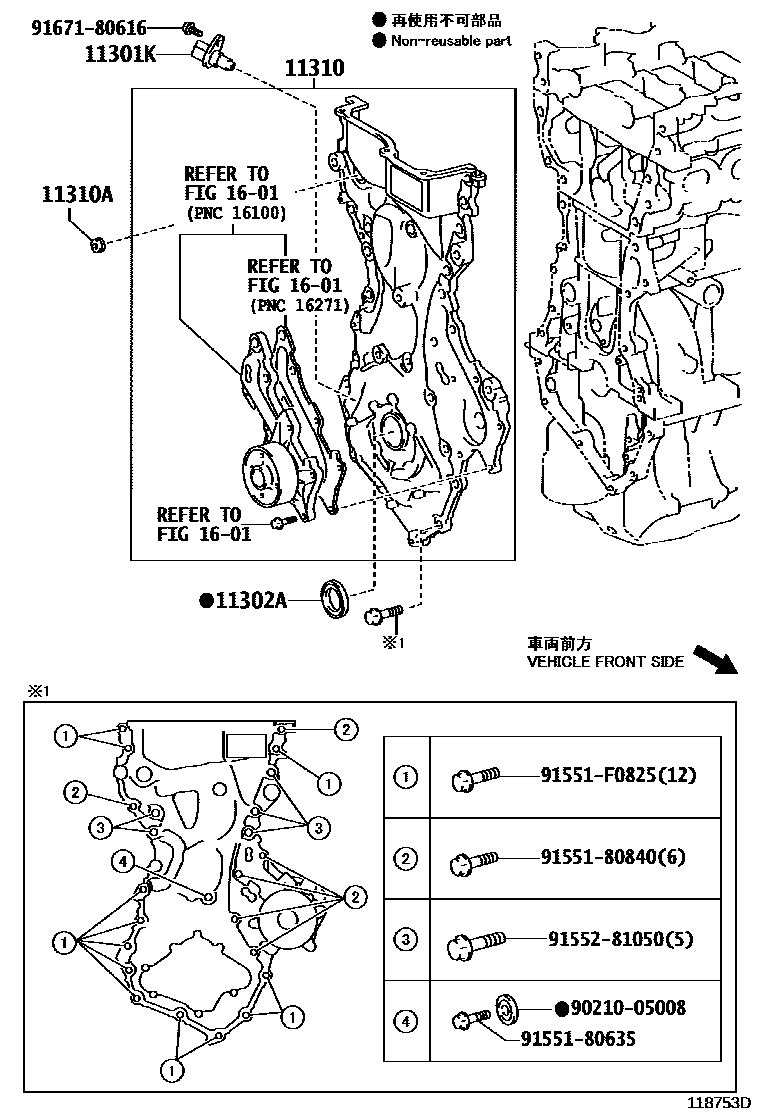

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 118753D
Timing Gear Cover & Rear End Plate — 118753D (201401 – 999999)

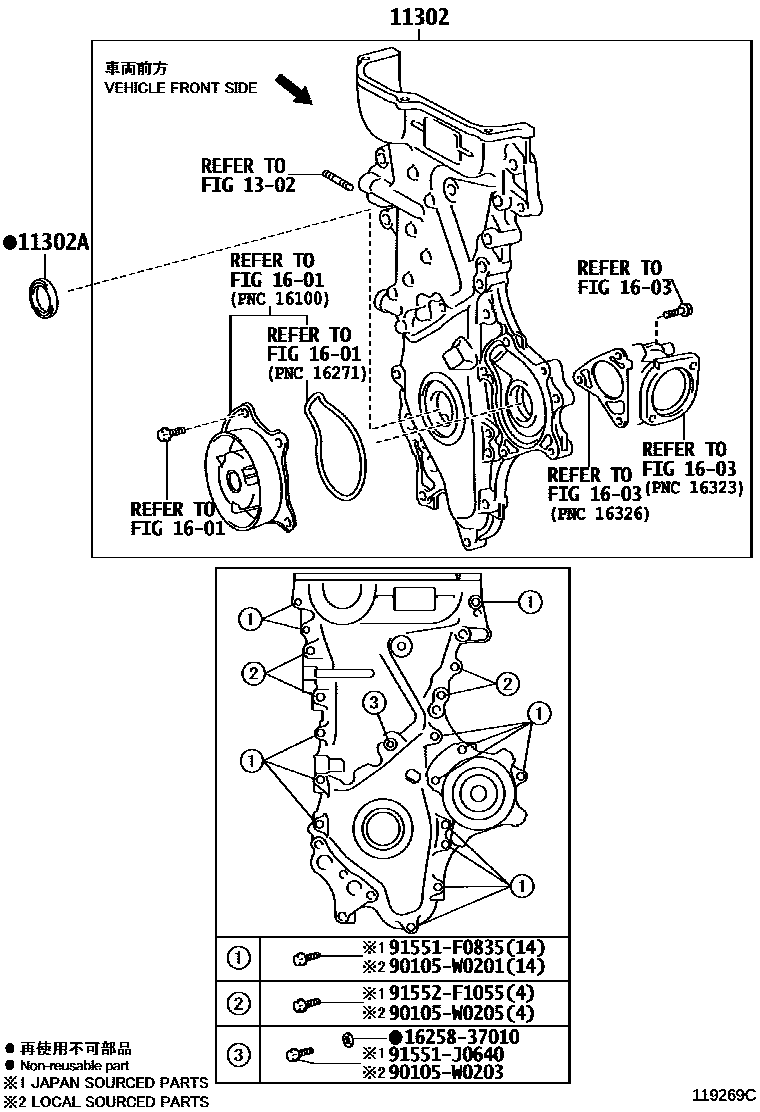

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 119269C
Timing Gear Cover & Rear End Plate — 119269C (201401 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301Kcrankshaft position sensor90919-05073
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-0T070 · 11310-0T071 · 11310-0T072 · 11310-37011 · 11321-33020 · 11321-33021
11302AOil seal (for timing chain or timing belt cover)90311-25032 · 90311-38089 · 90311-38096 · 90311-40040 · 90311-W0012
11310Timing chain cover assembly11310-33011 · 11310-33012 · 11310-33013 · 11310-47041 · 11310-47042
11310ATapered thread plug (for timing chain cover)90344-53006 · 90344-53008
11322MNo. 2 timing chain cover11322-33020
11323CNo. 3 timing chain cover11323-33010
