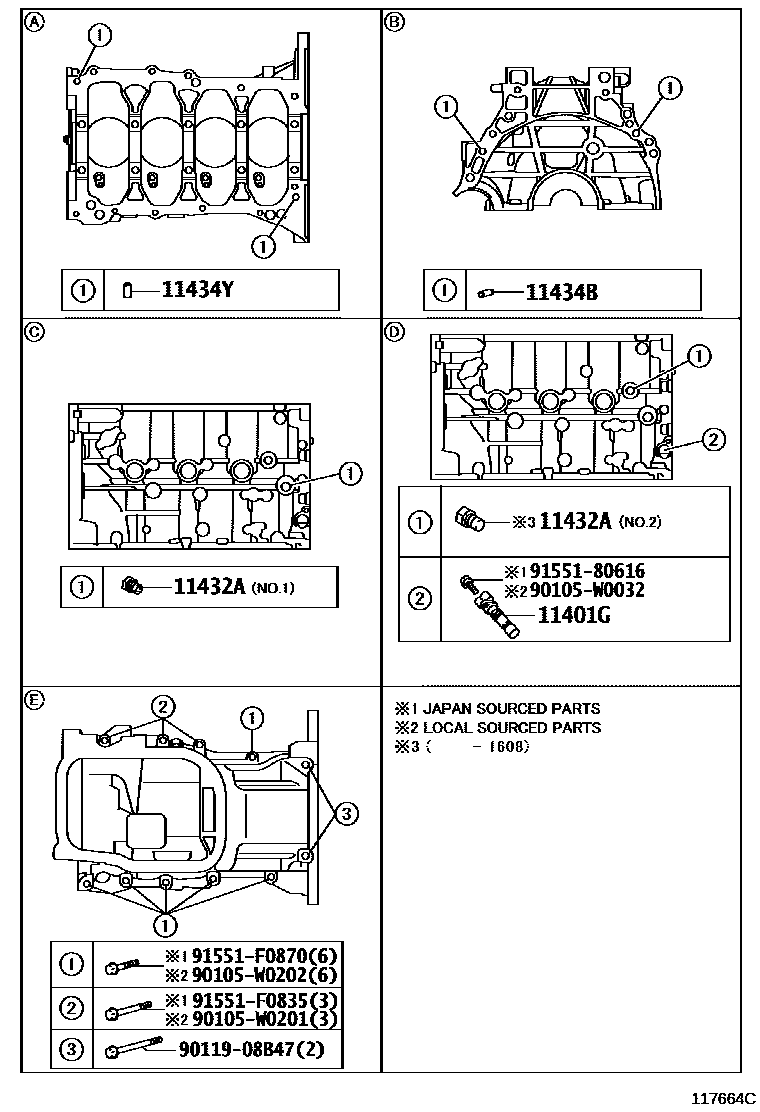

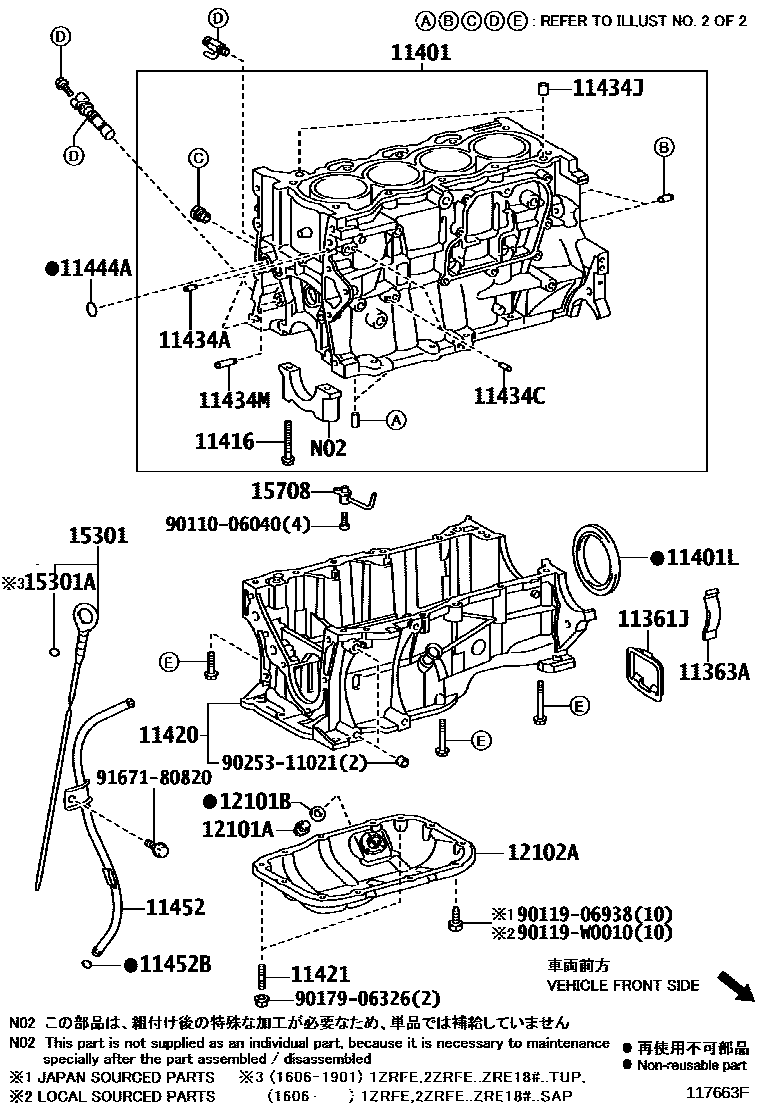

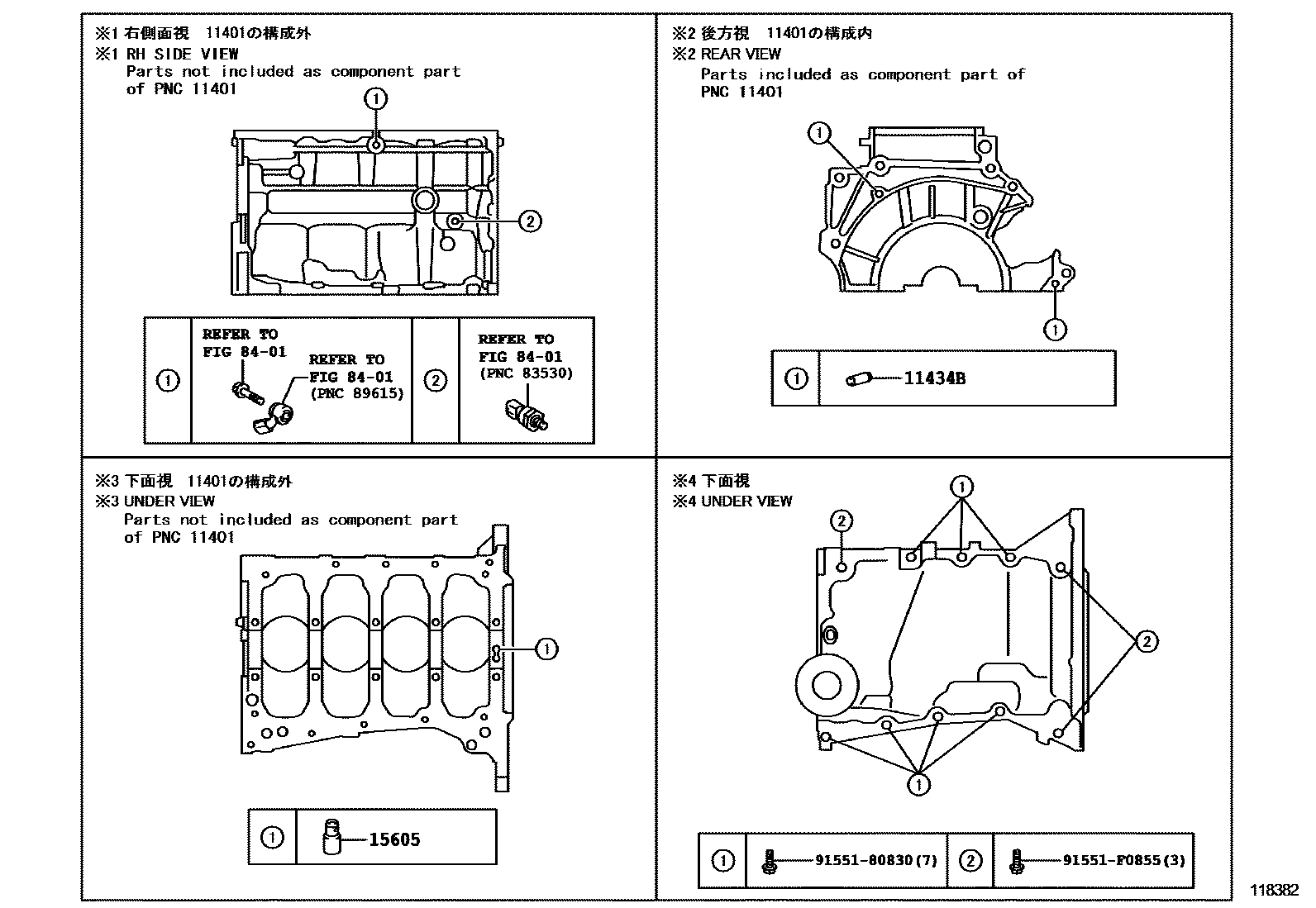

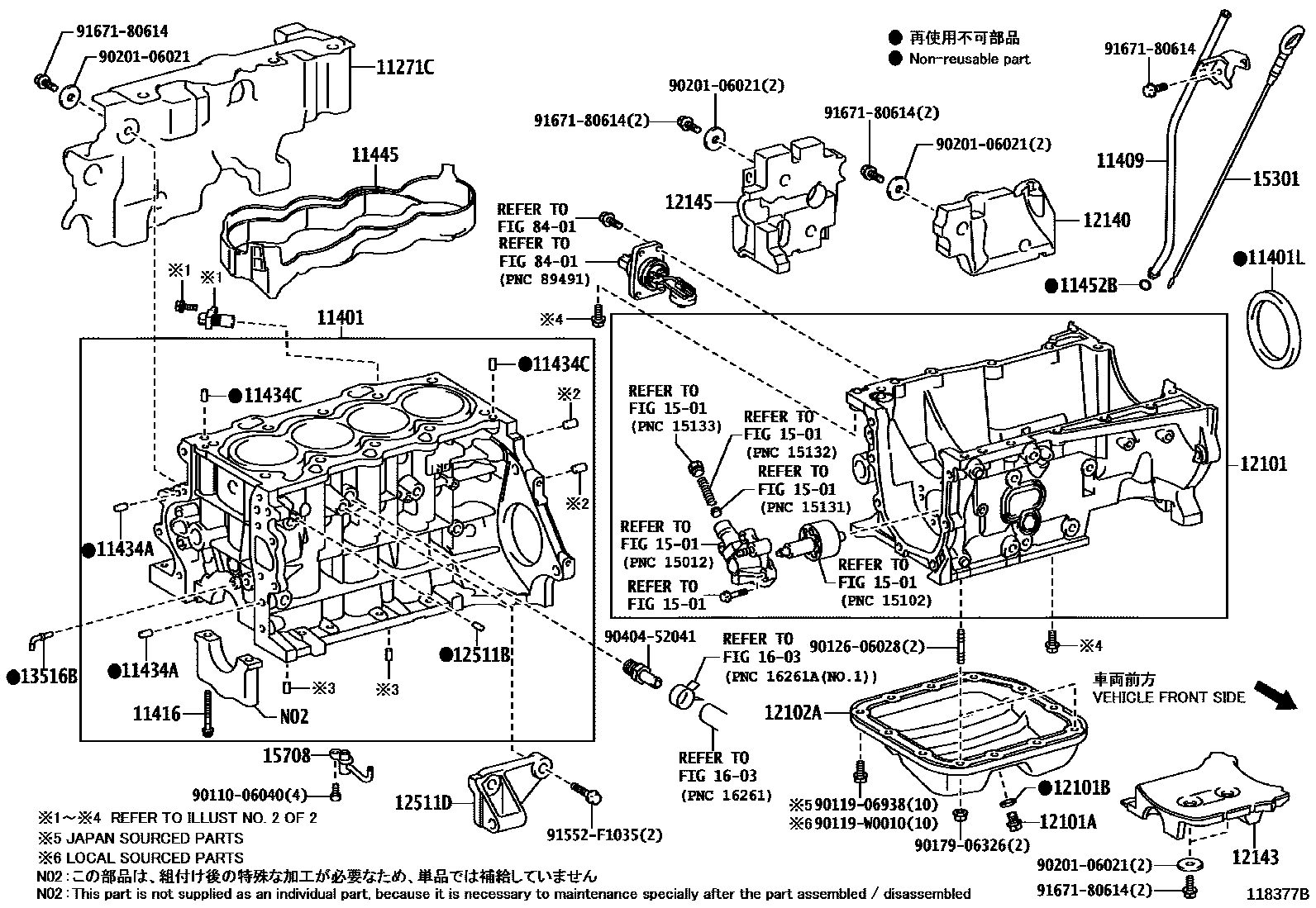

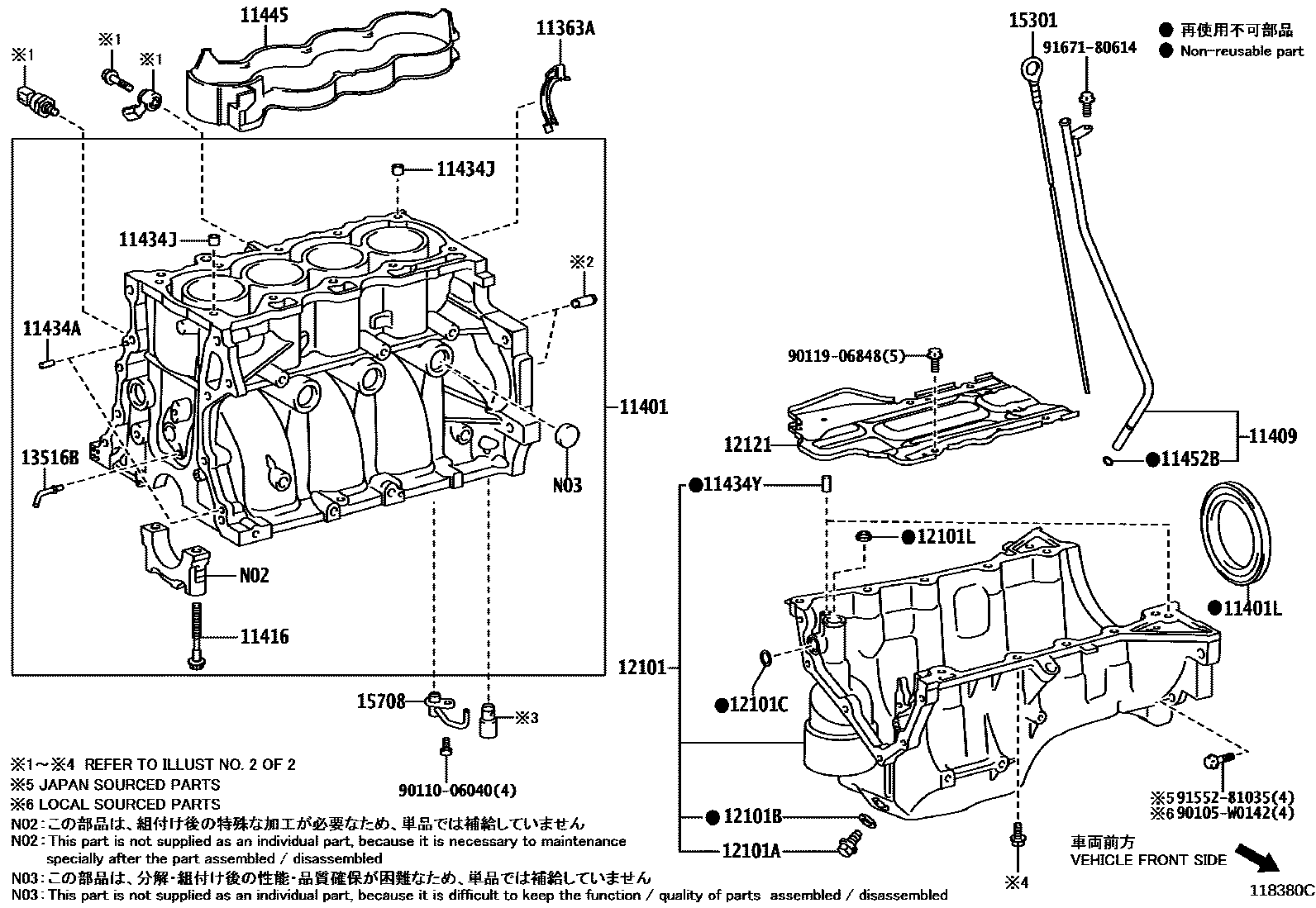

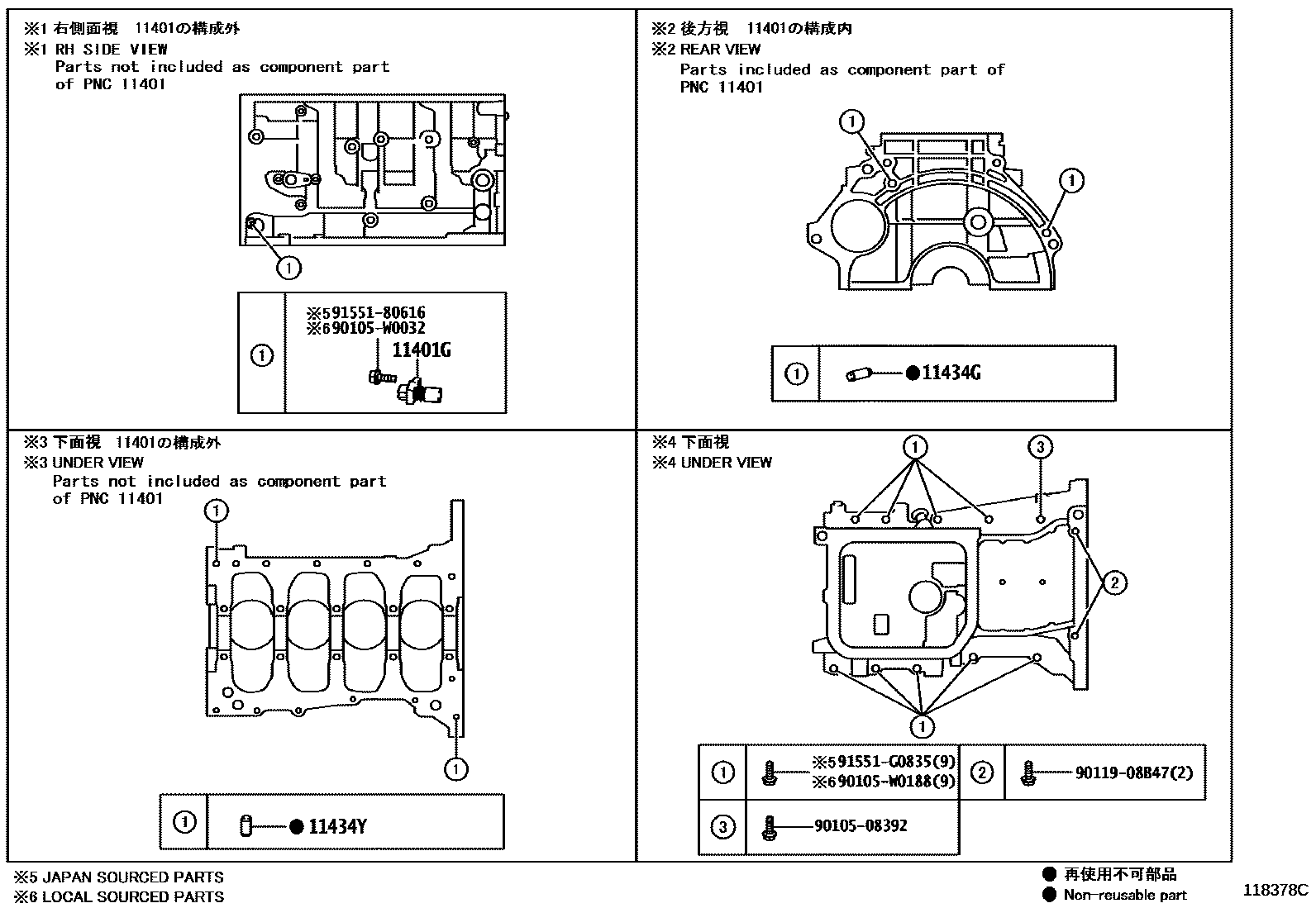

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 6 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11271C | Cylinder block side cover | 11271-33031 |
| 11361J | Flywheel housing bottom cover | 11361-21011 |
| 11363A | Flywheel housing side cover | 11363-0Q010 · 11363-33010 |
| 11401 | Cylinder block sub-assembly | 11410-09445 · 11410-09446 · 11410-09455 · 11410-09456 · 11410-09650 · 11410-09680 · 11410-39047 · 11410-39057 · 11410-39155 · 11410-39235 · 11410-39245 · 11410-39246 · 11410-49045 |
| 11401G | crankshaft position sensor | 90919-05063 · 90919-05070 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-75020 · 90311-76002 · 90311-78005 · 90311-78008 · 90311-W0011 |
| 11409 | Engine oil level gauge guide sub-assembly | 11409-33011 · 11409-47012 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02154 · 90910-02163 · 90910-02175 |
| 11420 | Reinforce crankcase assembly | 11420-0T030 · 11420-37010 |
| 11421 | Stud bolts (for oil pan) | 90126-06028 |
| 11432A | No. 1 headed tapered thread plug | 90345-52001 · 90345-53006 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 · 90250-08120 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-04097 · 90250-08120 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13001 · 90253-13017 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 |
| 11434Y | Direct sales (for oil pan) | 90250-08074 · 90250-08120 |
| 11444A | O-ring | 96723-24020 |
| 11445 | Cylinder block water jacket spacer | 11445-33010 · 11445-47010 |
| 11452 | Engine oil level gauge guide | 11452-37011 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 · 96741-19010 |
| 12101 | Oil pan sub-assembly | 12101-33040 · 12101-47131 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12032 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12101C | O-ring (for oil pan) | 90301-19023 |
| 12101L | Gasket No. 1 (for oil pan) | 90430-12039 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0T040 · 12102-33010 · 12102-37010 |
| 12121 | No. 1 oil pan baffle | 12121-B1060 |
| 12140 | oil pan cover | 12615-0N010 · 12615-33011 |
| 12143 | oil pan cover | 12143-0N030 · 12143-33031 |
| 12145 | No. 2 oil pan cover muffler | 12145-0N010 · 12145-33011 |
| 12511B | Ring pin (for generator bracket) | 90250-04097 |
| 12511D | Generator bracket | 12511-33021 |
| 13516B | oil nozzle | 13516-33030 · 13516-40010 |
| 15301 | Engine oil level scoring assembly | 15301-33050 · 15301-37010 · 15301-47050 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15605 | Oil check valve sub-assembly | 15703-47010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-33020 · 15708-37012 · 15708-47031 · 15708-47080 · 15708-47081 |
