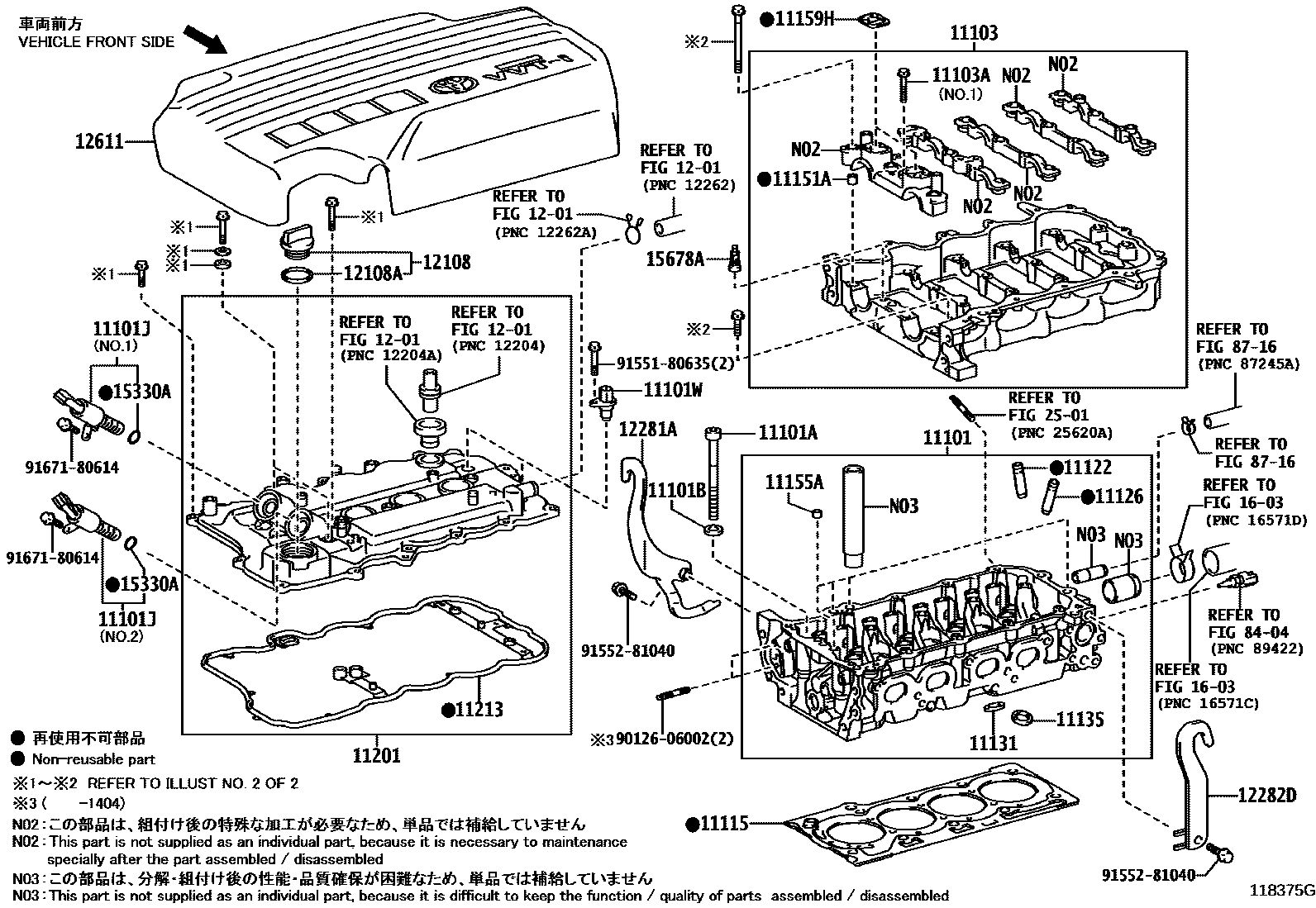

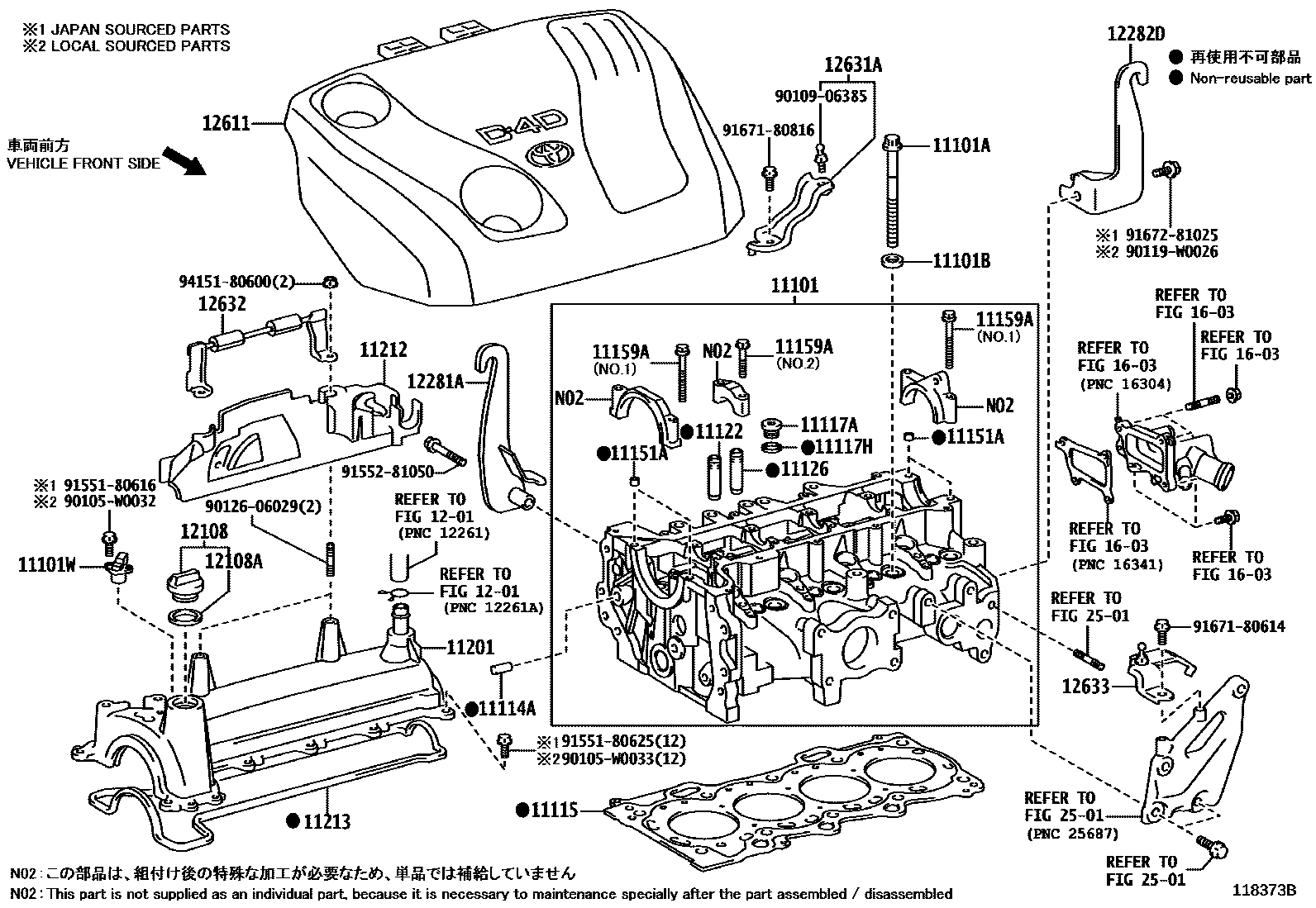

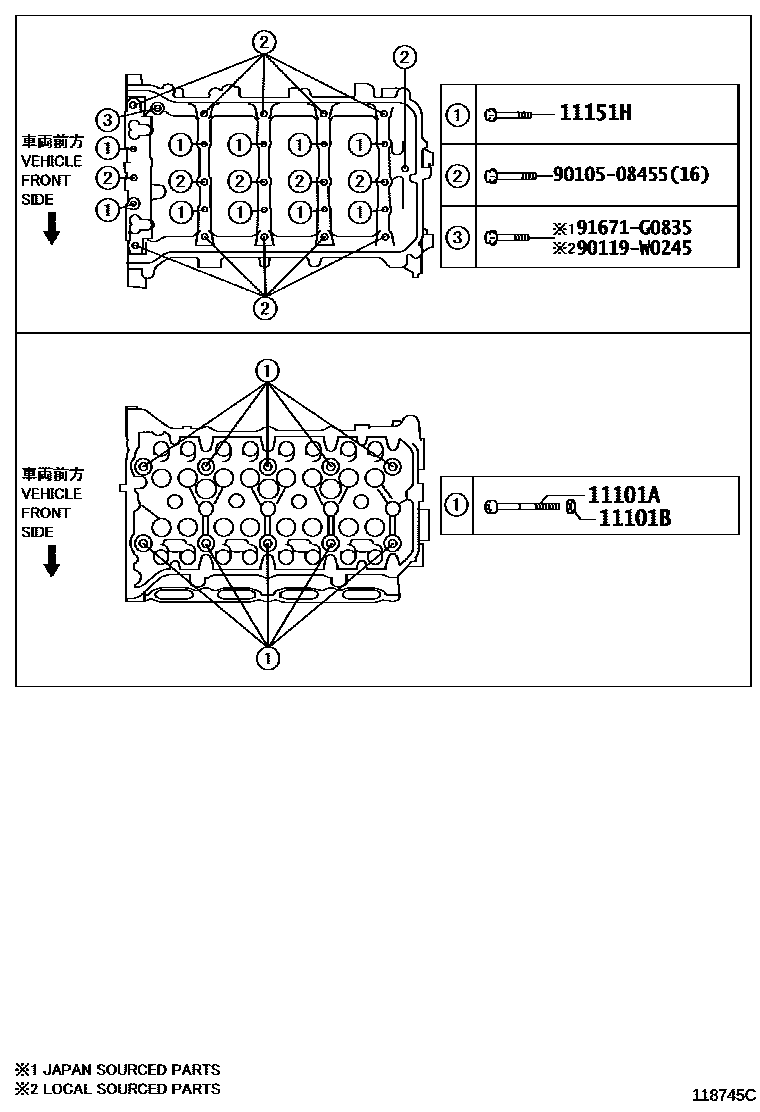

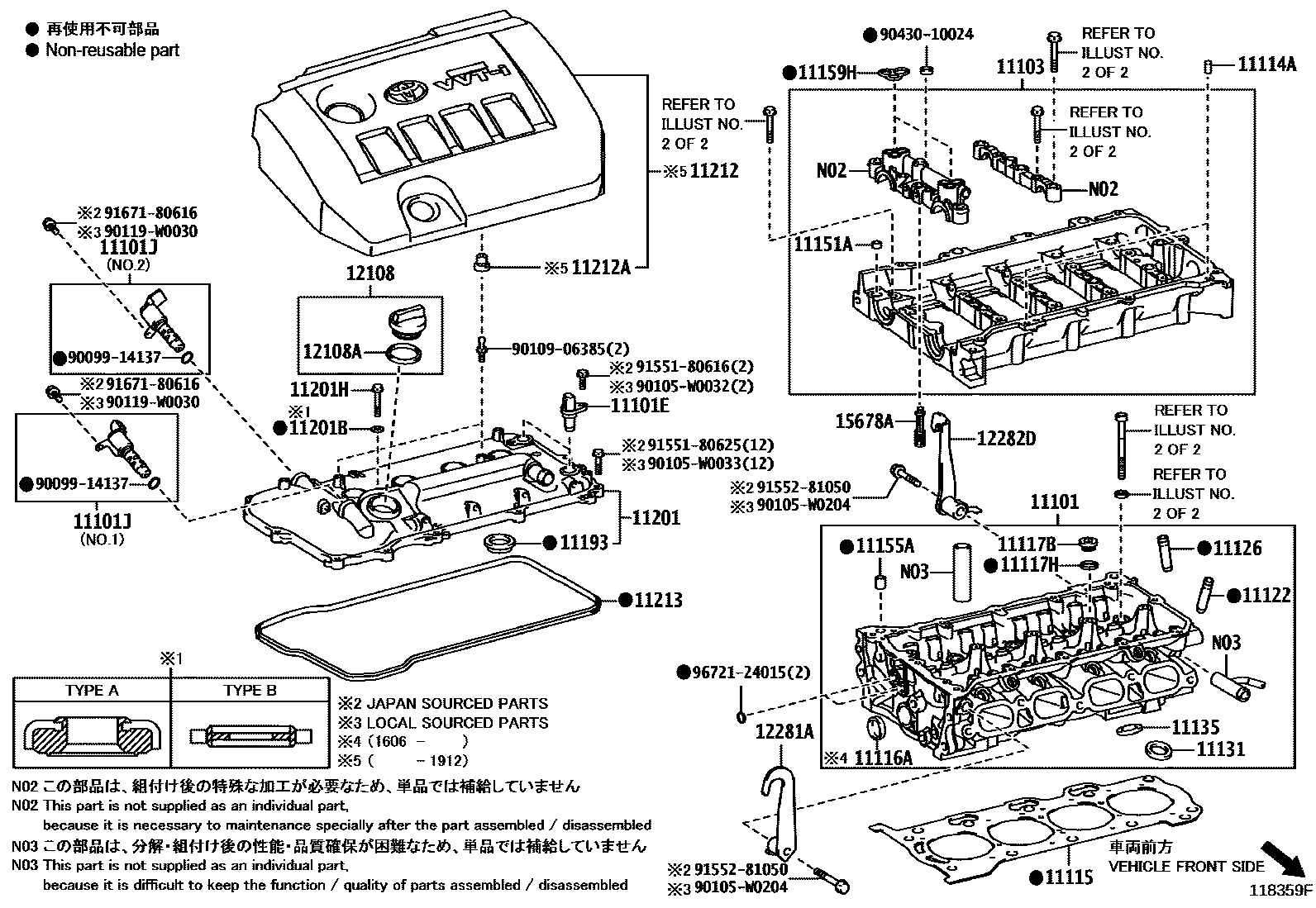

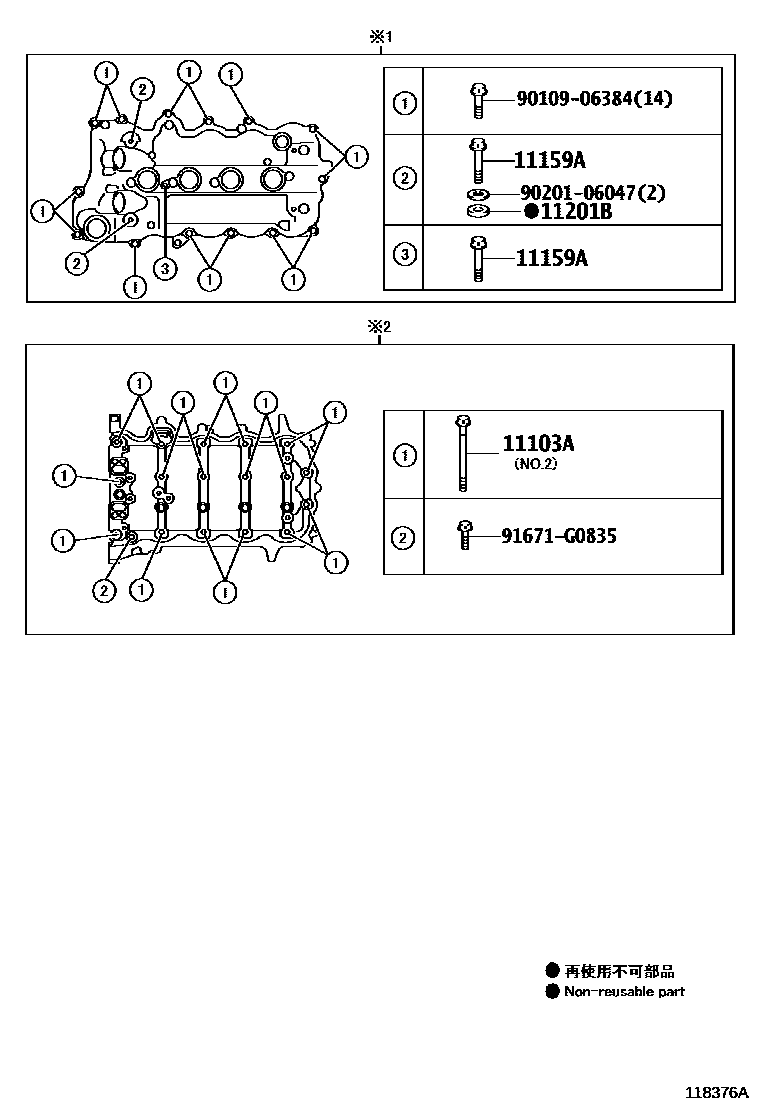

Toyota COROLLA Cylinder Head — Figure 1104
Toyota COROLLA EPC diagram 1104, Cylinder Head, with 5 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09300 · 11101-33061 · 11101-39686 · 11101-49465 · 11101-49466 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02166 · 90910-02171 · 90910-02174 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10344 · 90201-13042 |
| 11101E | Cam position sensor | 90919-05060 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0T050 · 15330-0T060 · 15330-37010 · 15330-37020 · 15330-47010 · 15330-47020 |
| 11101W | No. 1 crankshaft position sensor | 90919-05029 · 90919-05060 |
| 11103 | Camshaft housing sub-assembly | 11103-0T021 · 11103-37021 · 11103-47012 · 11103-47041 |
| 11103A | Bolts (for camshaft housing assembly) | 90105-08455 · 90119-07009 |
| 11114A | direct selling | 90250-06001 · 90250-10030 |
| 11115 | GASKET, CYLINDER HEAD | 11115-37060 · 11115-37061 · 11115-37062 · 11115-47050 |
| 11116A | No. 1 sealing plug | 96411-62500 |
| 11117A | No. 1 headed tapered thread plug | 90341-14008 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117H | Gasket (for coolant hole) | 90430-14008 · 90430-20004 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-31041 · 11122-31050 · 11122-31090 · 11122-33030 · 11122-47020 · 11123-31041 · 11123-31050 · 11123-31090 · 11123-33030 · 11123-47020 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-31041 · 11122-33030 · 11122-47020 · 11123-31041 · 11123-33030 · 11123-47020 · 11126-31030 · 11126-31040 · 11127-31030 · 11127-31040 |
| 11131 | intake valve seat | 11131-37020 · 11131-37040 · 11131-47010 · 11132-37040 · 11132-47010 |
| 11135 | Exhaust valve seat | 11135-37020 · 11135-47010 · 11136-37040 · 11136-47010 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-10004 · 90253-13005 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 |
| 11155A | PIN, RING W/HEAD | 90253-11004 · 90253-12002 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-06360 · 90105-T0347 · 90119-07008 · 90119-07009 · 91551-80635 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-37010 · 11159-47020 |
| 11193 | spark plug bushing gasket | 11193-0T010 · 11193-37020 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0N020 · 11201-0T040 · 11201-33041 · 11201-37022 · 11201-47101 · 11201-47130 |
| 11201B | Gasket (for cylinder head cover) | 16258-37010 · 90210-06013 · 90210-12011 |
| 11201H | Bolts (for cylinder head cover) | 90105-W0220 · 91551-80670 |
| 11212 | No. 2 cylinder head cover | 11212-0T160 · 11212-33031 · 11212-37011 |
| 11212A | Cylinder head cover cushion | 90480-07008 · 90480-16049 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0T020 · 11213-0T021 · 11213-33030 · 11213-33031 · 11213-37020 · 11213-37021 · 11213-47020 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-38010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-35001 |
| 12281A | Engine No. 1 hanger | 12281-0T040 · 12281-33050 · 12281-37021 · 12281-37050 · 12281-47022 · 12281-47023 |
| 12282D | ENGINE HANGER, NO.2 | 12282-0T040 · 12282-33022 · 12282-37011 · 12282-37040 · 12282-47010 |
| 12611 | Engine hood No. 1 | 12611-0N080 · 12611-0Y040 |
| 12631A | hood bracket | 12631-0N010 · 12631-33020 |
| 12632 | No. 2 engine hood bracket | 12632-0N010 · 12632-33041 |
| 12633 | No. 3 engine hood bracket | 12633-0N010 · 12633-33020 |
| 15330A | O-ring (for camshaft timing oil control valve) | 90099-14137 |
| 15678A | Oil control valve filter | 15678-31020 · 15678-37010 |
