Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

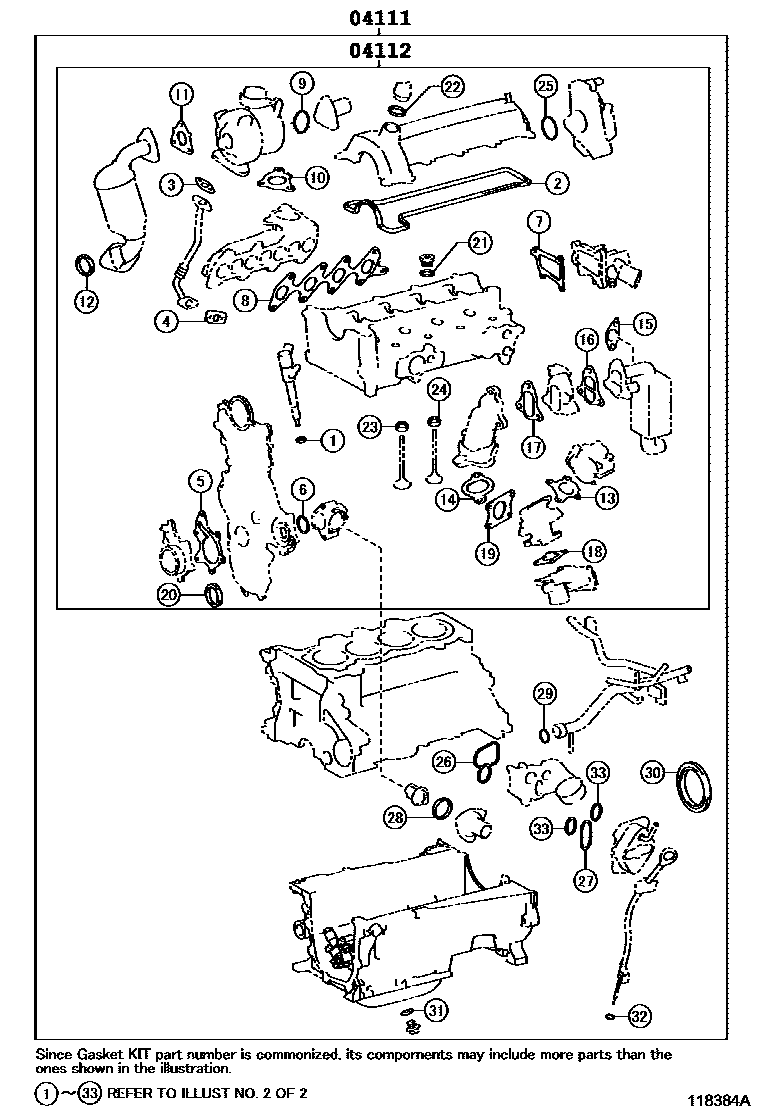

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118384A
Engine Overhaul Gasket Kit — 118384A (201306 – 999999)

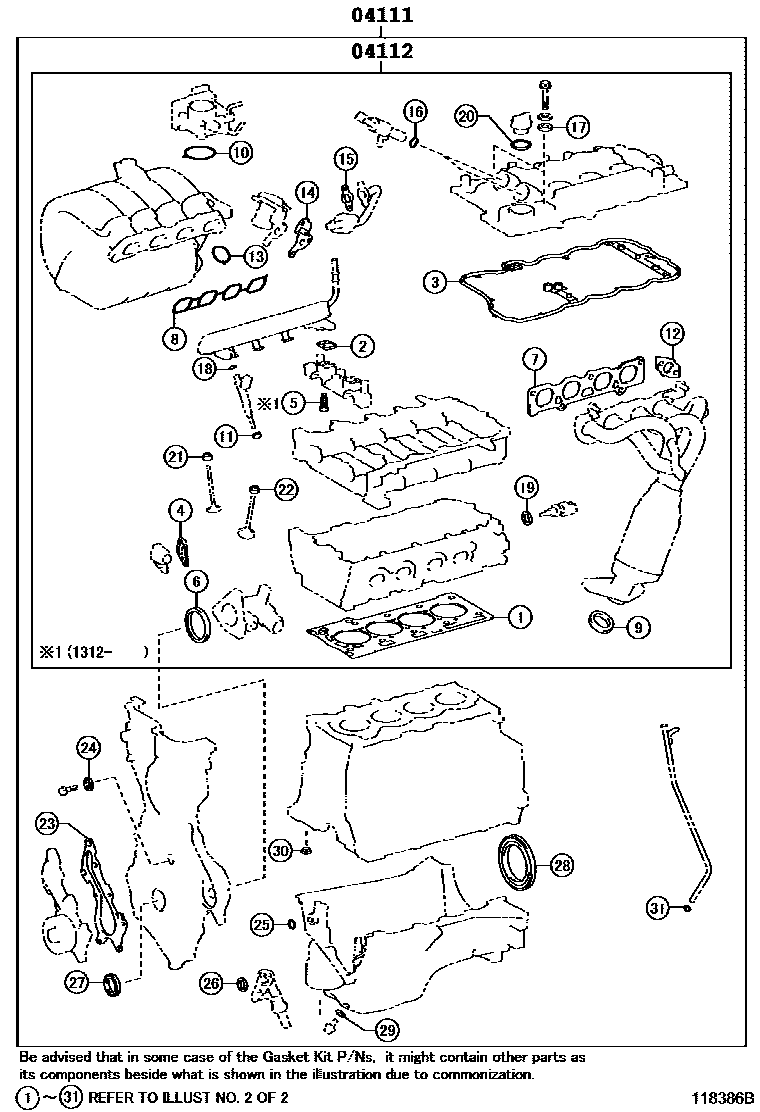

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118386B
Engine Overhaul Gasket Kit — 118386B (201401 – 999999)

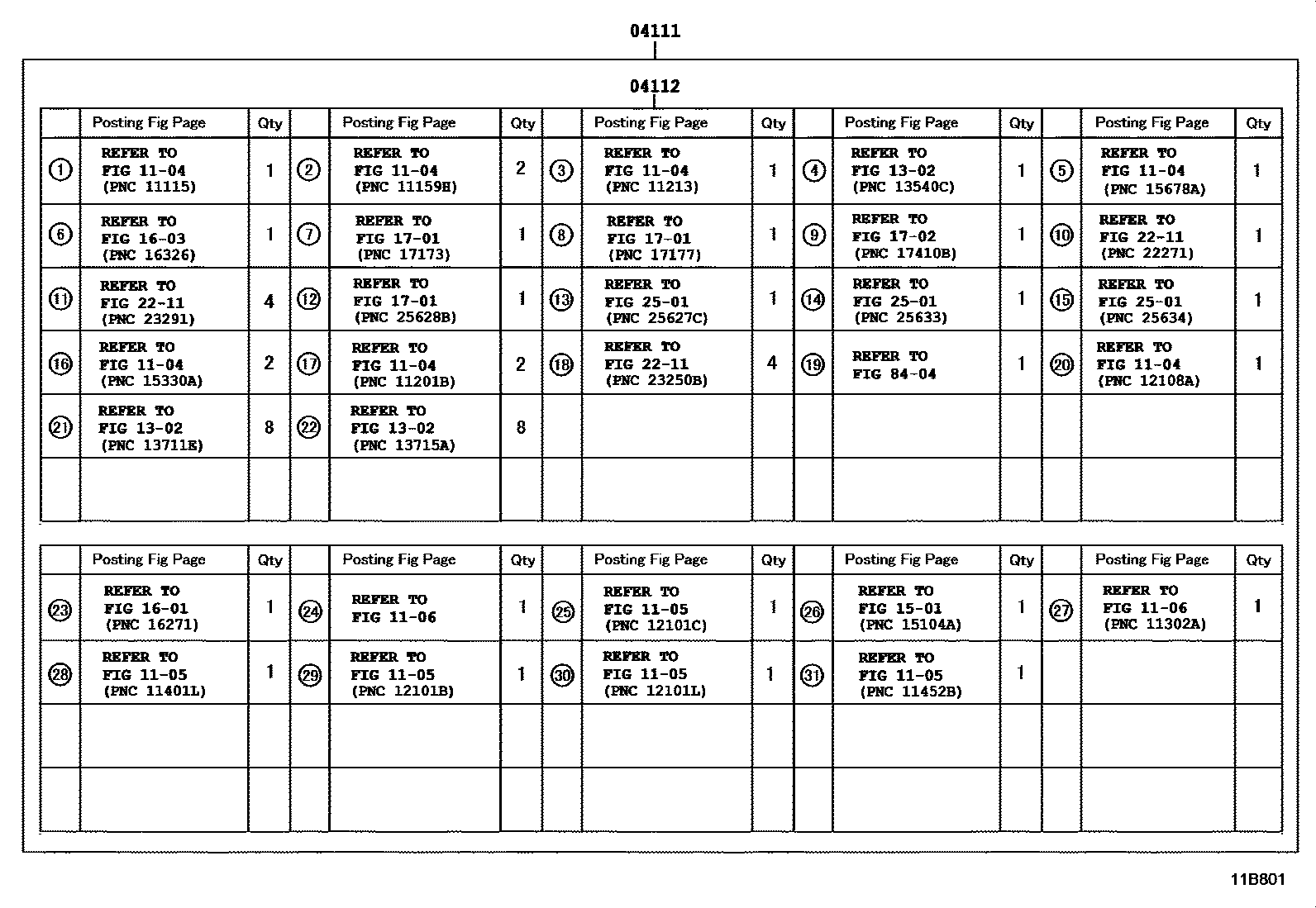

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B801
Engine Overhaul Gasket Kit — 11B801 (201401 – 999999)

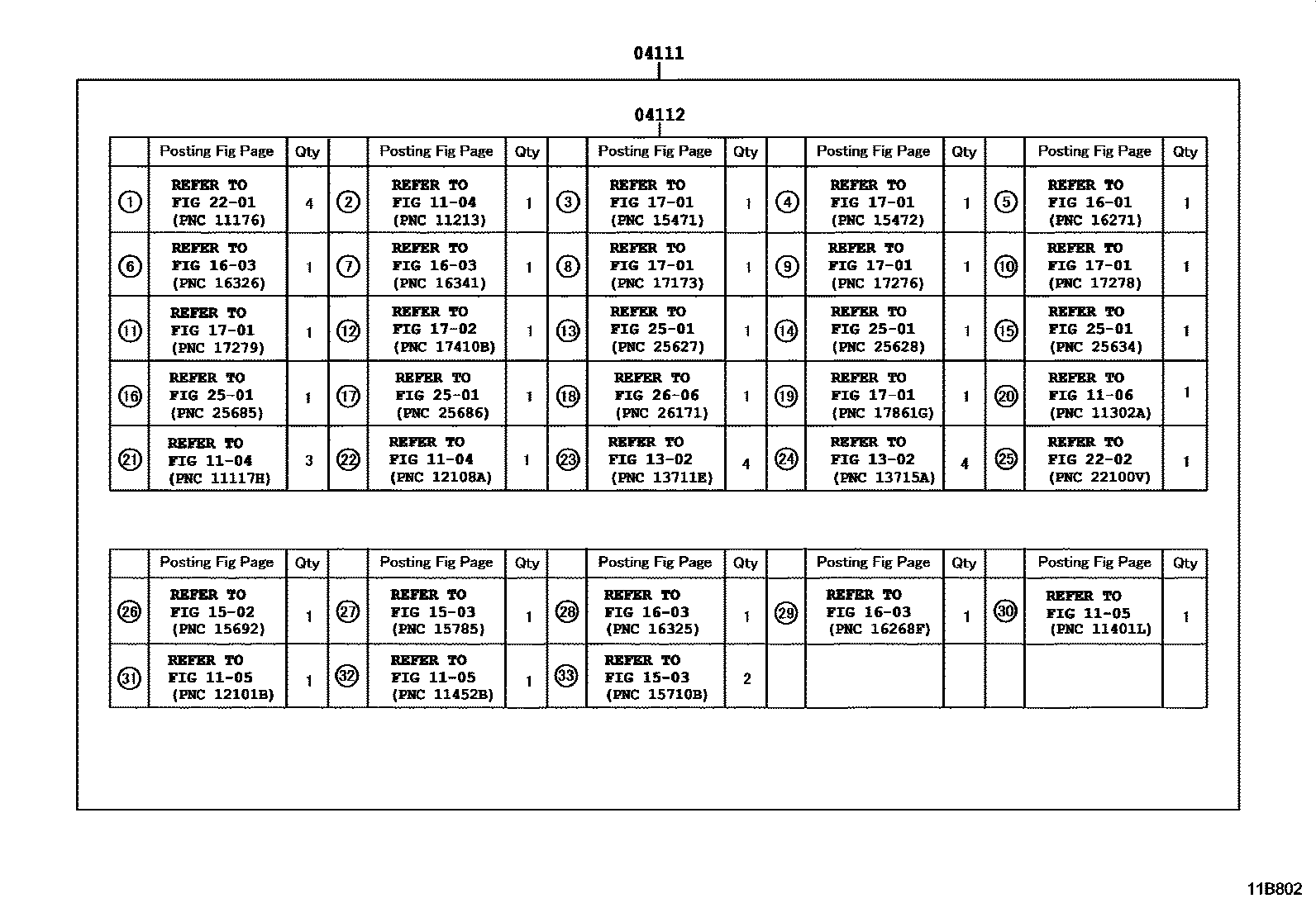

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B802
Engine Overhaul Gasket Kit — 11B802 (201306 – 999999)

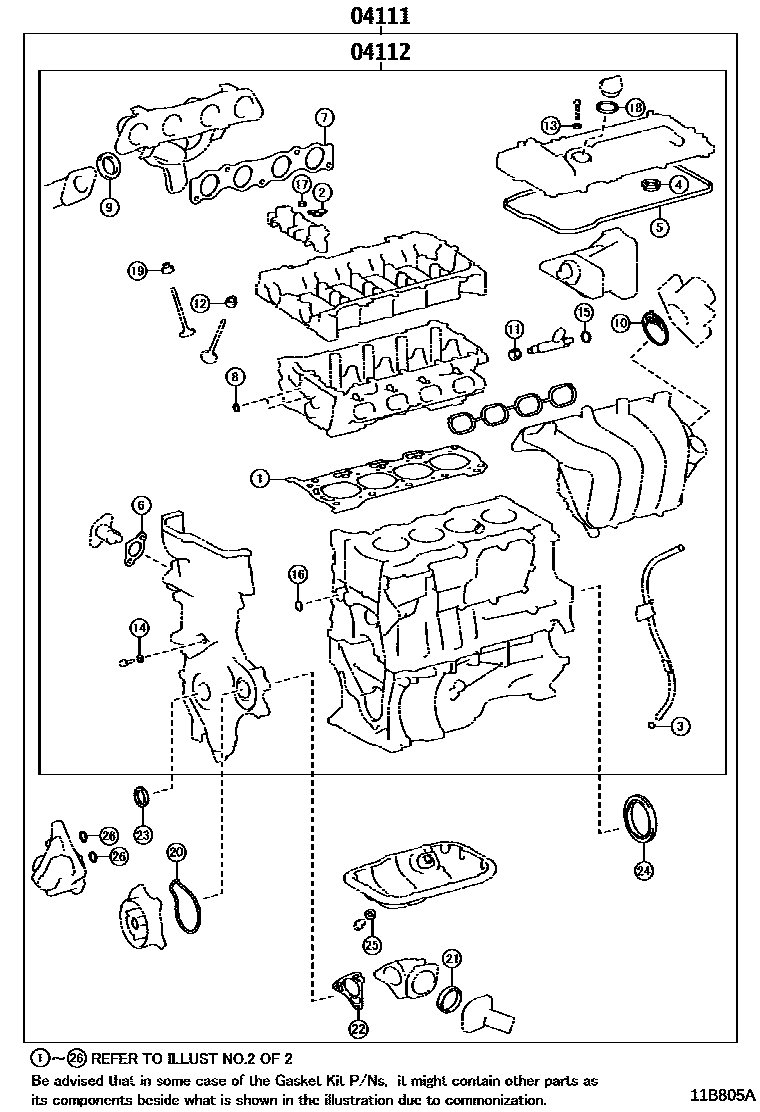

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B805A
Engine Overhaul Gasket Kit — 11B805A (201401 – 999999)

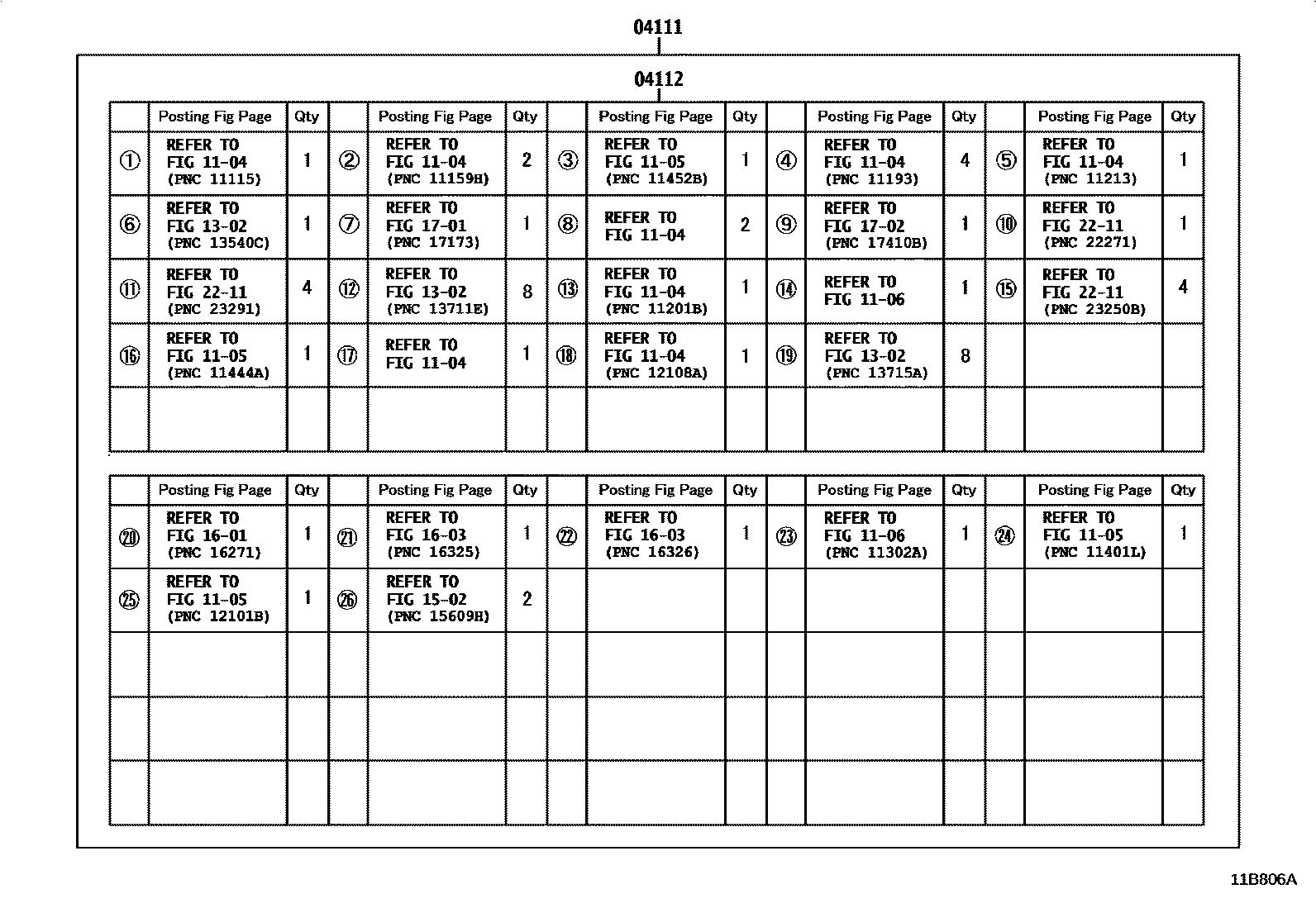

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B806A
Engine Overhaul Gasket Kit — 11B806A (201401 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0T083 · 04111-0T084 · 04111-0T085 · 04111-0T087 · 04111-33191 · 04111-33192 · 04111-33240 · 04111-47190
04112Engine valve grinding pad assembly04112-0T014 · 04112-0T015 · 04112-0T017 · 04112-33181 · 04112-33182 · 04112-33210 · 04112-47130
