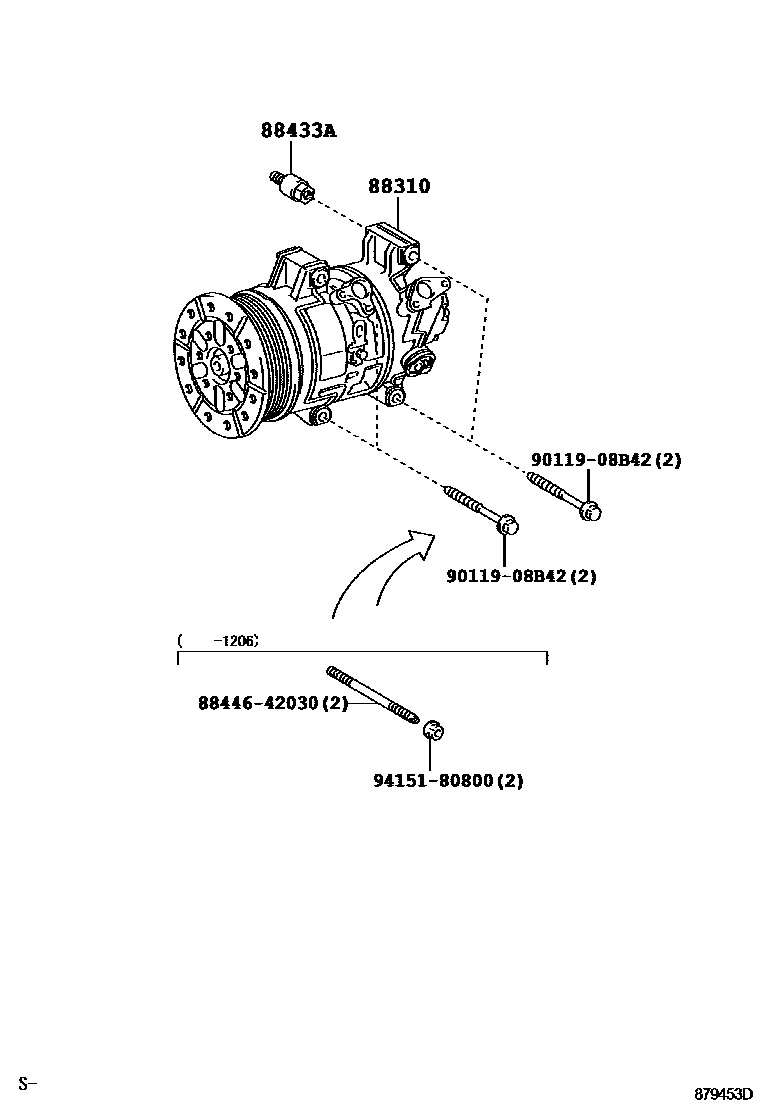

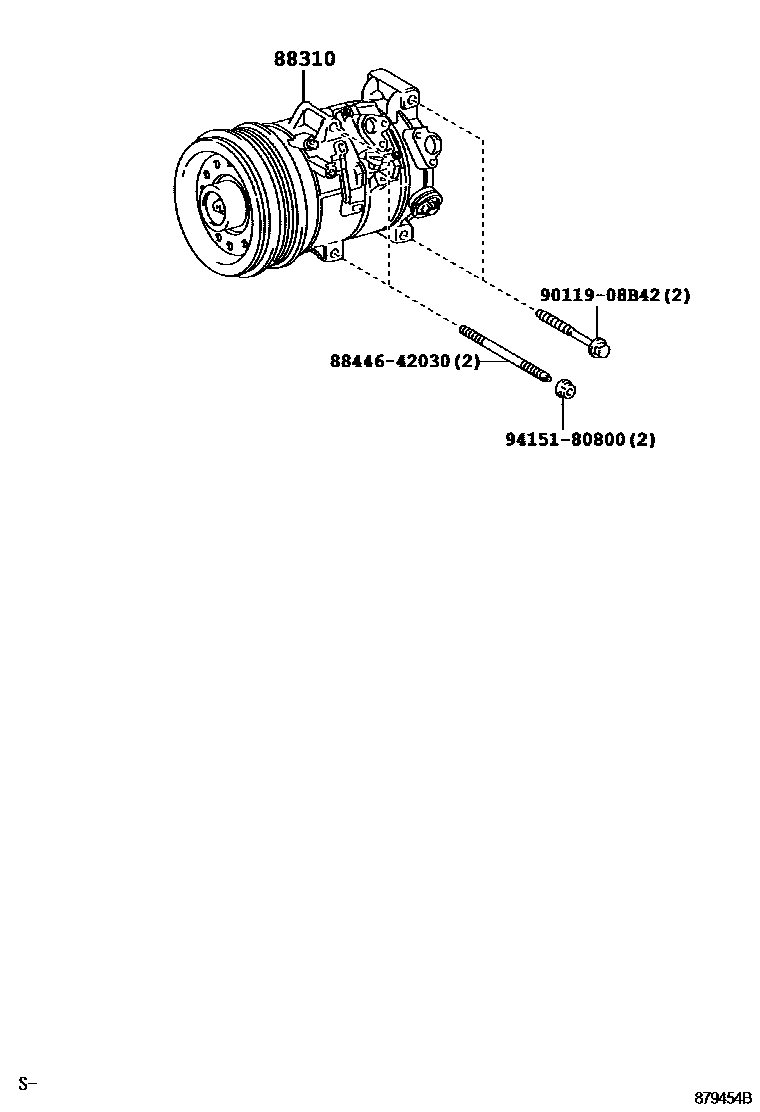

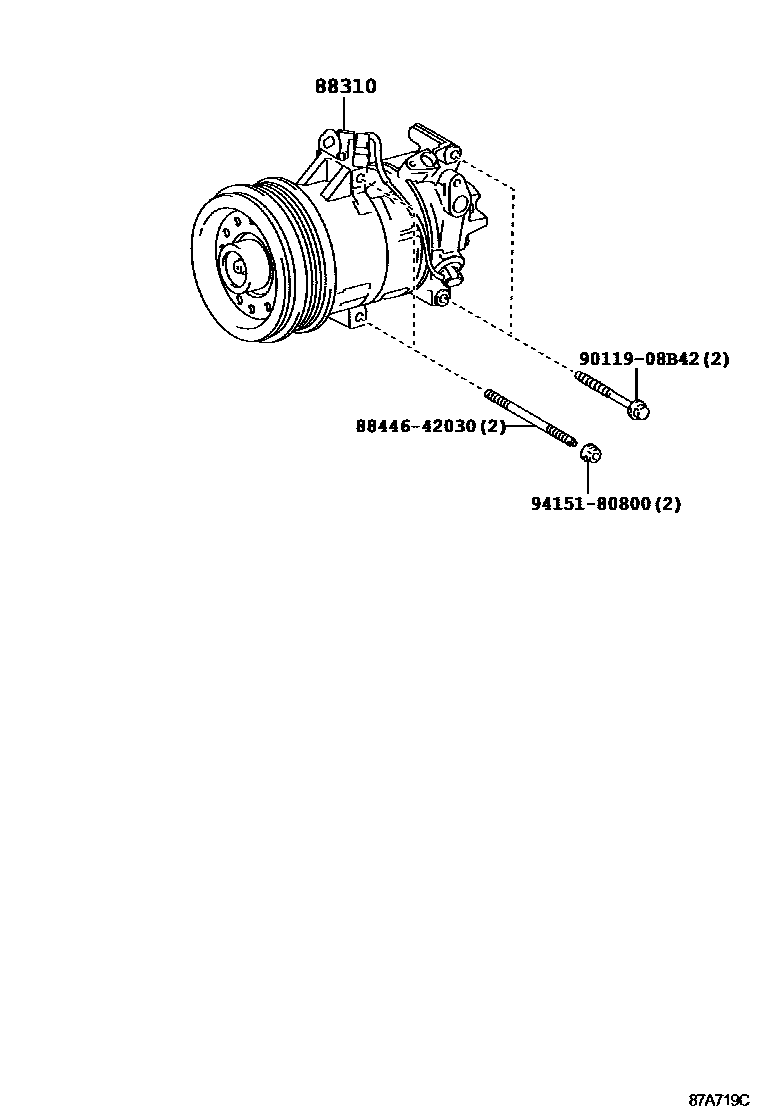

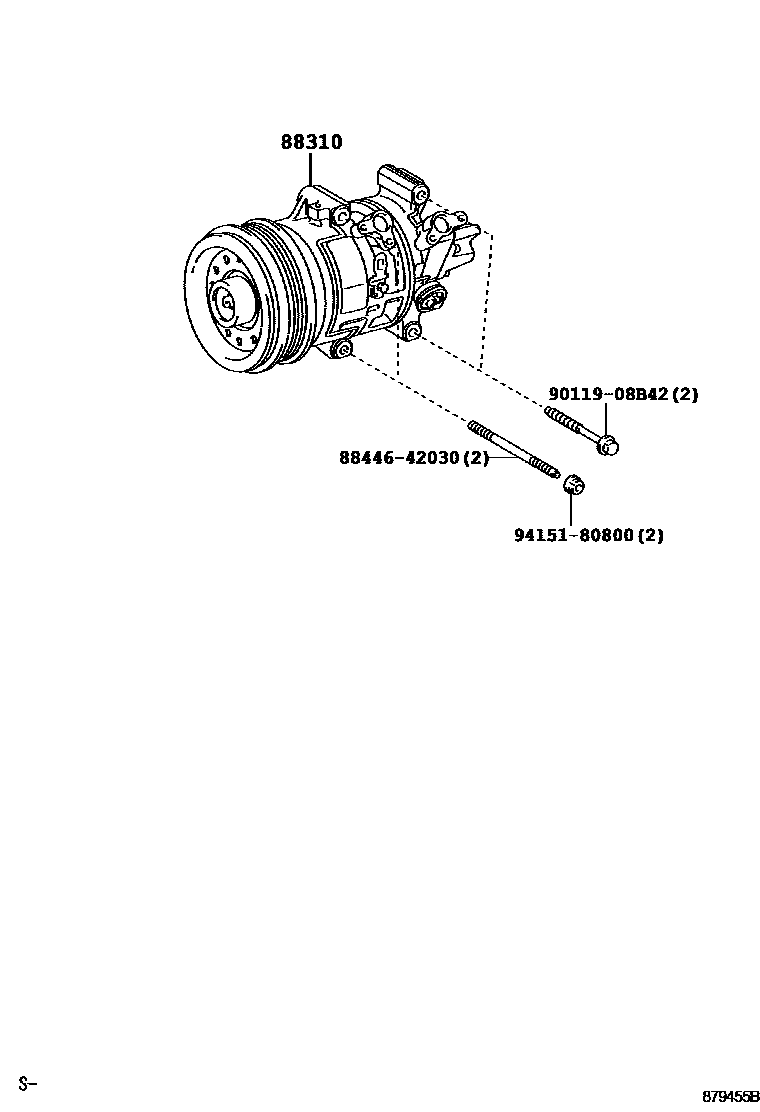

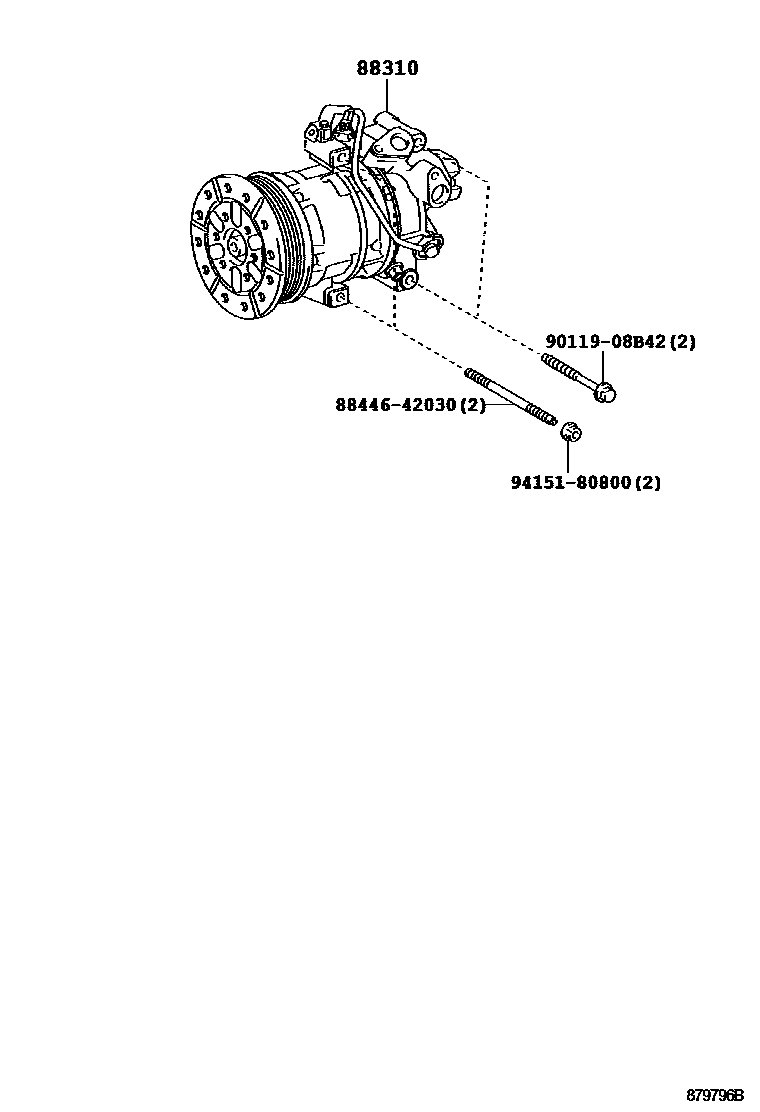

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 5 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-02450 · 88310-02460 · 88310-02470 · 88310-02480 · 88310-02630 · 88310-02640 |
| 88433A | Compressor stays | 88433-20040 |
