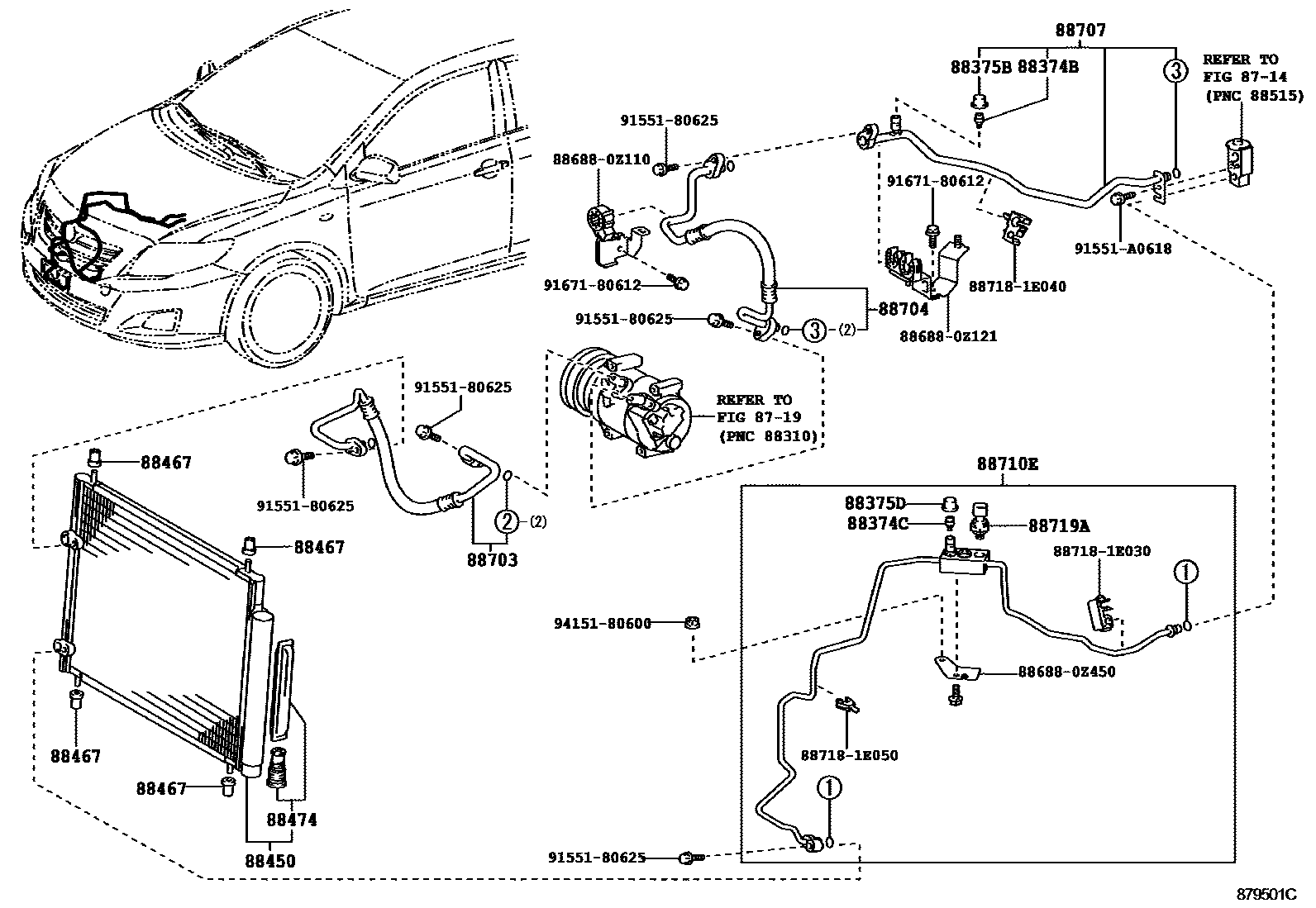

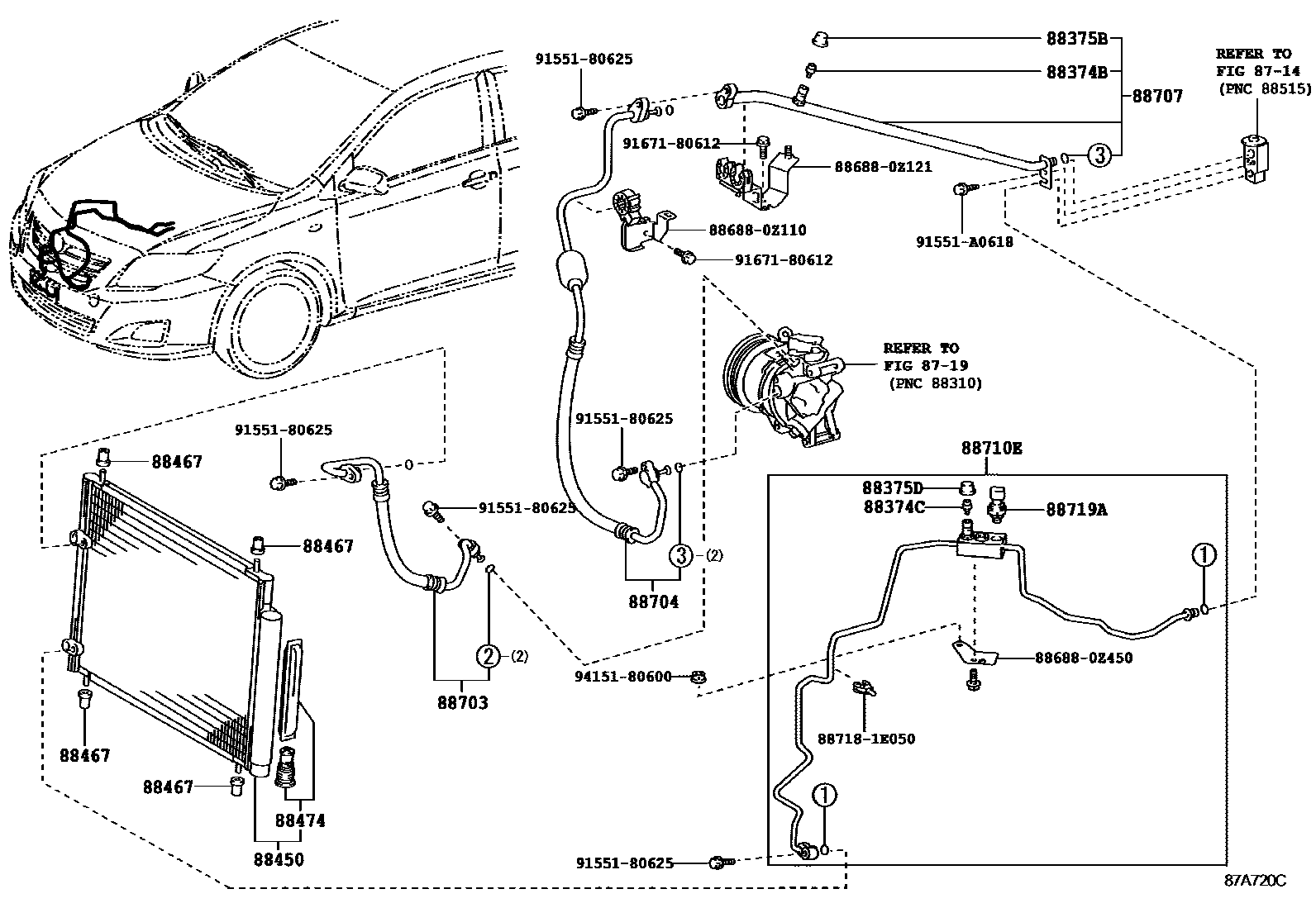

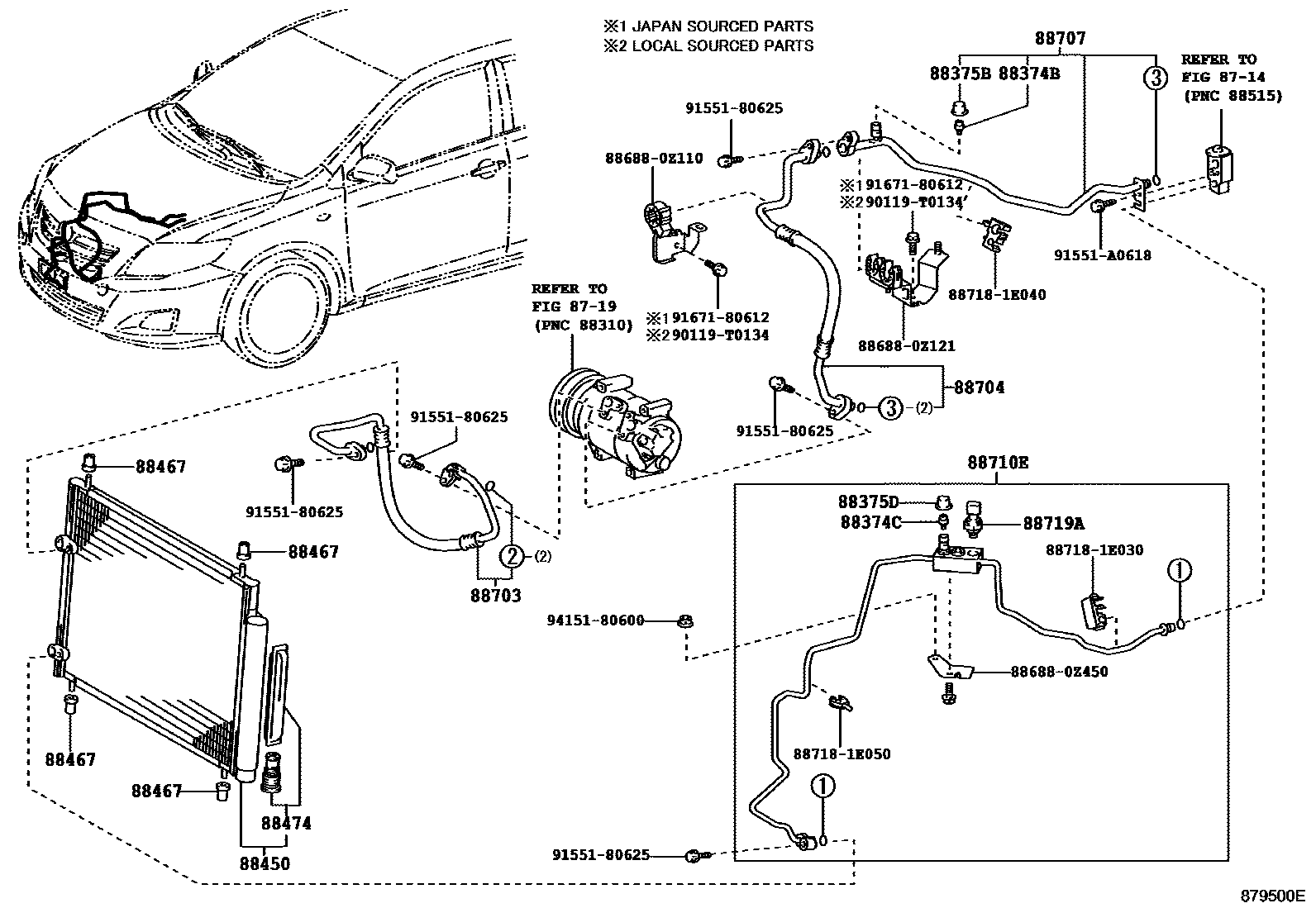

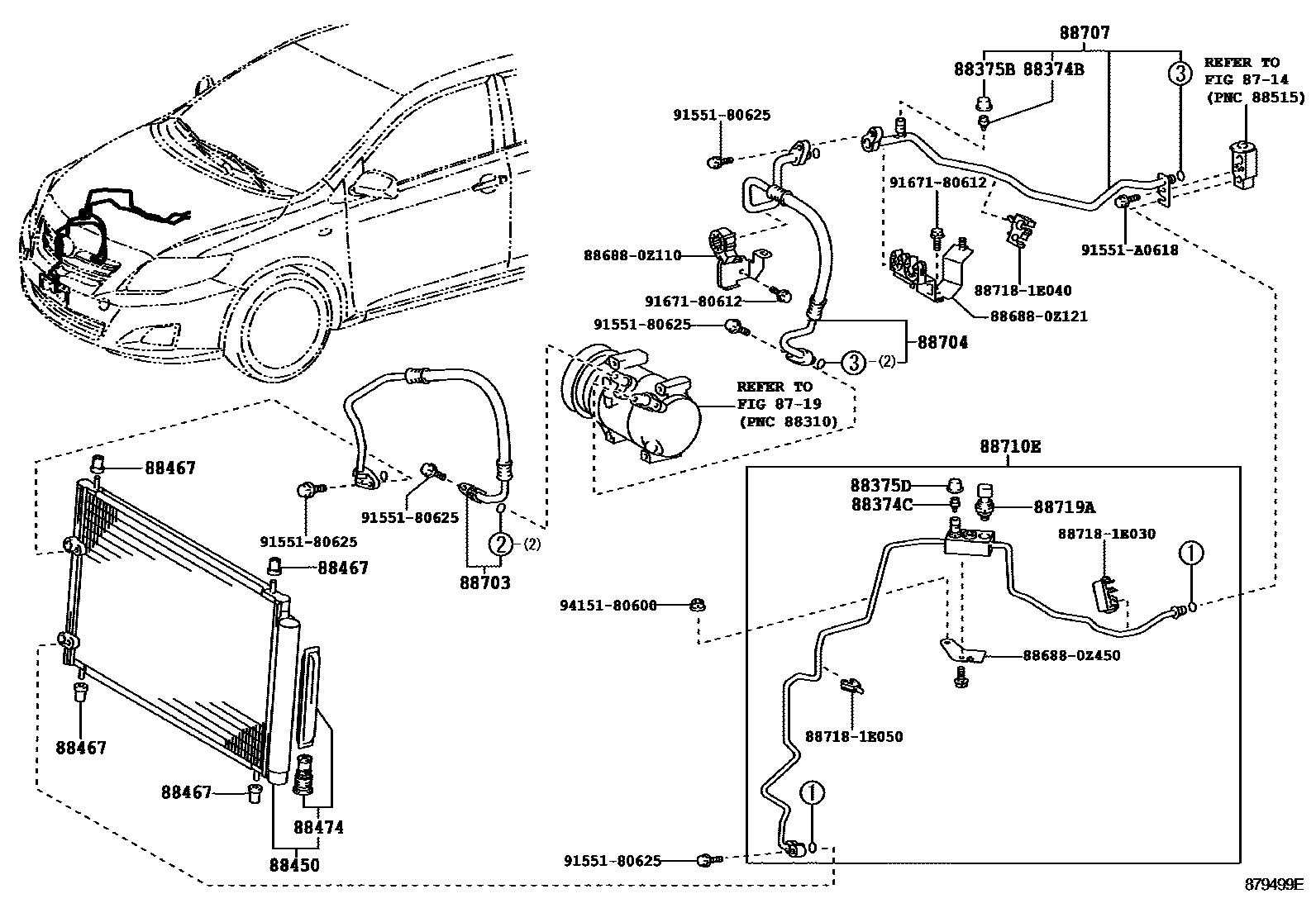

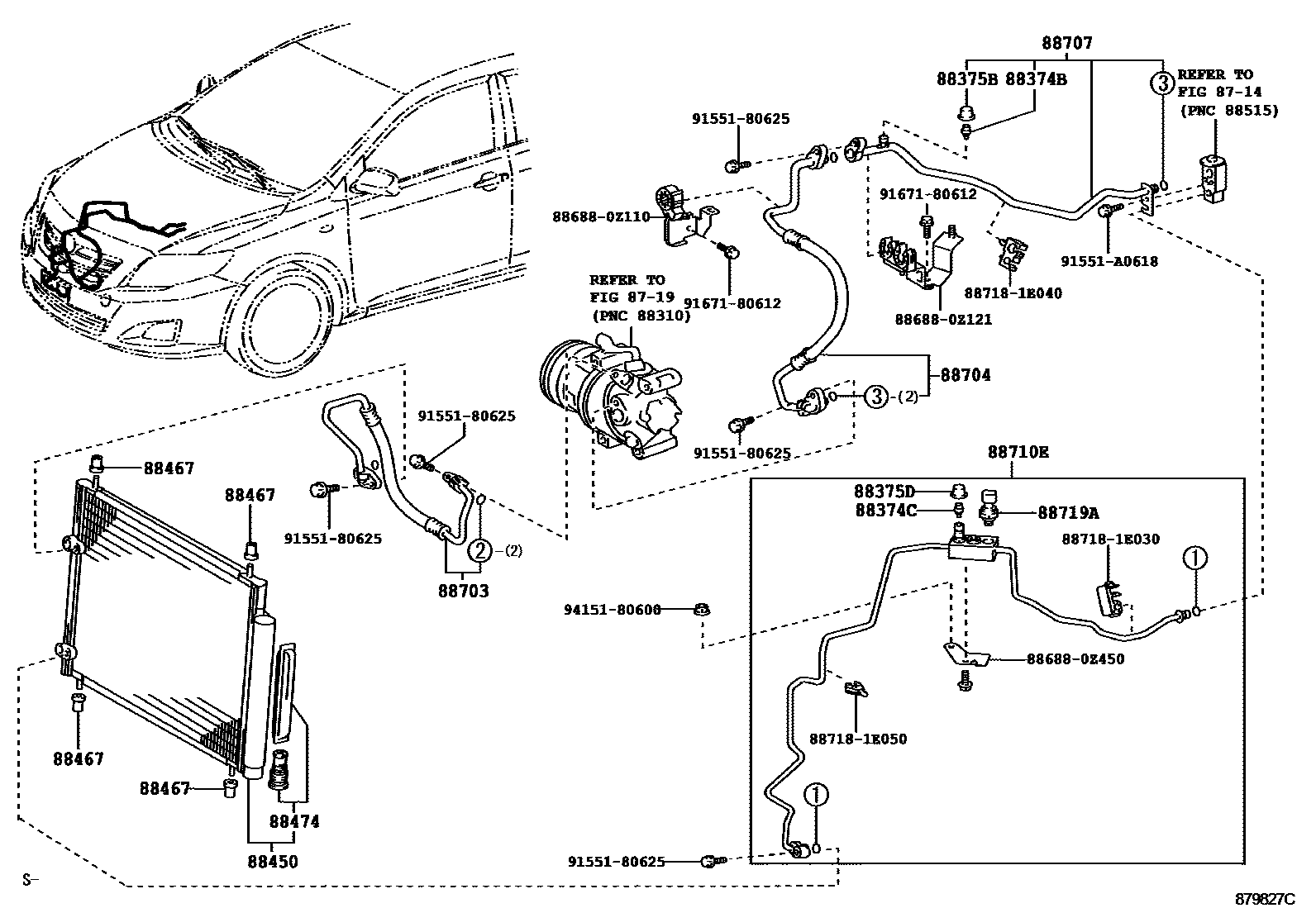

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 6 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-02020 |
| 88374C | Service valve No. 2 | 88374-02020 |
| 88375B | No. 1 maintenance valve cover | 88375-02140 |
| 88375D | No. 2 maintenance valve cover | 88375-02150 |
| 88450 | Condenser assembly with liquid reservoir | 88450-02300 · 88450-02310 |
| 88467 | No. 1 air conditioning condenser buffer pad | 16716-28010 |
| 88474 | cooler dryer | 88474-02220 |
| 88703 | Discharge hose sub-assembly | 88703-02410 · 88703-02420 · 88703-02430 · 88703-02440 · 88703-02620 · 88703-02630 · 88703-02640 · 88703-02A90 |
| 88704 | Oil suction hose sub-assembly | 88704-02640 · 88704-02650 · 88704-02660 · 88704-02670 · 88704-02860 · 88704-02870 · 88704-02880 · 88704-02B20 |
| 88707 | Suction pipe sub-assembly | 88707-02040 · 88707-02160 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-02840 · 88710-02850 · 88710-02860 · 88710-02870 · 88710-0Z190 · 88710-0Z200 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
