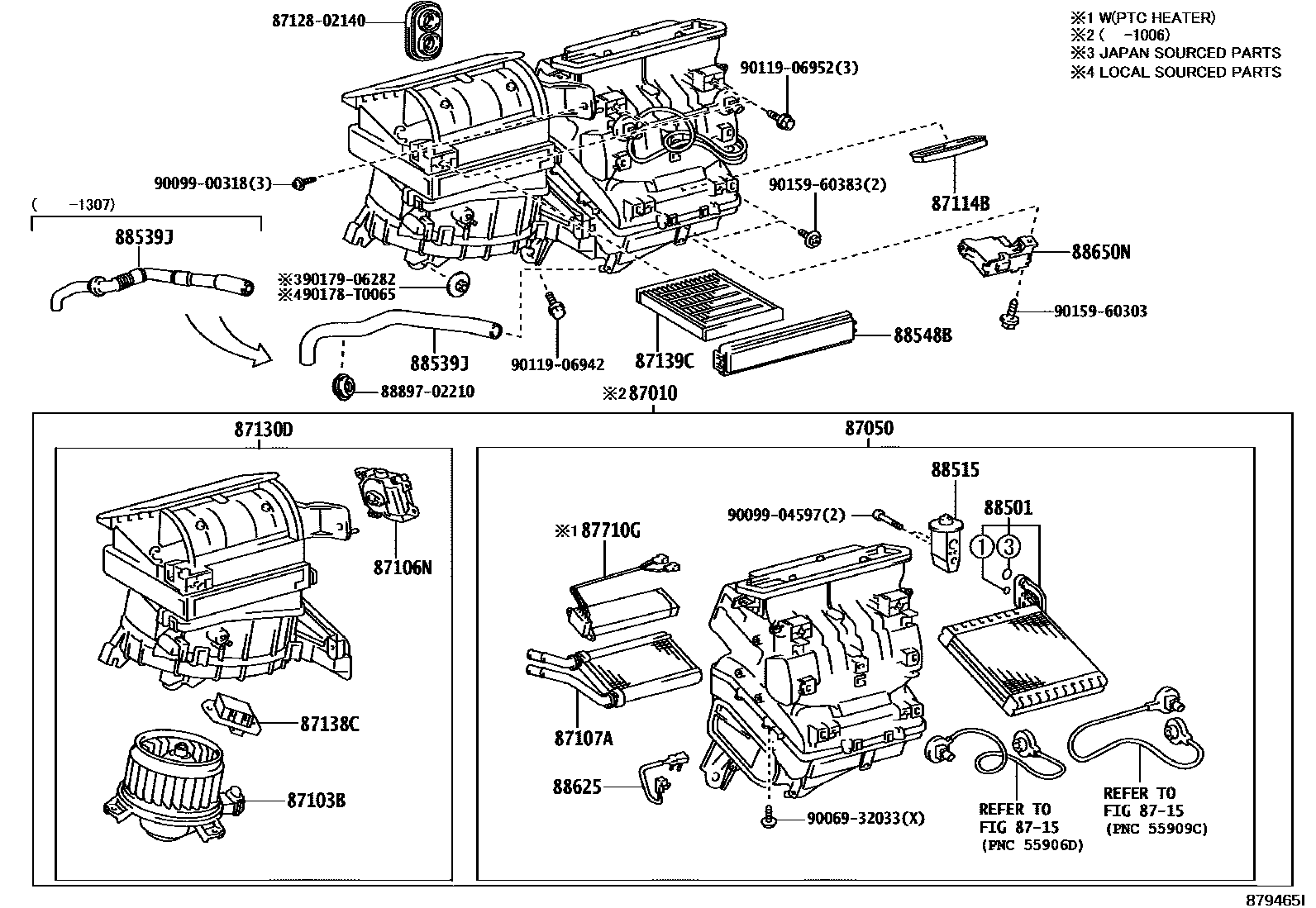

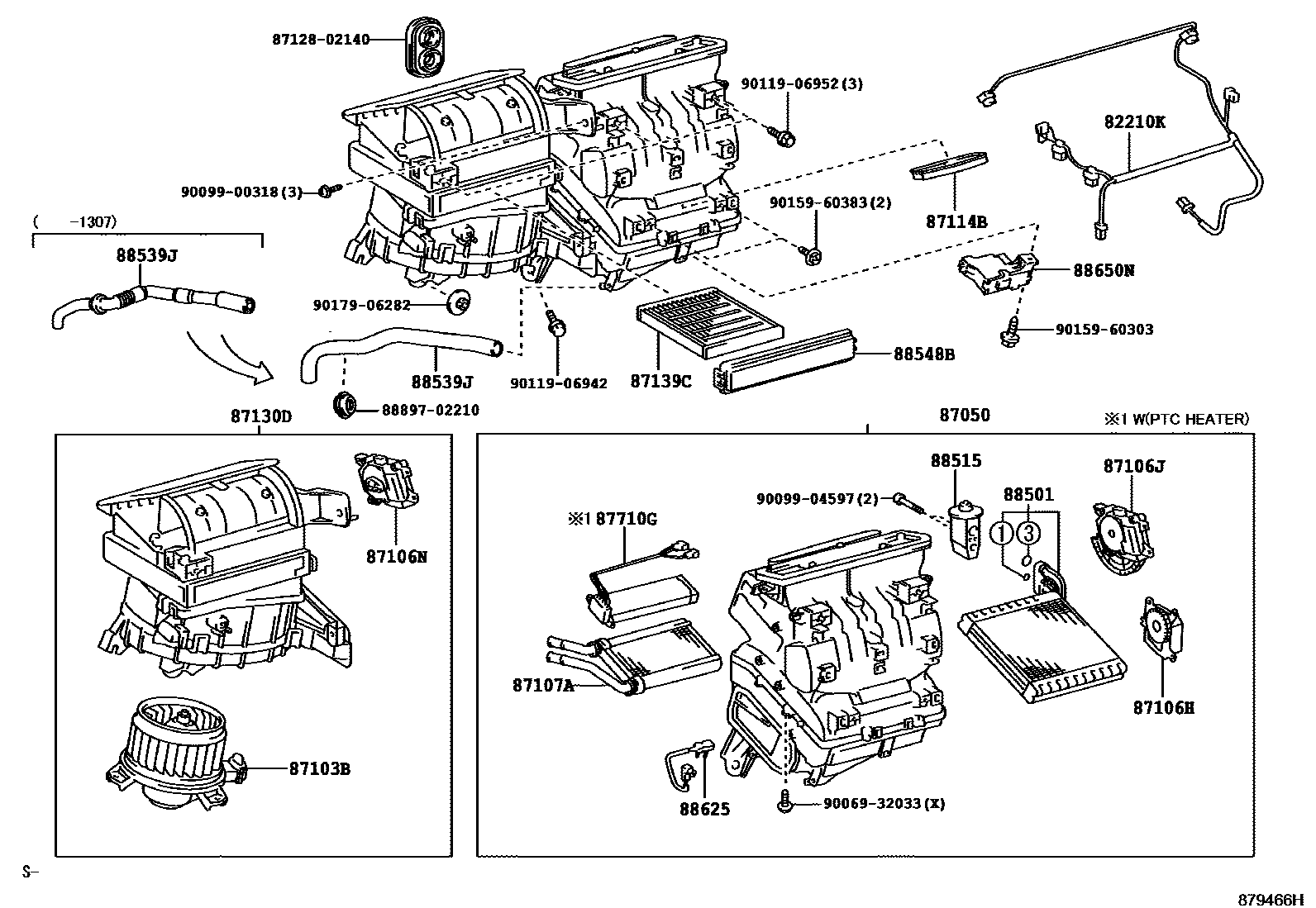

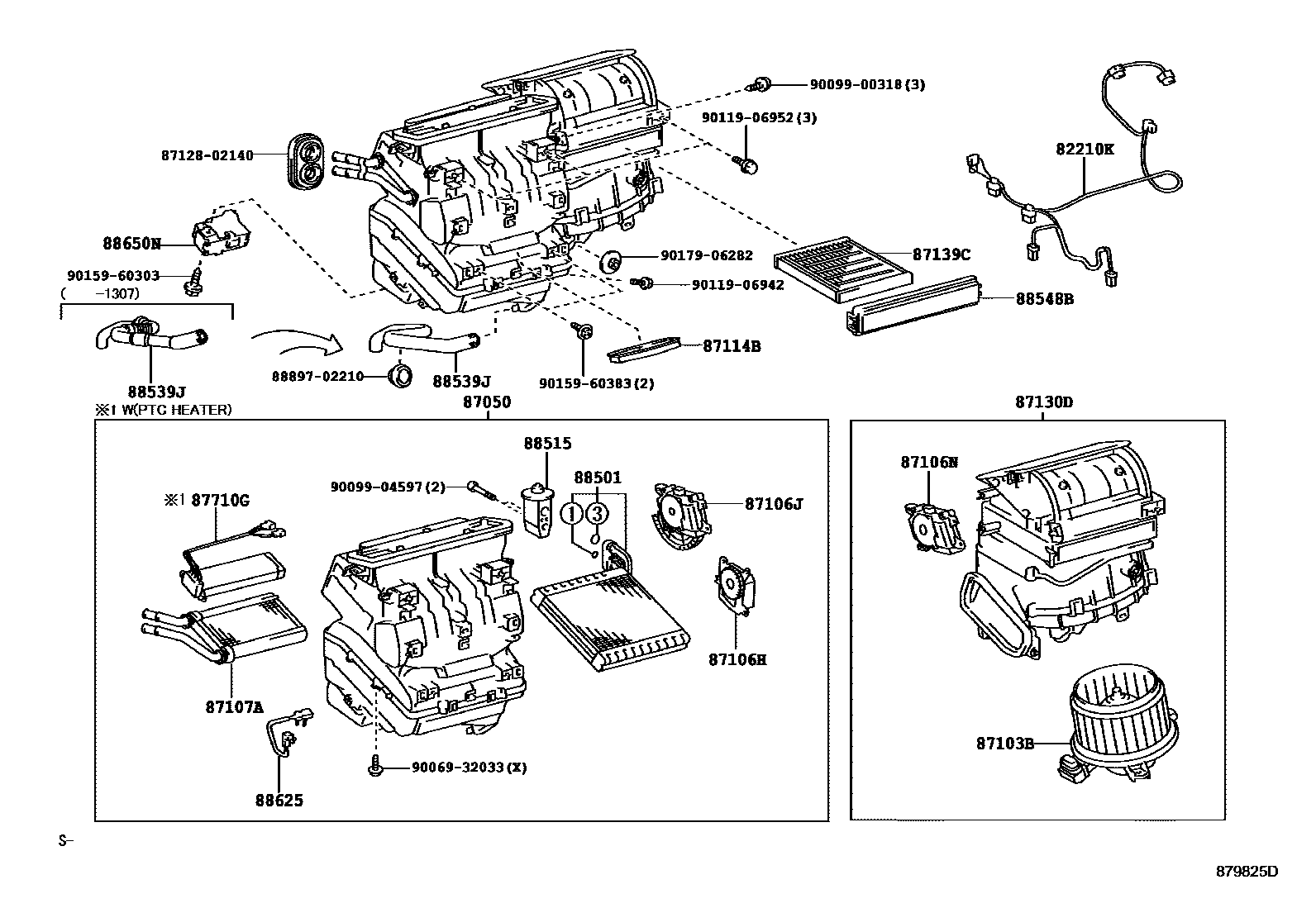

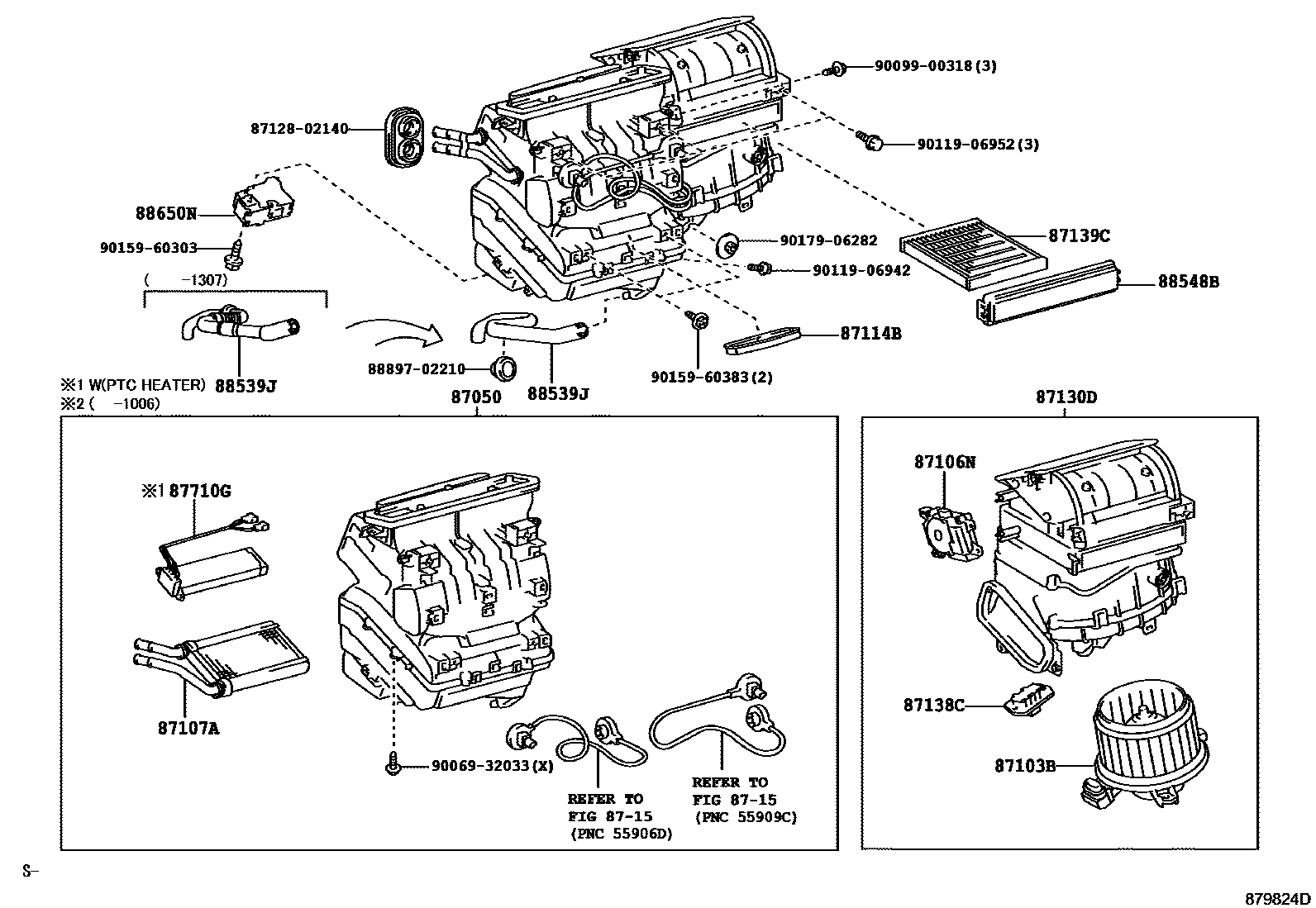

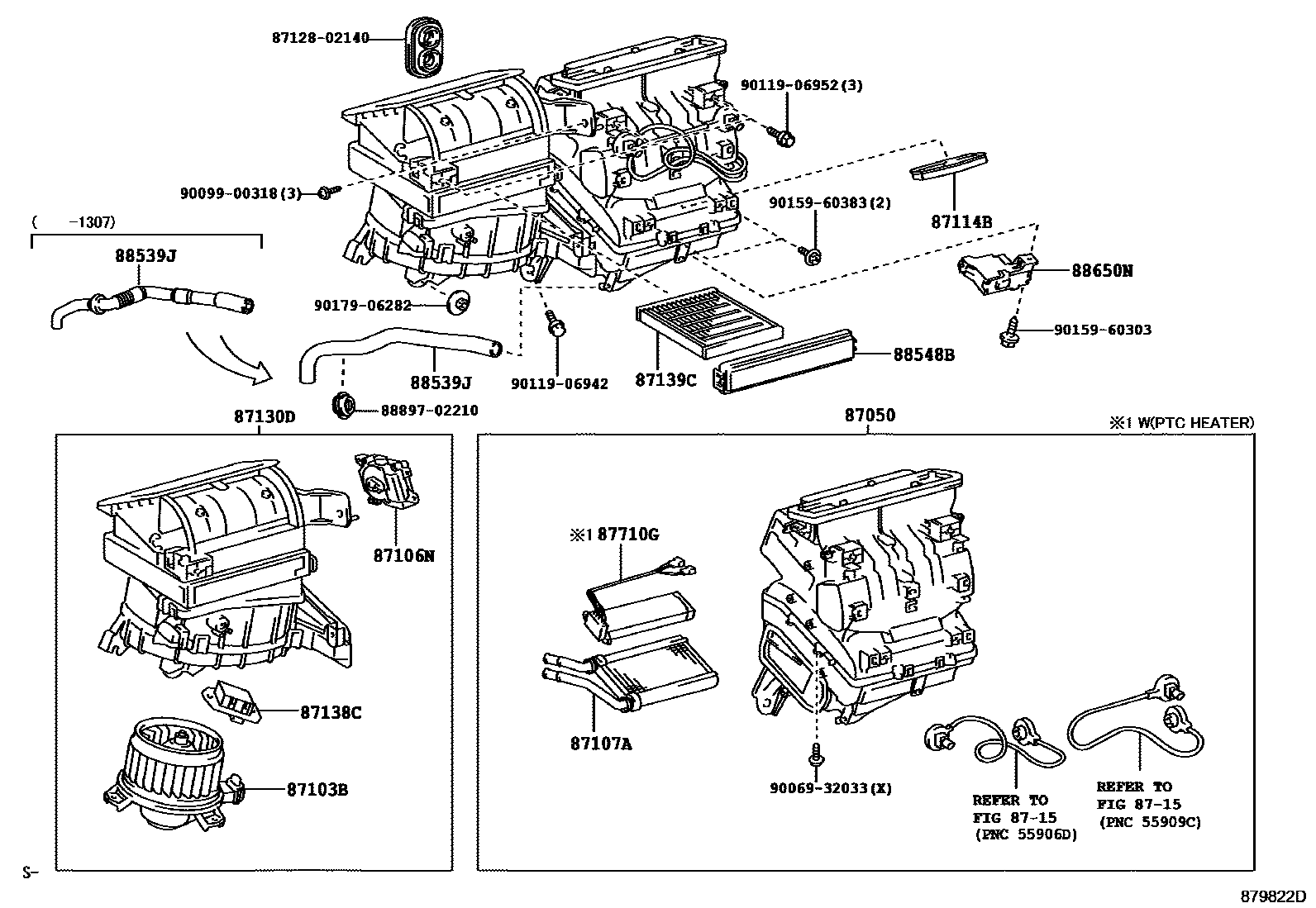

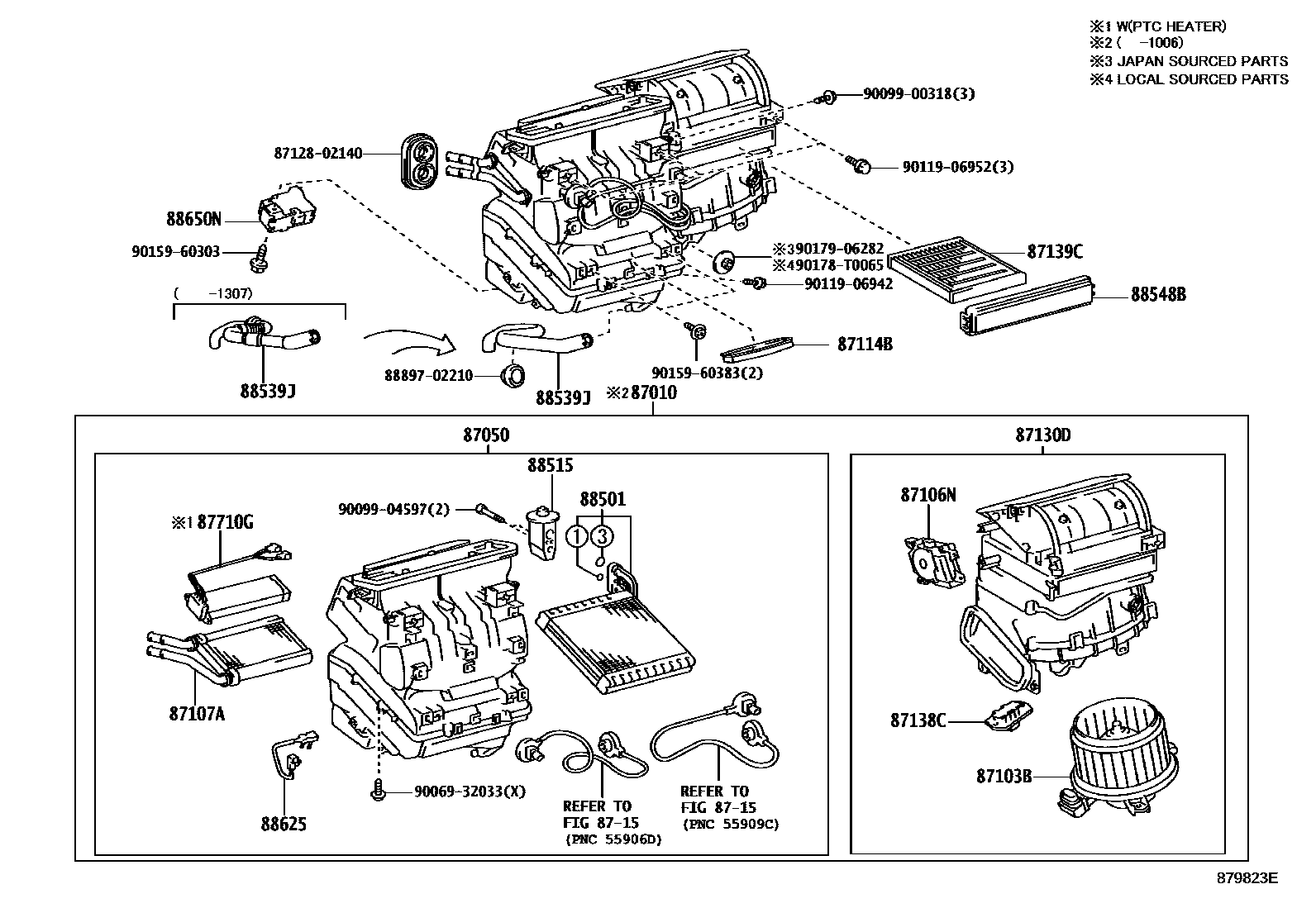

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 7 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-02050 · 82212-02060 |
| 87010 | Air conditioning unit assembly | 87010-02C90 · 87010-02C91 · 87010-02C92 · 87010-02D50 · 87010-02D51 · 87010-02D52 |
| 87050 | Air conditioning radiator assembly | 87050-02A30 · 87050-02A40 · 87050-02A50 · 87050-02A60 · 87050-02A70 · 87050-02A90 · 87050-02B00 · 87050-02B10 · 87050-02B20 · 87050-02B30 · 87050-02B40 · 87050-02E20 · 87050-02E30 · 87050-02E40 |
| 87103B | Blower motor sub-assembly with fan | 87103-02160 · 87103-02170 · 87103-02300 · 87103-02310 · 87103-02460 · 87103-02470 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-02360 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02370 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-02350 · 87106-02380 · 87106-02390 · 87106-02400 |
| 87107A | Heater radiator device sub-assembly | 87107-02210 |
| 87114B | heater cover | 87114-0K010 |
| 87130D | Blower assembly | 87130-02390 · 87130-02391 · 87130-02392 · 87130-02400 · 87130-02401 · 87130-02402 · 87130-02410 · 87130-02411 · 87130-02420 · 87130-02421 · 87130-02430 · 87130-02431 · 87130-02432 · 87130-02440 · 87130-02441 · 87130-02442 · 87130-02450 · 87130-02451 · 87130-02460 · 87130-02461 |
| 87138C | Blower resistor | 87138-0K090 · 87138-0K110 |
| 87139C | air purification filter | 87139-02200 · 87139-30040 · 87139-52040 |
| 87710G | Rapid heater assembly | 87710-02050 · 87710-02060 · 87710-02090 · 87710-0K030 · 87710-12020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-0K120 · 88501-0K121 · 88501-12510 |
| 88515 | Cooler expansion valve | 88515-02160 · 88515-02600 |
| 88539J | Cooler drain hose | 88539-02130 · 88539-02140 · 88539-02280 · 88539-02290 |
| 88548B | air filter housing | 88548-02080 · 88548-02090 |
| 88625 | Cooler No. 1 Thermistor | 88625-02110 |
| 88650N | Air conditioning amplifier assembly | 88650-02400 · 88650-02410 · 88650-02450 · 88650-02460 · 88650-02630 · 88650-02640 · 88650-02670 · 88650-02680 · 88650-02890 · 88650-02A00 |
