Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 8 PNC and OE references.

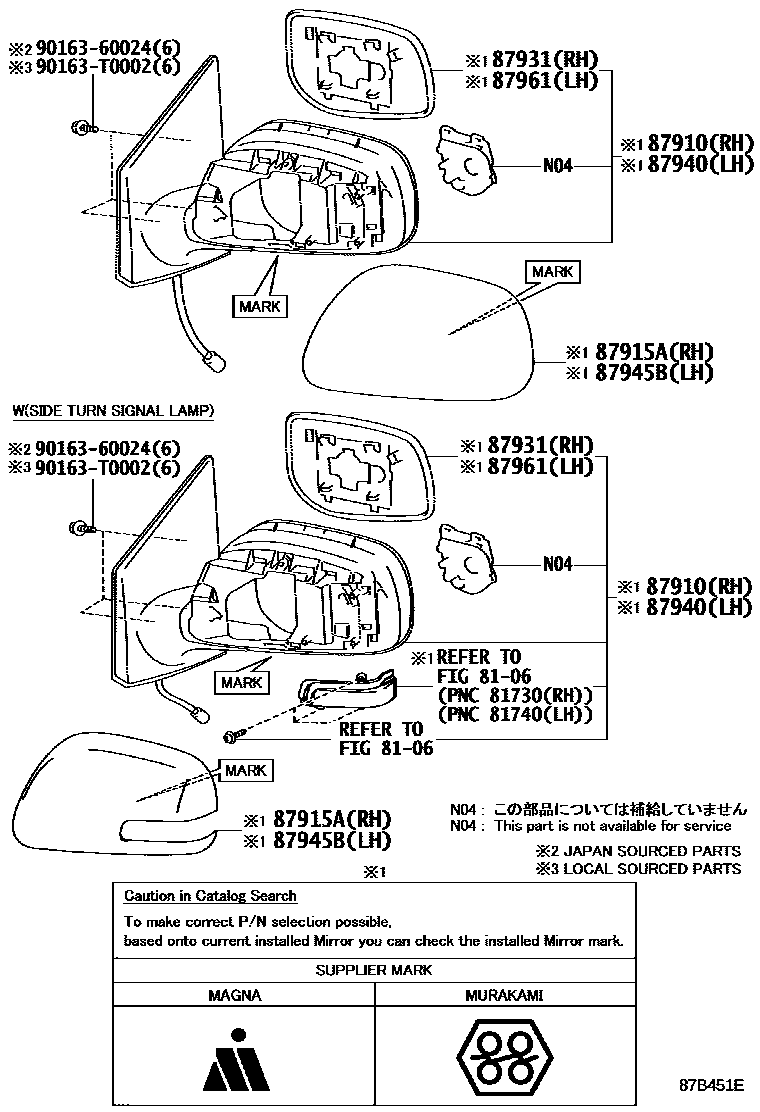

Toyota COROLLA 后视镜 EPC diagram — 87B451E
后视镜 — 87B451E (200707 – 999999)

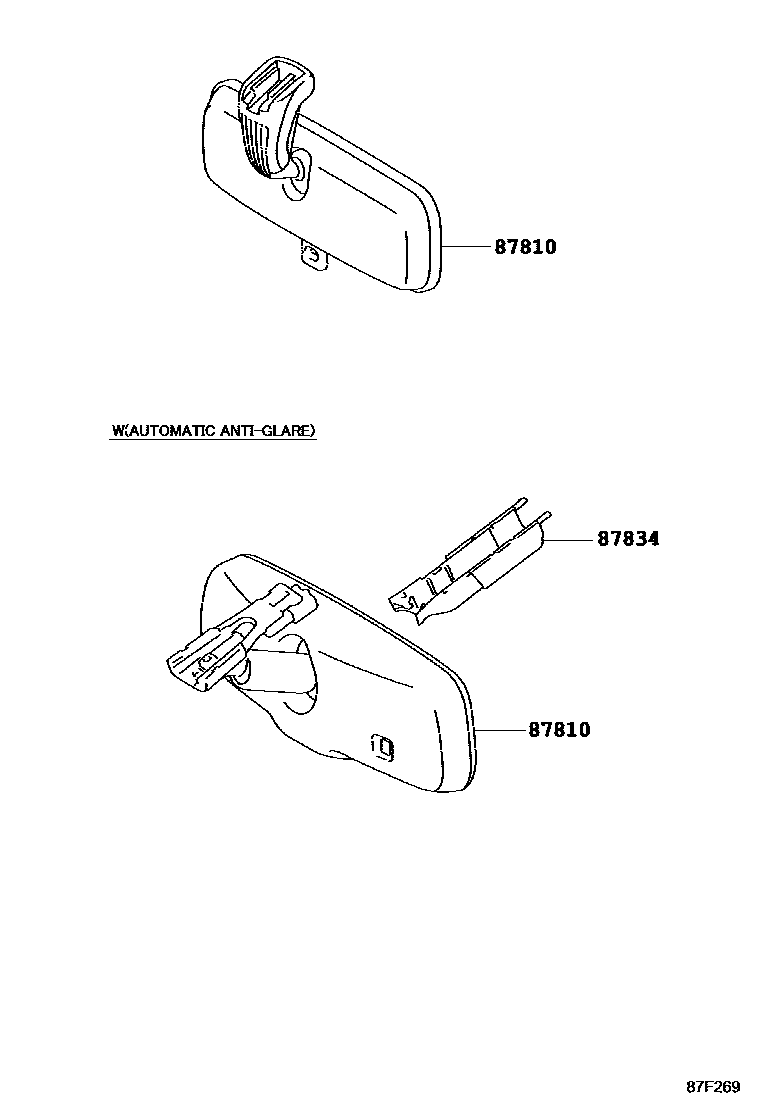

Toyota COROLLA 后视镜 EPC diagram — 87F269
后视镜 — 87F269 (200707 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-02090 · 87810-02160 · 87810-0D011 · 87810-0F010 · 87810-0F050
87834Interior rearview mirror stay fixing cover87818-0W060 · 87818-33010
87910Right exterior rearview mirror assembly87910-02790 · 87910-02810 · 87910-02D20 · 87910-02D90 · 87910-12B40 · 87910-12B60 · 87910-12E70 · 87910-12F10
87915ARight exterior rearview mirror cover87915-02240 · 87915-02330 · 87915-02911 · 87915-02918 · 87915-12050 · 87915-22900 · 87915-44040
87931Right exterior rearview mirror87931-02790 · 87931-02810 · 87931-02D20 · 87931-02D90 · 87931-12A80 · 87931-12B00 · 87931-22A10 · 87931-44340
87940Left exterior rearview mirror assembly87940-02770 · 87940-02790 · 87940-02C70 · 87940-02D50 · 87940-12B50 · 87940-12B70 · 87940-12F00 · 87940-12F40
87945BLeft exterior rearview mirror cap87945-02230 · 87945-02330 · 87945-02911 · 87945-02918 · 87945-12050 · 87945-22900
87961Left exterior rearview mirror87961-02770 · 87961-02790 · 87961-02C70 · 87961-02D50 · 87961-12A90 · 87961-12B10 · 87961-12C20 · 87961-22A20
