Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 2 PNC and OE references.

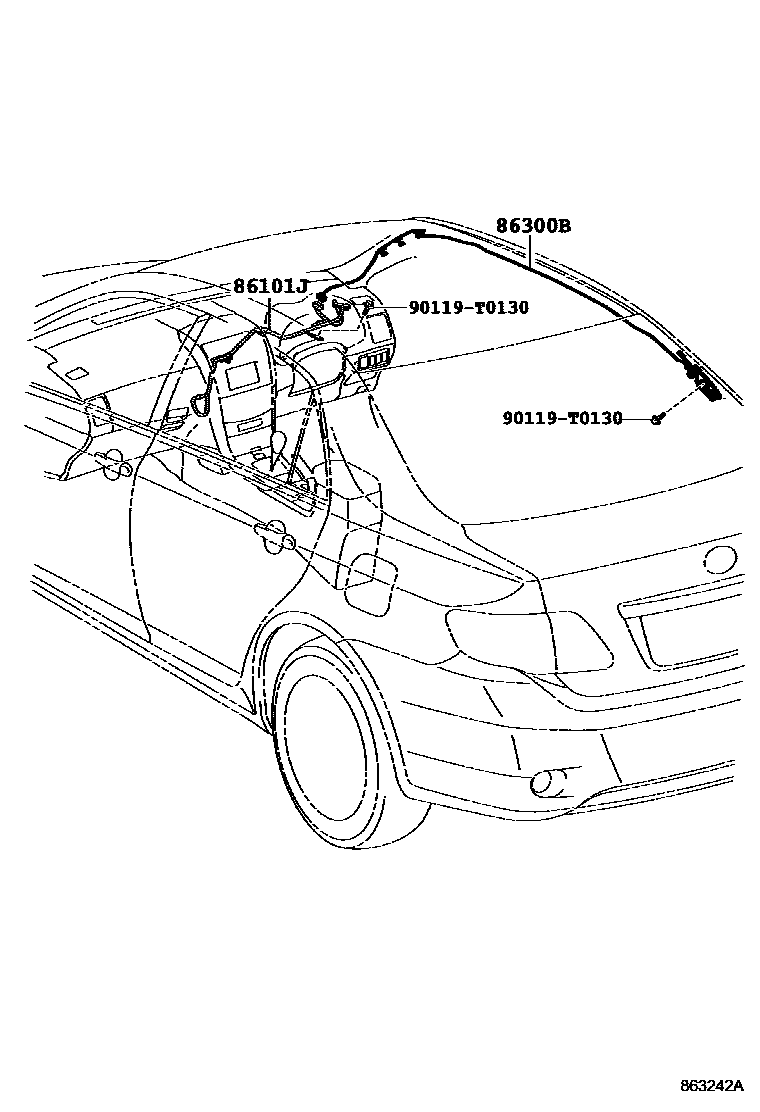

Toyota COROLLA antenna EPC diagram — 863242A
antenna — 863242A (200707 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101JAntenna No. 2 wire sub-assembly86101-02200 · 86101-12540 · 86101-12610 · 86101-12760 · 86101-12840
86300BNo. 1 amplifier antenna assembly86300-12860
