Toyota COROLLA 电子控制柴油机(ECD) — Figure 8405

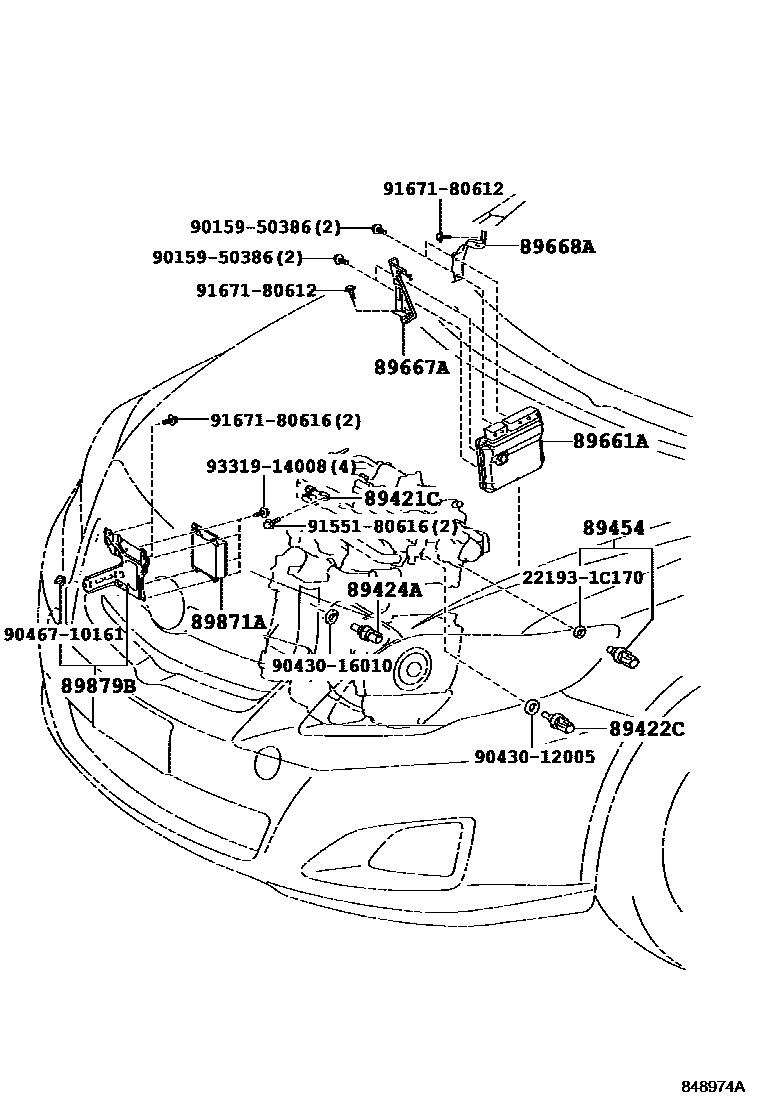

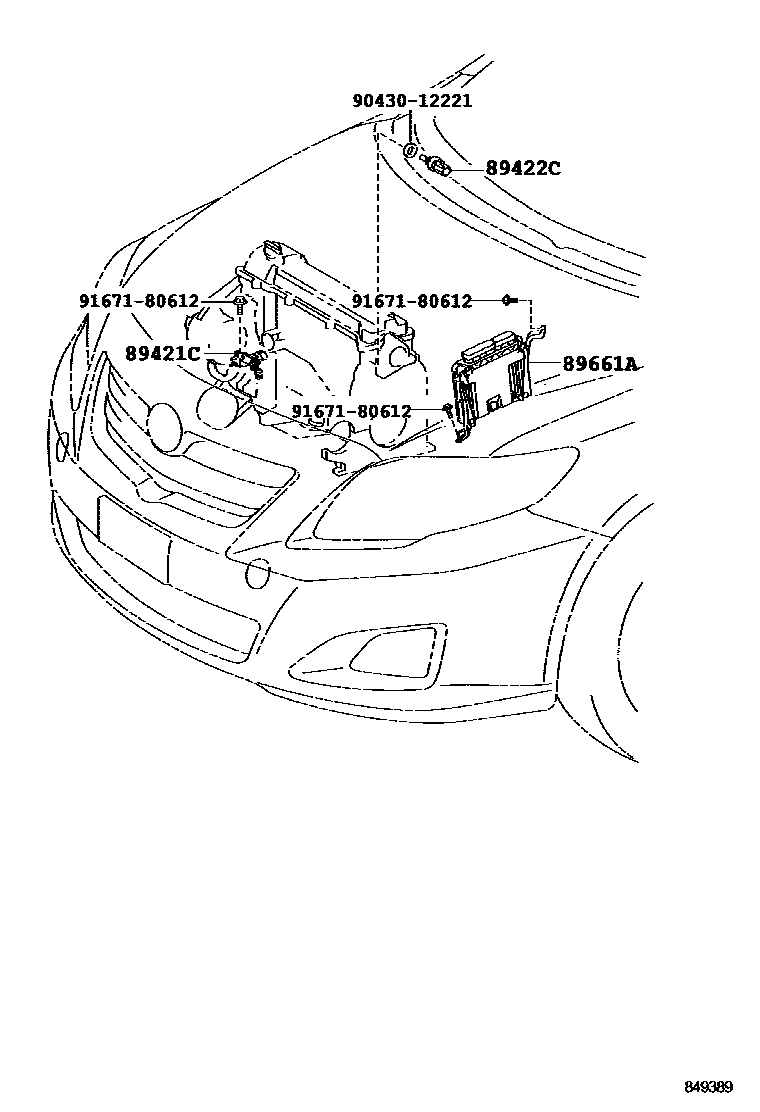

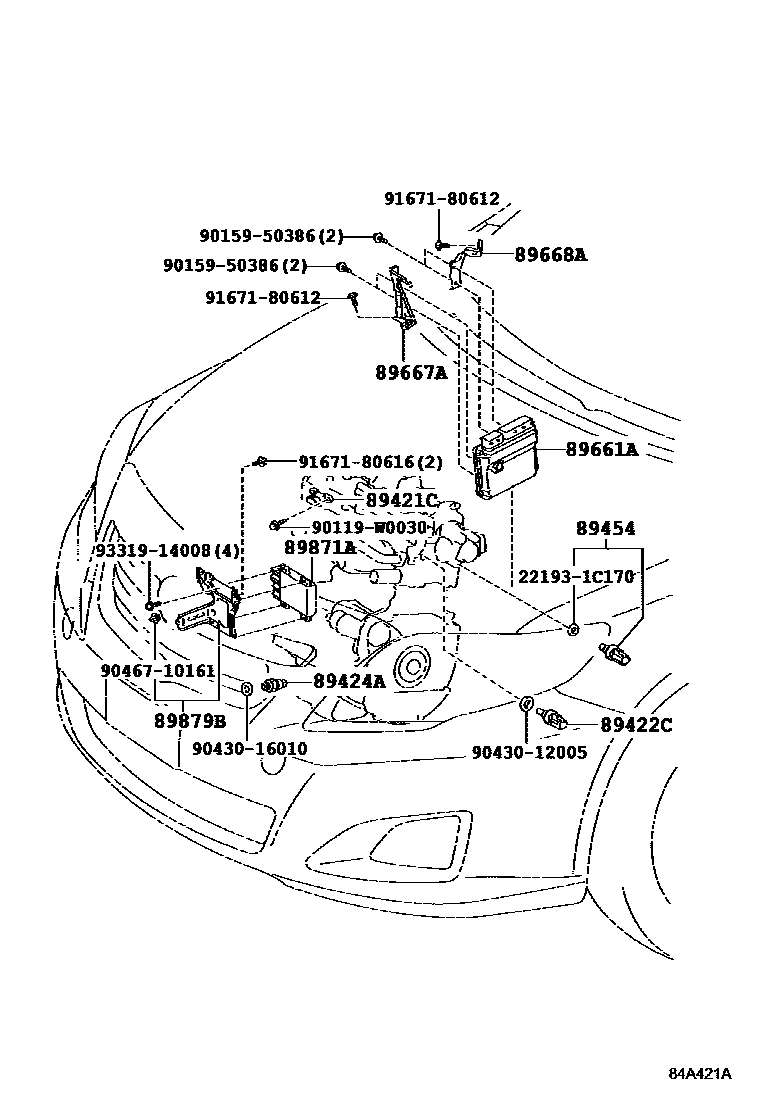

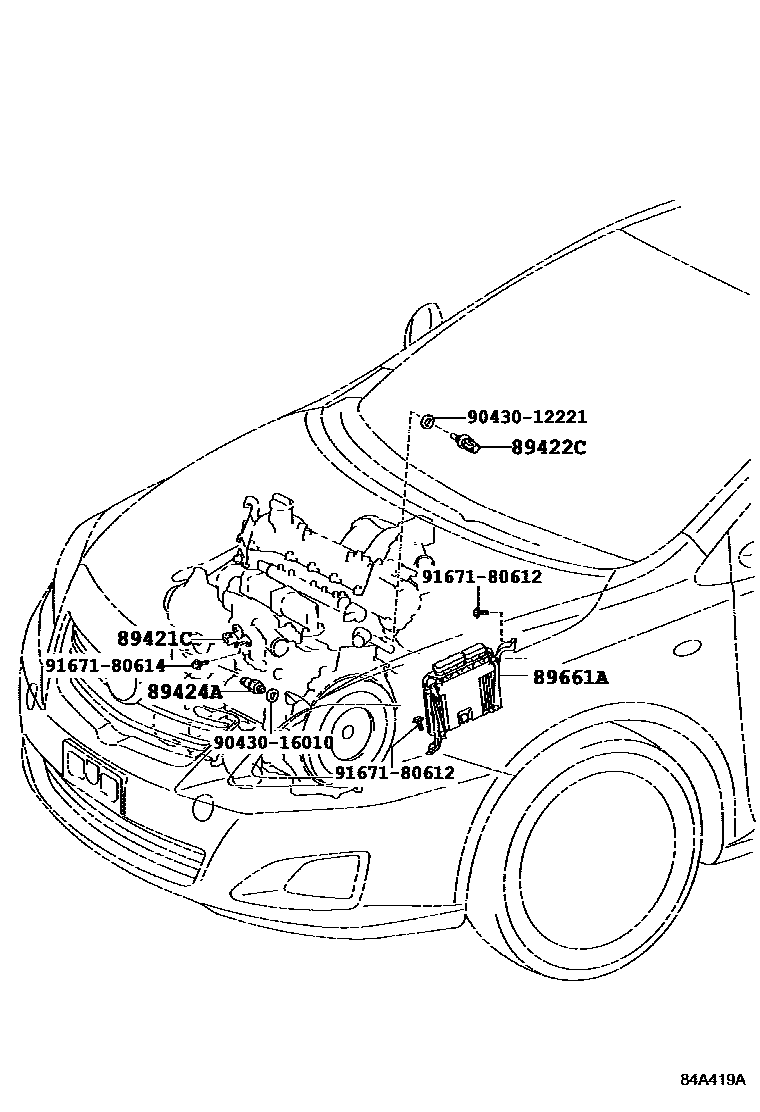

Toyota COROLLA EPC diagram 8405, 电子控制柴油机(ECD), with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421C | Turbo pressure sensor (for diesel turbines) | 89420-12220 · 89421-20200 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 |
| 89424A | Intake air temperature sensor (for diesel turbine) | 89424-60010 |
| 89454 | fuel temperature sensor | 89454-60020 |
| 89661A | Engine control ECU | 89660-02L80 · 89660-02L90 · 89660-02W80 · 89660-02W81 · 89660-02W90 · 89660-02W91 · 89660-0ZS50 · 89661-02F61 · 89661-02F62 · 89661-02S40 · 89661-02S41 |
| 89667A | No. 1 engine control ECU bracket | 89667-02180 |
| 89668A | No. 2 engine control ECU bracket | 89668-02170 |
| 89871A | Injector driver | 89871-20080 · 89871-71010 |
| 89879B | Injector driver bracket | 89879-12060 |
