Toyota COROLLA 后防护条 — Figure 7504

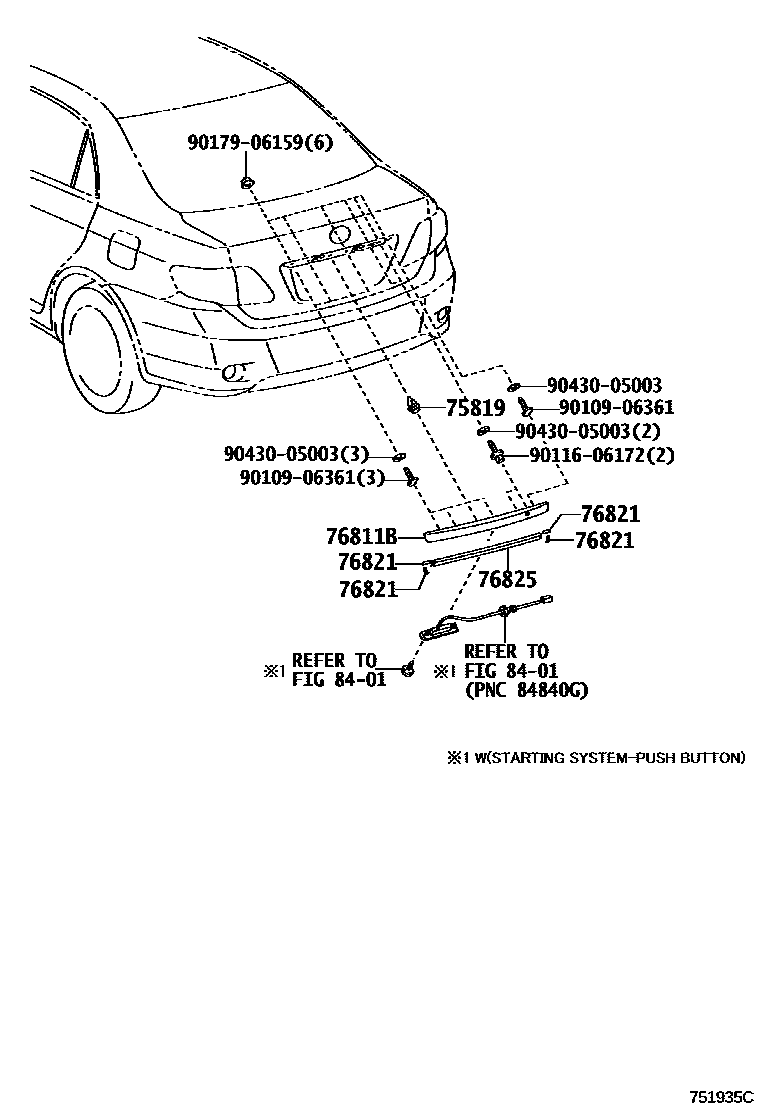

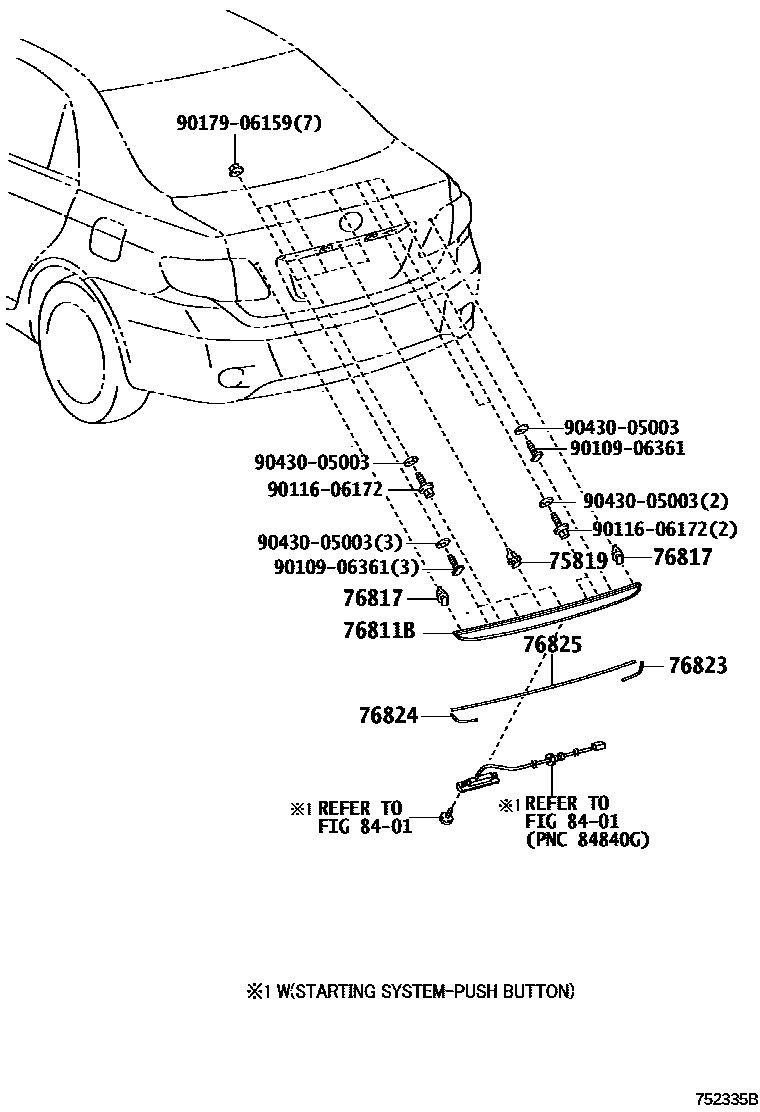

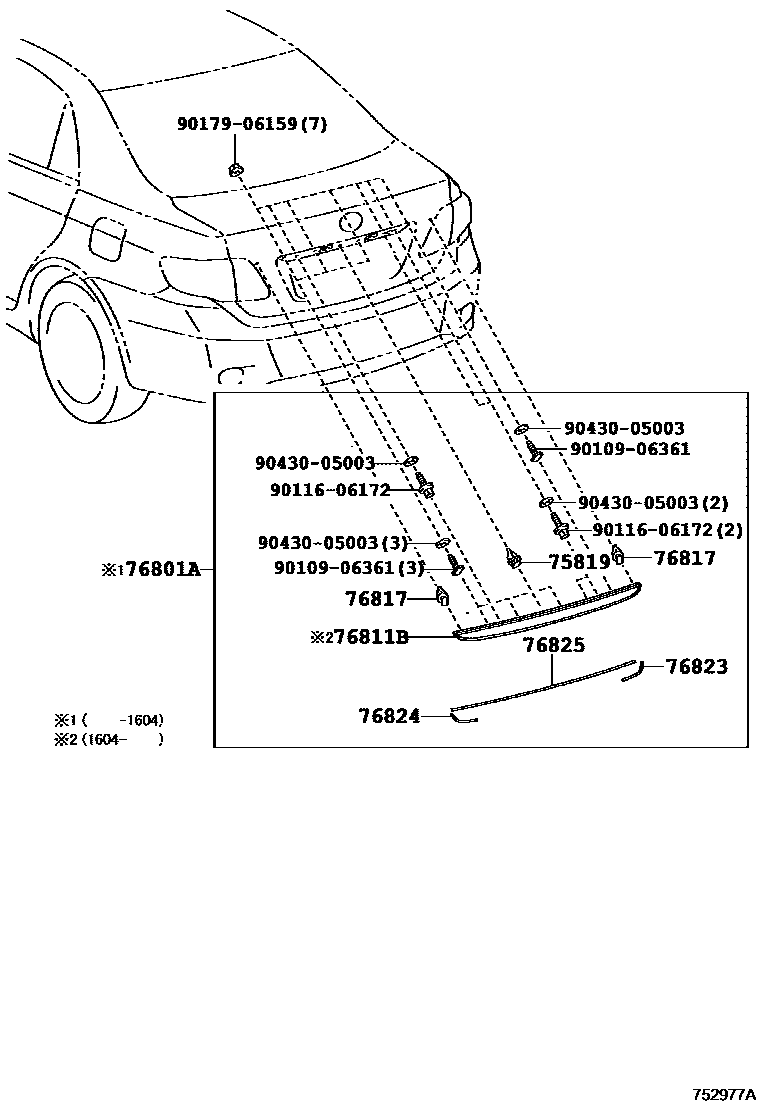

Toyota COROLLA EPC diagram 7504, 后防护条, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75819 | Trunk door protective strip clip | 75819-33010 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-02F10 |
| 76811B | Trunk door exterior trim strip | 76811-02540 · 76811-02550 · 76811-02560 · 76811-02740 · 76811-02915 · 76811-02916 · 76811-02926 |
| 76817 | Rear door exterior decorative strip clip | 76817-12100 |
| 76821 | Protective cover for rear door trim strip | 76821-12210 |
| 76823 | Rear door right side decorative strip protective cover | 76823-12040 |
| 76824 | Rear door left side decorative strip protective cover | 76824-12040 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-12050 · 76825-12090 |
