Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

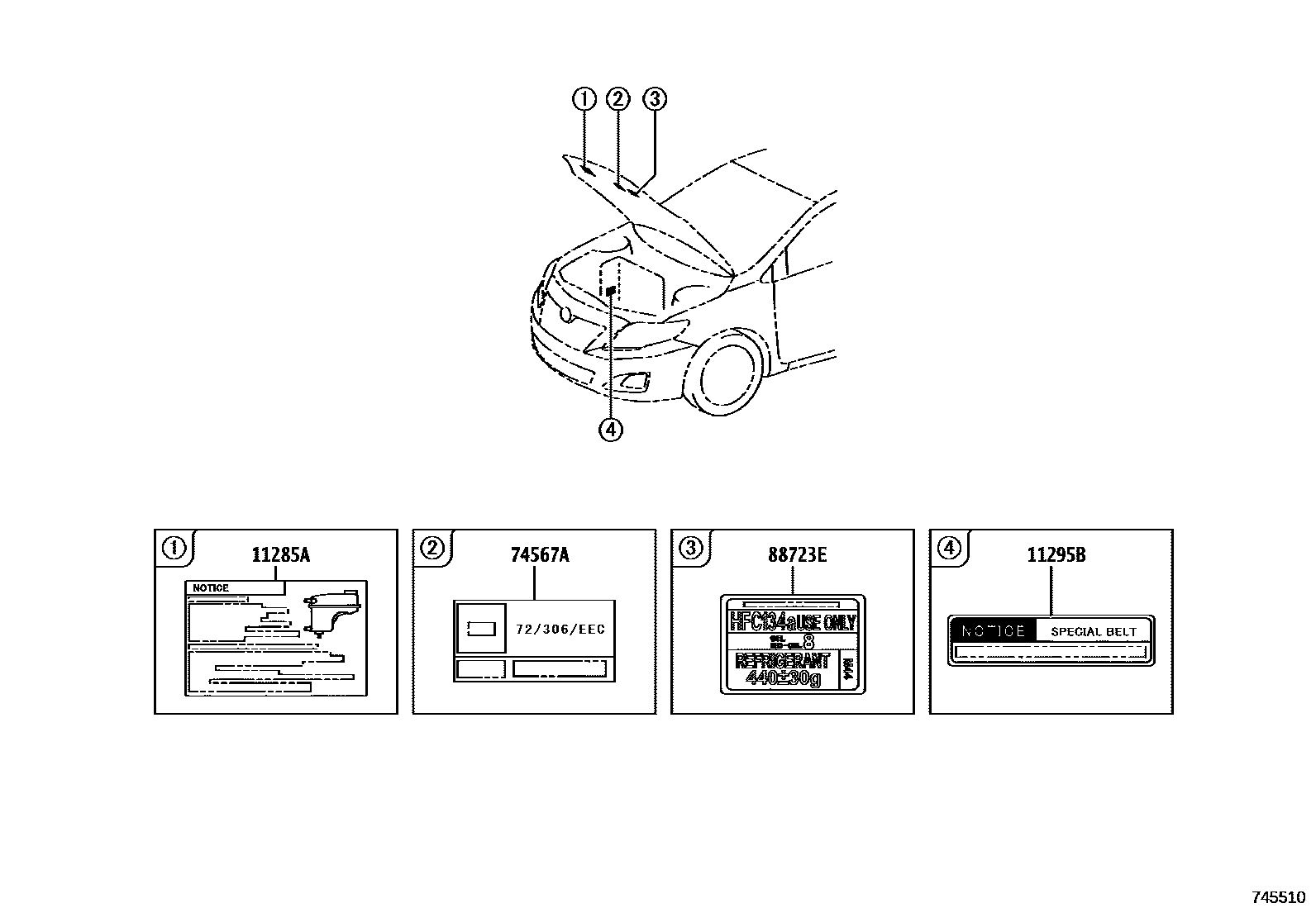

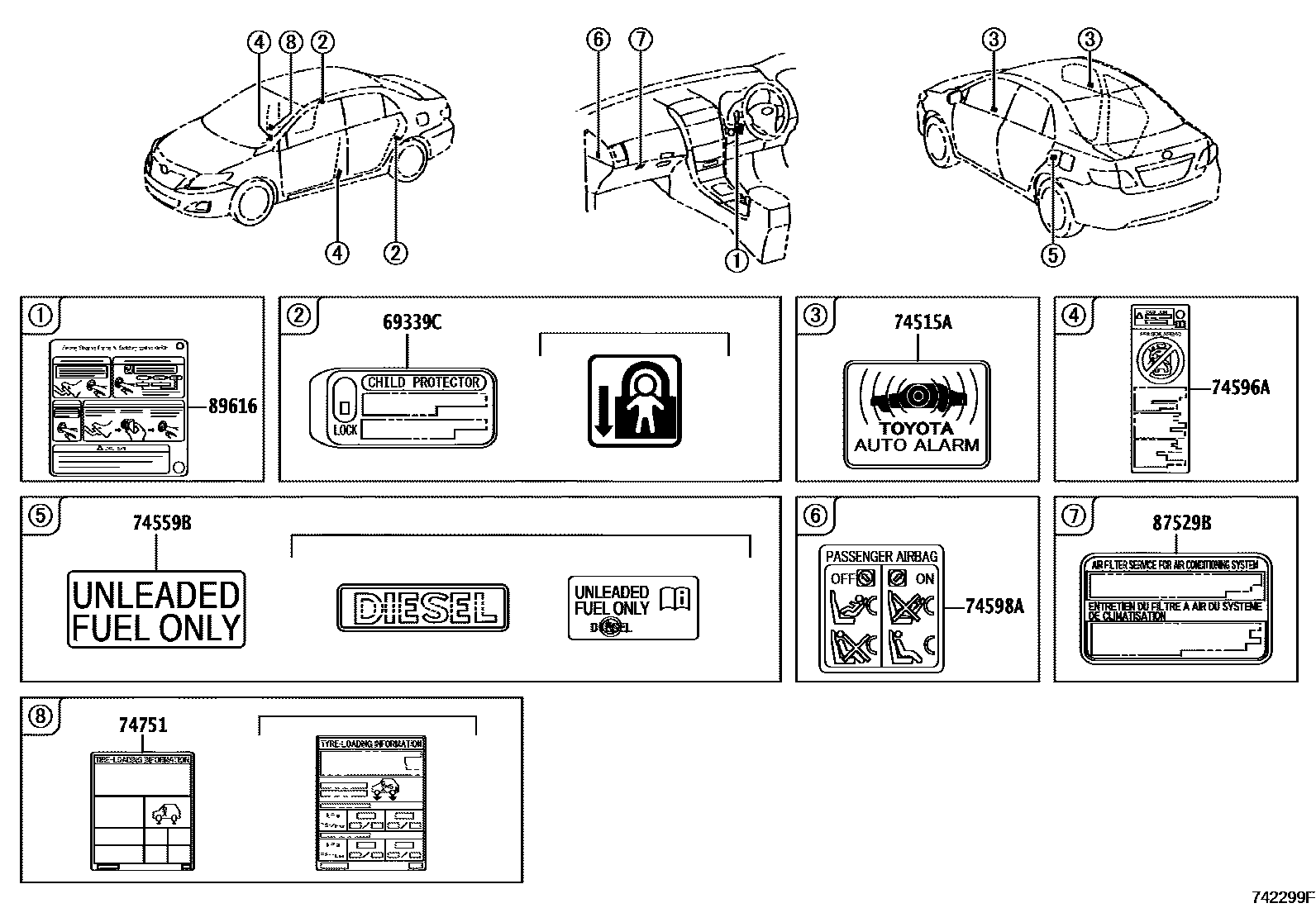

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-22080 · 11285-26010 · 11285-33030 · 11285-33040 |
| 11295B | No. 1 Engine Maintenance Attention Label | 11295-33010 |
| 69339C | Child Restraint Information Label | 69339-03010 · 69339-06060 |
| 74515A | Anti-theft warning nameplate | 74515-33020 · 74515-42010 |
| 74559B | fuel information label | 74559-02010 · 74559-05010 · 74559-20140 |
| 74567A | E.C.E approval number plate | 74567-20261 · 74567-26201 |
| 74596A | Side air bag warning label | 74596-53010 |
| 74598A | Passenger air bag warning label | 74598-0F010 |
| 74751 | tire pressure information label | 42661-02410 · 42661-02730 · 42661-02760 |
| 87529B | Cabin filter information label | 87529-02060 |
| 88723E | Cooler maintenance warning label | 88733-02010 |
| 89616 | Launch information labels with one click | 89616-12010 · 89616-30031 · 89616-30051 · 89616-52050 · 89616-52080 · 89616-53010 |
