Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 2 images and 6 PNC and OE references.

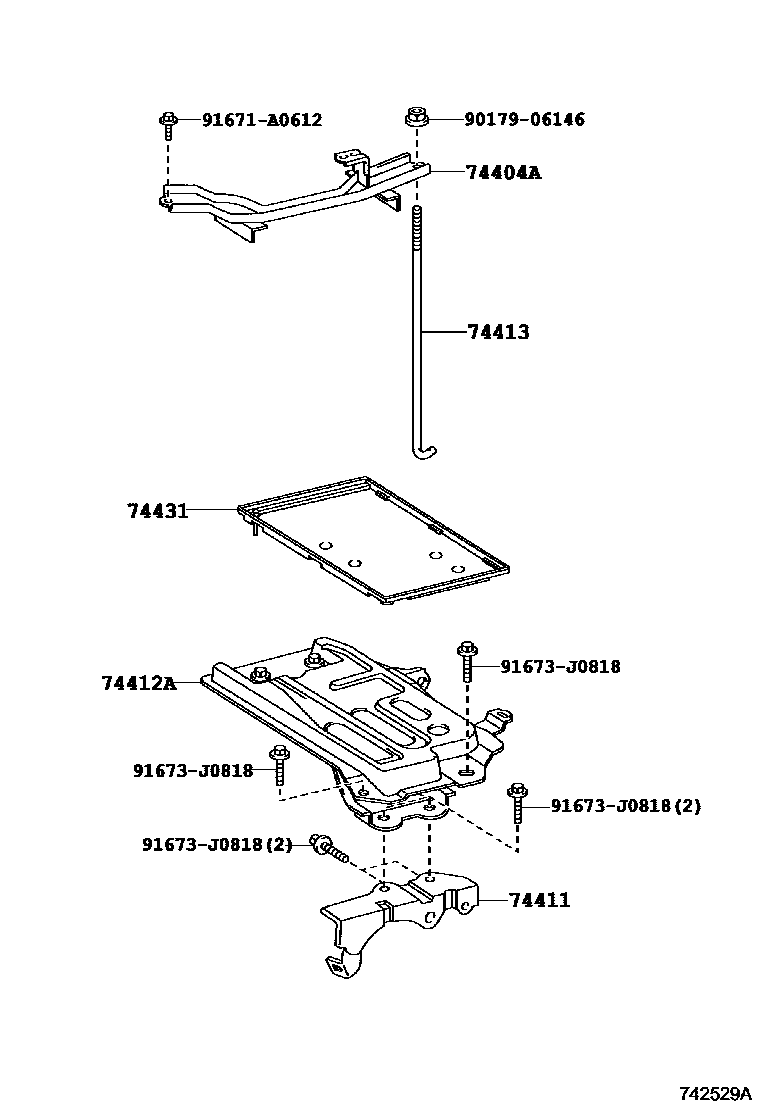

Toyota COROLLA battery holder EPC diagram — 742529A
battery holder — 742529A (200707 – 201404)

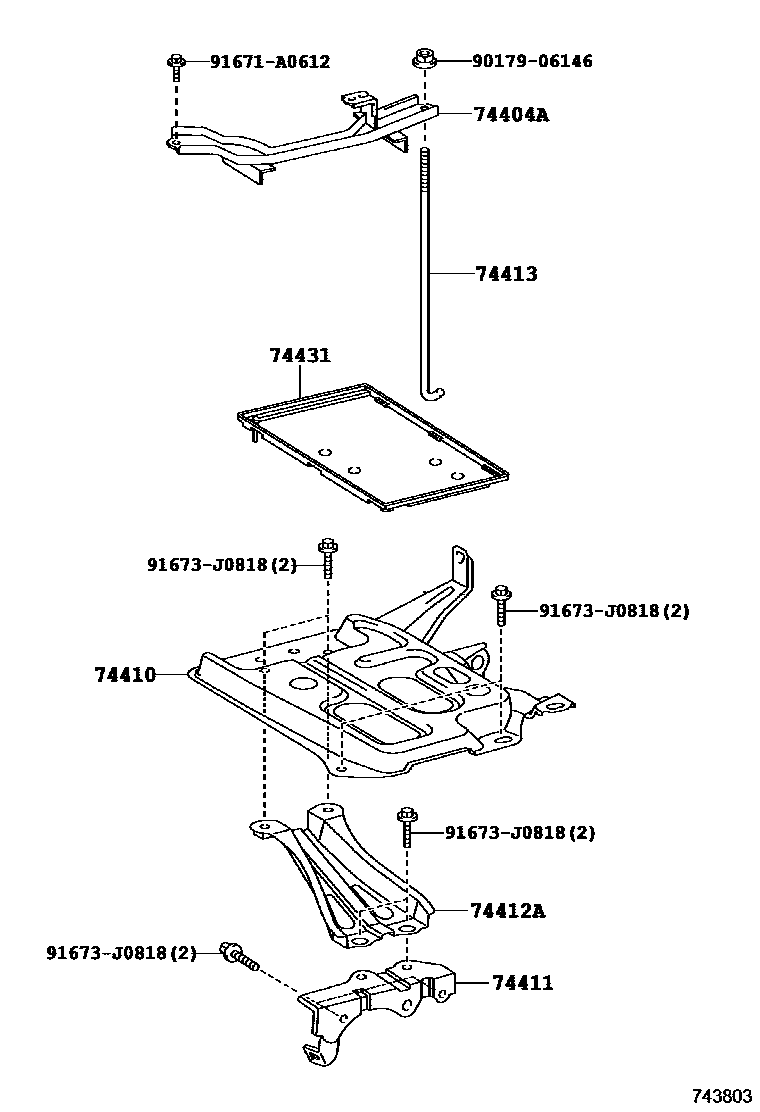

Toyota COROLLA battery holder EPC diagram — 743803
battery holder — 743803 (201404 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02150 · 74404-02170 · 74404-02250 · 74404-02570
74410Battery bracket assembly74410-02190
74411battery holder74401-02020
74412ANo. 2 battery holder74410-02040 · 74410-02050 · 74410-02060 · 74412-02070
74413Battery clamp bolt74451-30110
74431battery tray74431-02190 · 74431-02210 · 74431-02220 · 74431-02230
