Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

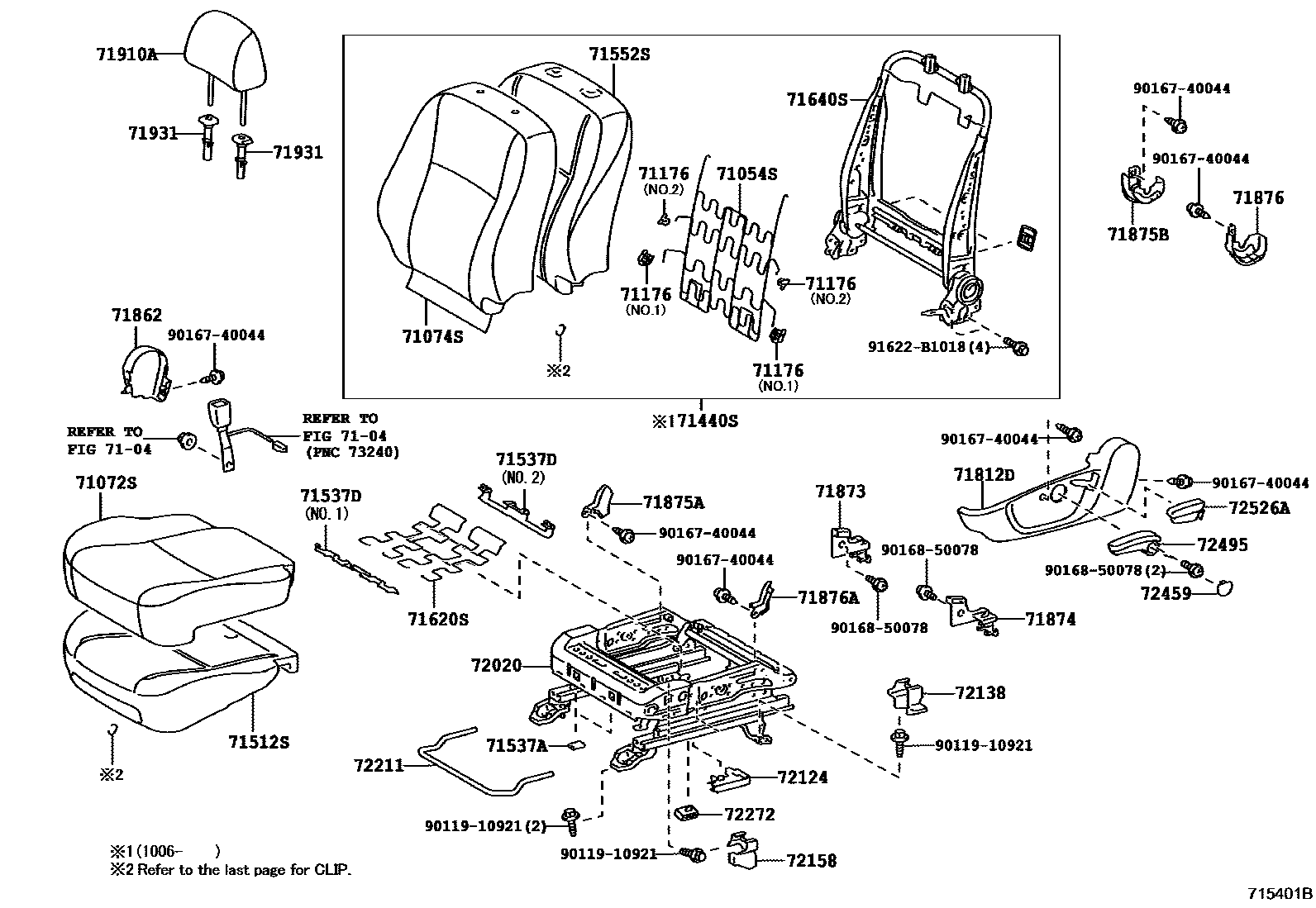

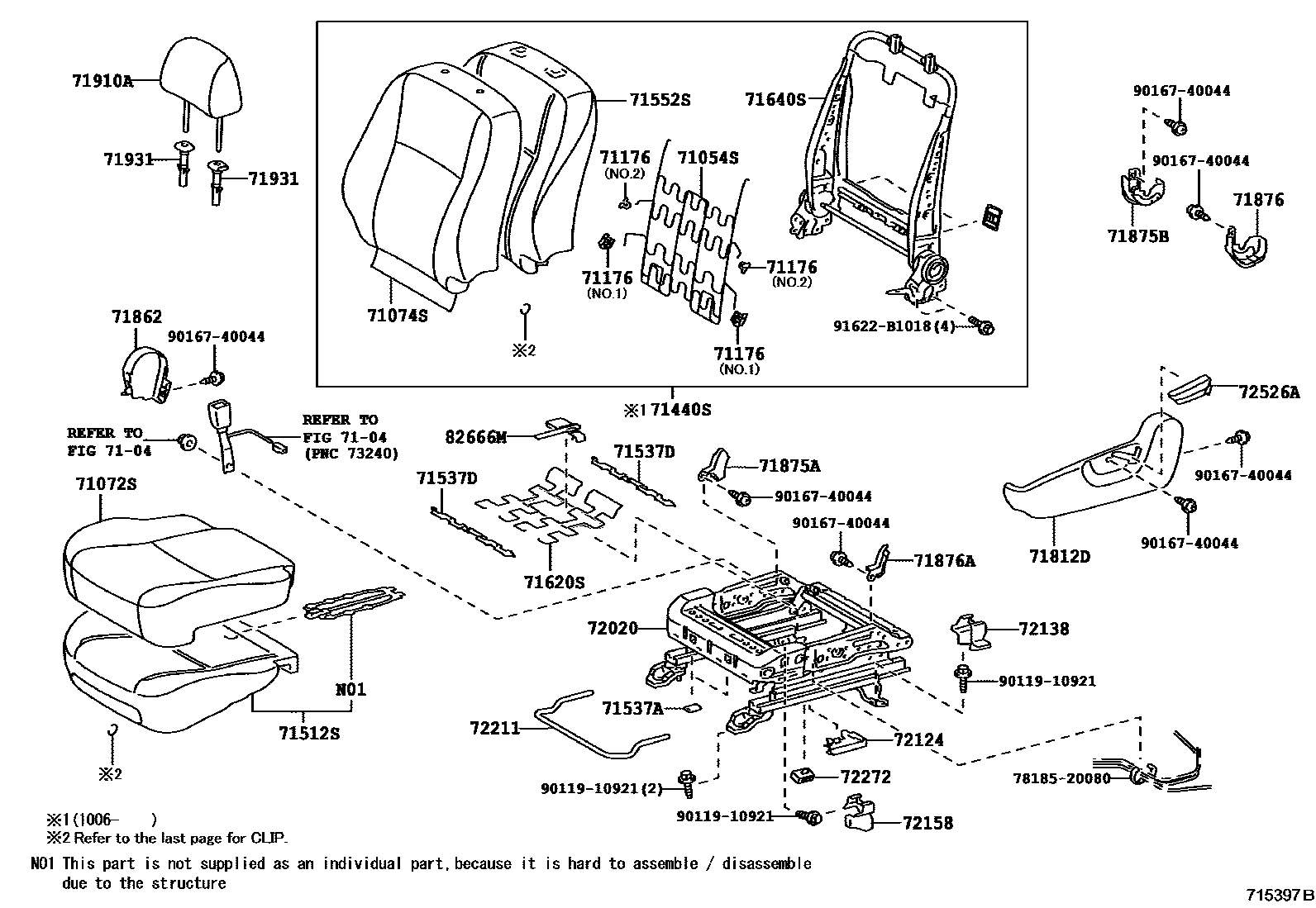

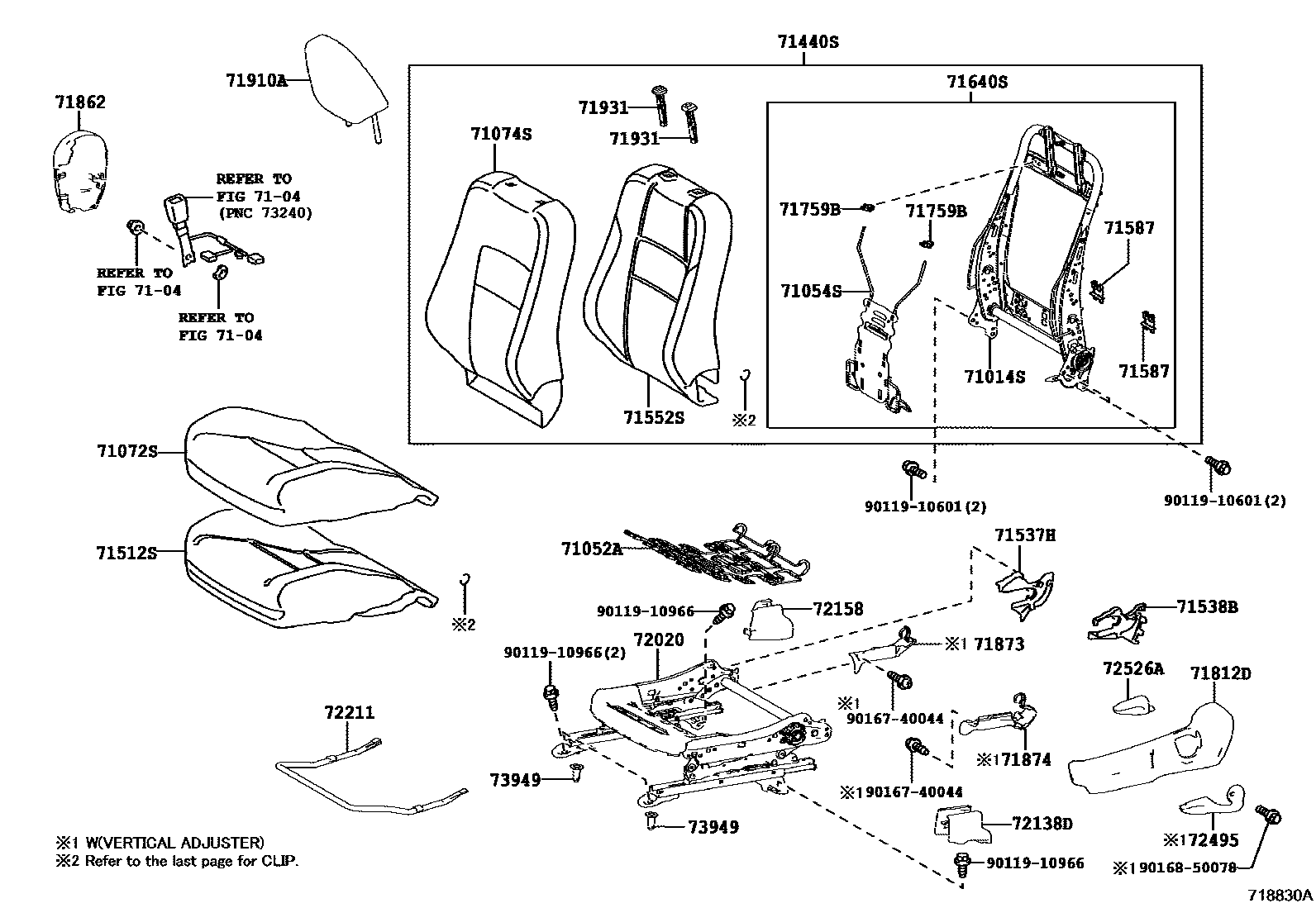

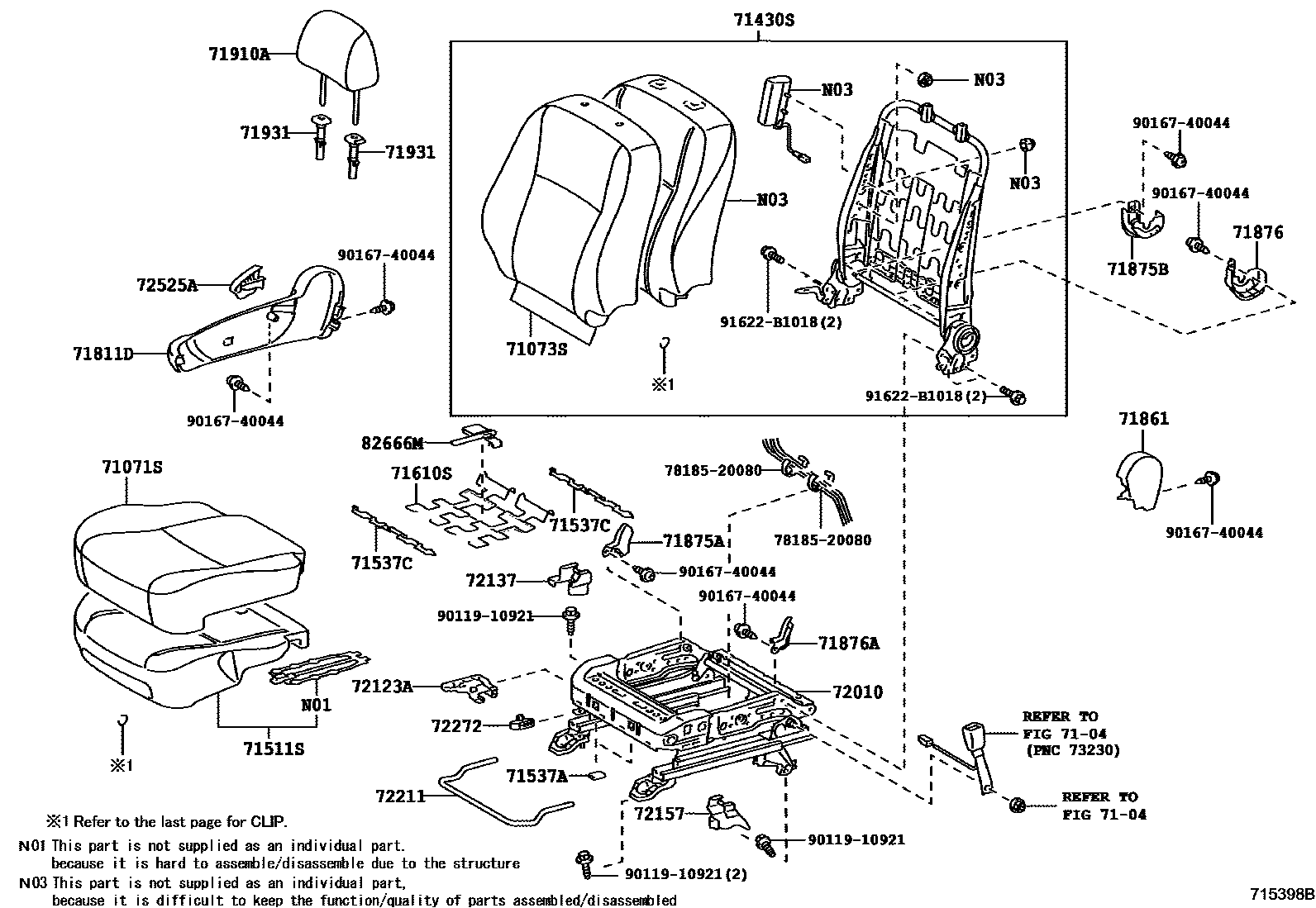

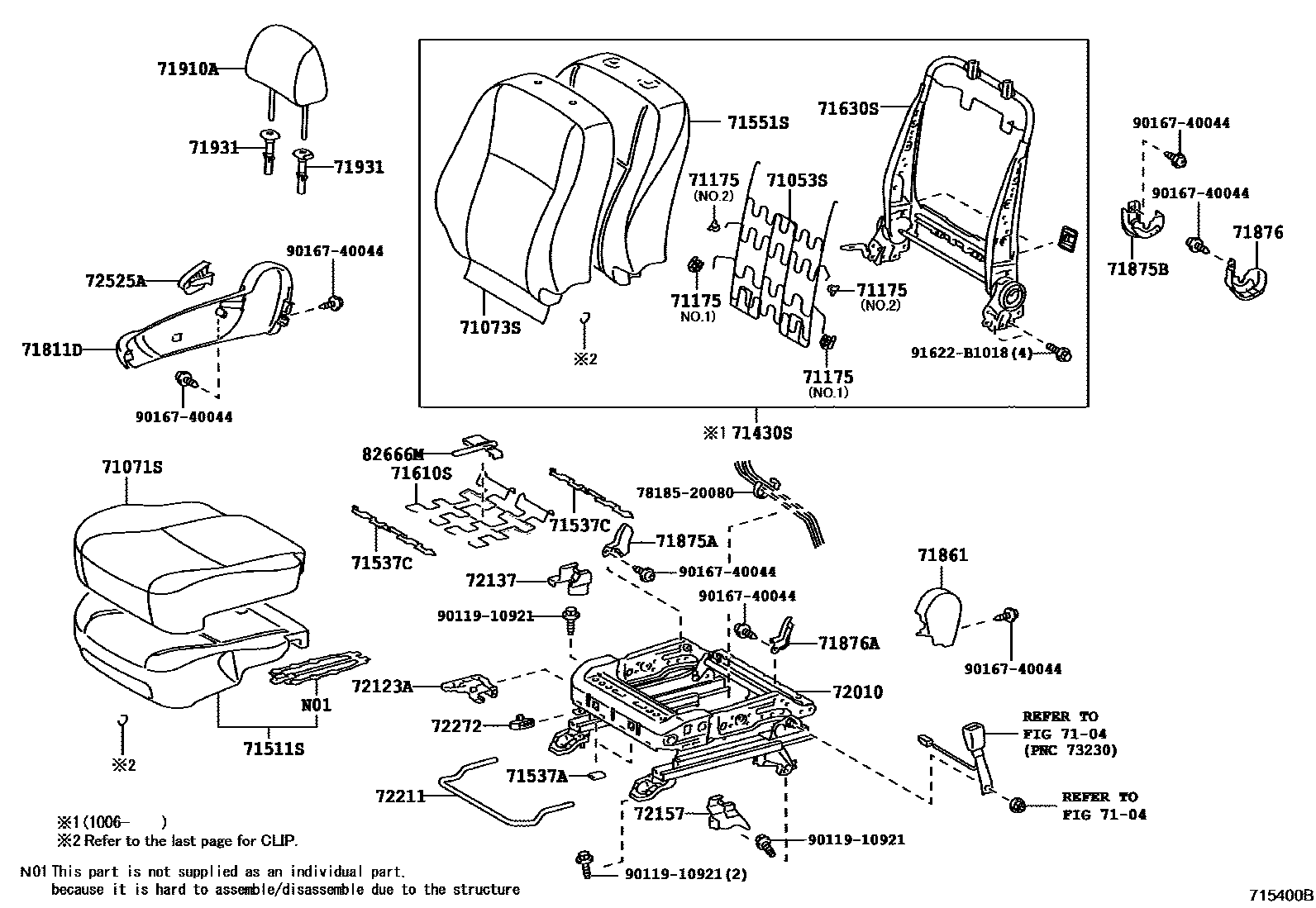

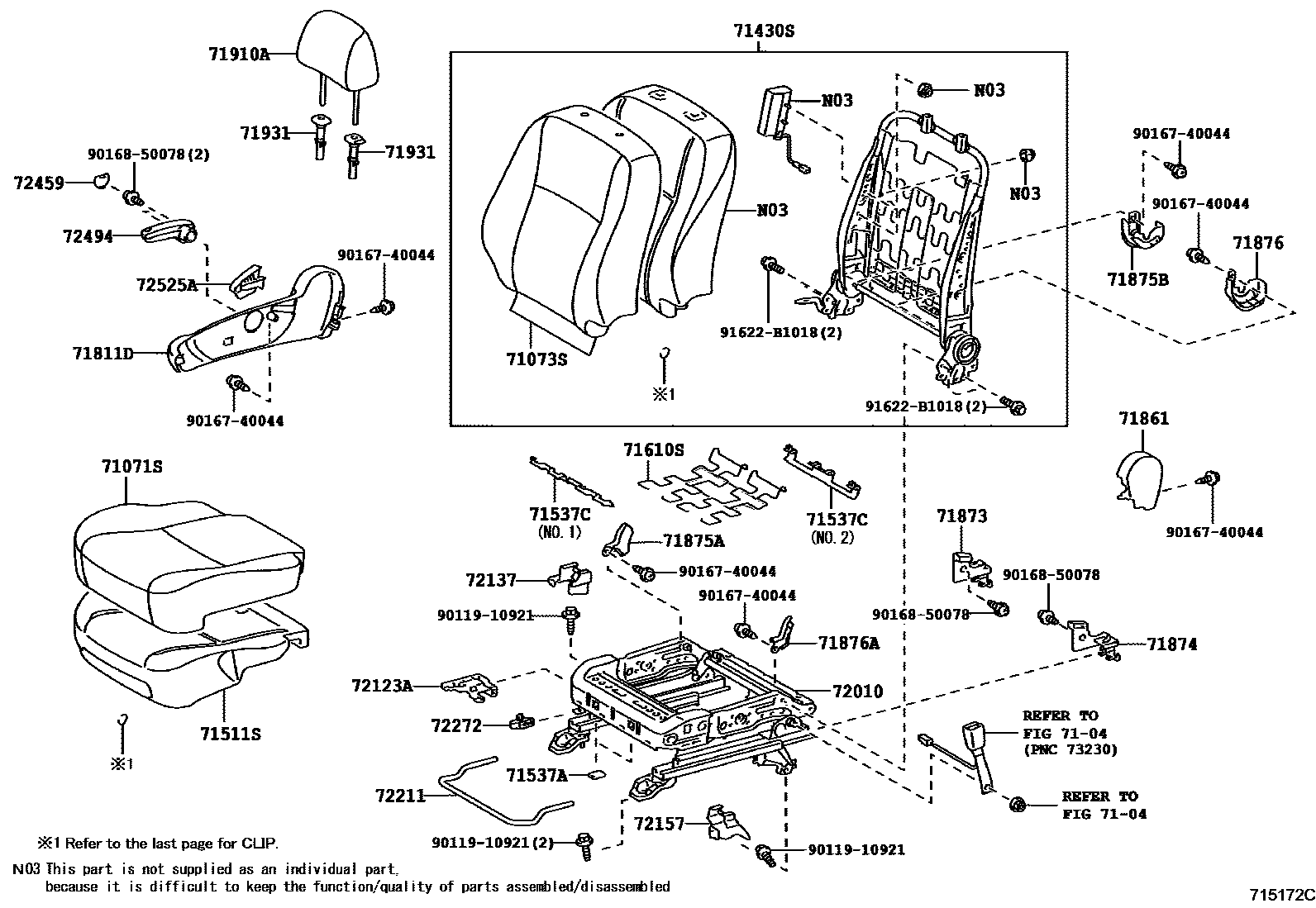

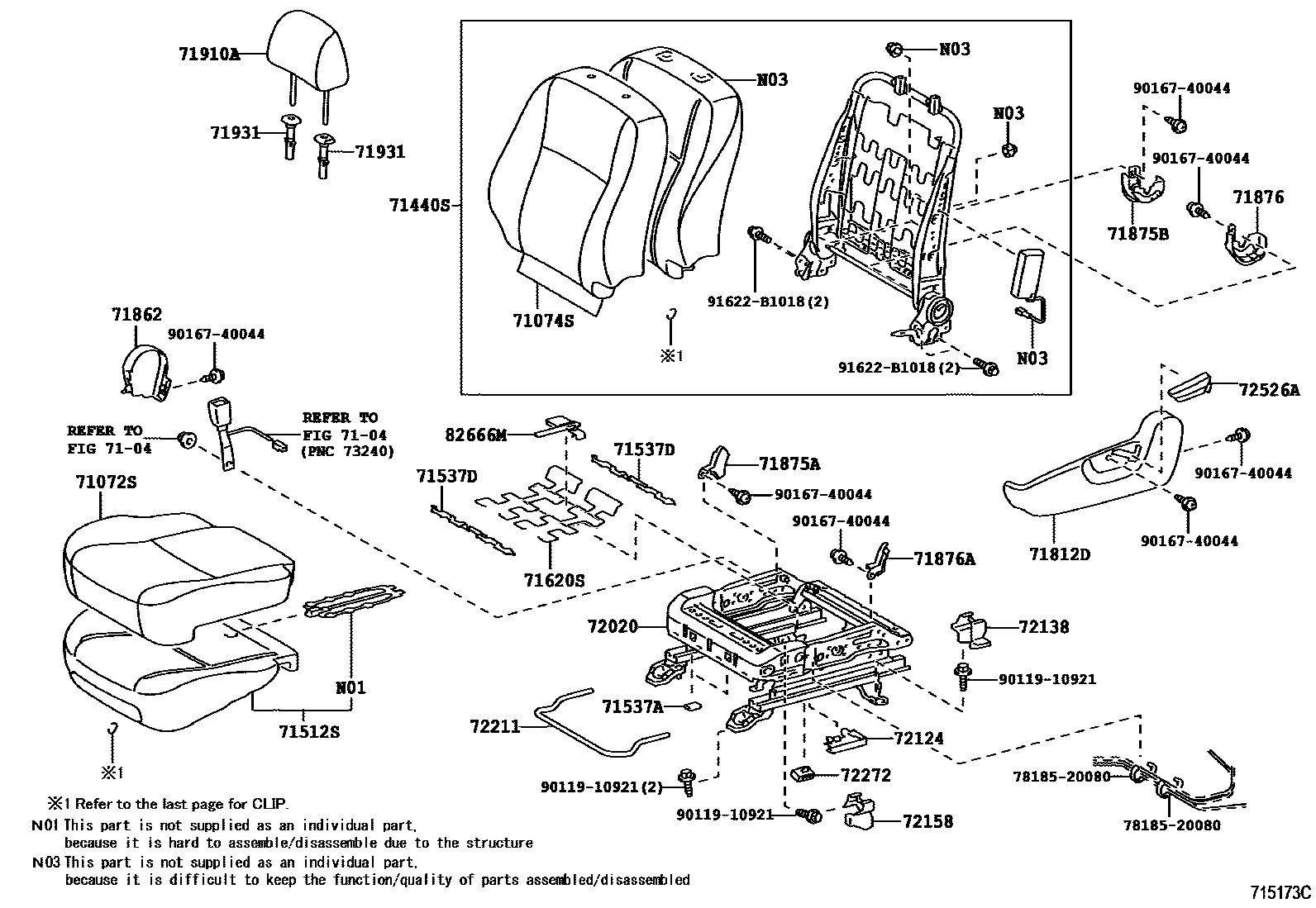

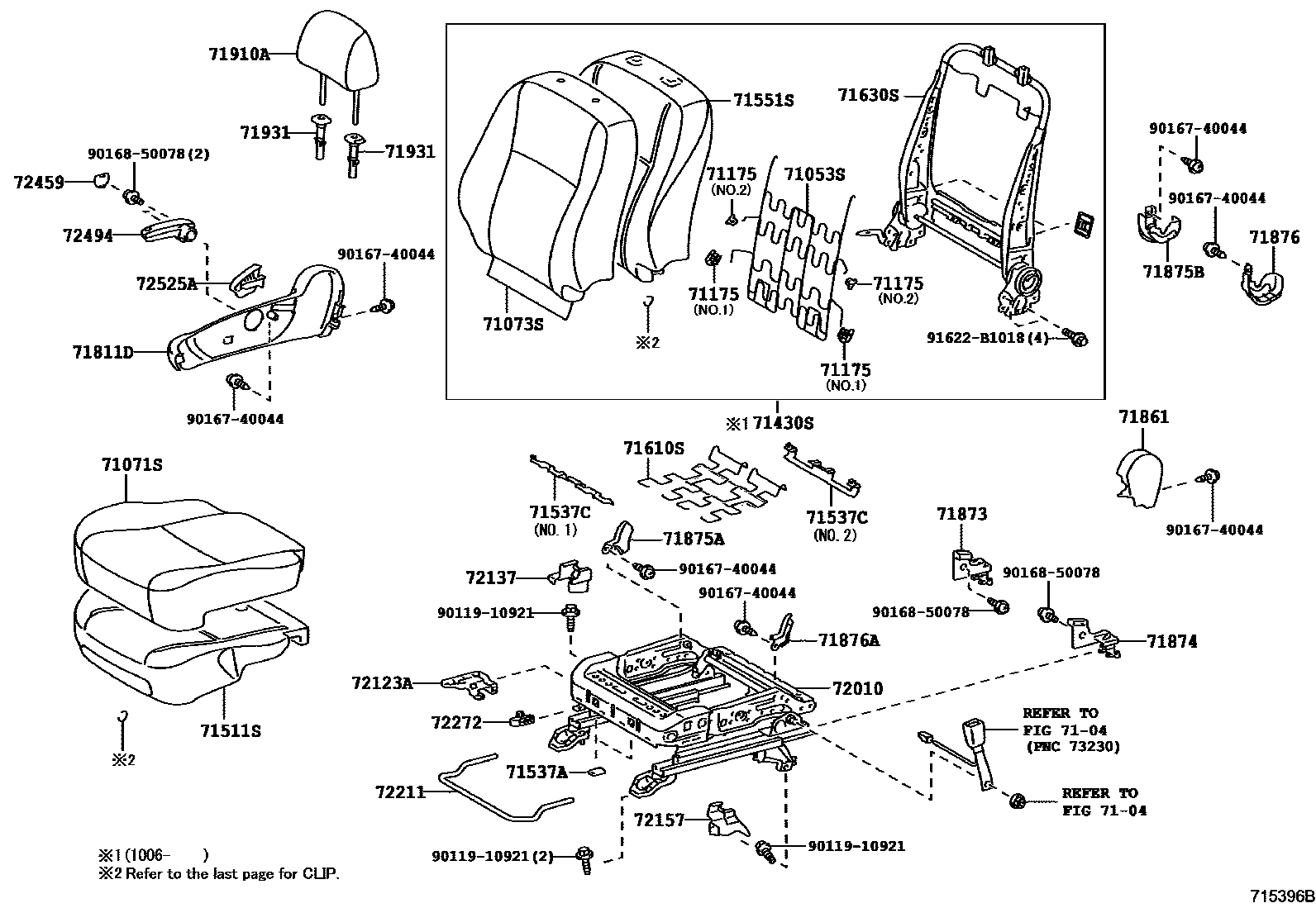

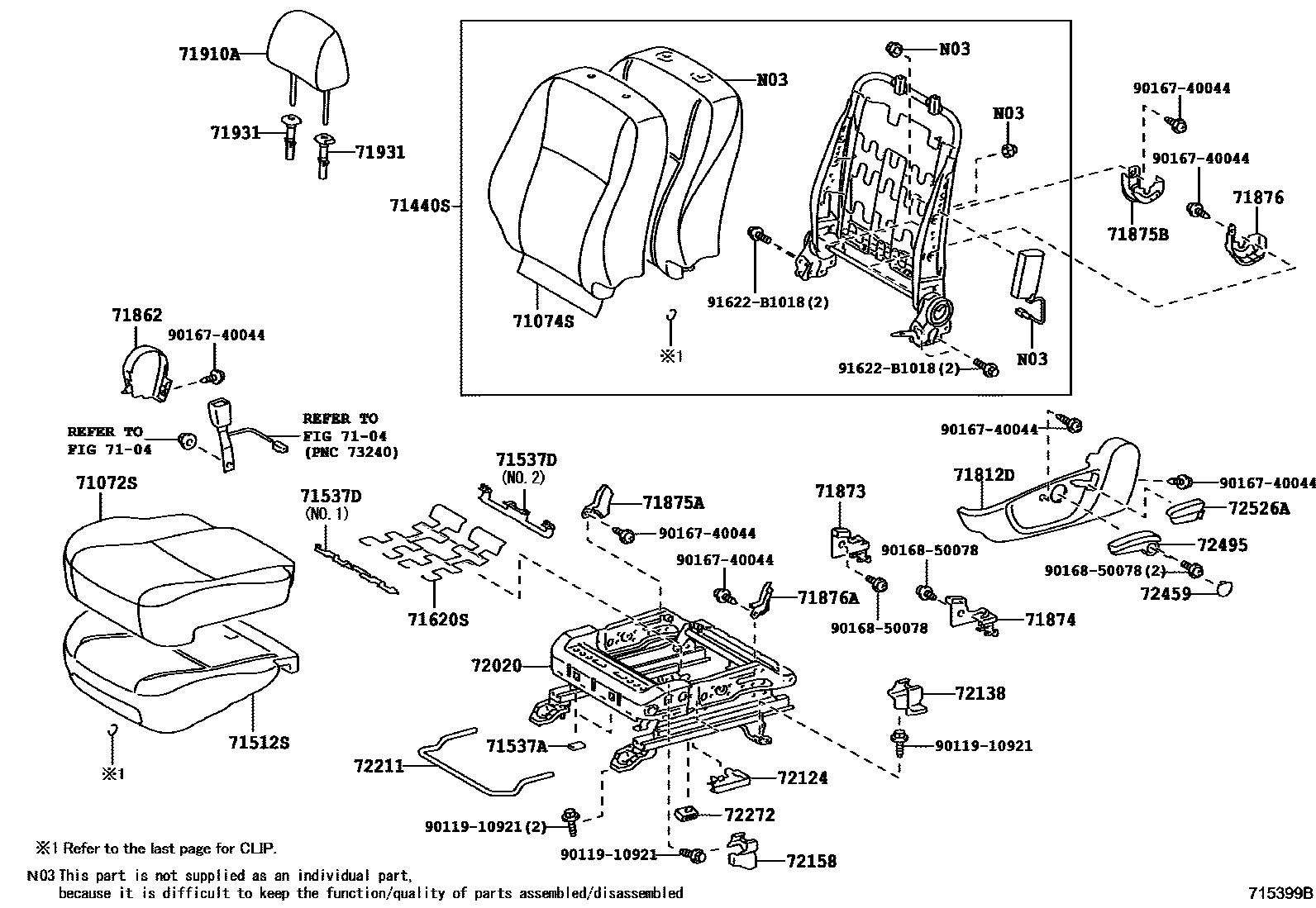

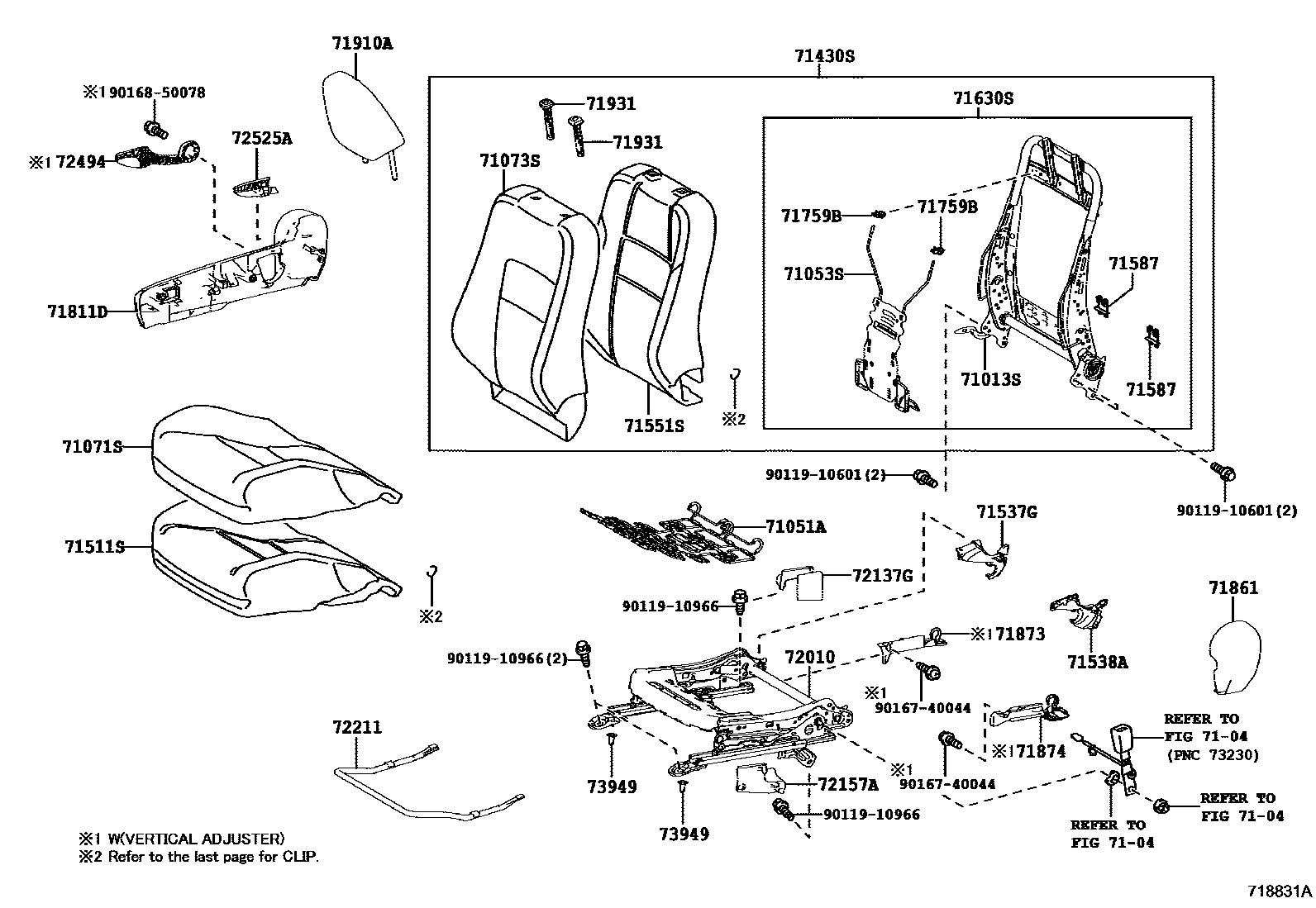

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 11 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-02180 · 71013-02181 |
| 71014S | Front left seat back frame sub-assembly | 71014-02110 · 71014-02111 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-02310 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-02310 |
| 71053S | Front right seat back spring sub-assembly | 71053-02110 · 71053-02190 |
| 71054S | Front left seat back spring sub-assembly | 71053-02110 · 71053-02190 |
| 71175 | Front seat back right inner spring fixing plate | 71173-06030 · 71173-58010 |
| 71176 | Front seat back left inner spring fixing plate | 71173-06030 · 71173-58010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-02150 · 71511-02420 · 71511-02730 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-02150 · 71512-02190 · 71512-02520 |
| 71537A | Front seat cushion protective cover | 71537-02020 |
| 71537C | Front right seat cushion edge protective cover | 71537-58010 · 71537-58020 |
| 71537D | Front left seat cushion edge protective cover | 71537-58010 · 71537-58020 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02470 · 71551-02A00 |
| 71552S | Front left seat back cushion (for split seats) | 71551-02A00 · 71552-02370 |
| 71587 | Front seat back edge protective cover | 71587-02030 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71051-02100 · 71051-02110 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71051-02100 · 71051-02110 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02360 · 71630-02670 · 71630-02671 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-02330 · 71640-02630 · 71640-02631 |
| 71759B | Front seat back hook | 71759-47010 · 71759-47011 |
| 71873 | Front right seat cushion lower guard panel | 71873-02060 · 71873-02150 |
| 71874 | Front left seat cushion lower guard | 71874-02060 · 71874-02140 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-02120 |
| 71876 | Left backrest tilt adjuster inner cover | 71876-02110 |
| 72010 | Front right seat adjuster assembly | 72010-02370 · 72010-02380 · 72010-02570 · 72010-02571 · 72010-02590 · 72010-02591 |
| 72020 | Front left seat adjuster assembly | 72020-02350 · 72020-02360 · 72020-02570 · 72020-02571 · 72020-02590 · 72020-02591 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-02020 |
| 72124 | Front left seat outer slide rail bracket cover | 72124-02020 |
| 72211 | Seat slide adjustment handle | 72211-02130 · 72211-06020 |
| 72272 | Seat rail control cable clip | 72272-02050 |
| 73949 | cover | 71848-02040 |
| 82666M | Connector holder | 82666-21060 |
