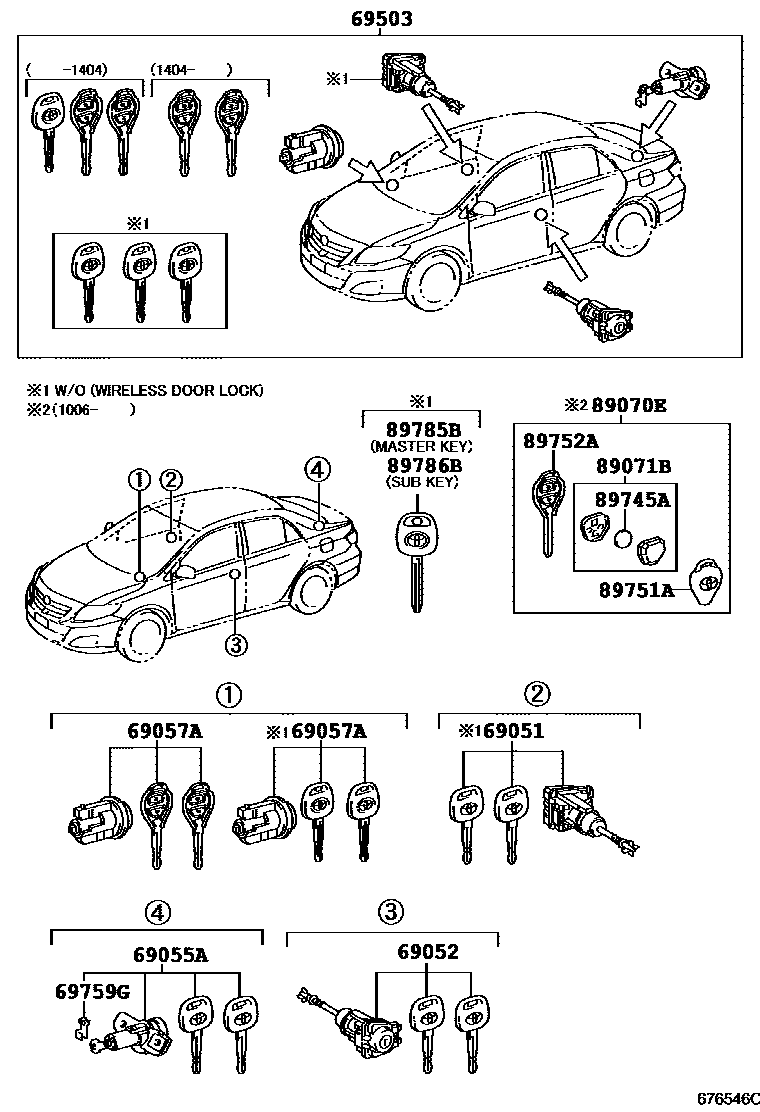

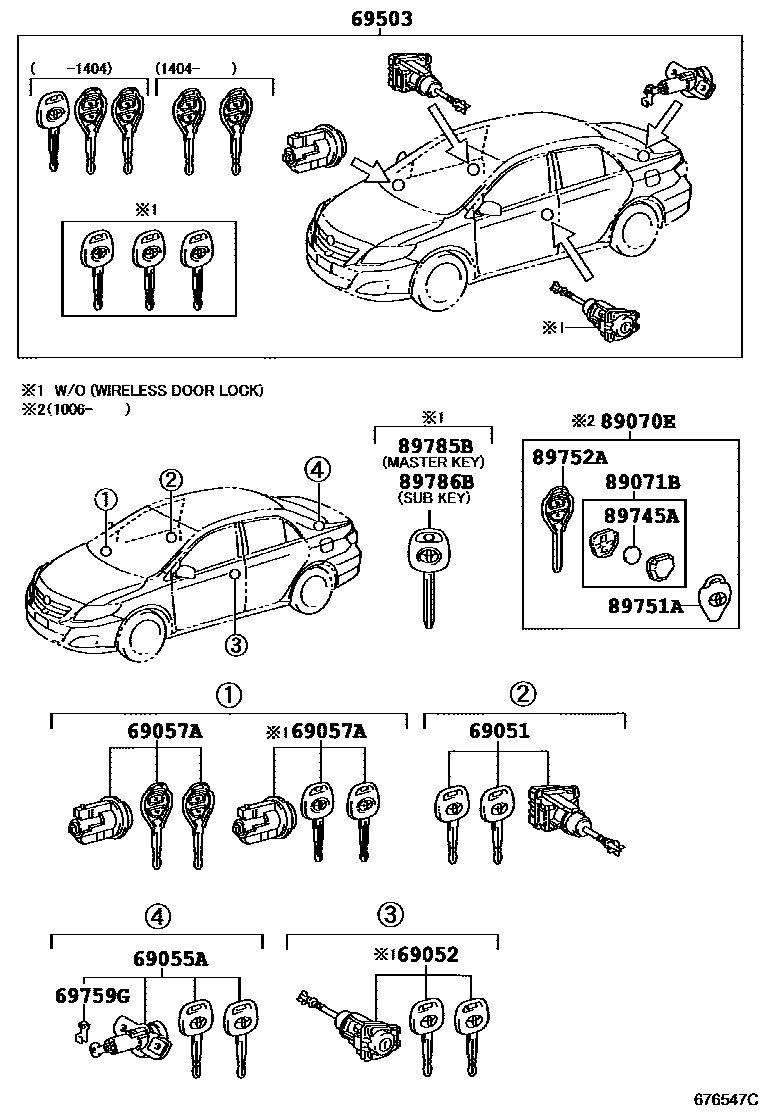

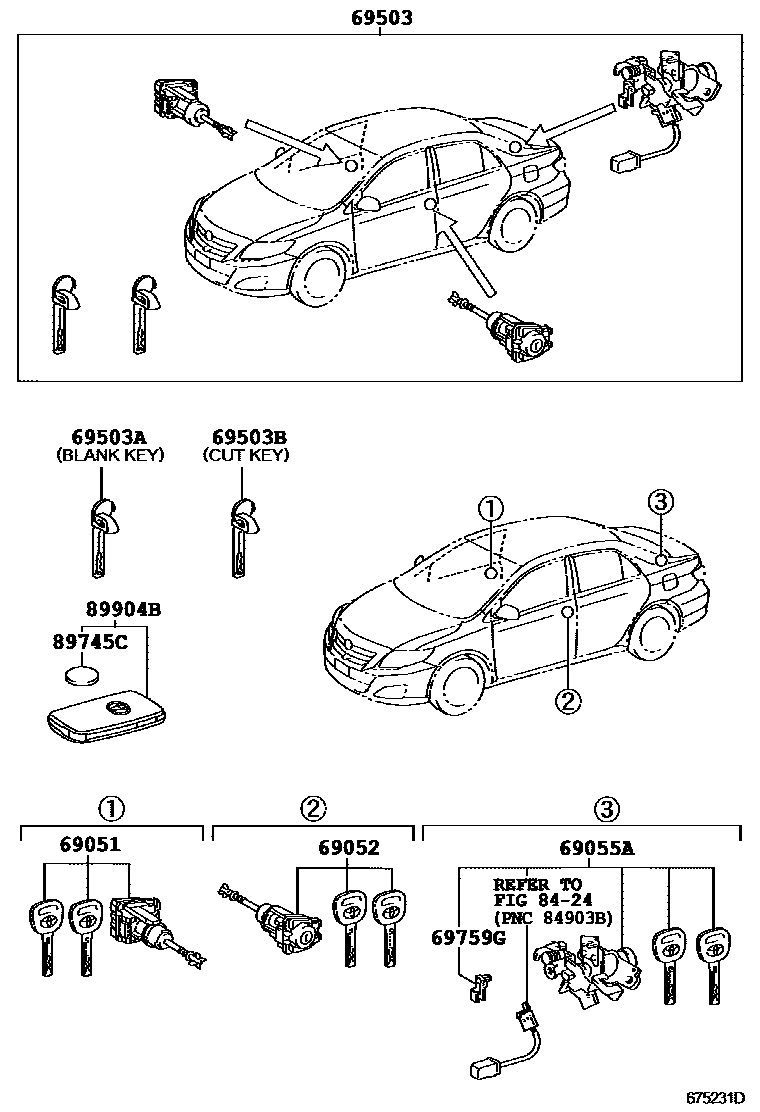

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-02120 · 69051-12680 |
| 69052 | Left door lock cylinder and key assembly | 69052-02120 · 69052-12630 |
| 69055A | Luggage lock cylinder and key assembly | 69055-02170 · 69055-12A30 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-02190 · 69057-02340 · 69057-02550 · 69057-02560 |
| 69503 | Door lock cylinder components | 69005-02200 · 69005-02220 · 69005-02230 · 69005-02630 · 69005-02640 · 69005-02650 · 69005-02F70 · 69005-02F80 · 69005-12C00 · 69005-12C50 |
| 69503A | external tooth key | 69515-52120 |
| 69503B | internal tooth key | 69515-52110 |
| 69759G | Trunk door lock core buckle | 69759-24080 |
| 89070E | Remote key assembly | 89070-02140 · 89070-02380 |
| 89071B | Remote key sub-assembly module assembly | 89071-02040 |
| 89745A | Transmitter battery | 89745-0H010 |
| 89745C | Transmitter battery | 89745-52030 |
| 89751A | Transmitter housing cover | 89751-02010 · 89751-05010 |
| 89752A | transmitter housing | 89752-02010 · 89752-02160 · 89752-02250 · 89752-0F010 · 89752-0F020 |
| 89785B | transceiver key master transmitter | 89785-02230 · 89785-02270 · 89785-0D020 · 89785-0D030 |
| 89786B | transceiver key secondary transmitter | 89786-02190 · 89786-02200 · 89786-05060 · 89786-05070 |
| 89904B | Electronic key transmitter sub-assembly | 89904-12041 · 89904-12042 · 89904-12230 |
