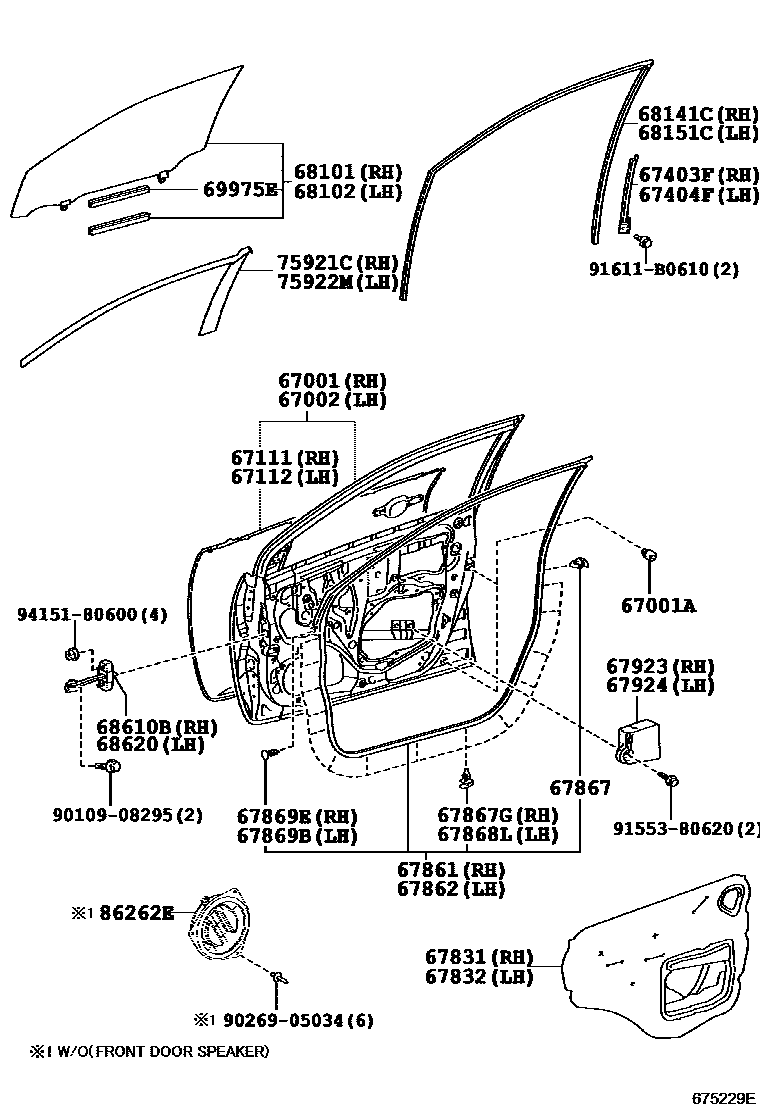

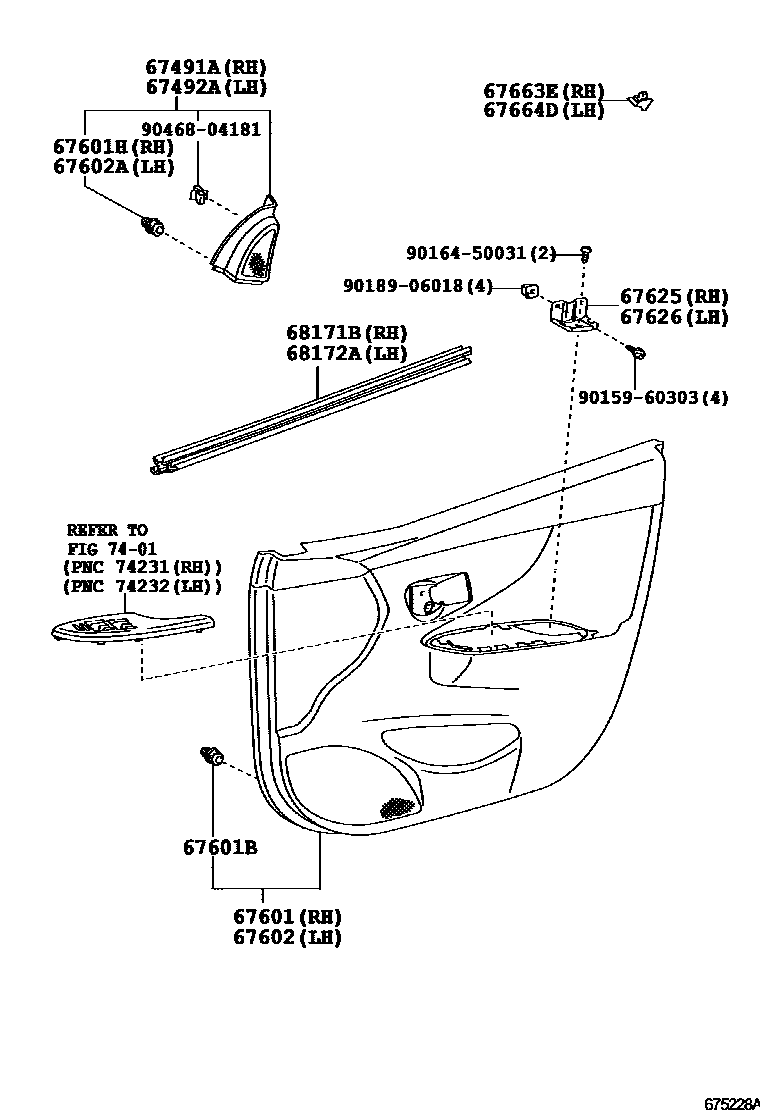

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-02280 |
| 67001A | Front door panel cushion | 90541-09124 · 90541-09143 |
| 67002 | Left front door panel sub-assembly | 67002-02280 |
| 67111 | Outer right front door panel | 67111-02150 |
| 67112 | Outer left front door panel | 67112-02150 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12260 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12250 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-02140 · 67491-02200 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-02140 · 67492-02200 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67601H | Right door trim panel fixing | 67771-12060 |
| 67602A | Left door trim panel fixing | 67771-12060 |
| 67625 | Right front door trim panel bracket | 67625-12180 · 67625-12210 |
| 67626 | Left front door trim panel bracket | 67625-12180 · 67625-12210 |
| 67663E | Right door frame decorative strip | 67663-48010 |
| 67664D | Left door frame decorative strip | 67664-48010 |
| 67831 | Right front door access hole cover | 67831-02210 |
| 67832 | Left front door access hole cover | 67832-02210 |
| 67861 | Right front door seal | 67861-02190 |
| 67862 | Left front door seal | 67862-02190 |
| 67867 | Car door seal strip clip | 90467-04034 |
| 67867G | Right door sealing strip fixing | 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-20030 |
| 67869E | Front door seal strip clip | 67869-20030 |
| 67923 | Front door No. 1 reinforcement cushion pad | 67923-12040 |
| 67924 | Front door No. 2 reinforcement cushion pad | 67924-12040 |
| 68101 | Right front door glass sub-assembly | 68101-02250 · 68101-02251 |
| 68102 | Left front door glass sub-assembly | 68102-02250 · 68102-02251 |
| 68141C | Right front door glass lift channel | 68141-02220 |
| 68151C | Left front door glass lift channel | 68151-02200 |
| 68171B | Right front door glass inner sealing strip | 68171-02150 |
| 68172A | Left front door glass inner sealing strip | 68172-02140 |
| 68610B | Right front door opening limiter assembly | 68610-02130 · 68610-02131 |
| 68620 | Left front door opening limiter assembly | 68610-02130 · 68610-02131 |
| 69975E | No. 1 front door glass groove filler | 69975-16020 |
| 75921C | No. 1 right side light-shielding film | 75921-02090 |
| 75922M | No. 1 left shading film | 75922-02090 |
| 86262E | front speaker cover | 86262-02010 |
