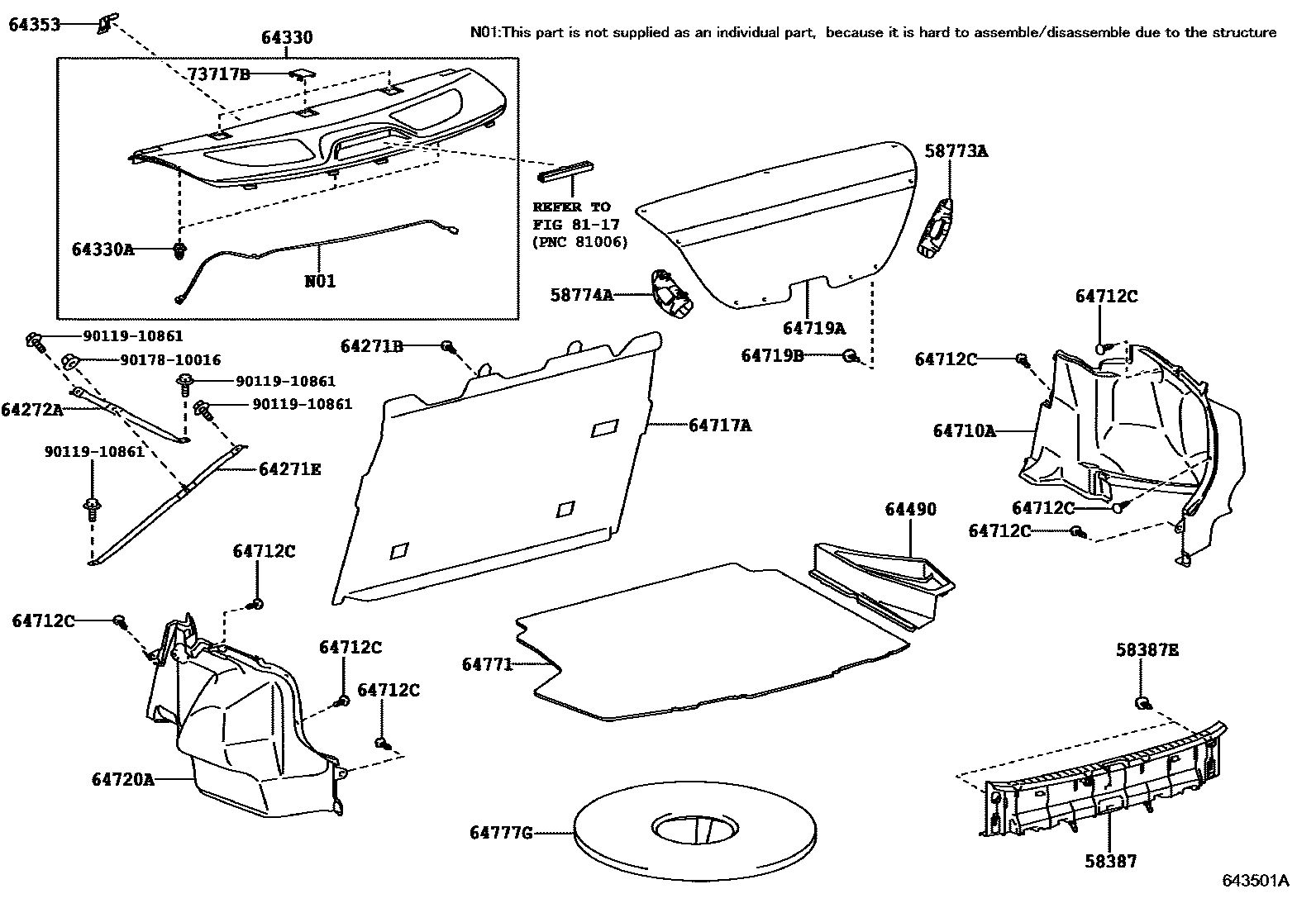

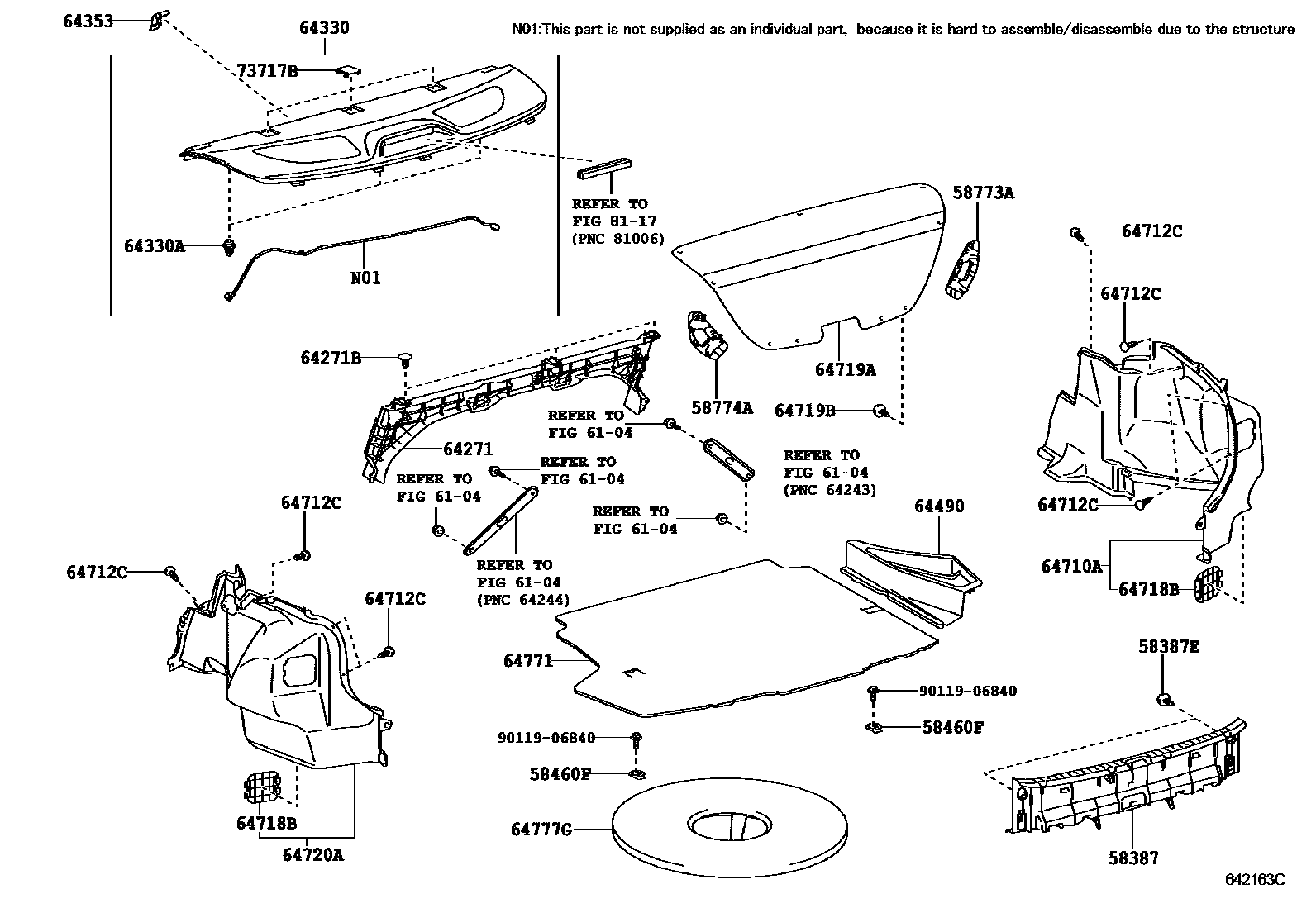

Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403
Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58387 | Rear floor decorative panel | 58387-02080 |
| 58460F | Luggage fixing belt lock assembly | 58460-13010 |
| 58773A | Decorative cover on right side of luggage compartment door | 58773-02090 |
| 58774A | Luggage door left decorative cover | 58774-02070 |
| 64271 | No. 1 compartment partition | 64271-02080 |
| 64271E | compartment partition | 64241-12070 |
| 64272A | Left compartment partition | 64242-12060 |
| 64330A | Clip (for glove box decorative panel) | 90467-10161 |
| 64490 | Luggage side bracket assembly | 64490-02010 |
| 64717A | Luggage front decorative cover | 64717-02280 |
| 64718B | Trunk trim access hole cover | 64718-02060 |
| 64777G | Spare tire cushion | 64777-02160 |
