Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

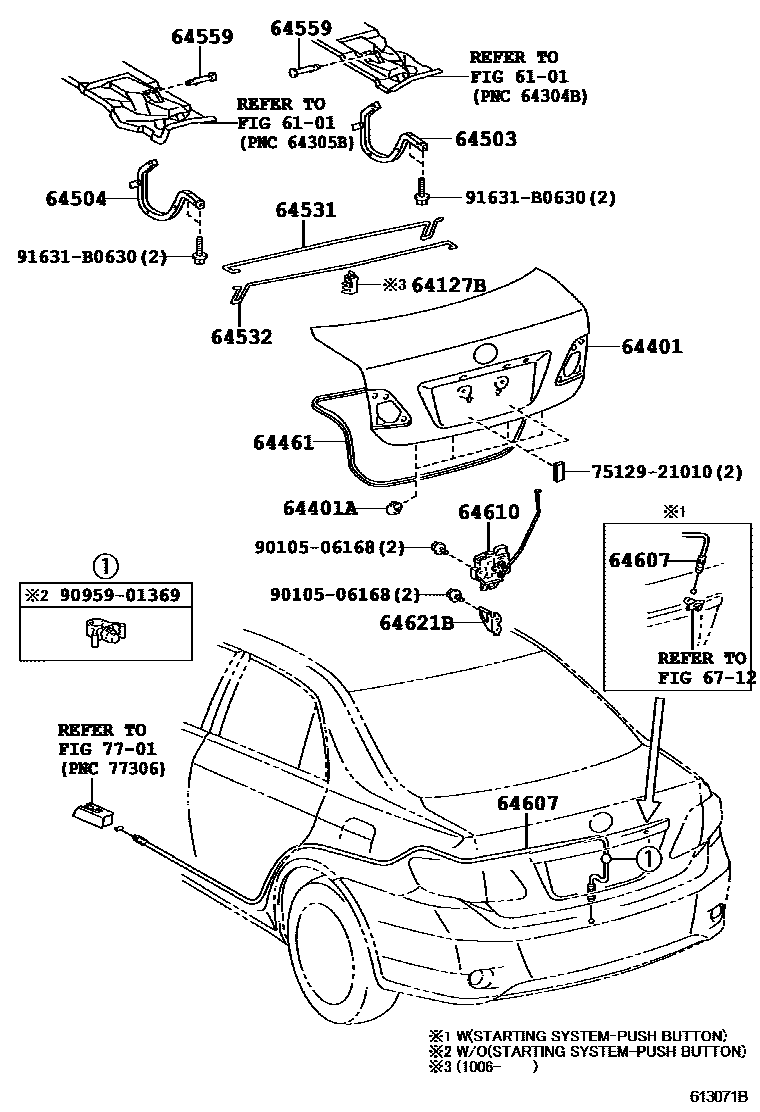

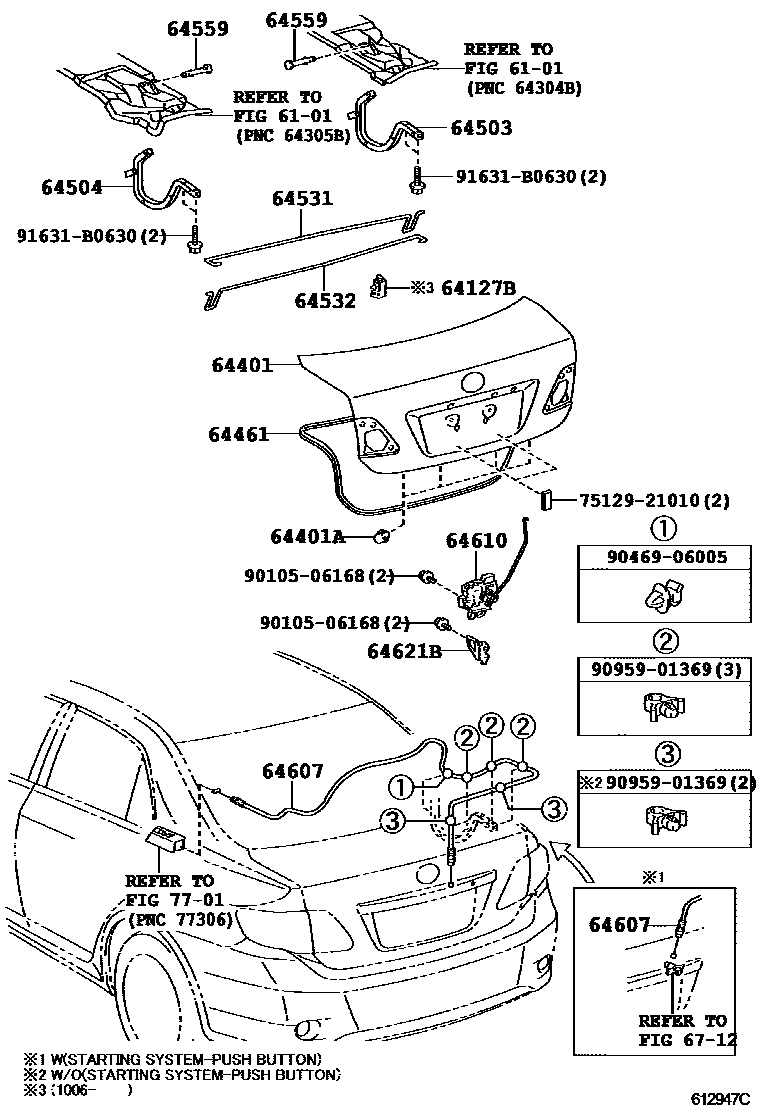

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33041 |
| 64401 | Trunk door panel sub-assembly | 64401-02230 · 64401-02290 · 64401-02530 · 64401-02540 · 64401-02700 · 64401-02710 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-09116 |
| 64461 | Trunk door seal | 64461-02110 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02090 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02090 |
| 64531 | Trunk door right hinge torsion bar | 64531-02170 · 64531-02171 · 64531-02172 |
| 64532 | Trunk door left hinge torsion bar | 64532-02160 · 64532-02161 · 64532-02162 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02150 · 64607-02160 · 64607-02161 · 64607-02170 · 64607-02180 · 64607-02181 · 64607-12A20 · 64607-12A30 · 64607-12A40 · 64607-12A50 |
| 64610 | Trunk door lock assembly | 64600-12040 · 64610-12440 |
| 64621B | Trunk door latch | 64621-12080 |
